This manual provides detailed instructions for the assembly, use, and maintenance of your COSTWAY Modern Coffee Table with Storage, Model 10633WH-CYVJ. This rectangular coffee table is designed to enhance your living space with both functionality and style, offering ample storage and a durable construction. It is suitable for various settings including living rooms, studies, or offices.
주요 특징
- 다목적 디자인: Functions as a coffee table, tea table, cocktail table, or sofa end table, adaptable to various room layouts.
- Amp파일 저장: Features a spacious 40" x 20" tabletop, two open shelves, and two large drawers with smooth sliders for organized storage of items like remote controls, magazines, and books.
- 내구성 있는 구조: Crafted from thick engineered wood with melamine veneer, ensuring durability and scratch resistance. The tabletop supports up to 200 lbs.
- 안정적인 지원: Equipped with five sturdy steel legs that provide strong stability and prevent wobbling.
- 모던한 미학: Clean lines, modern tones, and a white and brown color scheme allow it to blend seamlessly with diverse home decor styles.

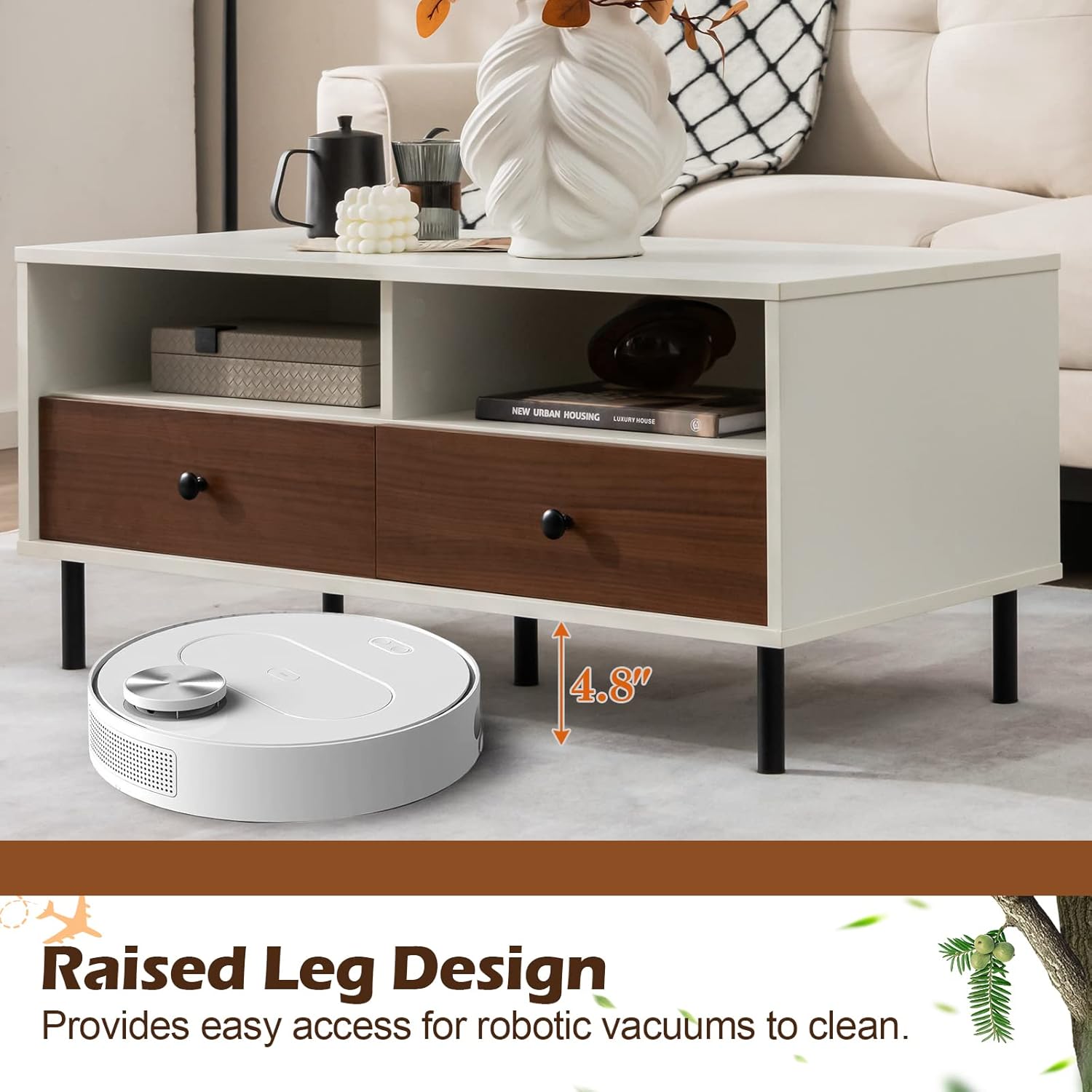

- 쉬운 유지관리: Smooth surfaces are easy to wipe clean. The 4.8" off-ground height allows for easy cleaning underneath, including robotic vacuums.
부품 목록
Before beginning assembly, please verify that all parts and hardware listed below are present. Refer to the assembly video for visual identification of each component.
Image: All components laid out for initial assembly.
나무 패널
- 1부: 상단 패널
- 2부: 하단 패널
- Part 3: Left Side Panel (Upper)
- Part 4: Right Side Panel (Upper)
- Part 5: Middle Divider (Upper)
- Part 6: Left Side Panel (Lower)
- Part 7: Right Side Panel (Lower)
- Part 8: Drawer Front (Left)
- Part 9: Drawer Front (Right)
- Part 10: Drawer Side Panels (x2)
- Part 11: Drawer Back Panels (x2)
- Part 12: Drawer Bottom Panels (x2)
- 13부: 후면 패널
- Part 14: Back Support Panel
하드웨어
- A: Cam Lock Screws (x36)
- B: Cam Locks (x36)
- C: Wooden Dowels (x20)
- E: Screws (x50)
- F: Knobs (x2)
- Y: Small Nails/Back Panel Fasteners (x6)
- Bj: Metal Legs (x5)
- R: Drawer Slides (x4 sets)
- Z: Adhesive Cover Caps (x36)
조립 설명서
Please follow these instructions carefully for proper and safe assembly of your coffee table. It is recommended to assemble the unit on a soft, clean surface to prevent scratches.
Video: Official assembly guide for the COSTWAY Modern Coffee Table with Storage, Model 10633WH-CYVJ. This video demonstrates each step of the assembly process.
Step 1: Prepare Panels and Attach Hardware
Begin by identifying all wooden panels and hardware components. Insert the cam lock screws (A) into the designated holes on panels 1, 2, 3, 4, 5, 6, 7, 8, 9, 10, 11, and 12. Ensure they are securely fastened. Attach the knobs (F) to the drawer front panels (8 and 9).
Image: All components laid out for initial assembly.
2단계: 서랍 레일 설치
Separate the drawer slides (R) into two parts (R1 and R2). Attach the R2 parts of the drawer slides to the side panels (3, 4, 6, 7) using screws (E). Repeat this process for all four R2 parts. Then, attach the R1 parts of the drawer slides to the drawer side panels (10, 11) using screws (E). Ensure correct orientation for smooth operation.
Image: Attaching drawer slides to a panel.
3단계: 메인 프레임 조립
Connect the upper side panels (3 and 4) and lower side panels (6 and 7) to the middle divider (5) and bottom panel (1) using wooden dowels (C) and cam locks (B). Ensure all connections are tight and secure. Insert the back support panel (14) into the grooves of the assembled frame.
Image: Assembling the main frame of the coffee table.
4단계: 다리 부착
Carefully flip the assembled frame upside down. Attach the five metal legs (Bj) to the bottom of the coffee table using screws (E). Ensure all legs are firmly secured and aligned.
Image: Attaching the metal legs to the coffee table.
5단계: 후면 패널 고정
With the table right-side up, secure the back panel (13) to the rear of the frame using small nails or fasteners (Y). Ensure the panel is flush with the edges of the frame.
Image: Securing the back panel.
6단계: 서랍 조립 및 삽입
Assemble the drawer boxes using the drawer side panels (10), drawer back panels (11), and drawer bottom panels (12). Secure these with cam locks (B) and wooden dowels (C). Attach the drawer front panels (8 and 9) with the pre-installed knobs (F) to the assembled drawer boxes. Carefully slide the completed drawers into the installed drawer slides on the main frame. Test for smooth operation.
Image: Completed coffee table with drawers inserted.
마지막 손질
Apply the adhesive cover caps (Z) over any visible cam lock holes for a clean finish. Ensure all connections are tight and the table is stable before use.
작동 지침
Your COSTWAY Modern Coffee Table is designed for general household use and requires no complex operation. Follow these simple guidelines for optimal use:
- 놓기: Position the coffee table on a flat, stable surface to prevent wobbling.
- 저장: Utilize the two open shelves for easy access to frequently used items such as books, magazines, or decorative objects. The two drawers provide concealed storage for personal items, remote controls, or other small accessories.
- 중량 용량: Adhere to the specified weight capacities for the tabletop (200 lbs), each shelf (33 lbs), and each drawer (16.5 lbs) to ensure stability and prevent damage.
- 일반적인 사용: The spacious tabletop is suitable for holding beverages, snacks, laptops, or displaying decor.
유지
Proper care and maintenance will help preserve the appearance and extend the lifespan of your coffee table.
- 청소: 부드러운 d로 표면을 닦으십시오.amp 천을 사용하십시오. 연마성 세제, 강한 화학 물질 또는 용제는 마감재를 손상시킬 수 있으므로 사용하지 마십시오.
- 유출: 얼룩이나 물 피해를 방지하려면 유출된 액체를 즉시 닦아내세요.
- 열 및 습기 보호: Always use coasters under hot or cold beverages and placemats under hot dishes to protect the tabletop from heat rings and moisture damage.
- 햇빛 노출: Avoid placing the table in direct sunlight for prolonged periods, as this can cause fading or warping of the wood.
- 안정성 확인: Periodically inspect all screws and fasteners. Tighten them as needed to ensure the table remains stable and secure.
- 서랍 관리: 서랍 레일을 깨끗하게 유지하고 이물질이 없도록 하여 원활한 작동을 보장하십시오.
문제 해결
커피 테이블에 문제가 발생하면 다음의 일반적인 문제 및 해결 방법을 참조하십시오.
- Issue: The table feels wobbly or unstable.
- 해결책: Check all leg attachments and frame connections. Ensure all cam locks and screws are fully tightened. Verify that the table is placed on a flat, even surface. If necessary, adjust the position or use furniture levelers.
- Issue: Drawers do not slide smoothly or get stuck.
- 해결책: Ensure the drawer slides (R) are correctly installed and aligned on both the drawer box and the main frame. Check for any obstructions or debris in the tracks. Lubricate the slides with a silicone-based lubricant if needed.
- Issue: Minor scratches or blemishes on the surface.
- 해결책: For minor scratches, a wood repair kit or furniture marker that matches the table's finish can be used to conceal the damage. For deeper damage, professional repair may be required.
제품 사양
| 특징 | 세부 사항 |
|---|---|
| 상표 | 코스트 웨이 |
| 모델 번호 | 10633WH-CYVJ |
| 전체 치수(길이 x 너비 x 높이) | 40인치 x 20인치 x 18인치(100 x 50 x 45cm) |
| 품목 무게 | 62.5 파운드 |
| 프레임 소재 | 엔지니어링 목재, 금속 |
| 상단 재료 유형 | Engineered Wood, Veneer |
| 색상 | 화이트 + 브라운 |
| 서랍 수 | 2 |
| 선반 수 | 2 |
| 테이블 상판의 하중 지지력 | 200파운드(90kg) |
| Weight Capacity of Each Shelf | 33파운드(15kg) |
| 각 서랍의 하중 용량 | 16.5파운드(7.5kg) |
| Off-ground Height | 4.8인치(12cm) |
| 제품 관리 지침 | D로 닦기amp 옷감 |
보증 및 지원
This product comes with a standard manufacturer's warranty. For specific warranty details, including coverage and duration, please refer to the documentation included in your product packaging. Keep your proof of purchase for warranty claims.
For assistance with assembly, missing parts, product inquiries, or any other support needs, please visit the official COSTWAY web사이트 또는 고객 서비스 부서에 문의하세요. 연락처 정보는 일반적으로 제품 포장이나 브랜드 공식 웹사이트에서 확인할 수 있습니다. web대지.
