소개
This manual provides detailed instructions for the setup, operation, and maintenance of your Mebus 25800 Radio-Controlled Alarm Clock. Please read this manual thoroughly before using the device to ensure proper function and longevity.
The Mebus 25800 is a compact, radio-controlled alarm clock featuring a clear digital display, two independent alarm times, a snooze function, indoor temperature display, and display lighting. Its radio-controlled time synchronization (DCF77) ensures accurate timekeeping.
설정
1. 배터리 설치
The Mebus 25800 requires 2x AAA batteries (not included). To install:
- 시계 뒷면에 있는 배터리실 덮개를 엽니다.
- AAA 배터리 두 개를 올바른 극성(+ 및 -)에 맞춰 삽입합니다.
- 배터리 덮개를 단단히 닫으세요.
Upon battery insertion, the clock will automatically begin searching for the DCF77 radio signal.
2. Initial Time Synchronization (Radio Control - DCF77)
The clock is designed to automatically receive the DCF77 radio signal for precise time synchronization. This process typically takes a few minutes after battery installation. Ensure the clock is placed away from electronic devices that may cause interference.
Image: The clock automatically synchronizes with the DCF77 radio signal, ensuring accurate time, including automatic adjustment for summer and winter time.
3. 시간대 선택
If you are outside the Central European Time (CET) zone, you can adjust the time zone offset. Refer to the 'Operating' section for detailed instructions on setting the time zone.
운영

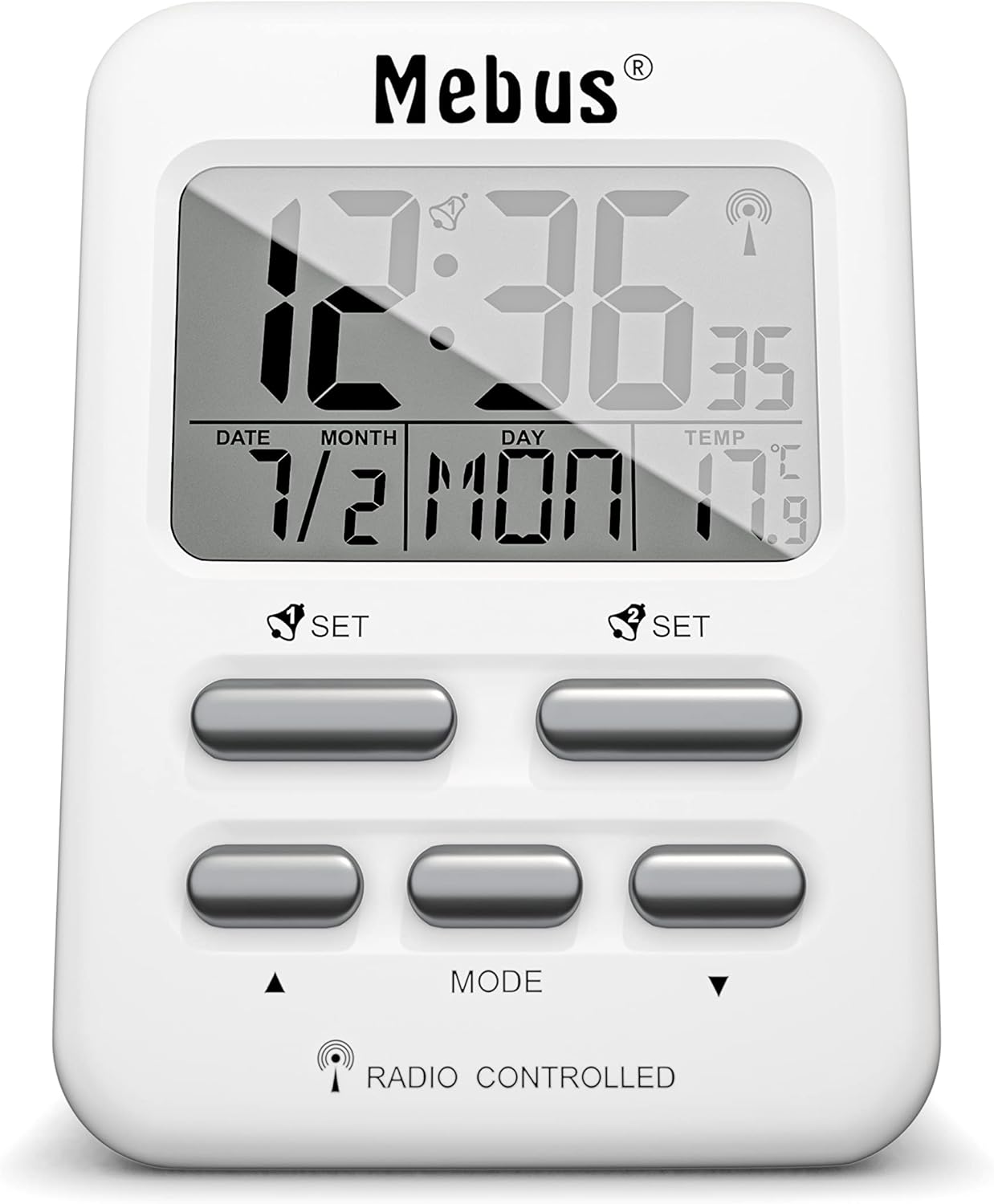

이미지: 앞면 view of the Mebus 25800 clock, highlighting the display and control buttons.
1. 수동으로 시간 설정
In areas where the DCF77 signal cannot be received, the time can be set manually:
- Press and hold the 'MODE' button until the time display flashes.
- Use the '▲' (Up) and '▼' (Down) buttons to adjust the hours.
- Press 'MODE' again to switch to minutes, then adjust with '▲' and '▼'.
- Continue pressing 'MODE' to cycle through other settings like 12/24 hour format, year, month, date, and language for day of the week.
- Press 'MODE' one last time or wait a few seconds for the settings to save.
2. 알람 설정
The clock features two independent alarm times (Alarm 1 and Alarm 2).
Image: The clock offers two separate adjustable alarm times with a snooze function.
- Press the 'SET' button associated with Alarm 1 (left side) or Alarm 2 (right side) to view 현재 알람 시간.
- Press and hold the respective 'SET' button until the alarm time flashes.
- Use the '▲' and '▼' buttons to adjust the alarm hour.
- Press 'SET' again to adjust the alarm minutes.
- Press 'SET' one last time or wait for the setting to save.
- To activate/deactivate an alarm, press the 'SET' button briefly. An alarm icon will appear/disappear on the display.
3. Snooze Function (Repeat Alarm)
When an alarm sounds, press the 'SNOOZE/LIGHT' button (top button) to temporarily silence the alarm. The alarm will sound again after approximately 5 minutes.
4. 온도 표시
The clock displays the indoor temperature. You can switch between Celsius (°C) and Fahrenheit (°F) by pressing the '▲' button during normal time display mode.
5. Display Lighting
Press the 'SNOOZE/LIGHT' button (top button) to activate the display backlight. The light will illuminate for approximately 5 seconds, providing clear readability in low-light conditions without glare.
Image: The display features a gentle blue backlight, activated by pressing the top button, for easy reading at night.
6. Date and Day Display
The integrated calendar displays the current date (month/day) and the day of the week (abbreviated). You can select from 7 languages for the day of the week display during manual time setting.
Image: Additional practical functions include indoor temperature display, repeat alarm, date/calendar, summer time indicator, low battery indicator, and blue display lighting.
유지
1. 청소
To clean the clock, use a soft, dry cloth. Do not use abrasive cleaners or solvents, as these may damage the casing 또는 디스플레이.
2. 배터리 교체
When the low battery indicator appears on the display, replace the batteries promptly to ensure continued operation and accurate timekeeping. Follow the battery installation steps outlined in the 'Setup' section.
문제 해결
- Clock not receiving radio signal:
Ensure the clock is placed away from potential interference sources (e.g., TVs, computers, metal objects). Try moving the clock to a different location, preferably near a window. Manual time setting is an alternative if the signal remains weak. - 디스플레이가 어둡거나 비어 있음:
배터리를 확인하세요. 배터리가 부족하거나 방전된 경우 교체하세요. - 알람이 울리지 않습니다:
Verify that the alarm is activated (alarm icon visible on display). Check battery level. - 잘못된 온도 측정:
Ensure the clock is not placed in direct sunlight or near heat sources/vents, which can affect the internal temperature sensor.
명세서
Image: The Mebus 25800 measures 7x9.7 cm, weighs 105g, and requires 2x AAA batteries.
| 특징 | 세부 사항 |
|---|---|
| 모델 번호 | 25800 |
| 치수(폭 x 높이 x 깊이) | 6.9 x 9.7 x 3.81cm |
| 품목 무게 | 105그램 |
| 전원 | AAA 배터리 2개(포함되지 않음) |
| 디스플레이 유형 | 디지털 |
| 특별 기능 | Radio-Controlled (DCF77), Two Alarms, Snooze, Temperature Display (°C/°F), Illuminated Display, Date, Day of Week |
| 재료 | 플라스틱 |
| 색상 | 하얀색 |
보증 및 지원
For warranty information or technical support, please refer to the documentation provided with your purchase or contact Mebus customer service directly. Keep your proof of purchase for any warranty claims.
