1. 제품 오버view
The Lexar Professional CFexpress Type A / SD USB 3.2 Gen 2 Reader is designed to facilitate high-speed data transfer from CFexpress Type A and SD UHS-II memory cards to your computer. It supports USB 10Gbps (USB 3.2 Gen 2) transfer rates, optimizing workflow for content creators handling high-resolution photos and video content.

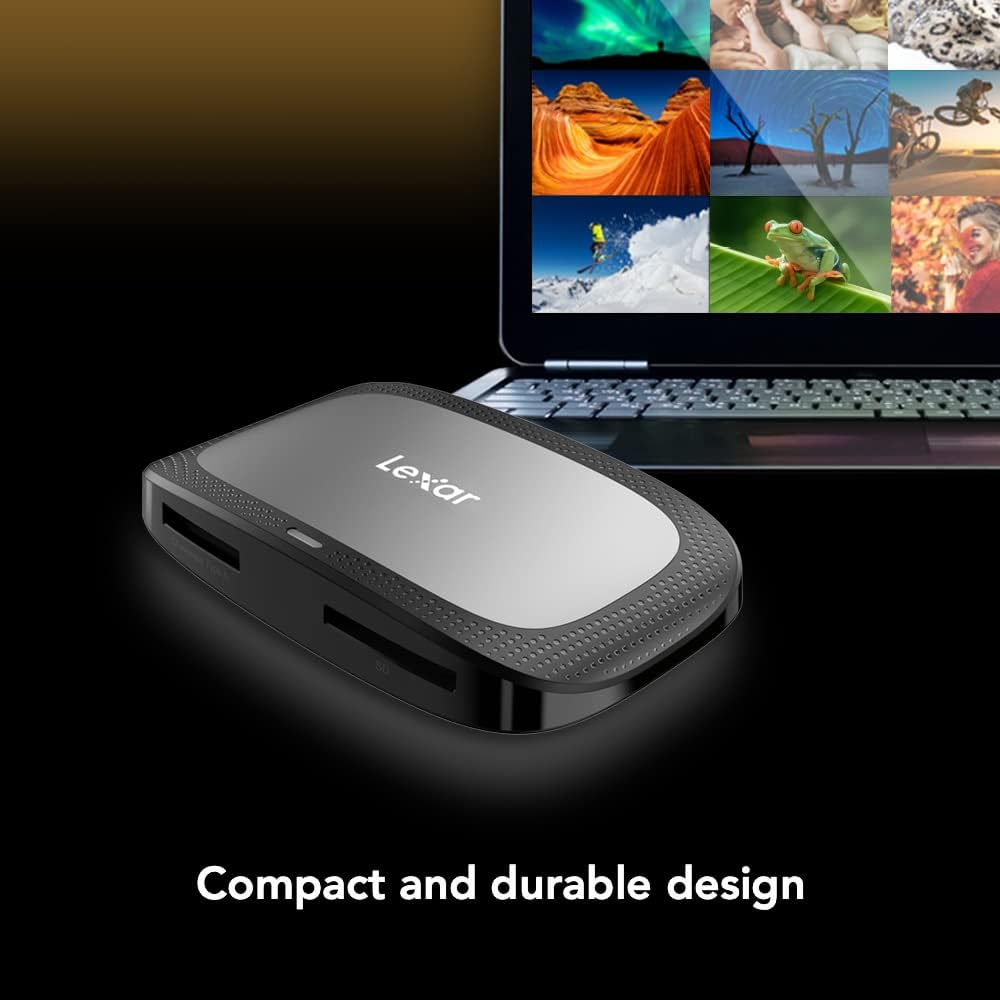

Image 1: Lexar Professional CFexpress Type A / SD USB 3.2 Gen 2 Reader. This image displays the compact design of the card reader, highlighting its dual-slot capability for both CFexpress Type A and SD cards.
2. 패키지 내용
- Lexar Professional CFexpress Type A / SD USB 3.2 Gen 2 Reader
- 2-in-1 USB Type-C to Type-A cable
- USB Type-C to Type-C 케이블
3. 설정 및 연결
Follow these steps to connect your card reader and begin data transfer:
- Connect the Reader to Your Computer: Use the provided USB Type-C to Type-A cable or USB Type-C to Type-C cable to connect the reader to an available USB port on your computer. Ensure your computer's USB port supports USB 3.2 Gen 2 for optimal performance.
- 메모리 카드 삽입:
- 을 위한 CF익스프레스 타입 A cards, gently insert the card into the designated CFexpress Type A slot until it clicks into place.
- 을 위한 SD UHS-II cards, gently insert the card into the designated SD slot until it clicks into place.
- 연결 확인: A small LED indicator on the reader will illuminate when properly connected and a card is inserted, indicating readiness for data transfer.
Image 2: The card reader connected to a laptop via its USB-C cable, demonstrating its integration into a digital workflow.
4. 운영
The Lexar Professional CFexpress Type A / SD USB 3.2 Gen 2 Reader supports simultaneous high-speed transfers from both CFexpress Type A and SD UHS-II cards.
- 데이터 전송: Once connected and cards are inserted, your computer will recognize the cards as removable storage devices. You can then drag and drop files, or use your preferred file 데이터 전송용 관리 소프트웨어.
- 고속 성능: Expect CFexpress Type A memory card transfer speeds up to 900MB/s and UHS-II SD memory card transfer speeds up to 312MB/s, depending on your card's capabilities and system configuration.
- 동시 접속: The dual-slot design allows for reading and writing to both card types concurrently, enhancing efficiency.
이미지 3: 클로즈업 view of the card reader with a CFexpress Type A card and an SD card partially inserted, illustrating the dual-slot functionality.
5. 호환성
The reader is compatible with various operating systems:
- 맥 OS 10.8 이상
- Windows 11/10/8/7/Vista/XP
- Requires a USB 2.0+ port (USB 3.2 Gen 2 recommended for full speed)
6. 유지관리 및 관리
To ensure the longevity and optimal performance of your Lexar card reader:
- 조심스럽게 다루십시오: Avoid dropping the reader or subjecting it to excessive force.
- 깨끗하게 유지하십시오: 부드럽고 마른 천을 사용하여 외부를 닦으세요. 액체 세척제나 용제는 사용하지 마세요.
- Protect Slots: Keep the card slots free from dust and debris. Avoid inserting foreign objects.
- 안전한 제거: Always safely eject the card reader from your computer's operating system before physically disconnecting it to prevent data corruption.
Image 4: The compact and durable design of the card reader, emphasizing its portability and robust build.
7. 문제 해결
- 인식되지 않는 장치: If the reader is not recognized by your computer, ensure you are using the included high-speed USB cable. Older or standard USB cables may not support the required data transfer rates or power delivery, preventing the device from being detected. Try a different USB port or cable.
- 느린 전송 속도: Verify that your computer's USB port supports USB 3.2 Gen 2. If connected to a slower USB port (e.g., USB 2.0), transfer speeds will be limited. Also, ensure your memory cards are high-speed CFexpress Type A or SD UHS-II cards.
- 데이터 손상: Always safely eject the memory cards and the reader from your operating system before physical removal. Abrupt disconnection can lead to data corruption.
- 휘어진 핀: Exercise caution when inserting CFexpress cards. Bent pins can occur if cards are not inserted correctly. Always align the card properly before pushing it into the slot.
8. 사양
| 특징 | 세부 사항 |
|---|---|
| 상표 | 렉사 |
| 시리즈 | Professional CFexpress Type A / SD USB 3.2 Gen 2 Reader |
| 모델 번호 | LRW530U-RNBNG |
| 미디어 유형 | CFexpress Type A, SD UHS-II |
| 연결 기술 | USB Type C (USB 3.2 Gen 2) |
| CFexpress Type A Transfer Speed | 최대 900MB/s (읽기) |
| SD UHS-II Transfer Speed | 최대 312MB/s (읽기) |
| 운영 체제 호환성 | Mac OS 10.8+, Windows 11/10/8/7/Vista/XP |
| 품목 무게 | 2.72 온스 |
| 제품 치수 | 11.34 x 5.91 x 4.53 인치 |
| 색상 | 검은색 |
9. 보증 정보
The Lexar Professional CFexpress Type A / SD USB 3.2 Gen 2 Reader comes with a 2년 제한 보증. For detailed warranty terms and conditions, please refer to the official Lexar website or contact Lexar customer support.
10. 지원
For further assistance, technical support, or to download the latest drivers, please visit the official Lexar support web사이트에서 FAQ와 추가 자료를 찾아보실 수도 있습니다.
