Walimex Pro Streaming Frame Multifunctional Holder

소개

The Walimex Pro Streaming Frame is a versatile and lightweight multifunctional holder designed to consolidate multiple photography and videography accessories onto a single mounting solution. It eliminates the need for numerous tripods by providing various connection points for cameras, microphones, LED lights, flash units, and smartphone holders. With a robust load capacity of up to 3 kg, this frame facilitates the creation of compact and mobile photo or video studios, suitable for both professional and hobbyist applications.

상자 안에 무엇이 들어있나요?

수령 시 패키지 내용물을 확인하여 모든 품목이 들어 있는지 확인하세요.

• 1 x Walimex Pro Streaming Frame (Multifunctional Holder)
• 3 x 1/4 inch Screws

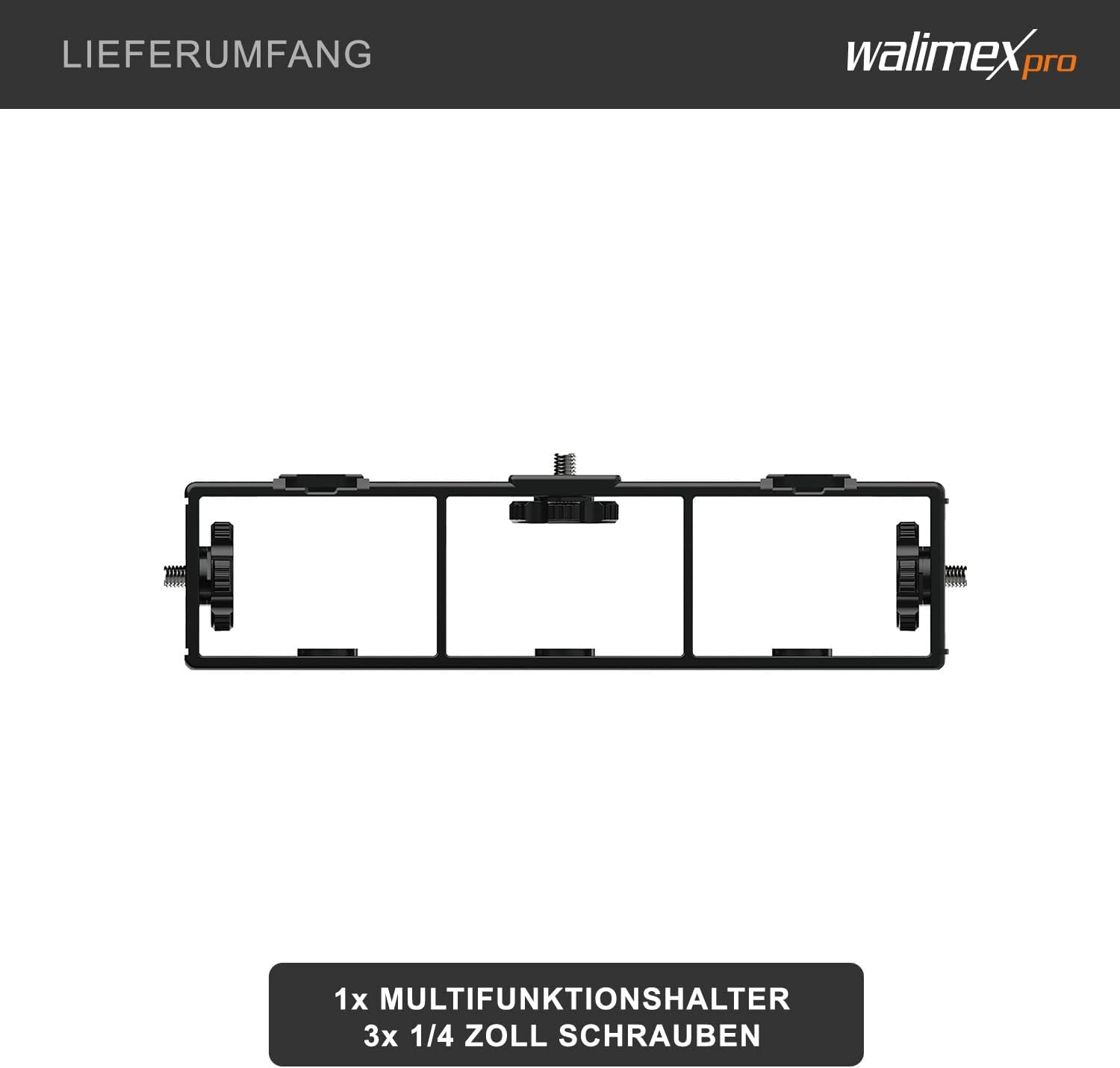

Image: The Walimex Pro Streaming Frame and its included 1/4 inch screws.

제품 특징

• 다기능 마운팅: Allows attachment of various photography and videography equipment to a single frame, supporting up to 7 individual accessories simultaneously.
• 높은 호환성: Equipped with two hot shoe connectors, three 1/4 inch threads, and three matching 1/4 inch screws. Universally compatible with smartphone holders, compact cameras, DSLR cameras, LED lighting, flashes, and microphones.
• 다양한 응용 분야: Ideal for live streaming, product photography, mobile photo studios, video calls, podcast recordings, and content creation.
• 공간 절약형 디자인: Lightweight and compact, mountable in both portrait and landscape orientations. Multiple frames can be connected for expanded setups.
• 견고한 구조: Designed for durability and high functionality, supporting a load capacity of up to 3 kg.

Image: Key connection points on the Walimex Pro Streaming Frame.

설치 지침

1. 삼각대에 장착하기:

   Locate the 1/4 inch thread at the center base of the streaming frame. Attach the frame to any standard tripod equipped with a 1/4 inch screw. Ensure it is securely tightened for stability.

2. Attaching Accessories via Hot Shoe:

   The frame features two hot shoe connections. Slide accessories such as LED lights, microphones, or flash units into these hot shoe mounts until they click into place or are securely fastened by their locking mechanism.

3. Attaching Accessories via 1/4 inch Screws/Threads:

   Utilize the three 1/4 inch threads on the frame to attach compatible accessories directly. For accessories requiring a screw connection, use the provided 1/4 inch screws to secure them to the frame's designated mounting points. This is ideal for smartphone holders, cameras, or other devices with a 1/4 inch screw hole.
4. 방향 조정:

   The streaming frame can be mounted on a tripod in both portrait and landscape orientations, depending on your shooting requirements. Adjust the tripod head or the frame's attachment point as needed.

이미지: 전amples of accessory setups on the Walimex Pro Streaming Frame.

작동 지침

The Walimex Pro Streaming Frame is designed for intuitive use, allowing you to quickly set up your desired equipment configuration.

• 장치 배치: Position your camera, smartphone, microphone, or lighting units onto the frame using the appropriate hot shoe or 1/4 inch screw connections. Ensure all devices are securely fastened before operation.
• Balancing Load: When attaching multiple accessories, distribute the weight as evenly as possible across the frame to maintain stability, especially when mounted on a tripod. The maximum load capacity is 3 kg.
• 위치 조정: Once accessories are mounted, make any necessary adjustments to their angles or positions to achieve optimal lighting, sound, or framing for your content.
• Connecting Multiple Frames: For more extensive setups, multiple Walimex Pro Streaming Frames can be linked together using their 1/4 inch threads and screws, creating a larger mounting surface.

Image: Compatibility examples for the Walimex Pro Streaming Frame.

유지

To ensure the longevity and optimal performance of your Walimex Pro Streaming Frame, follow these simple maintenance guidelines:

• 청소: Wipe the frame with a soft, dry cloth to remove dust and fingerprints. For stubborn dirt, a slightly damp 천을 사용하여 세척 후 바로 말리세요. 연마성 세척제나 용제는 사용하지 마세요.
• 저장: Store the streaming frame in a dry, cool place away from direct sunlight and extreme temperatures.
• 점검: Periodically check all screws and connection points for tightness. Ensure there are no signs of damage or wear that could affect stability.

문제 해결

If you encounter any issues with your Walimex Pro Streaming Frame, refer to the following common problems and solutions:

• 문제: Accessories feel loose or unstable on the frame.
  해결책: Ensure all hot shoe mounts are fully engaged and any locking mechanisms are tightened. For 1/4 inch screw connections, verify that the screws are securely fastened. Check if the accessory itself has a stable mounting point.
• 문제: The frame is unstable when mounted on a tripod.
  해결책: Confirm that the frame is tightly screwed onto the tripod's 1/4 inch thread. Ensure the tripod itself is stable and on a level surface. Redistribute the weight of attached accessories if they are heavily unbalanced.
• 문제: An accessory does not fit the hot shoe or 1/4 inch thread.
  해결책: Verify that the accessory is compatible with standard hot shoe or 1/4 inch connections. Some accessories may require specific adapters not included with the streaming frame.

명세서

보증 및 지원

For warranty information and customer support, please refer to the documentation provided with your purchase or visit the official Walimex Pro web사이트. 보증 청구를 위해 구매 증빙 자료를 보관하세요.

제조업체: Walimex Pro
