Philips MAUVE PIR CL252 Functional Ceiling Light

1. 서론

Thank you for choosing the Philips MAUVE PIR CL252 Functional Ceiling Light. This manual provides essential information for the safe installation, operation, and maintenance of your new lighting fixture. This LED ceiling light features an integrated motion sensor and provides warm white illumination, ideal for functional areas within your home.

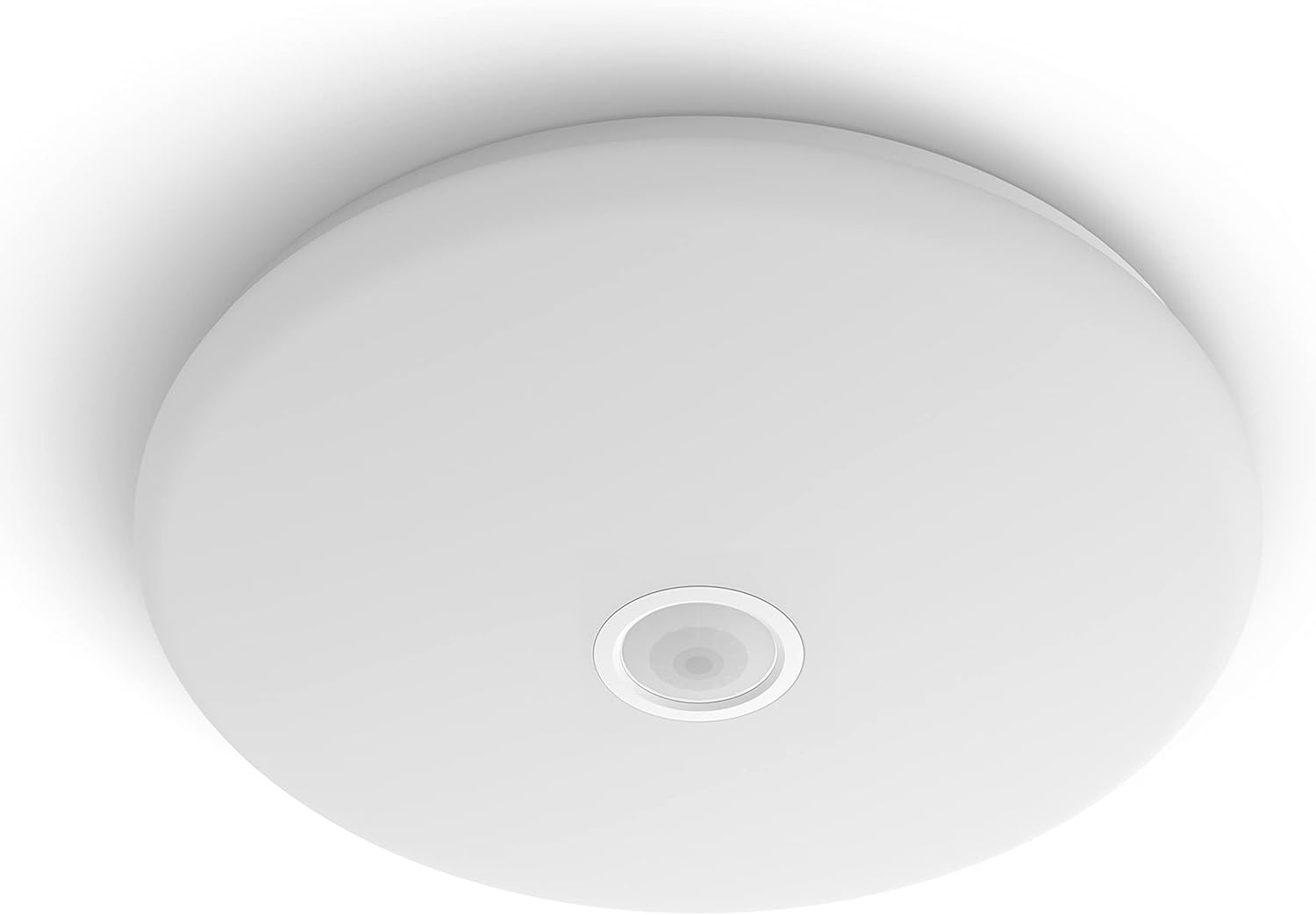

그림 1.1: 상향식 view of the Philips MAUVE PIR CL252 ceiling light, highlighting the central motion sensor.

Figure 1.2: Two Philips MAUVE PIR CL252 ceiling lights installed in a modern hallway, demonstrating their illumination in a functional area.

2. 안전 정보

설치 및 사용 전에 모든 안전 지침을 주의 깊게 읽어 주십시오. 나중에 참조할 수 있도록 이 설명서를 보관하십시오.

• 전기 안전: Installation should only be performed by a qualified electrician or competent person in accordance with local electrical codes and regulations. Always disconnect power at the main circuit breaker before installation, maintenance, or cleaning.
• 손질: Do not handle the product with wet hands. Avoid touching the light source directly when the fixture is powered on.
• 실내에서만 사용 가능: This product is designed for indoor use (Innenbereich) only. Do not expose it to water or high humidity.
• 통풍: Ensure adequate ventilation around the fixture. Do not cover the light fixture with any materials.
• 손상: 제품이 손상된 경우 사용하지 마십시오. 고객 지원팀에 문의하여 도움을 받으십시오.

3. 패키지 내용

설치를 진행하기 전에 모든 구성 요소가 있고 손상되지 않았는지 확인하세요.

• Philips MAUVE PIR CL252 Ceiling Light fixture
• 장착 하드웨어(나사, 벽면 플러그)
• 사용 설명서(본 문서)

Figure 3.1: The retail packaging for the Philips MAUVE PIR CL252 LED ceiling light, showing key features.

4. 설정 및 설치

This ceiling light requires placement and electrical connection. Follow these steps carefully.

1. 준비: 설치 구역의 전원이 주 차단기에서 차단되었는지 확인하십시오.
2. 장착 위치: Choose a suitable location on the ceiling. The fixture is designed for indoor ceiling installation.
3. 마킹 및 드릴링: Use the mounting bracket (if separate) or the fixture itself as a template to mark the drilling points on the ceiling. Drill holes of appropriate size for the provided wall plugs.
4. 배선: Connect the electrical wires from the ceiling to the terminals on the light fixture. Ensure correct polarity (Live, Neutral, Earth) as indicated on the fixture or in the wiring diagram. Secure all connections.
5. 고정물 장착: Secure the light fixture to the ceiling using the provided screws and wall plugs. Ensure it is firmly attached and stable.
6. 전원 켜기: 설치가 완료되고 모든 연결이 안전하게 이루어지면 주 회로 차단기에서 전원을 다시 켜십시오.

Figure 4.1: Technical diagram illustrating the dimensions of the Philips MAUVE PIR CL252 ceiling light (Ø320mm diameter, 72mm height).

5. 사용 설명서

The Philips MAUVE PIR CL252 features an integrated motion sensor for automatic illumination.

• 모션 센서 활성화: 감지 범위 내에서 움직임이 감지되면 조명이 자동으로 켜집니다.
• 자동 차단 : The light is designed to turn off approximately 30 seconds after motion is no longer detected. This duration is fixed and cannot be adjusted.
• 조명 조건: The PIR (Passive Infrared) sensor also incorporates a dusk-to-dawn sensor, meaning the light will primarily activate in low-light conditions to conserve energy.
• 스마트 조명 제어: This luminaire supports smart lighting control, potentially via an application. Refer to the Philips website or additional documentation for details on app compatibility and features.

Figure 5.1: The Philips MAUVE PIR CL252 ceiling light with an overlay icon indicating its integrated motion sensor functionality.

Figure 5.2: The Philips MAUVE PIR CL252 ceiling light illuminated, demonstrating its warm white light output at 2700K.

Figure 5.3: The Philips EyeComfort logo, indicating that the product is designed for visual comfort. Consult product details for more information on flicker and stroboscopic effects.

6. 유지관리

Regular cleaning and proper care will ensure the longevity and optimal performance of your ceiling light.

• 청소: 청소하기 전에 항상 전원을 차단하십시오. 부드럽고 마른 천이나 약간 젖은 천을 사용하십시오.amp 조명기구 표면을 닦을 때는 천을 사용하십시오. 연마성 세척제, 용제 또는 독한 화학 물질은 마감재나 전자 부품을 손상시킬 수 있으므로 사용하지 마십시오.
• 전구 교체: This fixture uses integrated LED technology, meaning the LED light source is not user-replaceable. If the light source fails, the entire fixture may need to be replaced.
• 깨진 전구 처리 방법: In case of accidental breakage or damage to the light source, exercise caution. Do not touch broken glass or components with bare hands. Refer to local regulations for proper disposal of broken or deteriorated light bulbs and electronic waste.

7. 문제 해결

If you encounter issues with your Philips MAUVE PIR CL252, refer to the following common problems and solutions.

위 해결 방법을 시도한 후에도 문제가 지속되면 필립스 고객 지원팀에 문의하십시오.

8. 사양

Detailed technical specifications for the Philips MAUVE PIR CL252 Functional Ceiling Light.

9. 재활용 및 폐기

This product contains electronic components and should be disposed of responsibly. Do not dispose of the product with general household waste.

• 재활용: Please refer to local regulations for information on recycling electronic products and light fixtures. Many regions have collection points for electrical and electronic equipment.
• 삶의 끝: At the end of its life, the product should be taken to an authorized collection point for recycling to prevent potential harm to the environment and human health from uncontrolled waste disposal.

10. 보증 및 지원

For warranty information, technical support, or service inquiries, please refer to the documentation included with your purchase or visit the official Philips Lighting web사이트. 보증 청구를 위해 구매 증빙 자료를 보관하세요.

Philips Lighting Customer Support: www.philips.com/support
