Xanlite PACK6SO1017 태양광 LED RGB 정원등 (6개입) 사용 설명서
1. 서론
This manual provides comprehensive instructions for the Xanlite PACK6SO1017 Solar LED RGB Pathway Lights. These lights are designed for outdoor use, offering an energy-efficient and aesthetic lighting solution for gardens, pathways, and other outdoor spaces. The pack includes six individual solar lights, each featuring RGB LED illumination and an IP44 rating for weather resistance.
패키지 내용:
- 6 x Xanlite Solar LED RGB Pathway Lights
- Mounting hardware (ground stakes)
Image 1: The complete set of six Xanlite PACK6SO1017 solar pathway lights.
2. 안전 정보
Please read all safety instructions before installing and operating the Xanlite PACK6SO1017 Solar LED RGB Pathway Lights. Retain this manual for future reference.
- 야외 사용 전용: These lights are designed exclusively for outdoor environments.
- 방수 기능: The lights have an IP44 rating, indicating protection against solid objects larger than 1mm and splashes of water from any direction. They are not designed for submersion.
- 놓기: Ensure the lights are installed in a location where they will not pose a tripping hazard.
- 태양광 패널 관리: 태양광 패널이나 배터리함을 열거나 개조하려고 시도하지 마십시오.
- 온도: Avoid exposing the lights to extreme temperatures outside their operating range.

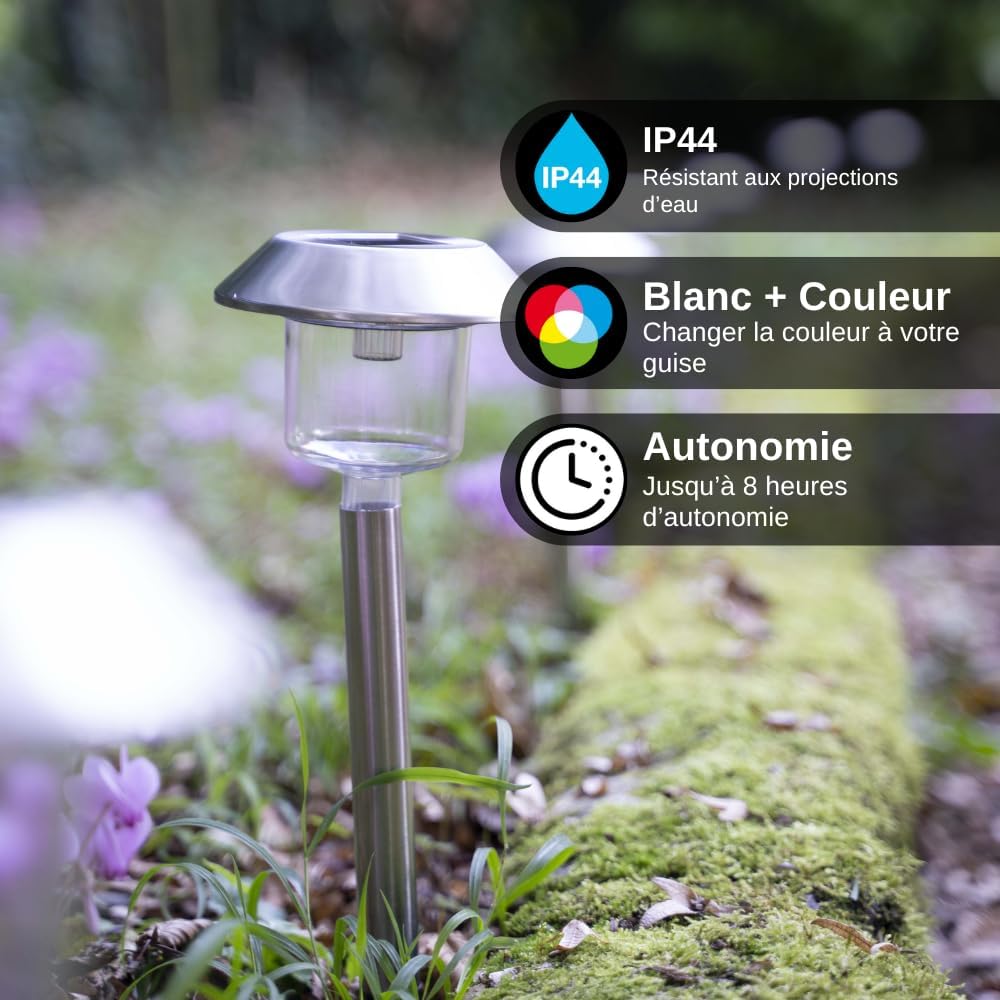

Image 2: Key features of the Xanlite solar light, including IP44 rating, RGB color, and 8-hour autonomy.
3. 설정 및 설치
Follow these steps to properly set up your Xanlite solar pathway lights:
3.1 풀기
- 포장에서 모든 구성 요소를 조심스럽게 제거합니다.
- Inspect each light for any signs of damage. If any damage is found, do not proceed with installation and contact customer support.
3.2 조립
- Attach the ground stake to the bottom of each light's pole. Ensure it is securely fastened.
- The light head, pole, and stake should form a single unit.
Image 3: Dimensional diagram of a single Xanlite solar pathway light.
3.3 Placement for Optimal Charging
- Select a location for each light that receives direct sunlight for at least 6-8 hours daily. Shaded areas will significantly reduce charging efficiency and operating time.
- Avoid placing lights under eaves, trees, or other structures that may block sunlight or cast shadows on the solar panel.
- Ensure the solar panel on top of each light is clean and unobstructed.
- Gently push the assembled light into the ground using the ground stake. Do not force it into hard soil; pre-dig a small hole if necessary to prevent damage to the stake or light.
Image 4: Detail of the solar panel on the Xanlite pathway light.
3.4 초기 충전
Before first use, allow the lights to charge in direct sunlight for a full day (at least 8 hours) with the switch in the "ON" position. This ensures the internal battery receives an adequate initial charge.
4. 사용 설명서
The Xanlite PACK6SO1017 solar lights are designed for automatic operation.
4.1 전원 켜기/끄기
Locate the power switch, typically found on the underside of the solar panel housing. Set the switch to the "ON" position for automatic operation. Set to "OFF" to disable the light.
4.2 자동 작동
Once switched "ON" and sufficiently charged, the lights will automatically:
- Turn on at dusk.
- Operate for up to 8 hours, depending on the amount of sunlight received during the day.
- Turn off at dawn or when the battery is depleted.
4.3 Color Changing (RGB)
The lights feature RGB LEDs, allowing for color changes. The method for changing colors is typically via a small button or by cycling the main power switch. Refer to the specific product packaging or a small label on the light for exact instructions on how to switch between white and RGB color modes, or to select a specific color if available.
Image 5: Xanlite solar lights installed in a garden during daylight.
Image 6: Xanlite solar lights illuminated at night.
5. 유지관리
정기적인 유지 관리는 태양광 조명의 최적 성능과 수명 연장을 보장합니다.
- 깨끗한 태양광 패널: 태양광 패널을 주기적으로 부드러운 천으로 닦아주세요.amp cloth to remove dust, dirt, leaves, or snow. A clean panel ensures maximum sunlight absorption for charging.
- 장애물 제거: Ensure no new obstructions (e.g., growing plants, new structures) are blocking sunlight from reaching the solar panels.
- 배터리: The lights contain an internal rechargeable battery. While not user-replaceable, ensuring proper charging conditions will extend its lifespan. Note: Some units may contain 1x AAA 1.2V 100mAh NI-MH batteries, while specifications might suggest 600mAh. This can affect autonomy.
- 저장: If storing the lights for an extended period, switch them to the "OFF" position and store them in a dry place. It is recommended to fully charge them before storage and recharge them every few months to maintain battery health.
6. 문제 해결
If your Xanlite solar lights are not performing as expected, consider the following common issues and solutions:
| 문제 | 가능한 원인 | 해결책 |
|---|---|---|
| 밤에는 불이 켜지지 않습니다. | 1. Switch is in "OFF" position. 2. 충전하기에 햇빛이 부족합니다. 3. 태양광 패널이 더럽거나 막혀 있습니다. 4. Battery is depleted or faulty. | 1. 스위치가 "켜짐" 위치에 있는지 확인하십시오. 2. Relocate the light to an area with direct sunlight for 6-8 hours daily. 3. Clean the solar panel. Remove any obstructions. 4. Allow several days of full charge. If the problem persists, the battery may need replacement (contact support if under warranty). |
| Light operates for a short duration. | 1. Insufficient daily charge. 2. Battery capacity reduced (aging or lower capacity battery). | 1. Ensure optimal solar panel exposure. Clean the panel regularly. 2. Battery performance naturally degrades over time. If a lower capacity battery (e.g., 100mAh instead of 600mAh) is present, this will affect autonomy. |
| 빛이 어둡습니다. | 1. Insufficient charge. 2. Dirty solar panel or light housing. 3. Battery nearing end of life. | 1. Ensure full daily charge. 2. Clean the solar panel and the clear light housing. 3. Battery may need replacement. |
7. 사양
Detailed technical specifications for the Xanlite PACK6SO1017 Solar LED RGB Pathway Lights:
| 특징 | 사양 |
|---|---|
| 상표 | 잔라이트 |
| 모델 번호 | 팩6SO1017 |
| 치수(길이 x 너비 x 높이) | 39 x 12.5 x 39cm(15.35 x 4.92 x 15.35인치) |
| 무게 | 1.17 Kilograms (for the pack) |
| 재료 | 금속 |
| 색상 | Silver (fixture), White (light color) |
| 라이트 타입 | LED(RGB) |
| 광속 | 15 lm |
| 색온도 | 6500 켈빈(쿨화이트) |
| 전원 | 태양열 전원 |
| 자치 | Up to 8 hours (after sufficient sun exposure) |
| IP 등급 | IP44(방말) |
| 특별 기능 | Solar Powered, Energy Efficient, Durable, Weather Resistant, RGB LED Lights |
| 포함된 구성 요소 | 6 x LED RGB Solar Pathway Lights, Mounting Hardware |
8. 보증 및 지원
For warranty information or technical support, please refer to the product packaging or contact Xanlite customer service directly. Keep your purchase receipt as proof of purchase.
Xanlite is committed to providing quality products and customer satisfaction. If you encounter any issues or have questions, please reach out to their support team.
