VIVO 전동 천장 TV 마운트 사용 설명서

제품 끝view

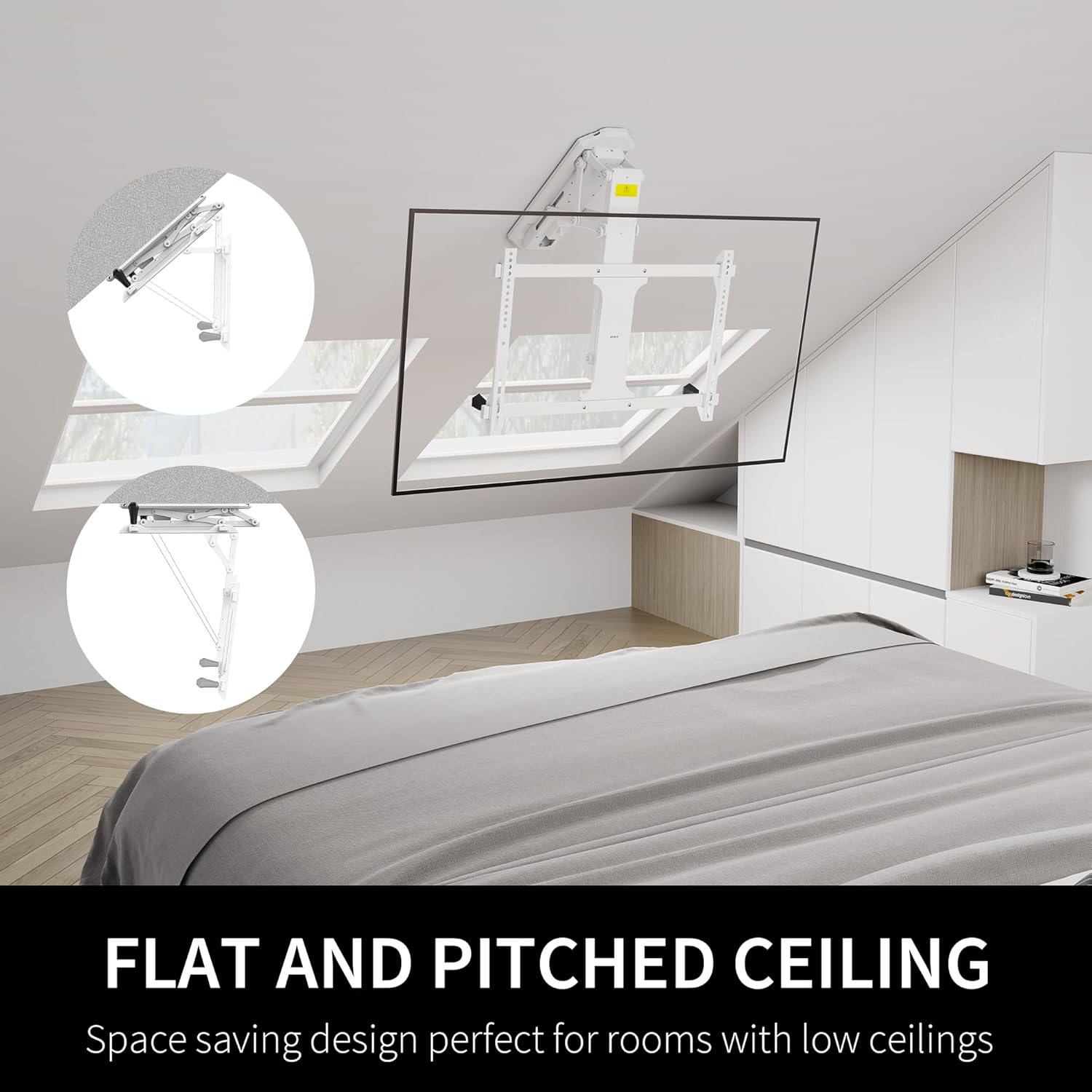

The VIVO MOUNT-E-FD70W is an electric flip-down ceiling TV mount designed for screens ranging from 32 to 70 inches and supporting up to 77 lbs. This motorized mount offers convenient control via an RF remote, mobile app, or voice commands, allowing for adjustable viewing angles and memory settings. It is compatible with both flat and pitched ceilings.

이미지: 이상view of the VIVO Electric Ceiling TV Mount, showing dimensions (20" x 6" x 4.3"), VESA patterns (200x100 to 600x400mm), screen size compatibility (32"-70"), solid steel construction, and weight capacity (77 lbs).

안전 정보

경고: Do not install into drywall alone. Must be secured into wood stud, concrete, or brick walls only. Ensure all components are securely fastened before use. Refer to the complete manual for detailed safety instructions and warnings.

설정 및 설치

Proper installation is crucial for the safe and effective operation of your VIVO Electric Ceiling TV Mount. Follow these steps carefully.

Step 1: Mounting to the Ceiling

Before mounting, ensure your ceiling structure can support the weight of the mount and your TV. Use the provided template to mark drilling locations. For wood stud installations, drill pilot holes and secure the mount directly into the studs. For concrete or brick installations, specialized drilling and hardware may be required; refer to the detailed manual for specific instructions.

Image: Diagram illustrating installation options for the VIVO Electric Ceiling TV Mount on both wood stud ceilings and concrete ceilings. Note: Not for ceilings with dual studs.

Step 2: Assembling the Center Plate

Attach the horizontal support bars to the main center plate using the provided screws and washers. Ensure all connections are tight and secure.

Step 3: Assembling and Adjusting the VESA Bracket

Attach the VESA mounting arms to the back of your TV, ensuring they align with your TV's VESA pattern. The mount supports VESA patterns from 200x100mm to 600x400mm. Adjust the arms to center your TV on the mount. For TVs over 50 inches, ensure VESA holes are centered for adequate ceiling clearance.

Step 4: Attaching Decorative Cover

Once the TV is mounted, attach the decorative covers to conceal the mounting hardware for a clean aesthetic.

Step 5: Plugging in Power Adapter

Connect the power adapter to the mount and plug it into a power outlet. Ensure all cables are managed neatly to prevent interference with the mount's movement.

작동 지침

Your VIVO Electric Ceiling TV Mount offers multiple control options for convenience.

RF 원격 제어

The included RF remote has a wide range and can operate the mount from anywhere in the room. Use the up/down buttons to extend or retract the TV. The remote features two programmable memory settings (mem1, mem2) to save your preferred viewing heights and angles. Press the 'SET' button followed by 'mem1' or 'mem2' to save a position. Press 'mem1' or 'mem2' to recall a saved position.

Image: A VIVO Electric Ceiling TV Mount with a TV extended downwards, showing the RF remote control with buttons for up/down movement, memory presets (mem1, mem2), and setting memory.

모바일 앱 및 음성 제어

Connect the mount to the Tuya mobile app, Amazon Alexa, or Google Home for additional control options. This allows you to adjust the height and tilt from your smartphone or using voice commands. You can save up to three memory settings within the app for quick access to your ideal view직책을 맡고 있습니다.

Tilt and Leveling Adjustment

The mount offers a tilt range of 0° to -75° and a screen leveling adjustment of +2° to -2°. These adjustments allow you to fine-tune your viewing experience for optimal comfort.

Image: Diagram illustrating the motion range (4" - 26") and maximum tilt (75°) of the VIVO Electric Ceiling TV Mount, along with viewing angle (0-75°) and screen leveling (+2° to -2°) capabilities.

유지

To ensure the longevity and smooth operation of your VIVO Electric Ceiling TV Mount, perform the following maintenance tasks:

• 정기 청소: Dust the mount and TV regularly with a soft, dry cloth. Avoid abrasive cleaners.
• 연결 확인: 정기적으로 모든 나사와 볼트가 단단히 조여져 있는지 점검하십시오. 필요한 경우 다시 조이십시오.
• 케이블 관리 : Ensure cables are not pinched or tangled, which could impede movement or cause damage.
• 모터 검사: Listen for any unusual noises during operation. If the motor sounds strained or makes grinding noises, discontinue use and contact support.

문제 해결

If you encounter issues with your VIVO Electric Ceiling TV Mount, try the following solutions:

• Mount Not Responding:
  • Check if the power adapter is securely plugged into both the mount and the power outlet.
  • 리모컨 배터리가 방전되지 않았는지 확인하세요.
  • If the mount is stuck or beeping, try unplugging the power for 10 seconds, then replugging it. Press and hold the 'OK' button on the remote for 6 seconds to reset.
• TV 수평이 맞지 않음:
  • Use the screen leveling adjustment feature (+2° to -2°) via the remote or app to correct the tilt.
  • Ensure the VESA mounting arms are securely and evenly attached to the TV.
• 느린 움직임:
  • The mount's movement is designed to be smooth and controlled, which may appear slow. This is normal, especially for heavier TVs.
  • Ensure the mount is not obstructed by any objects.

If problems persist, contact VIVO customer support for assistance.

명세서

보증 및 지원

VIVO is a US-based company committed to providing quality products and customer support. While specific warranty details are not provided here, VIVO offers generous product protection and US-based sales and technical support. For any inquiries or assistance, please refer to the contact information provided with your product or visit the official VIVO web대지.
