The Jadfezy J-7000 is a high-performance 4K Action Camera designed for capturing dynamic moments in various environments. It features 4K/60FPS video recording, 24MP photo resolution, Electronic Image Stabilization (EIS), Wi-Fi connectivity, and a robust waterproof case for underwater use.
Image: The Jadfezy J-7000 Action Camera, shown with its protective waterproof housing, a remote control, a dual battery charger with two batteries, and a compact carrying case. This image highlights the camera's readiness for various action-packed scenarios.

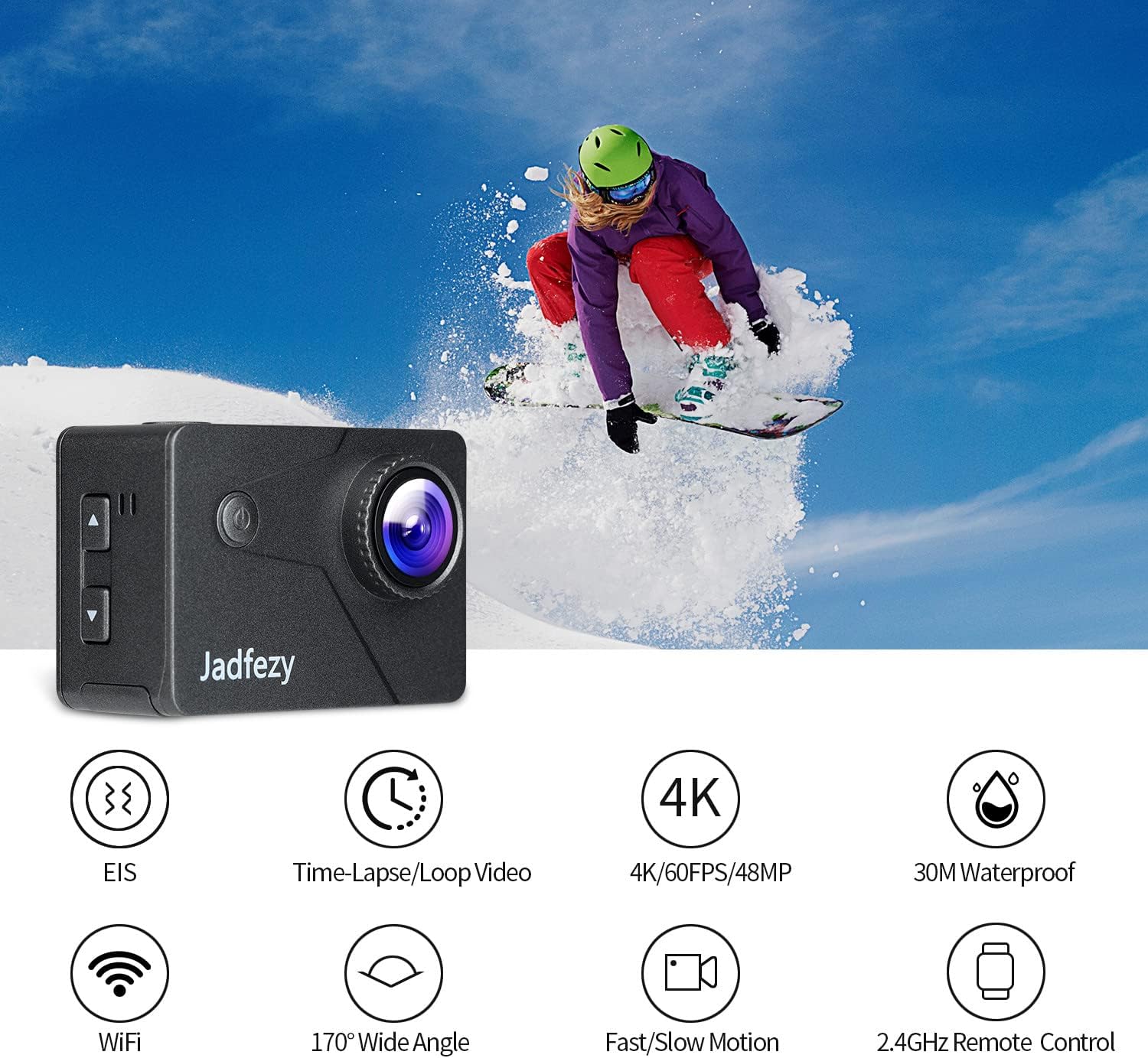

Image: The Jadfezy J-7000 Action Camera displayed alongside icons illustrating its core functionalities: Electronic Image Stabilization (EIS), Time-Lapse/Loop Video, 4K/60FPS/48MP recording, 30M Waterproof capability, Wi-Fi connectivity, 170° Wide Angle lens, Fast/Slow Motion modes, and 2.4GHz Remote Control compatibility.
설정
1. 배터리 설치 및 충전
The camera comes with two 1500 mAh Lithium Ion batteries. Before first use, ensure batteries are fully charged.
- 카메라 하단의 배터리 덮개를 엽니다.
- 배터리를 올바른 방향으로 삽입하세요.
- 배터리 덮개를 단단히 닫으세요.
- To charge, use the included dual battery charger and USB cable. Connect the charger to a USB power source. The indicator lights will show charging status.
2. 마이크로 SD 카드 삽입
A Micro SD card (not included) is required for recording. The camera supports Micro SD cards up to 64GB (Class 10 or higher recommended).
- 카메라 측면에 있는 마이크로 SD 카드 슬롯을 찾으세요.
- 마이크로 SD 카드의 접촉면이 카메라 앞쪽을 향하도록 하여 딸깍 소리가 나면서 제자리에 고정될 때까지 삽입하십시오.
- 제거하려면 카드가 튀어나올 때까지 조심스럽게 밀어 넣으세요.
이미지: 포괄적인 view of the Jadfezy J-7000 Action Camera and its extensive accessory kit. This includes the camera in its waterproof housing, a dual battery charger with two batteries, a remote control, various mounts (helmet, bicycle, wrist), straps, a tripod, cleaning cloth, and a durable carrying case, demonstrating the versatility and completeness of the package.
카메라 작동
1. 기본 제어
- 전원 / 모드 버튼 : 길게 눌러 전원을 켜거나 끄세요. 짧게 누르면 비디오, 사진 및 재생 모드 간에 전환됩니다.
- 셔터/확인 버튼: Press to start/stop recording video or take a photo. In menu, press to confirm selection.
- 위/아래 버튼: Navigate menu options or zoom in/out.
2. 동영상 녹화 및 사진 촬영
The J-7000 supports various resolutions for video and high-resolution photos.
- 비디오 해상도: 4K/60FPS, 4K/30FPS, 2.7K/60FPS, 1080P/120FPS, 1080P/60FPS.
- 사진 해상도: 24MP.
- To switch between video and photo modes, press the Power/Mode button.
- Press the Shutter/OK button to begin recording or take a picture.
3. 전자식 이미지 안정화(EIS)
EIS 기능은 음식의 안정화에 도움이 됩니다.tage, reducing blur and shakiness, especially during action-packed activities.
- Access the camera settings menu to enable or disable EIS.
- When EIS is active, the camera digitally compensates for movements, resulting in smoother video.
Image: A visual comparison demonstrating the effect of Electronic Image Stabilization (EIS). The left side shows a clear, stable image of a skier with EIS ON, while the right side shows a blurred, shaky image of the same skier with EIS OFF, highlighting the effectiveness of the stabilization feature.
4. Wi-Fi 연결 및 앱 제어
Connect the camera to your smartphone via Wi-Fi for remote control and file 이전.
- Download the "ISMART DV" app from your smartphone's app store.
- On the camera, enable Wi-Fi through the settings menu. The camera's Wi-Fi name and password will be displayed.
- On your smartphone, connect to the camera's Wi-Fi network.
- Open the "ISMART DV" app to control the camera, view 라이브 푸tag그리고 동영상/사진을 다운로드하세요.
Image: The Jadfezy J-7000 Action Camera positioned next to a smartphone, illustrating its Wi-Fi connectivity feature. Various action shots are displayed on the smartphone screen, symbolizing the ability to share captured moments instantly via social media platforms like Twitter, Facebook, and Instag램.
5. 원격 제어 작동
The included 2.4G wireless remote control allows for convenient operation from a distance.
- Ensure the remote control is paired with the camera (refer to the camera's settings for pairing instructions if needed).
- Use the remote to start/stop video recording or take photos without directly touching the camera.

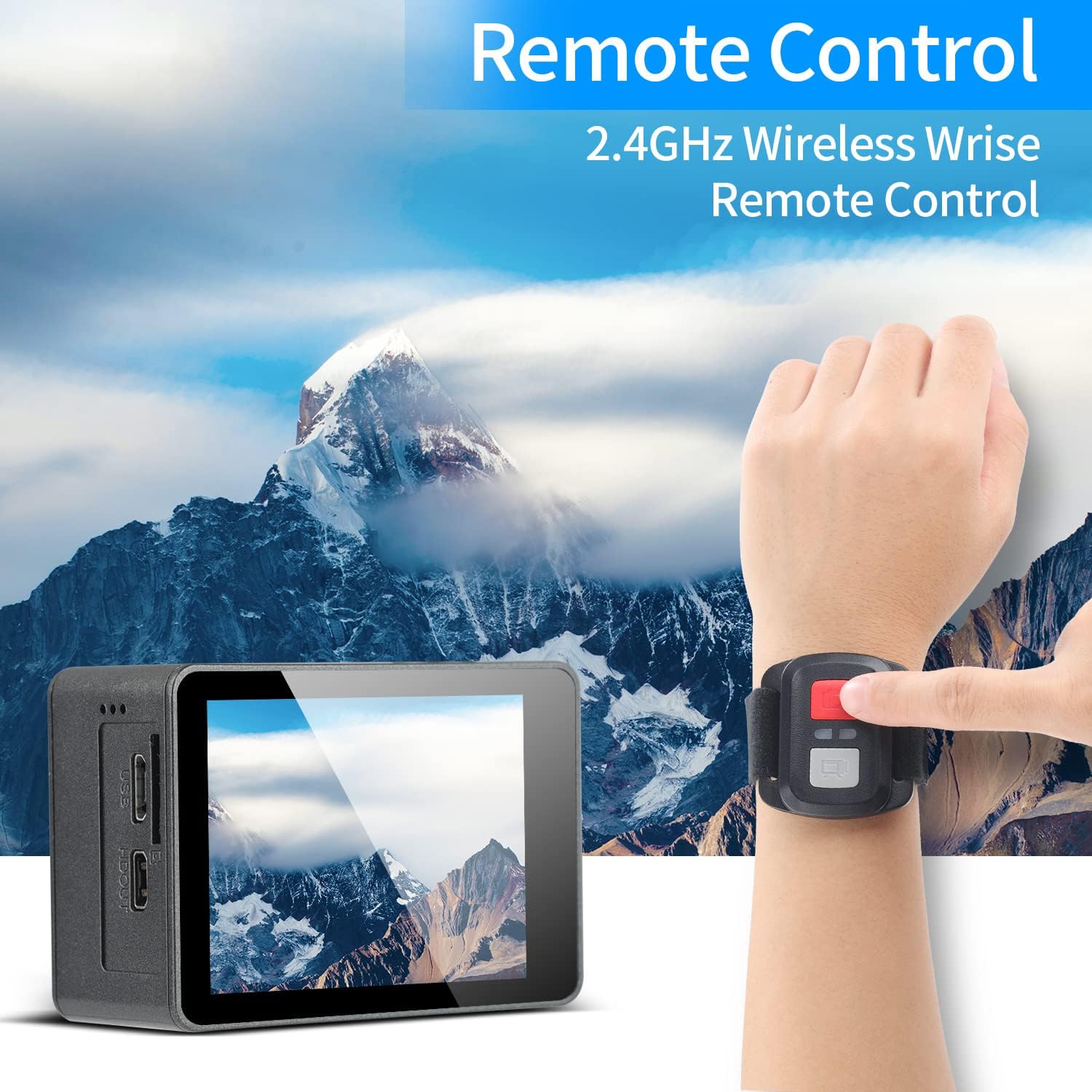

Image: A person's hand wearing the 2.4GHz wireless remote control for the Jadfezy J-7000 Action Camera, with the camera itself visible in the foreground. The background features a majestic mountain landscape, emphasizing the camera's suitability for outdoor adventures and the convenience of remote operation.
6. Underwater Usage
The camera is equipped with an IP68 certified waterproof case, allowing for dives up to 30 meters (98 feet).
- Always ensure the waterproof case is properly sealed before submerging the camera. Check for any debris or hair around the seal.
- After each use in saltwater, rinse the case with fresh water and allow it to air dry.
Image: The Jadfezy J-7000 Action Camera, enclosed in its waterproof housing, submerged underwater alongside a diver. A depth scale on the right indicates its capability up to 30 meters, highlighting its suitability for various underwater activities.
7. Multiple Modes
The camera offers various shooting modes to enhance your creative possibilities:
- 타임랩스 영상: 설정된 간격으로 프레임을 캡처하여 빠르게 재생되는 비디오를 만듭니다.
- 루프 녹음: Records video continuously, overwriting the oldest footage 메모리 카드가 가득 찬 경우.
- 느린: Records at a higher frame rate to create smooth slow-motion playback.
- 운전 모드 : Functions as a dash cam, starting recording automatically when powered on.
- 타임랩스 사진: 일정 간격으로 사진을 찍습니다.
- 연속 촬영 : 여러 장의 사진을 빠르게 연속해서 촬영합니다.
유지
- 카메라 청소: 카메라 본체는 부드럽고 마른 천으로 닦으십시오. 렌즈는 렌즈 전용 클리닝 천과 세척액을 사용하십시오. 강한 화학 약품은 사용하지 마십시오.
- 방수 케이스 관리 방법: Regularly inspect the waterproof case's O-ring for dirt, sand, or damage. Clean the O-ring and its groove with a soft, damp cloth. Apply silicone grease to the O-ring periodically to maintain its seal.
- 배터리 관리 : Store batteries in a cool, dry place. If not using the camera for an extended period, remove the batteries. Avoid fully discharging batteries frequently to prolong their lifespan.
- 저장: Store the camera and accessories in the provided carrying case in a dry, dust-free environment away from direct sunlight and extreme temperatures.
문제 해결
| 문제 | 가능한 원인 | 해결책 |
|---|---|---|
| 카메라의 전원이 켜지지 않습니다. | 배터리가 방전되었거나 올바르게 삽입되지 않았습니다. | 배터리를 완전히 충전하세요. 배터리 극성이 올바른지 확인하세요. |
| 비디오/사진 품질이 좋지 않습니다. | 렌즈가 더럽거나, 설정이 잘못되었거나, 조명이 부족합니다. | 렌즈를 청소하십시오. 해상도 설정을 조정하십시오. 적절한 조명을 확보하십시오. |
| 방수 케이스에 물이 새는 현상. | Case not sealed properly; O-ring damaged or dirty. | Ensure case is securely latched. Check O-ring for debris or damage; clean or replace if necessary. |
| Wi-Fi 연결 문제. | Incorrect password; camera Wi-Fi not enabled; app issues. | Verify Wi-Fi password. Ensure camera Wi-Fi is on. Restart camera and app. |
| 리모컨이 작동하지 않습니다. | Remote battery low; not paired with camera. | Replace remote battery. Re-pair remote with camera according to instructions. |
명세서
| 특징 | 세부 사항 |
|---|---|
| 상표 | 자드페지 |
| 모델명 | 제이-7000 |
| 비디오 캡처 해상도 | 4K (60FPS), 1080p (120FPS) |
| 사진 해상도 | 24 MP |
| 이미지 안정화 | 전자식 손떨림 보정 (EIS) |
| 방수 깊이 | Up to 30m (98ft) with included case |
| 화면 크기 | 2 인치 |
| 연결 기술 | 와이파이, USB |
| 플래시 메모리 유형 | 마이크로 SD(최대 64GB, Class 10+) |
| 배터리 | 1500mAh 리튬 이온 배터리 2개 (포함) |
| 광학 줌 | 8x |
| 품목 무게 | 1.44파운드 |
| 제품 치수 | 1.2 x 2.3 x 1.6 인치 |
보증 및 지원
For warranty information and technical support, please refer to the documentation included with your purchase or contact Jadfezy customer service directly. Keep your proof of purchase for any warranty claims.
