1. 서론
Thank you for choosing the Tunturi C60 Performance Crosstrainer. This manual provides essential information for the safe and effective use of your new fitness equipment. Please read this manual thoroughly before assembly and use, and keep it for future reference.
The Tunturi C60 is a professional elliptical trainer designed for comprehensive cardiovascular workouts. It features a 5.5-inch LCD display, 32 resistance levels, and 24 training programs. Key components include a 32 kg flywheel, 40 cm stride length, and an EMS brake system. It also includes pulse sensors and is compatible with a chest strap for heart rate monitoring. For enhanced training experiences, the C60 is compatible with Tunturi Routes, iConsole+, and Kinomap applications.
2. 중요 안전 지침
- 운동 프로그램을 시작하기 전에 의사와 상담하십시오.
- 이 설명서에 설명된 대로 장비를 원래 용도로만 사용하십시오.
- 사용 중에는 어린이와 애완동물을 장비에 가까이 두지 마십시오.
- Place the crosstrainer on a stable, level surface with adequate clearance around it.
- 매 사용 전에 장비의 마모되거나 헐거워진 부품이 있는지 점검하십시오. 손상된 경우 사용하지 마십시오.
- 적절한 운동복과 운동화를 착용하십시오.
- 최대 사용자 체중은 135kg을 초과하지 마십시오.
- 실신, 현기증, 통증을 느끼면 즉시 운동을 중단하세요.
3. 설치 및 조립
The Tunturi C60 Performance Crosstrainer requires assembly. Please follow the separate assembly guide provided with your product for detailed step-by-step instructions. Ensure all components are present and undamaged before beginning assembly.
3.1 풀기
Carefully remove all components from the packaging. Verify that all parts listed in the assembly guide are included. Keep packaging materials until assembly is complete in case of returns or missing parts.
3.2 배치
Place the crosstrainer on a firm, level surface. Ensure there is sufficient space around the equipment for safe operation and movement. A minimum of 0.6 meters (2 feet) of clear space is recommended around the entire unit.

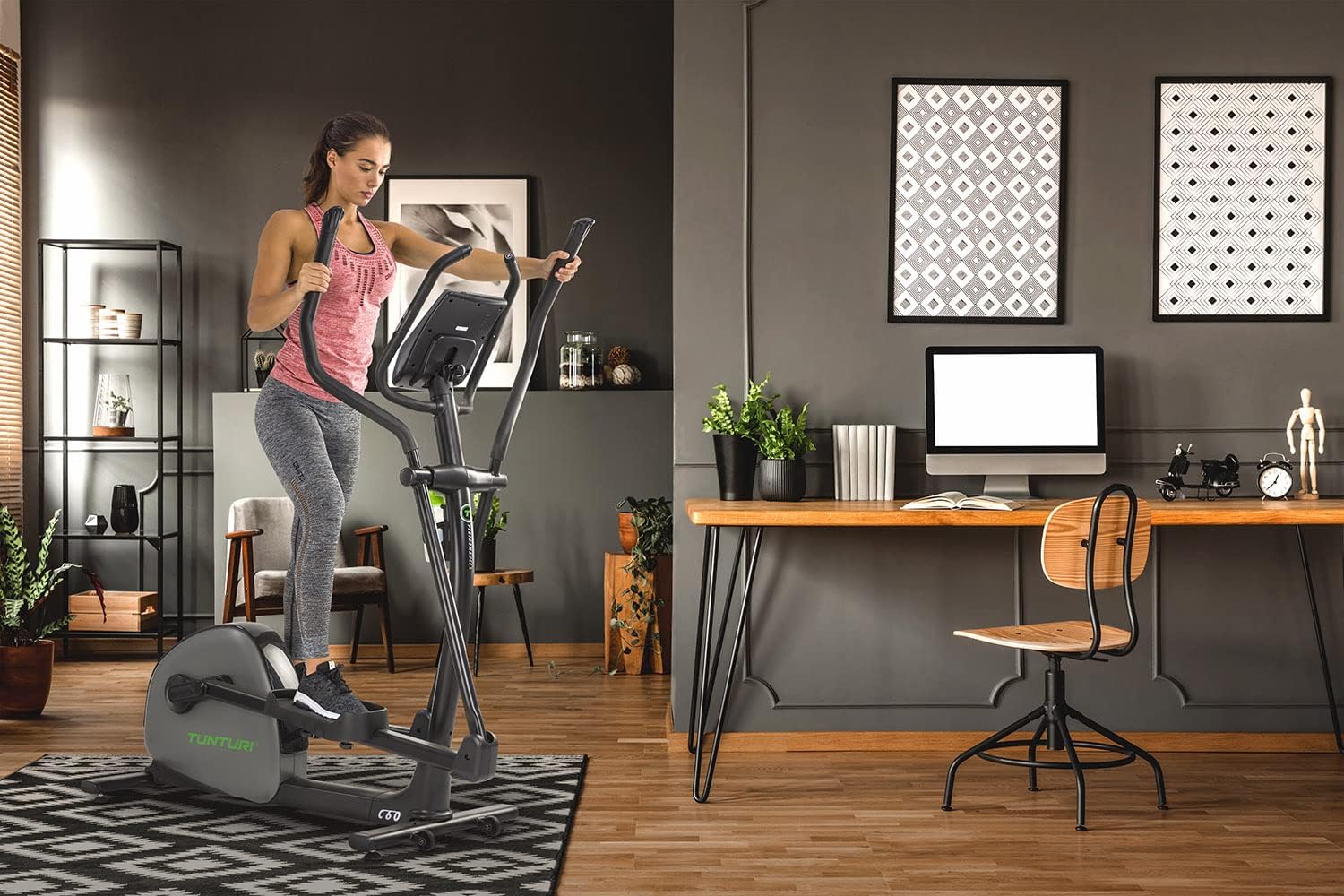

Image: The Tunturi C60 Performance Crosstrainer positioned in a home environment, demonstrating typical usage space.
3.3 전원 연결
Connect the power adapter to the crosstrainer and then to a suitable wall outlet. Ensure the power cable is not a tripping hazard and is not pinched by the equipment.
4. 사용 설명서
4.1 콘솔 종료view

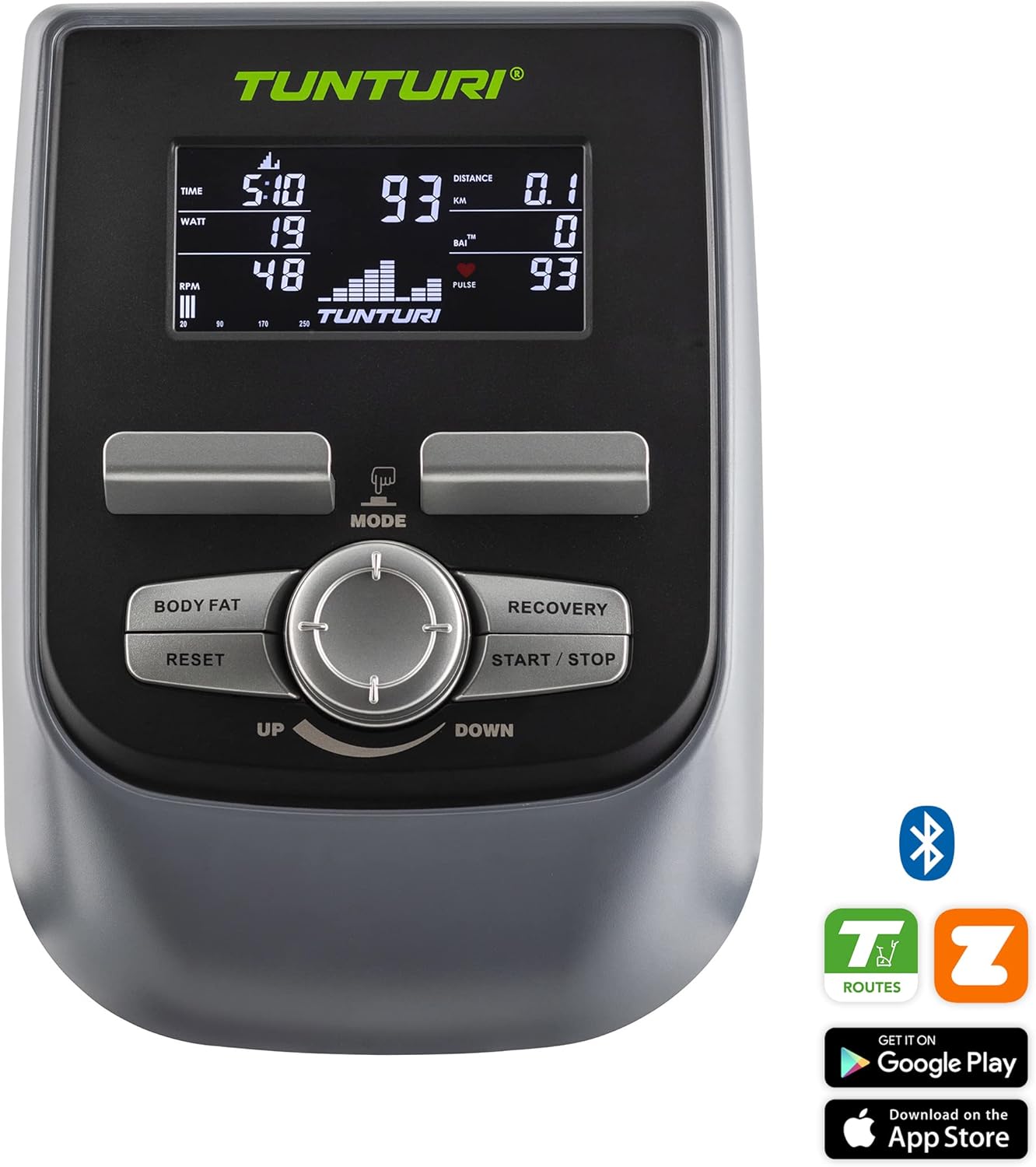

이미지: 상세 view of the Tunturi C60 console, showing the 5.5-inch LCD display and control buttons.
The Tunturi C60 features a 5.5-inch LCD display that shows key workout data such as time, distance, speed, calories, watts, RPM, and pulse. The console includes buttons for MODE, BODY FAT, RECOVERY, RESET, START/STOP, and a central dial for UP/DOWN adjustments.
4.2 운동 시작하기
- Step onto the crosstrainer, placing your feet firmly on the pedals.
- 움직이는 핸들이나 고정된 심박 센서를 잡으세요.
- 를 누르세요 시작/중지 button to begin a quick start workout, or use the 방법 button and UP/DOWN dial to select a program.
- Adjust the resistance level using the UP/DOWN dial during your workout. The C60 offers 32 levels of resistance.
4.3 교육 프로그램
The C60 Performance Crosstrainer comes with 24 pre-set training programs designed for various fitness goals. Use the 방법 button to navigate through program options and the UP/DOWN dial to select your desired program. Follow the on-screen prompts to set your workout parameters.
4.4 심박수 모니터링
The crosstrainer is equipped with hand pulse sensors on the stationary handlebars. For more accurate and continuous heart rate monitoring, the C60 is compatible with a wireless chest strap (not included). Your heart rate will be displayed on the console.
4.5 앱 연결
Enhance your training experience by connecting your Tunturi C60 to compatible fitness applications via Bluetooth. The crosstrainer supports Tunturi Routes, iConsole+, and Kinomap.
Image: The Tunturi C60 console with a tablet mounted, showing the Tunturi Routes application in use, offering interactive training.
- 툰투리 루트: Offers real-world video routes, challenges, and online coaching. Download from your device's app store.
- iConsole+: Provides various training programs and allows you to track your progress.
- 키노맵: Interactive video training app that syncs with your equipment.
Refer to the specific app's instructions for pairing and usage.
5. 유지관리
Regular maintenance ensures the longevity and optimal performance of your Tunturi C60 Crosstrainer.
5.1 청소
- 사용 후 장비를 광고로 닦아주세요.amp 땀과 먼지를 제거하는 천.
- 연마성 세척제나 용제는 마감재와 전자 부품을 손상시킬 수 있으므로 사용하지 마십시오.
- 디스플레이를 깨끗하고 건조하게 유지하십시오.
5.2 검사
- Periodically check all bolts and nuts for tightness. Tighten if necessary.
- Inspect moving parts, such as pedals and handlebars, for any signs of wear or damage.
- Ensure the power cable is in good condition and free from kinks or cuts.
5.3 보관
Store the crosstrainer in a dry, clean environment, away from direct sunlight and extreme temperatures.
6. 문제 해결
| 문제 | 가능한 원인 | 해결책 |
|---|---|---|
| 콘솔의 전원이 켜지지 않습니다. | 전원 어댑터가 연결되지 않았거나 결함이 있습니다. | Check power cable connection to the unit and wall outlet. Ensure outlet is functional. |
| 저항 변화가 없습니다. | EMS brake system issue or console malfunction. | Ensure power is connected. Restart the console. If problem persists, contact customer support. |
| 심박수 측정값이 부정확합니다. | Hands not properly placed on sensors; dry hands; interference. | Ensure full contact with hand pulse sensors. Moisten hands slightly. Avoid strong electromagnetic fields. Consider using a compatible chest strap. |
| 작동 중 비정상적인 소음이 발생합니다. | Loose bolts or components; internal friction. | Check and tighten all visible bolts and nuts. If noise persists, discontinue use and contact customer support. |
7. 사양
Image: Diagram illustrating the dimensions of the Tunturi C60 Performance Crosstrainer: 144 cm (56.7 inch) length, 67 cm (26.4 inch) width, and 164 cm (64.6 inch) height.
| 특징 | 세부 사항 |
|---|---|
| 모델명 | Tunturi C60 Performance Crosstrainer |
| 모델 번호 | 20TCR60000 |
| 치수(길이 x 너비 x 높이) | 144 x 67 x 164cm(56.7 x 26.4 x 64.6인치) |
| 제품 무게 | 65.9kg(145.3파운드) |
| 최대 사용자 무게 | 135kg(297.6파운드) |
| 플라이휠 무게 | 32kg |
| 저항 수준 | 32 |
| 브레이크 시스템 | EMS (Electro Magnetic System) |
| 보폭 | 40cm |
| 표시하다 | 5.5인치 LCD |
| 프로그램 | 24 |
| 심박수 모니터링 | Hand pulse sensors, chest strap compatible |
| 연결성 | Bluetooth, compatible with Tunturi Routes, iConsole+, Kinomap |
| 재료 | 알류미늄 |
| 색상 | 검은색 |
8. 보증 및 지원
For information regarding the warranty period and terms for your Tunturi C60 Performance Crosstrainer, please refer to the warranty card included with your product or visit the official Tunturi web대지.
If you encounter any issues not covered in the troubleshooting section or require further assistance, please contact Tunturi customer support. Have your model number (20TCR60000) and purchase details ready when contacting support.
You can often find support contact information on the Tunturi web사이트나 제품 설명서에서 확인하세요.
