소개
This manual provides detailed instructions for the ELISWEEN Presentation Remote with Air Mouse Function. This wireless presenter is designed to enhance your presentations by offering flexible control, including an air mouse, laser pointer, and intuitive slide navigation. It is compatible with various operating systems and presentation software.
패키지 내용
패키지에 모든 품목이 들어 있는지 확인하세요.
- 1 x ELISWEEN Wireless Presenter Remote
- 1 x USB 수신기
- 1 x 사용자 매뉴얼(이 문서)
제품 특징
- 에어 마우스 기능: Combines traditional clicker functions with wireless cursor control, acting like a true mouse for enhanced interaction.
- Bright Red Laser Pointer: Easily highlight key points on most backgrounds with a visible red laser.
- 확장된 제어 범위: Wireless range up to 165 feet, air mouse function range up to 50 feet, and laser light range up to 328 feet.
- 인체공학적 디자인: Shaped to fit comfortably in hand with intuitive touch-keys for seamless control without needing to look at the device.
- Full-Functionality: Includes controls for volume, window switching, hyperlinks, video playback, full/black screen toggle, page up/down, and label/eraser functions.
- 플러그 앤 플레이: No drivers required. Simply plug the USB dongle into a compatible port.
- 폭넓은 호환성: Supports Windows 2003/XP/Vista/7/8/10, Mac OS, Linux, Android. Compatible with software like PowerPoint, iWork (Keynote, Numbers, Pages), Prezi, MS Word, Excel, ACDSee, and web browsers. (Note: Not compatible with Google Slides).
설치 지침
- 배터리 삽입:
Open the battery compartment on the back of the presenter. Insert two AAA batteries (not included), ensuring correct polarity (+/-). Close the compartment securely.

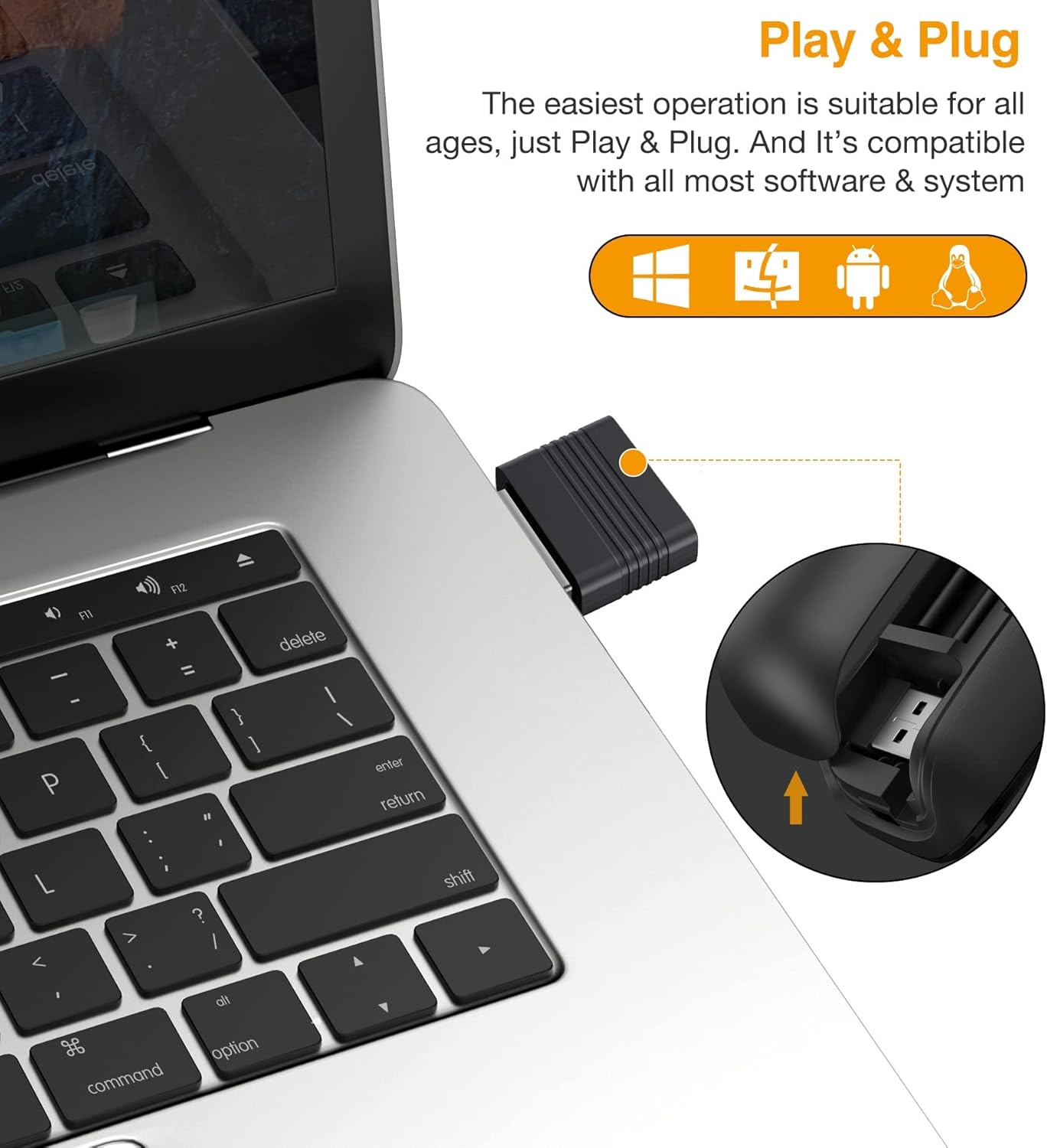

- USB 수신기 연결:
Locate the USB receiver stored within the presenter's battery compartment or a dedicated slot. Plug the USB receiver into an available USB-A port on your computer or laptop.
The USB receiver is designed for easy storage within the presenter and connects directly to your computer's USB-A port for instant plug-and-play functionality.
- 전원 켜기:
Turn on the presenter using the power switch, usually located on the side or bottom. A blue indicator light may illuminate to confirm it is powered on and connected.
- 시스템 인식:
Your computer should automatically detect and install the necessary drivers. This process typically takes a few seconds. No manual driver installation is required.
작동 지침
Familiarize yourself with the buttons and functions of your ELISWEEN Presentation Remote:
버튼 기능 이상view
This image illustrates the various control buttons on the presentation remote and their corresponding functions, including navigation, annotation, and screen control.
- 페이지 위로/아래로: 슬라이드를 넘겨보세요.
- Left/Right Clicker: Flexible control for computer interface interactions.
- Label/Eraser: Activate annotation mode to highlight points or erase markings.
- 전체 화면/검은 화면: Toggle between full screen presentation mode and a black screen.
- 창 전환: 열려 있는 애플리케이션 간에 빠르게 전환할 수 있습니다.
- Play Slideshow: Start or pause video playback within your presentation.
- 볼륨 조절: 오디오 출력을 조정하세요.
- 하이퍼링크: Activate embedded hyperlinks in your presentation.
에어마우스 기능
The presenter features an air mouse function, allowing you to control the cursor by moving the remote in the air. This provides greater flexibility during presentations.

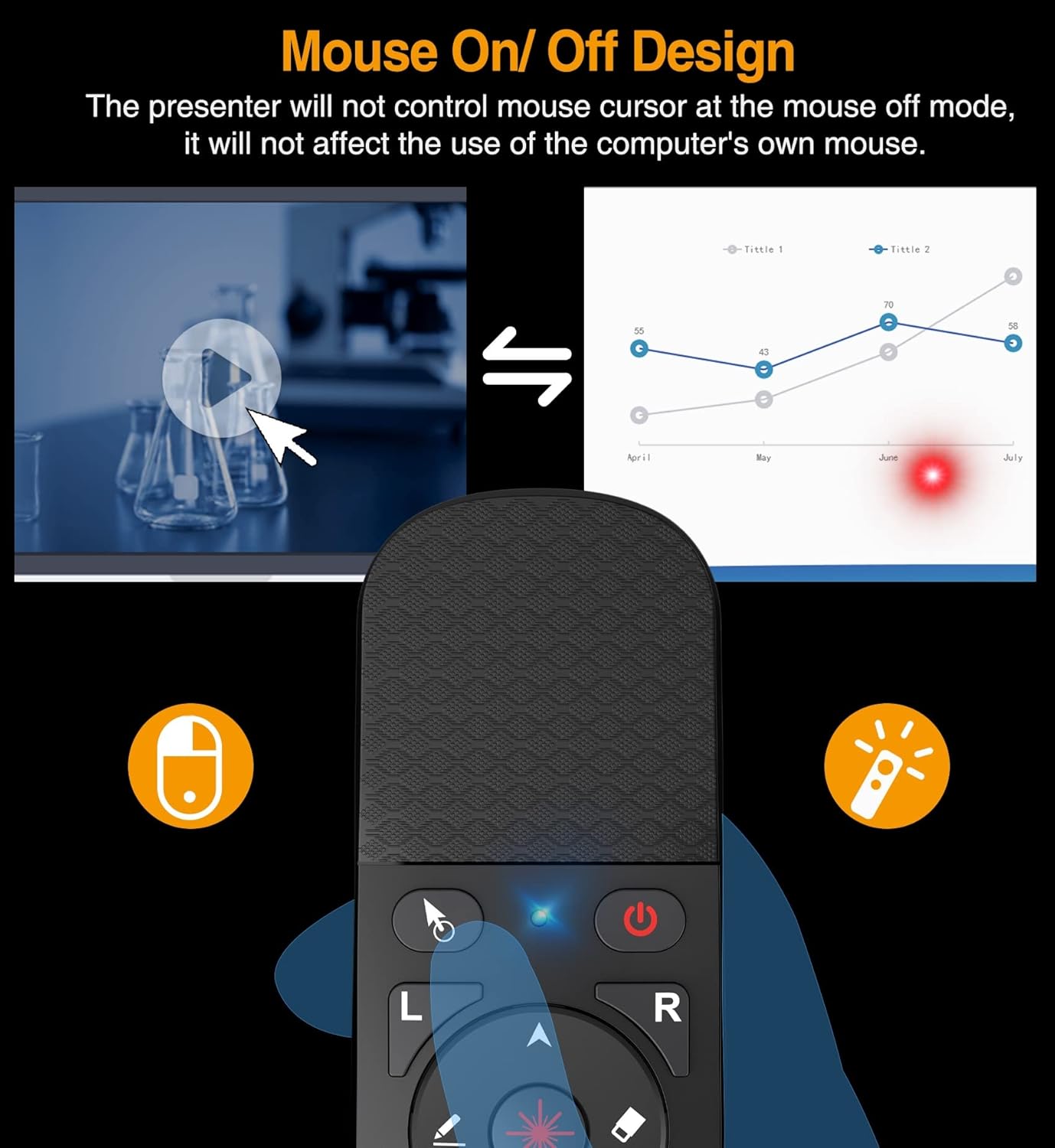

The remote includes a dedicated switch to activate or deactivate the air mouse function. When the air mouse is off, the presenter will not control the mouse cursor, allowing you to use your computer's own mouse without interference.
- 에어 마우스 활성화: Press the dedicated air mouse button or toggle the switch (refer to the device layout). The cursor will appear on your screen.
- Controlling Cursor: Move the presenter in the air to control the cursor's movement.
- Deactivating Air Mouse: Press the air mouse button or toggle the switch again to turn off the air mouse function. This allows you to use your computer's mouse without interference from the presenter.
레이저 포인터
Use the integrated red laser pointer to draw attention to specific areas on your presentation screen.
The bright red laser pointer is effective for highlighting content during presentations and meetings. Its visibility helps guide the audience's focus.
- Activating Laser: Press and hold the laser button (typically marked with a laser icon) to emit the red laser beam.
- Deactivating Laser: 레이저를 끄려면 버튼에서 손을 떼세요.
- 메모: The laser pointer is designed for traditional projection screens. Its visibility may be reduced or absent on LED/LCD screens.
무선 범위
This image highlights the effective operational ranges for the laser pointer, air mouse, and general wireless control, allowing for freedom of movement during presentations.
The ELISWEEN Presentation Remote offers significant freedom of movement:
- 무선 제어 범위: 최대 165피트(50미터)
- Air Mouse Function Range: 최대 50피트(15미터)
- Laser Light Range: 최대 328피트(100미터)
Note that environmental factors and obstacles may affect the actual operating range.
유지
- 청소: Use a soft, dry cloth to clean the surface of the presenter. Avoid using liquid cleaners or abrasive materials.
- 배터리 교체: When the indicator light dims or the presenter becomes unresponsive, replace the two AAA batteries. Ensure correct polarity.
- 저장: Store the USB receiver inside the presenter when not in use to prevent loss. Store the device in a cool, dry place away from direct sunlight and extreme temperatures.
- 손질: Avoid dropping the device, as this may cause the battery cover to detach or damage internal components.
문제 해결
| 문제 | 가능한 원인 | 해결책 |
|---|---|---|
| Presenter is unresponsive. | Low batteries; USB receiver not connected; presenter not powered on. | Replace batteries; ensure USB receiver is securely plugged in; turn on the presenter. |
| Laser pointer does not work. | Laser button not pressed; low batteries; pointing at an LED/LCD screen. | Press and hold the laser button; replace batteries; note that the laser is less visible on LED/LCD screens. |
| Air mouse cursor lags or is difficult to control. | Interference; distance from receiver; rapid movements. | Reduce distance to USB receiver; ensure no major obstructions; use smoother, deliberate movements. |
| Presenter disconnects frequently. | Low batteries; USB receiver interference; out of range. | Replace batteries; try a different USB port; stay within the recommended wireless range. |
| Functions (e.g., page up/down) do not work in specific software. | Software incompatibility; software not in focus. | Ensure the software is supported (e.g., not Google Slides); click on the presentation window to ensure it is the active application. |
명세서
- 모델 번호: 72ed368d-9dff-42ae-ba96-5d07f9731cf6
- 재료: ABS
- 밝은 색상: Red (Laser)
- 무선 주파수 : 2.4GHz
- 무선 제어 범위: ≤ 165 ft (50 meters)
- Air Mouse Function Range: ≤ 50 ft (15 meters)
- Laser Light Range: ≤ 328 ft (100 meters)
- 전원: AAA 배터리 2개 (미포함)
- 치수: 5.31 x 1.65 x 0.95 인치
- 품목 무게: 1.76 온스
- 지원되는 운영 체제: Win 2000, XP, Vista, Win7, Win8, Win10, MAC OS, Linux, Android
- 호환 장치: Personal Computer (Laptop, Desktop)
- 지원되는 최대 장치 수: 10
보증 및 지원
For warranty information and technical support, please contact ELISWEEN customer service. Details can typically be found on the product packaging or the official ELISWEEN web사이트. 보증 청구를 위해 구매 증빙 자료를 보관하세요.
Manufacturer: SHENZHEN QIXUN SPACE TECHNOLOGY CO.,LTD
