1. 서론
This manual provides detailed instructions for the Inkbird IBS-P01R Wireless Pool Thermometer and the Inkbird IBS-TH2 Freezer Wireless Thermometer. These devices are designed to monitor temperature in various environments, offering convenience and accuracy for both indoor and outdoor applications.
The IBS-P01R is a floating, waterproof thermometer ideal for monitoring water temperatures in pools, spas, and aquariums. It transmits data wirelessly to a receiver, allowing you to check readings remotely.
The IBS-TH2 is a compact Bluetooth temperature sensor suitable for monitoring ambient temperatures in refrigerators, freezers, rooms, greenhouses, and more. It connects to your smartphone via Bluetooth for real-time data, historical graphs, and alert notifications.
Image 1.1: Inkbird IBS-P01R Wireless Pool Thermometer (floating sensor and receiver) and Inkbird IBS-TH2 Bluetooth Temperature Sensor.
2. 구성 요소
모든 품목이 들어 있는지 확인하려면 패키지 내용물을 확인하세요.
- Inkbird IBS-P01R Floating Pool Thermometer: This unit floats in water and measures temperature.
- Inkbird IBS-P01R Receiver: Displays the temperature reading from the floating sensor.
- Inkbird IBS-TH2 Bluetooth Temperature Sensor: A compact sensor for ambient temperature monitoring.
- 사용자 설명서(본 문서).
메모: Batteries are typically not included and must be purchased separately. The IBS-TH2 requires 2 AAA batteries.
3. 설정
3.1. Inkbird IBS-P01R Wireless Pool Thermometer
- 배터리 삽입: Open the battery compartment on both the floating sensor and the receiver. Insert the required batteries, ensuring correct polarity. Close the compartments securely.
- 전원 켜기: Turn on both the floating sensor and the receiver. They should automatically attempt to pair.
- 놓기: Place the floating sensor in the water (e.g., pool, spa, fish pond). Ensure it floats freely and is not obstructed. Position the receiver within the maximum wireless range of 300 feet (without obstacles) for optimal signal reception.
Image 3.1: Inkbird IBS-P01R Floating Pool Thermometer.
3.2. Inkbird IBS-TH2 Bluetooth Temperature Sensor
- 배터리 삽입: Open the battery compartment on the IBS-TH2 sensor. Insert 2 AAA batteries, observing correct polarity. Close the compartment.
- 앱 다운로드 : Download the official Inkbird app from your smartphone's app store (iOS or Android).
- 편성: Enable Bluetooth on your smartphone. Open the Inkbird app and follow the on-screen instructions to add and pair the IBS-TH2 device. The sensor should appear in the app's device list.
- 놓기: Place the IBS-TH2 sensor in the desired monitoring location, such as a refrigerator, freezer, room, greenhouse, or wine cellar. Ensure it is within the Bluetooth range of your smartphone (up to 98 feet without obstacles).
Image 3.2: Inkbird IBS-TH2 Bluetooth Temperature Sensor.
4. 운영
4.1. Inkbird IBS-P01R Wireless Pool Thermometer
- 온도 표시 : The receiver will display the current water temperature measured by the floating sensor. The display typically shows temperature in both Fahrenheit and Celsius.
- 무선 범위: The system offers a wireless connection range of up to 300 feet (91 meters) in open areas, allowing you to monitor water temperature from indoors.
- 방수 디자인 : The floating sensor is IPX7 waterproof, making it suitable for continuous immersion in water.
Image 4.1: Applications for the IBS-P01R Pool Thermometer.
4.2. Inkbird IBS-TH2 Bluetooth Temperature Sensor
- 앱 모니터링: Once connected via Bluetooth, open the Inkbird app to view 실시간 온도 판독.
- 데이터 로깅: The IBS-TH2 has a built-in memory that stores up to 30,000 data points, allowing for historical temperature tracking.
- 앱의 고급 기능: The app supports features such as:
- 온도 그래프: Visualize temperature trends over time.
- Accuracy Calibration: Adjust the sensor's readings for precise measurements.
- High/Low-Temperature Alarms: Set custom temperature thresholds to receive notifications if readings fall outside the desired range.
- 데이터 내보내기: Export historical data for analysis.
- Samp링 간격: Adjust how frequently the sensor records data.
- 블루투스 범위 : The sensor maintains a Bluetooth connection up to 98 feet (30 meters) without obstacles.
- IPX4 방수 : The IBS-TH2 is IPX4 splash-proof, making it suitable for use in environments like refrigerators.
Image 4.2: IBS-TH2 in a refrigerator, highlighting IPX4 waterproof rating.
Image 4.3: Applications for the IBS-TH2 Bluetooth Temperature Sensor.
5. 유지관리
5.1. 청소
- IBS-P01R Floating Sensor: The manufacturer recommends hand washing only. Use a soft cloth and mild soap with water to clean the exterior. Avoid abrasive cleaners or harsh chemicals.
- IBS-P01R Receiver & IBS-TH2 Sensor: 부드러운 천으로 외부를 닦아주세요.amp cloth. Do not immerse these units in water.
5.2. 배터리 교체
When the battery indicator on the receiver (for IBS-P01R) or in the app (for IBS-TH2) shows low power, replace the batteries promptly. Refer to the setup section for battery type and insertion instructions.
5.3. 보관
If the devices will not be used for an extended period, remove the batteries to prevent leakage and store the units in a cool, dry place away from direct sunlight.
6. 문제 해결
| 문제 | 가능한 원인 | 해결책 |
|---|---|---|
| No temperature reading on IBS-P01R receiver. | Batteries low or dead; sensor/receiver out of range; pairing issue. | Replace batteries in both units. Move receiver closer to the sensor. Power cycle both units to re-establish connection. |
| IBS-TH2 not connecting to app. | Bluetooth off on phone; sensor batteries low; sensor out of range; app issue. | Ensure phone's Bluetooth is enabled. Replace sensor batteries. Move phone closer to sensor. Restart the app or phone. Re-pair the device in the app. |
| 온도 판독값이 부정확합니다. | Improper sensor placement; need for calibration (IBS-TH2). | Ensure sensors are placed correctly and not exposed to direct heat/cold sources. For IBS-TH2, use the app's calibration feature if necessary. |
| Short wireless/Bluetooth range. | Obstructions (walls, metal); interference from other devices. | Reduce obstructions between units. Move units away from other electronic devices that may cause interference. |
7. 사양
| 특징 | IBS-P01R 무선 수영장 온도계 | IBS-TH2 Bluetooth Temperature Sensor |
|---|---|---|
| 상표 | 잉크버드 | |
| 모델명 | IBS-P01R | IBS-TH2 |
| 연결성 | Wireless (300ft / 91m range) | Bluetooth (98ft / 30m range) |
| 온도 범위 | -40°C ~ 70°C (-40°F ~ 158°F) | -40°C ~ 60°C (-40°F ~ 140°F) |
| 온도 정확도 | 지정되지 않음 | ± 0.5 ° C / ± 0.9 ° F |
| 방수 등급 | IPX7 | IPX4 |
| 전원 | 배터리 구동 | AAA 배터리 2개(포함되지 않음) |
| 디스플레이 유형 | Digital (on receiver) | 디지털(앱을 통해) |
| 특징 | 무선 원격 모니터링 | App Control, Data Logging (30,000 points), Alarms, Calibration |
| 재료 | 플라스틱 | |
Image 7.1: Inkbird IBS-P01R Dimensions.

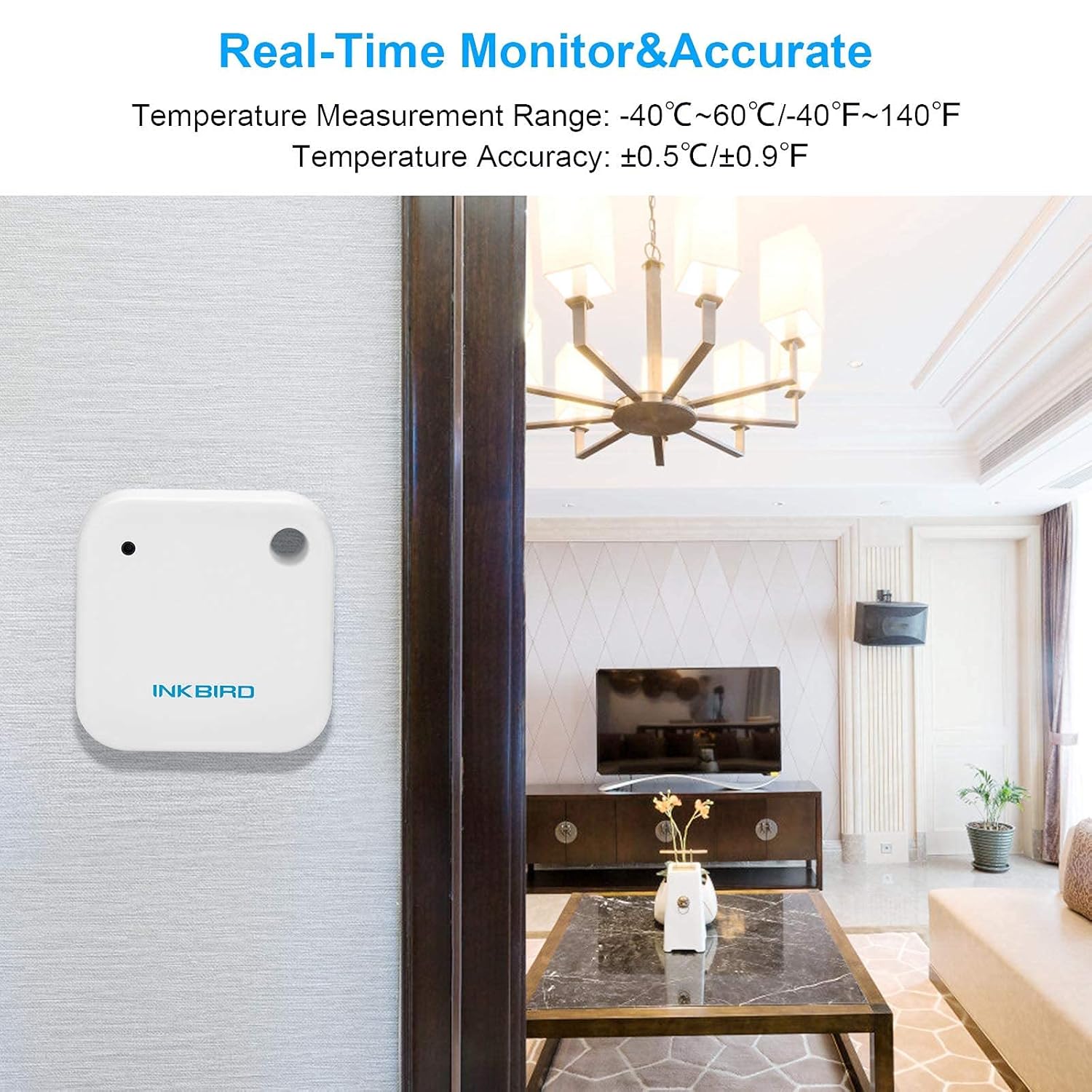

Image 7.2: IBS-TH2 Real-Time Monitor & Accuracy.
8. 보증 및 지원
8.1. 보증 정보
Inkbird products typically come with a standard manufacturer's warranty. Please refer to the warranty card included with your product or visit the official Inkbird website for specific warranty terms and conditions applicable to the IBS-P01R and IBS-TH2 models.
8.2. 고객 지원
For technical assistance, troubleshooting not covered in this manual, or warranty claims, please contact Inkbird customer support through their official website or the contact information provided in your product packaging. Ensure you have your product model numbers (IBS-P01R, IBS-TH2) and purchase details ready when contacting support.
