1. 서론
This manual provides essential instructions for the safe and efficient operation, maintenance, and troubleshooting of your LAND LHP12160H Electric Pressure Washer. Please read this manual thoroughly before first use and retain it for future reference.
The LAND LHP12160H is an 1800W electric pressure washer designed for various cleaning tasks, generating up to 3000 PSI. It is suitable for cleaning surfaces such as houses, RVs, cars, decks, driveways, and garden equipment.
2. 안전 정보
화재, 감전, 신체 상해의 위험을 줄이려면 전기 제품을 사용할 때 항상 기본적인 안전 예방 조치를 준수하세요.
- 전원이 볼륨과 일치하는지 확인하십시오.tage specified on the pressure washer.
- 비가 오거나 고인 물 근처에서 고압 세척기를 작동하지 마십시오.
- 눈 보호 장비를 포함한 적절한 개인 보호 장비를 착용하세요.
- 분무기를 사람, 애완동물 또는 콘센트에 절대 겨누지 마십시오.
- 어린이와 주변인이 작업 영역에 접근하지 못하도록 하십시오.
- 유지 관리나 청소를 수행하기 전에 전원 공급 장치를 분리하십시오.
3. 제품 구성품
Familiarize yourself with the main components of your LAND LHP12160H pressure washer.
그림 1: Main unit, spray gun, high-pressure hose, and various nozzles.
- 메인 유닛: Contains the motor, pump, and detergent tank.
- 분무기: Handheld device for directing the high-pressure water stream.
- 고압 호스: Connects the main unit to the spray gun (26 ft length).
- 노즐: Interchangeable tips for different spray patterns and intensities. Includes 0°, 15°, 25°, 40°, Lotus/Turbo, and black soap nozzles.
- 물 유입 커넥터: For connecting a garden hose to the pressure washer.
- 바퀴: For easy portability of the unit.
4. 설치 및 조립
압력 세척기를 조립하고 사용 준비를 하려면 다음 단계를 따르십시오.
- 고압 호스 부착: Connect one end of the high-pressure hose to the outlet on the main unit and the other end to the spray gun. Ensure connections are secure to prevent leaks.
- 물 공급 연결: Attach a standard garden hose to the water inlet connector on the pressure washer. Ensure the water supply is turned on fully before starting the unit. The maximum water inlet temperature is 140°F (60°C).
- 노즐 설치: Select the desired nozzle (e.g., 25° for general cleaning) and insert it into the quick-connect collar on the spray gun wand. Pull back the collar, insert the nozzle, and release the collar to lock it in place.
- 세제 탱크 채우기(선택 사항): If using detergent, fill the built-in detergent tank with an appropriate pressure washer-safe cleaning solution.
그림 2: Visual guide for connecting the high-pressure hose and installing nozzles.
5. 사용 설명서
고압 세척기를 안전하고 효과적으로 작동하려면 다음 단계를 따르세요.
- 전원 켜기: 전원 코드를 접지된 콘센트에 꽂으세요.
- 퍼지 공기: Before turning on the unit, squeeze the trigger on the spray gun to allow water to flow through the system and purge any air. This helps protect the pump.
- 고압 세척기 시작: 전원 스위치를 "ON" 위치로 돌리십시오. 모터가 작동하고 펌프가 압력을 생성합니다.
- 청소 시작: Squeeze the trigger to start the high-pressure spray. Release the trigger to activate the Total Stop System (TSS), which automatically shuts off the pump to save energy and prolong its life.
- 분사 패턴 조정: Change nozzles as needed for different cleaning tasks. Refer to the nozzle guide below.
- 세제 적용: To apply detergent, use the black soap nozzle. The pressure washer will automatically draw detergent from the tank at low pressure.
- 종료: When finished, turn the power switch to "OFF," turn off the water supply, and squeeze the trigger to release any remaining pressure in the system. Disconnect the garden hose and power cord.
5.1 Nozzle Selection Guide
The LAND LHP12160H includes 6 function nozzles for various applications:
그림 3: Illustration of different nozzle types and their corresponding spray patterns.
- 0° 빨간색 노즐: Pin-point jet stream for intense cleaning of small, stubborn spots. Use with extreme caution.
- 15° 노란색 노즐: Narrow, high-pressure spray for concentrated cleaning on hard surfaces.
- 25° 녹색 노즐: 대부분의 표면을 청소하는 데 적합한 중간 각도 분사 방식입니다.
- 40° 흰색 노즐: Wide-angle spray for gentle cleaning of delicate surfaces or large areas.
- 블랙솝 노즐: Low-pressure spray for applying detergents.
- Lotus/Turbo Nozzle: Creates a rotating jet stream for powerful cleaning over a wider area, effective on tough stains.
그림 4: Examples of the pressure washer being used for cleaning cars, patios, and other outdoor surfaces.
6. 유지관리
정기적인 유지관리를 통해 최적의 성능을 보장하고 고압 세척기의 수명을 연장할 수 있습니다.
- 매번 사용 후:
- 세제 잔여물을 제거하기 위해 깨끗한 물로 시스템을 세척하십시오.
- 광고로 기기 외부를 닦아냅니다.amp 옷감.
- Drain all water from the pump, hose, and spray gun to prevent freezing in cold weather.
- 노즐 청소: If a nozzle becomes clogged, use the included nozzle cleaning tool (or a small wire) to clear any debris.
- 저장: Store the pressure washer in a dry, frost-free location. Coil the high-pressure hose and power cord neatly. The unit features storage devices for the power cord, gun, and most accessories.

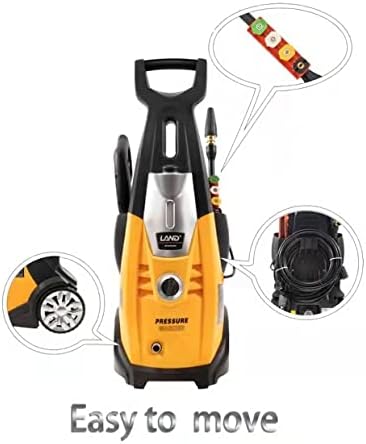

그림 5: The pressure washer unit highlighting its wheels for mobility and integrated storage for accessories.
7. 문제 해결
일반적인 문제와 해결 방법은 이 섹션을 참조하세요.
| 문제 | 가능한 원인 | 해결책 |
|---|---|---|
| 장치가 시작되지 않습니다. | 전원 공급이 안 됨, 회로 차단기가 작동함, 스위치에 결함이 있음. | Check power connection; reset circuit breaker; contact customer support. |
| 저기압. | Insufficient water supply; clogged nozzle; air in pump; leak in hose/connections. | Ensure water supply is fully open; clean nozzle; purge air by squeezing trigger; check all connections for leaks. |
| 연결부에서 물이 새고 있습니다. | Loose connections; worn O-rings/gaskets. | Tighten connections; replace O-rings/gaskets if damaged. The brass connection adapters include built-in rubber gaskets to minimize leaks. |
| Motor runs but no water sprays. | No water supply; clogged inlet filter; air in pump. | Check water supply; clean inlet filter; purge air from system. |
8. 사양
Technical specifications for the LAND LHP12160H Electric Pressure Washer.
- 모델: LHP12160H
- 전원: 코드식 전기
- 모터: 1800와트
- 최대 압력: 최대 3000 PSI
- 최대 유량 : 분당 1.76갤런(GPM)
- 호스 길이: 26 피트
- Maximum Water Inlet Temperature: 화씨 140도(섭씨 60도)
- 품목 무게: 23.5 파운드
- 제품 크기: 11.6인치 길이 x 10.9인치 너비 x 3.7인치 높이
- 안전 인증: 체코
- 특징: Total Stop System (TSS), Built-in Detergent Tank, 6 Nozzle Types.
9. 보증 및 지원
For warranty information or technical support, please refer to the documentation included with your purchase or contact LAND customer service. Keep your purchase receipt as proof of purchase.
추가 지원이 필요하면 다음을 방문하세요. LAND Store on Amazon.
