1. 서론
Thank you for choosing the CLP Tanna Velvet Dining Chair. This manual provides essential information for the safe assembly, proper use, and effective maintenance of your new chair. Please read these instructions carefully before assembly and retain them for future reference.
The CLP Tanna chair is designed for optimal seating comfort, featuring a padded seat, comfortable armrests, and a backrest with an elegant quilted velvet upholstery. Its robust metal frame ensures stability and durability.

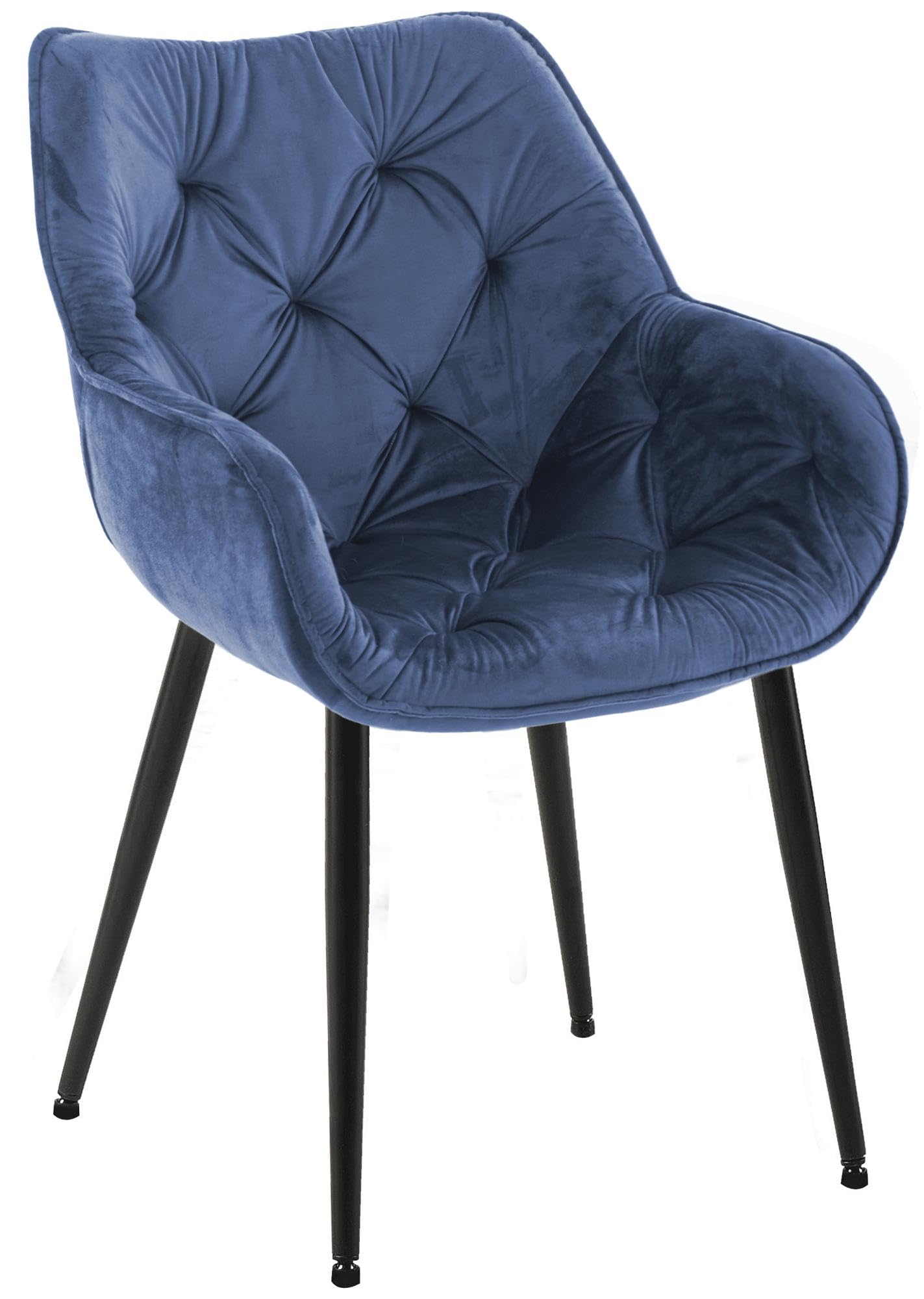

Image 1.1: The CLP Tanna Velvet Dining Chair in blue, showcasing its design and velvet upholstery.
2. 안전 지침
- 최대 부하 용량 : This chair is designed to support a maximum weight of 150 kg (approximately 330 lbs). Do not exceed this limit to prevent damage or injury.
- 안정적인 배치: Always place the chair on a flat, stable surface. Ensure all legs are in full contact with the floor before use.
- 바닥 보호: The robust metal frame is equipped with floor protectors to prevent slipping and protect your flooring (tiles, parquet, laminate) from scratches.
- 어린이들: 어린이가 조립 구역에 접근하지 못하도록 하세요. 작은 부품은 질식 위험을 초래할 수 있습니다.
- 정기 점검: 모든 나사와 연결부가 단단히 조여져 있는지 정기적으로 점검하세요. 필요하면 다시 조이세요.
Image 2.1: Maximum weight capacity of 150 kg.
Image 2.2: Chair legs equipped with floor protectors.
3. 패키지 내용
조립을 시작하기 전에 모든 부품이 있는지, 손상되지 않았는지 확인하십시오. 부품이 누락되었거나 손상된 경우 조립을 진행하지 말고 고객 지원 센터에 문의하십시오.
- Chair Seat with Backrest and Armrests (1x)
- Chair Leg Frame (1x)
- 조립 하드웨어(나사, 와셔, 육각 렌치)
- 사용 설명서(본 문서)
4. 설치 및 조립
Assembly of the CLP Tanna chair is generally straightforward, but requires careful attention to detail. It is recommended to assemble the chair on a soft, clean surface to prevent scratching the components or your floor.
- 구성 요소 풀기: 모든 부품을 포장에서 조심스럽게 꺼내세요. 포장 내용물 목록을 확인하세요.
- Attach Leg Frame: Align the leg frame with the mounting points on the underside of the chair seat.
- 나사로 고정: Insert the provided screws and washers into the designated holes. Hand-tighten all screws initially.
- 최종 조임: Once all screws are in place, gradually tighten them using the Allen key. Ensure all connections are firm and secure, but do not overtighten.
- 안정성 확인: Gently rock the chair to ensure it is stable and level. If it wobbles, check the tightness of all screws and adjust as needed.
Note: Some users have reported issues with screw length during assembly. If you encounter this, please contact customer support for assistance.
Image 4.1: Visual representation of assembly and care instructions.
5. 작동 및 사용
The CLP Tanna Velvet Dining Chair is designed for comfortable seating in dining areas, living rooms, or offices. Its ergonomic shape and padded upholstery provide a pleasant seating experience even for extended periods.
- 용도: 이 의자는 실내 전용입니다.
- Seating Posture: 최적의 지지력을 얻으려면 등을 등받이에 기대어 좌석 중앙에 앉으세요.
- 움직임: Avoid standing on the chair or using it as a step stool. Do not lean excessively on the backrest or armrests, as this may compromise stability.
Image 5.1: The CLP Tanna chairs integrated into a dining room setting.
6. 유지관리 및 관리
The CLP Tanna chair is designed for easy maintenance due to its treated materials. Proper care will help preserve its appearance and extend its lifespan.
- 실내 장식 청소: For general cleaning, simply wipe the velvet upholstery with a damp cotton cloth. Avoid using abrasive cleaners or harsh chemicals, as these can damage the fabric.
- 유출: 액체를 쏟았을 경우, 즉시 깨끗하고 마른 천으로 닦아내십시오. 문지르면 얼룩이 번질 수 있으므로 문지르지 마십시오.
- 프레임 세척: 금속 프레임을 부드러운 천으로 닦으세요.amp 천으로 닦아주세요. 녹이 슬지 않도록 완전히 말려주세요.
- 직사광선을 피하세요: Prolonged exposure to direct sunlight can cause the velvet fabric to fade. Position the chair away from direct sunlight if possible.
이미지 6.1: 클로즈업 view of the chair's velvet fabric texture.
7. 문제 해결
- 의자 흔들림: Ensure all assembly screws are fully tightened. If the issue persists, disassemble and reassemble, ensuring all parts are correctly aligned.
- 조립 중 어려움: If screws do not fit or seem too short, double-check that you are using the correct screws for the designated holes. If the problem persists, contact customer support for replacement parts.
- 삐걱거리는 소리: Squeaking can often be resolved by tightening all screws. If the noise continues, apply a small amount of silicone spray to the joints.
8. 사양
| 특징 | 세부 사항 |
|---|---|
| 모델 번호 | CLP-Tanna (316861) |
| 상표 | 씨엘피(CLP) |
| 색상 | 파란색 |
| 재료 | Velvet upholstery, Metal frame |
| 전체 높이 | 83cm(32.7인치) |
| 전체 폭 | 58cm(22.8인치) |
| 전체 깊이 | 62cm(24.4인치) |
| 좌석 높이 | 46cm(18.1인치) |
| 좌석 면적 (가로 x 세로) | 54 x 45cm(21.3 x 17.7인치) |
| 등받이 높이 | 41cm(16.1인치) |
| 팔걸이 높이 | 18cm(7.1인치) |
| 무게 | 7kg(15.4파운드) |
| 맥스. 적재 능력 | 150kg(330파운드) |
Image 8.1: Detailed dimensions of the CLP Tanna Velvet Dining Chair.
9. 보증 및 지원
For warranty information, please refer to the terms and conditions provided by your retailer at the time of purchase. Information regarding spare parts availability is currently not provided.
If you have any questions, require assistance with assembly, or need to report a missing or damaged part, please contact the seller or manufacturer directly through the platform where the purchase was made. Please have your order details and product model number (CLP-Tanna or 316861) ready when contacting support.
