1. 제품 오버view
The ATUMTEK Selfie Stick Tripod is a versatile 3-in-1 device designed for capturing photos and videos with ease. It integrates a selfie stick and a tripod stand, featuring a premium aluminum extendable pole for exceptional stability and durability. The device includes a detachable Bluetooth wireless remote for convenient operation and a rotatable phone holder to achieve various shooting angles. Its compact and lightweight design makes it ideal for travel and everyday use.
주요 특징:
- Integrated Innovative Design: Combines selfie stick and tripod functions with a stable, aviation-grade aluminum extendable pole.
- Adjustable Angle & Rotatable Phone Holder: Supports 270-degree rotation for horizontal/vertical clamping and 180-degree rotation for optimal shooting angles. Accommodates phones up to 3.42 inches wide.
- 탈착식 블루투스 리모컨: Wireless control up to 33ft (10m) with a built-in 50mAh rechargeable Lithium battery, capable of capturing up to 15,000 photos on a full charge via USB Type-C. Compatible with iOS 7.0+ and Android 5.0+ devices.
- Super Lightweight & Portable: Folds down to just 7.7 inches (19.5 cm) and extends up to 31.3 inches (79.5 cm), weighing only 6 ounces (170 grams), making it easy to carry in pockets or small bags.
- Simple to Use & Universally Compatible: Quick Bluetooth pairing and easy operation with a shutter control button. Can be used for self-photography, wider scenery shots, or as a desktop phone holder for live broadcasts and media view주고받음.
Figure 1: The ATUMTEK Selfie Stick Tripod in its compact form, extended as a selfie stick, and set up as a tripod. The detachable Bluetooth remote is also visible.
2. 패키지 내용
모든 품목이 들어 있는지 확인하기 위해 패키지를 주의 깊게 확인하세요.
- 1x ATUMTEK Selfie Stick Tripod
- 1x Bluetooth Remote Shutter
- 1x USB Type-C 충전 케이블
- 1x 사용자 설명서
Figure 2: All components included in the ATUMTEK Selfie Stick Tripod package.
3. 설정 가이드
3.1 블루투스 리모컨 페어링
- Ensure the Bluetooth remote is charged.
- Turn on the remote by pressing and holding the camera button until the indicator light flashes.
- 스마트폰에서 블루투스 설정으로 이동하여 블루투스를 활성화하세요.
- 검색 "ATUMTEK" or a similar device name in the list of available devices.
- Select the device to pair. The indicator light on the remote will turn solid blue once successfully paired.
3.2 스마트폰 연결
- Gently pull the phone holder clamp떨어져요.
- 스마트폰을 홀더에 조심스럽게 놓고 양쪽 클립이 스마트폰을 단단히 고정하는지 확인하십시오.amps. The holder accommodates devices with widths up to 3.42 inches.
- 최적의 균형과 카메라 정렬을 위해 거치대 안에서 휴대폰의 위치를 조정하세요.

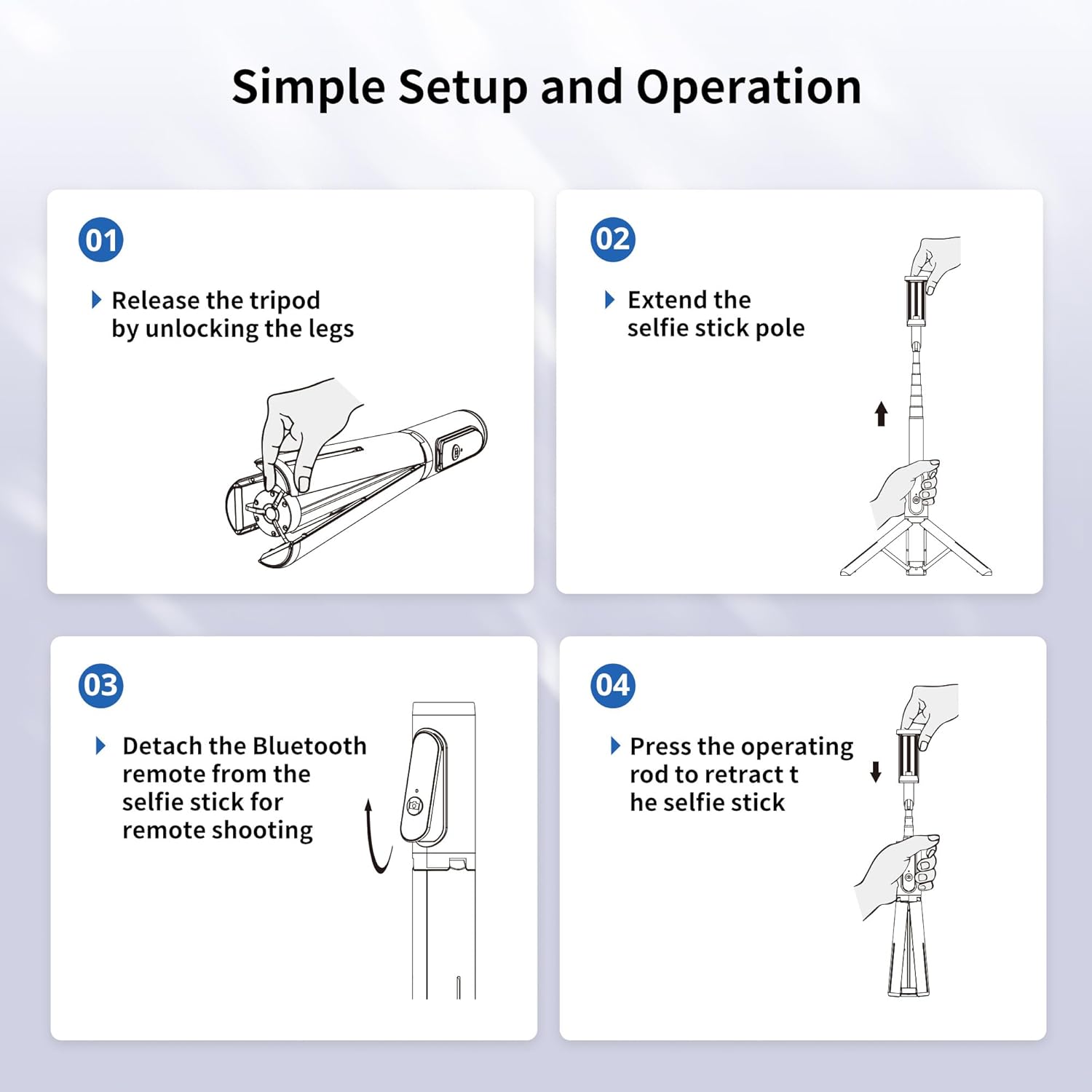

Figure 3: Visual guide for setting up the tripod and extending the selfie stick.
4. 사용 설명서
4.1 셀카봉으로 사용하기
- 기기의 밑부분을 단단히 잡으세요.
- Extend the aluminum pole to your desired length. The pole extends up to 31.3 inches.
- 필요에 따라 휴대폰 거치대의 각도를 조절하세요.
- 분리 가능한 블루투스 리모컨을 사용하여 사진을 촬영하거나 비디오 녹화를 시작/중지할 수 있습니다.
4.2 삼각대 스탠드로 사용하기
- From the folded position, gently push the bottom part of the handle to release the integrated tripod legs.
- Ensure the three legs are fully spread out to form a stable base.
- Extend the aluminum pole to your desired height for tripod use.
- 삼각대를 평평하고 안정적인 표면에 놓으십시오.

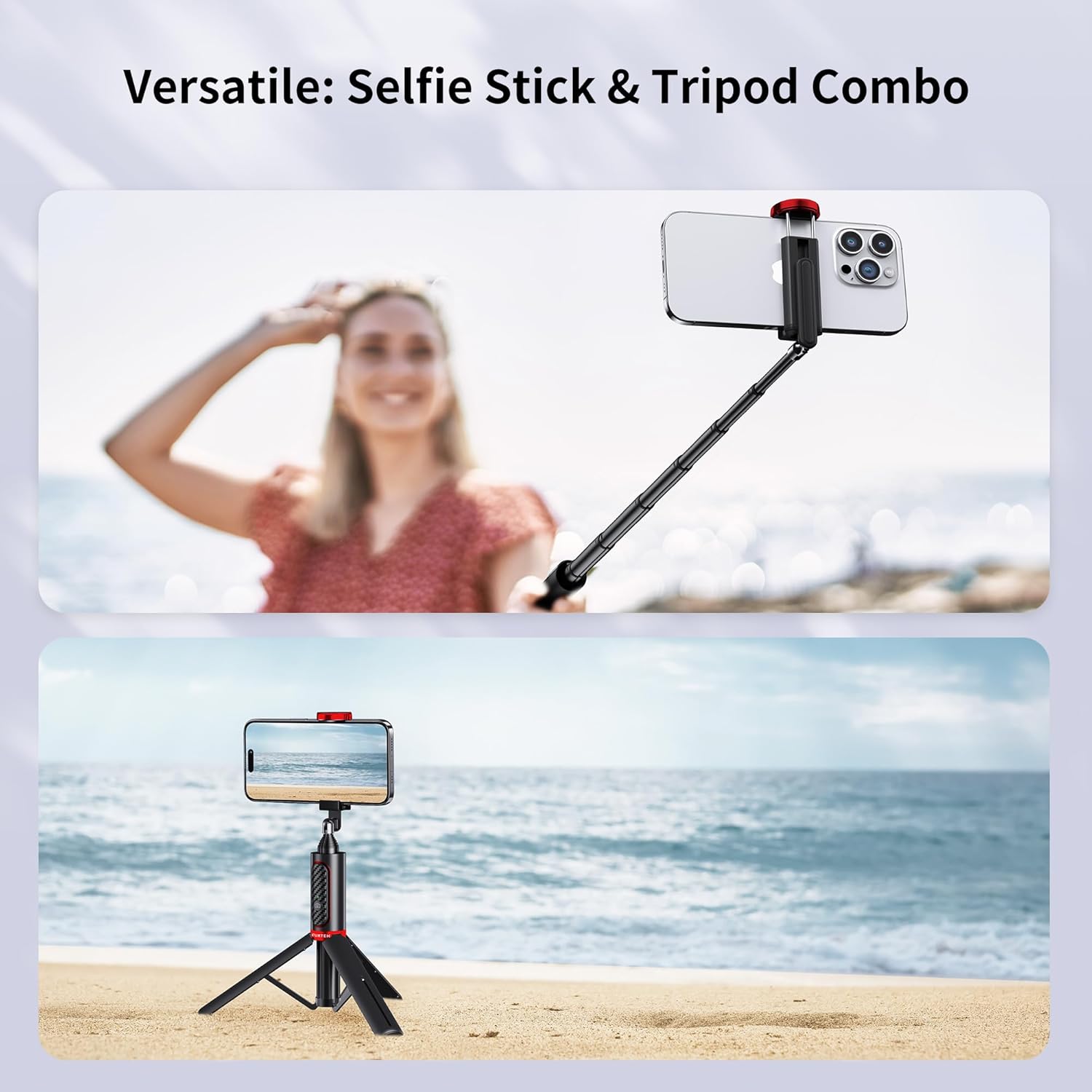

Figure 4: The versatility of the device, functioning as both a selfie stick and a tripod.
4.3 각도 및 회전 조정
The phone holder features a 270-degree rotatable design, allowing you to switch between horizontal and vertical clamping of your mobile phone. Additionally, the head offers 180-degree rotation, enabling you to select the perfect angle for your photos and videos.
Figure 5: Illustration of the phone holder's articulation and rotation capabilities.
4.4 분리형 리모컨 사용하기
The Bluetooth remote can be detached from the selfie stick for remote shooting. Simply slide it out from its slot. Once detached and paired, press the camera button on the remote to trigger your phone's camera shutter. This allows you to take photos or group shots from a distance of up to 33 feet (10 meters).

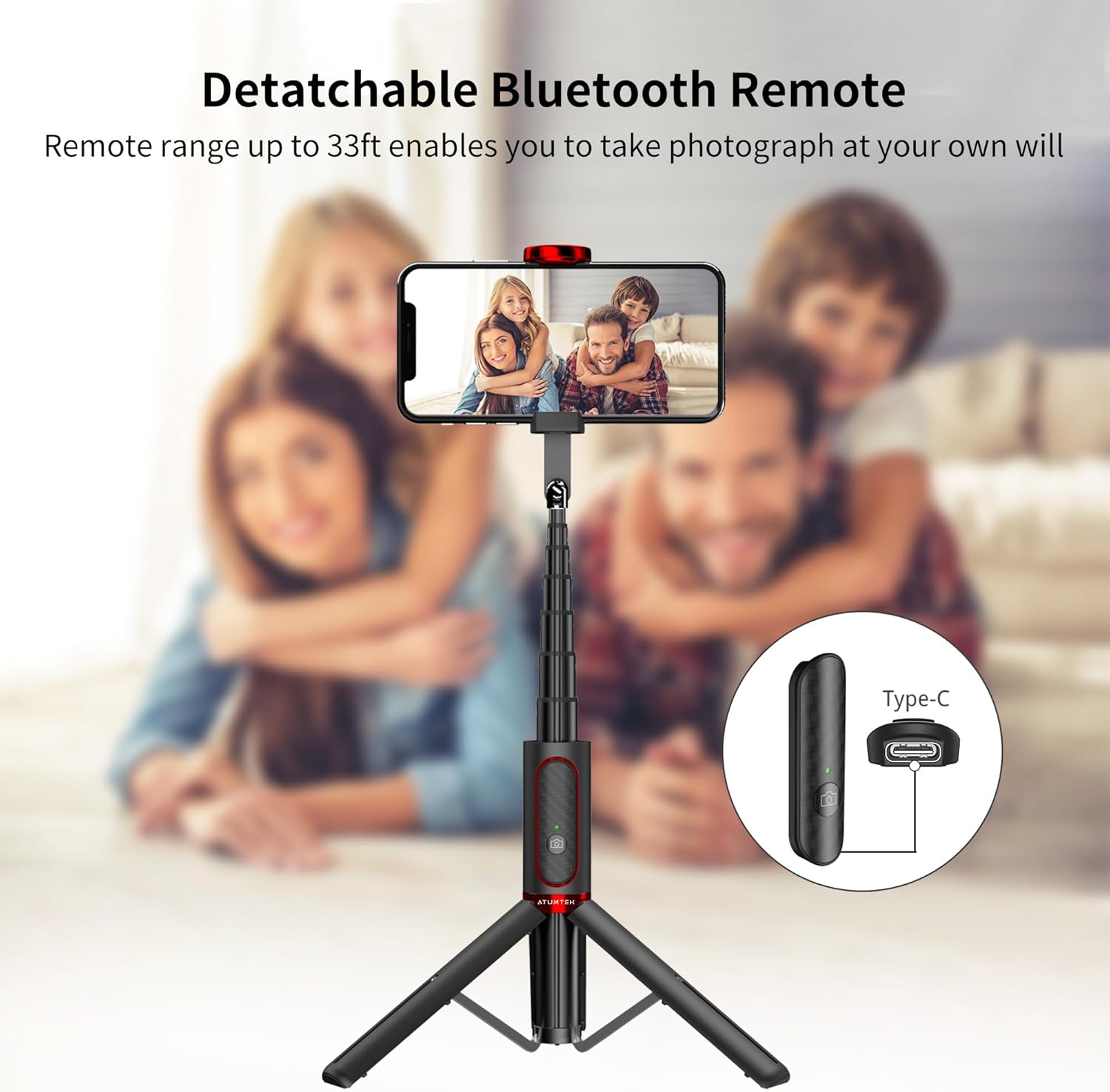

Figure 6: The detachable Bluetooth remote and its charging port.
5. 유지관리
5.1 청소
To maintain the longevity and appearance of your ATUMTEK Selfie Stick Tripod, wipe it regularly with a soft, dry cloth. Avoid using abrasive cleaners or solvents, as these may damage the finish or internal components.
5.2 배터리 충전
The Bluetooth remote has a built-in 50mAh rechargeable Lithium battery. When the battery is low, connect the remote to a USB power source using the provided USB Type-C charging cable (5V/110mAh). A full charge allows for approximately 15,000 photos. Ensure the remote is fully charged before extended use.
6. 문제 해결
6.1 블루투스 연결 문제
- 리모컨이 페어링되지 않음: Ensure the remote is fully charged. Turn off and on your phone's Bluetooth, then try pairing again.
- Remote Disconnects Frequently: Ensure the remote is within the 33ft (10m) operating range. Avoid obstacles that may interfere with the Bluetooth signal.
6.2 원격 응답 없음
- No Response When Pressing Button: Check if the remote's battery is depleted. Recharge the remote.
- Remote Paired but No Shutter Action: Ensure your phone's camera app is open and active. Some phone models may require specific camera settings for external remotes.
6.3 Tripod Stability Concerns
- 불안정한 삼각대: Ensure all three tripod legs are fully extended and locked into place. Place the tripod on a flat, level surface.
- Phone Too Heavy: While designed for stability, ensure your phone's weight does not exceed the recommended maximum for optimal balance, especially when extended. The maximum weight recommendation is 15 kilograms, but practical stability depends on extension and balance.
7. 사양
| 특징 | 사양 |
|---|---|
| 모델 번호 | ATSS087 |
| 상표 | 아툼텍 |
| 색상 | 빨간색 |
| 재료 | Aluminum Alloy (Aviation-grade) |
| 접힌 크기 | 7.7인치(19.5cm) |
| 확장된 길이 | 최대 31.3인치(79.5cm) |
| 품목 무게 | 6 온스(170그램) |
| 최대 권장 무게 | 15 킬로그램 |
| 폰 홀더 너비 | 최대 3.42인치(8.7cm) |
| 블루투스 리모컨 범위 | 최대 33피트(10미터) |
| 원격 배터리 유형 | 50mAh Rechargeable Lithium Metal |
| 충전 포트 | USB 타입-C |
| 원격 호환성 | iOS 7.0 이상, Android 5.0 이상 |
| FCC ID | 2ASUP-ATSS055 |
8. 보증 및 지원
8.1 보증 정보
The ATUMTEK Selfie Stick Tripod comes with a 3년 보증 from the date of purchase. This warranty covers manufacturing defects and ensures the product's quality and performance under normal use. Please retain your proof of purchase for warranty claims.
8.2 FCC 준수
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation. The FCC ID for this product is 2ASUP-ATSS055.
8.3 고객 서비스
For any questions, concerns, or support needs regarding your ATUMTEK Selfie Stick Tripod, please contact our friendly customer service team. Refer to the contact information provided on the product packaging or the official ATUMTEK web도움이 필요한 경우 사이트를 방문하세요.
