1. 서론
The Elna 864 Easy Air Thread Serger is designed to simplify your sewing projects by providing professional-quality finishing. This machine features an innovative One-Push Air Threading System, eliminating the complexities of threading upper and lower loopers. Its 8-Piece Feed Dog System ensures smooth fabric feeding, accommodating a range of materials from delicate knits to sturdy denim. The Air Thread 864 is built to handle diverse sewing challenges with ease and precision.
이미지: 앞면 view of the Elna 864 Easy Air Thread Serger, a white machine with four thread spools on top.
2. 주요 특징
- Air Threading System: Simplifies threading of upper and lower loopers with a single push of a lever, using a burst of air to guide the threads.
- Versatile Overlocking: Capable of 2, 3, or 4-thread overlocking, allowing for various stitch types including two-thread stitch, three-thread rolled hem for decorative sewing, and four-thread overcast stitch for secure seams.
- 바늘 실꿰기 장치 내장형: Provides convenience for quick and easy needle threading.
- 8-Piece Feed Dog System: Ensures consistent and smooth feeding of a wide range of fabrics, from lightweight to thick, including stretchy knits and denim.
- 조정 가능한 차동 공급: Allows for precise control over fabric feeding, preventing stretching or puckering on different material types.
- Superior Tension System: Features easily adjustable, color-coded tension dials for each thread, ensuring optimal stitch quality across various fabrics. Includes a lever to switch between standard and tight tension settings for different fabric weights.
- 5-Level Presser Foot Pressure Dial: Adjusts the pressure of the presser foot to match the fabric type, ensuring smooth operation and stitch formation.
- Cutting Width Adjusting Dial: Allows for precise adjustment of the cutting width for clean and consistent seam finishes.

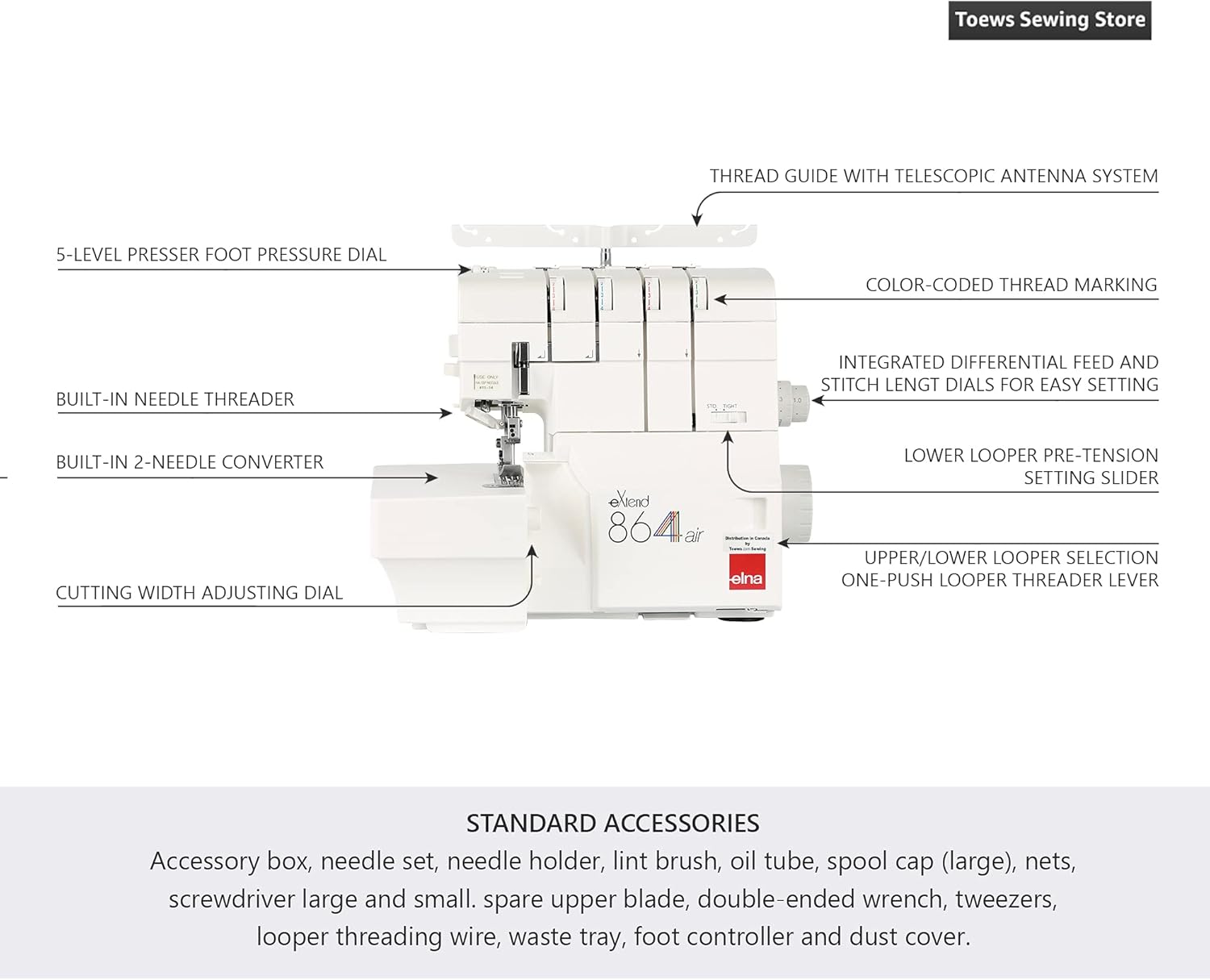

이미지: 이상view of the Elna 864 Easy Air Thread Serger with key components labeled, including the thread guide, presser foot pressure dial, color-coded thread marking, built-in needle threader, 2-needle converter, cutting width adjusting dial, lower looper pre-tension setting slider, and upper/lower looper selection one-push looper threader lever.

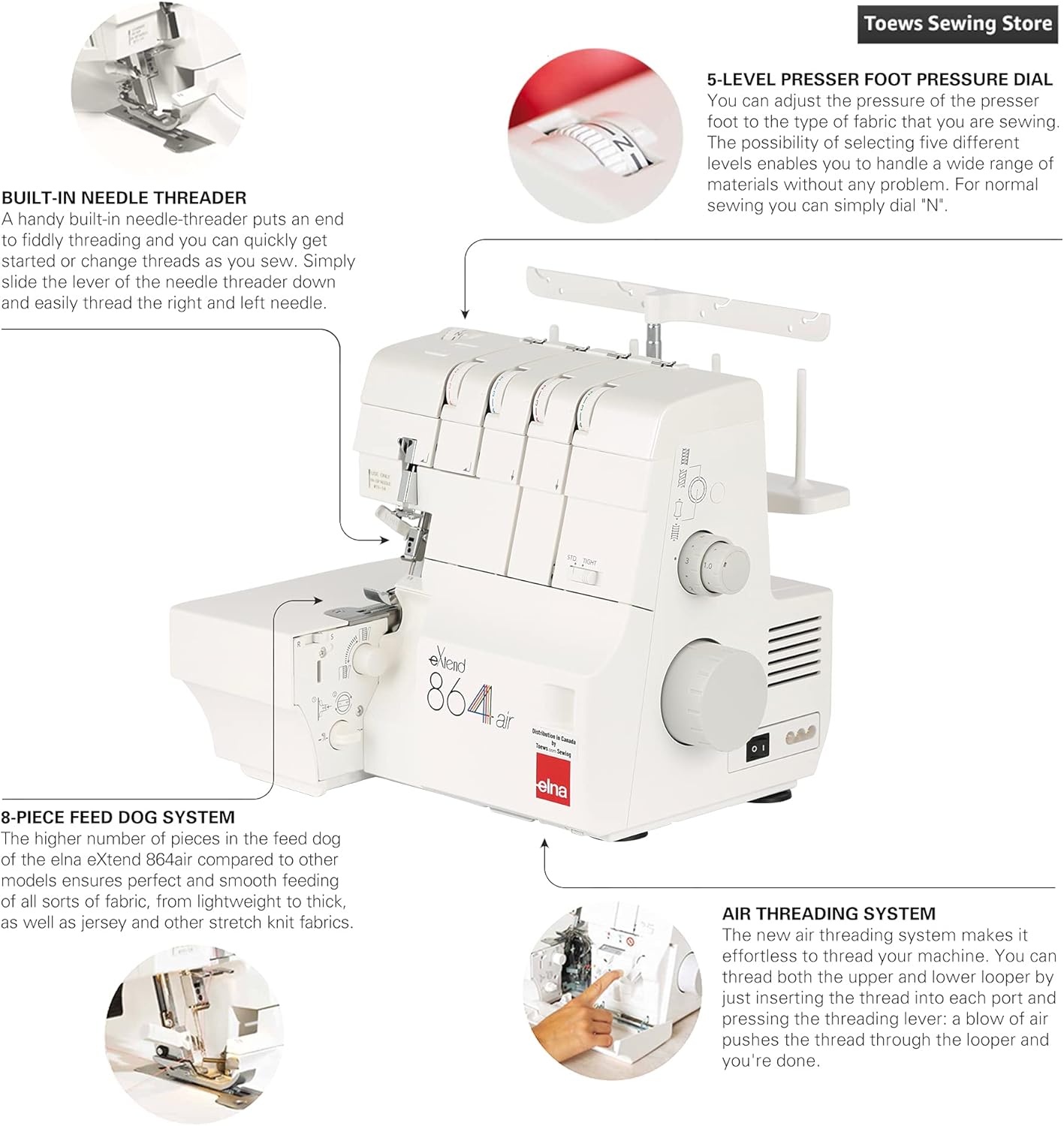

이미지: 클로즈업 views highlighting the built-in needle threader, 8-piece feed dog system, 5-level presser foot pressure dial, and the air threading system of the Elna 864 serger.
3. 설정
3.1 Initial Threading with Air System
The Elna 864 features an innovative air threading system for the loopers, significantly simplifying the threading process. Follow these steps:
- Ensure the machine is turned off and unplugged for safety.
- Open the front cover of the serger to access the looper area.
- Position your threads according to the color-coded guides.
- Insert the thread ends into the designated air ports for the lower and upper loopers.
- Push the air threading lever down. A burst of air will propel the threads through the loopers.
- Gently pull the threads out from the back of the machine to ensure they are fully threaded.
- 앞면 덮개를 닫습니다.
Image: Visual guide demonstrating the two steps for air threading the Elna 864 serger: Step 1 shows poking the thread into the air port, and Step 2 shows lowering the air pump lever to thread the looper.
3.2 바늘에 실꿰기
The built-in needle threader assists in quickly threading the needles. Refer to the machine's internal diagrams and the instruction manual for specific needle threading paths.
비디오: 오버view of the Elna 864 Easy Air Thread Serger, demonstrating its features including the air threading system, tension adjustments, and various stitch capabilities. This video highlights how the machine simplifies common threading challenges.
4. 사용 설명서
4.1 스티치 선택
The Elna 864 offers flexibility with 2, 3, or 4-thread overlocking. Adjust the machine settings according to the desired stitch type:
- 2-Thread Stitch: Ideal for delicate fabrics or when a fine finish is required.
- 3겹 말아박기: Used for decorative edges or finishing lightweight fabrics.
- 4-Thread Overcast Stitch: Provides a strong, durable seam that locks the stitch in place, suitable for most general serging applications.
4.2 장력 조절
Proper tension is crucial for balanced stitches. The Elna 864 features color-coded tension dials for easy adjustment. Additionally, a tension system lever allows for quick changes between standard and tight settings, which is particularly useful when working with stretchy or knit fabrics to prevent skipped stitches or thread breakage.
- Adjust individual thread tensions using the corresponding color-coded dials.
- For knit or stretchy materials, utilize the "Tight" setting on the tension system lever to achieve a more secure stitch.
4.3 Presser Foot Pressure
The 5-level presser foot pressure dial allows you to adjust the pressure applied to the fabric, ensuring optimal feeding and stitch quality for various material thicknesses and types.
5. 유지관리
Regular maintenance ensures the longevity and optimal performance of your Elna 864 serger.
- 청소: Use the provided lint brush to regularly remove lint and thread debris from the looper area, feed dogs, and other accessible parts. Accumulation of lint can affect stitch quality and machine operation.
- 주유: Refer to the detailed instruction manual for specific oiling points and frequency. Use only the recommended sewing machine oil.
- 바늘 교체: Replace needles regularly, especially when working with new projects or if you notice skipped stitches or thread breakage. Use HA-1SP needles, sizes #11-14.
- 저장: When not in use, cover the machine with the provided dust cover to protect it from dust and debris.
6. 문제 해결
If you encounter issues with your serger, consider the following common troubleshooting steps:
- 건너뛴 스티치:
- Ensure needles are inserted correctly and are not bent or dull.
- Check thread tension settings; adjust if too loose or too tight.
- Verify that the machine is properly threaded, especially the loopers using the air threading system.
- Adjust presser foot pressure for the fabric type.
- 실 끊어짐:
- Inspect threads for knots or fraying.
- Check tension settings; excessive tension can cause thread to break.
- Ensure the machine is clean and free of lint that might snag threads.
- Verify that the correct needle type and size are being used for the fabric and thread.
- Uneven Stitches or Puckering:
- Adjust differential feed settings to match fabric stretch.
- Re-check all tension settings for balance.
- Ensure the presser foot pressure is appropriate for the fabric.
For more detailed troubleshooting, consult the full instruction manual or contact Elna customer support.
7. 사양
| 특징 | 세부 사항 |
|---|---|
| 모델 번호 | 864 |
| 제품 치수 | 18.9 x 11.81 x 16.93 인치 |
| 품목 무게 | 23.2파운드 |
| 제조업체 | 엘나 |
| 재료 | 플라스틱 |
| 전원 | 코드식 전기 |
| 전기인가 | 예 |
| 한국어: | 370301307826 |
| 첫 번째 이용 가능 | 9년 2021월 XNUMX일 |
8. 표준 액세서리
The Elna 864 Easy Air Thread Serger comes with the following standard accessories:
- 액세서리 박스
- 바늘 세트
- 니들 홀더
- 린트 브러시
- 오일 튜브
- 실패캡(대)
- 그물
- Screwdriver (large and small)
- Spare upper blade
- Double-ended wrench
- 족집게
- Looper threading wire
- 쓰레기통
- 풋 컨트롤러
- 먼지 커버
9. 보증 정보
Elna products are covered by a manufacturer's warranty. Please refer to the warranty certificate included with your product for specific terms and conditions. Key warranty details typically include:
- 2년 보증: Covers all parts, excluding needles, loopers, knives, light bulbs, and belts, which are guaranteed for a period of one year after the purchase date.
- 5년 보증: Covers electronic components.
- 15년 제한 보증: Covers mechanical parts.
Costs of postage and transportation are the responsibility of the purchaser. Warranty claims require proof of purchase and must be handled by an authorized dealer. For full details, consult your warranty card or contact Elna customer service.
Image: Elna Warranty Certificate and Registration Card, detailing warranty periods for parts, electronics, and mechanical components, along with terms and conditions.
10. 지원 및 연락처
For further assistance, technical support, or service inquiries, please contact your authorized Elna dealer or visit the official Elna web연락처 정보 사이트.
구매 영수증과 보증서를 나중에 참조할 수 있도록 안전한 곳에 보관하십시오.
