1. 서론
This manual provides comprehensive instructions for the assembly, operation, and maintenance of your Seville Classics UltraHD Solid Steel Lockable Storage Cabinet. Please read these instructions carefully before assembly and use to ensure safe and proper functionality. Retain this manual for future reference.
안전 정보
- This product requires assembly. Tools are included.
- 실내에서만 사용하시기 바랍니다.
- Always assemble on a soft, non-abrasive surface to prevent scratches.
- 사용하기 전에 모든 연결이 안전한지 확인하십시오.
- Do not exceed the maximum weight capacity of 600 lbs, evenly distributed.
- For additional security, especially when fully loaded, utilize the included wall straps to secure the cabinet to a wall.
- Assembly may require two people for easier handling of components.
2. 패키지 내용
Verify that all components are present before beginning assembly. If any parts are missing or damaged, contact Seville Classics customer support.
- 캐비닛 패널(상단, 하단, 측면, 후면)
- 2 Lockable Stainless Steel Doors
- 3 Adjustable Steel Shelves
- 오목한 손잡이
- Keys for Lock
- 레벨링 풋
- Wall Mounting Straps
- Assembly Hardware (Screws, plastic fasteners)
- Assembly Tools (Screwdriver, wrench)
3. 조립 설명서
Assembly is straightforward but involves numerous screws. It is recommended to have two people for certain steps, though one person can complete it. Allow approximately 1-2 hours for initial assembly.
단계별 가이드
- 구성 요소 풀기: Carefully remove all parts from the packaging. Inspect for any damage. Keep all packing materials until assembly is complete.
- 레벨링 풋 설치: Before attaching the base to the sides, install the leveling feet onto the bottom panel. This can simplify later adjustments.
- 캐비닛 프레임 조립: Connect the side panels to the bottom and top panels using the provided hardware. Ensure all holes align correctly. The design features strong gussets and pre-threaded bolt holes for secure connections.
- 뒷면 패널 부착: Secure the four back panels to the cabinet frame.
- 문을 설치하십시오: Attach the two stainless steel doors. The doors are designed to be installed in two pieces. Ensure proper alignment for smooth operation.
- 손잡이와 잠금장치를 설치하세요: Secure the recessed handles and the lock mechanism to the doors. Test the lock with the provided keys.
- 선반 삽입: Place the three adjustable steel shelves into the desired positions. The shelves can be adjusted at 1-inch increments.
- 벽에 고정(선택 사항이지만 권장): Use the included wall mounting straps to anchor the cabinet to a wall for enhanced stability and safety, especially in high-traffic areas or if the cabinet will hold heavy items.
Tip for Plastic Fasteners: If your model includes plastic fasteners, a surgical hemostat can be used to grip the shank under the top button while lightly tapping with a hammer to lock them in place. This prevents bending or breaking.
Figure 3.1: Fully assembled Seville Classics UltraHD Solid Steel Lockable Storage Cabinet.

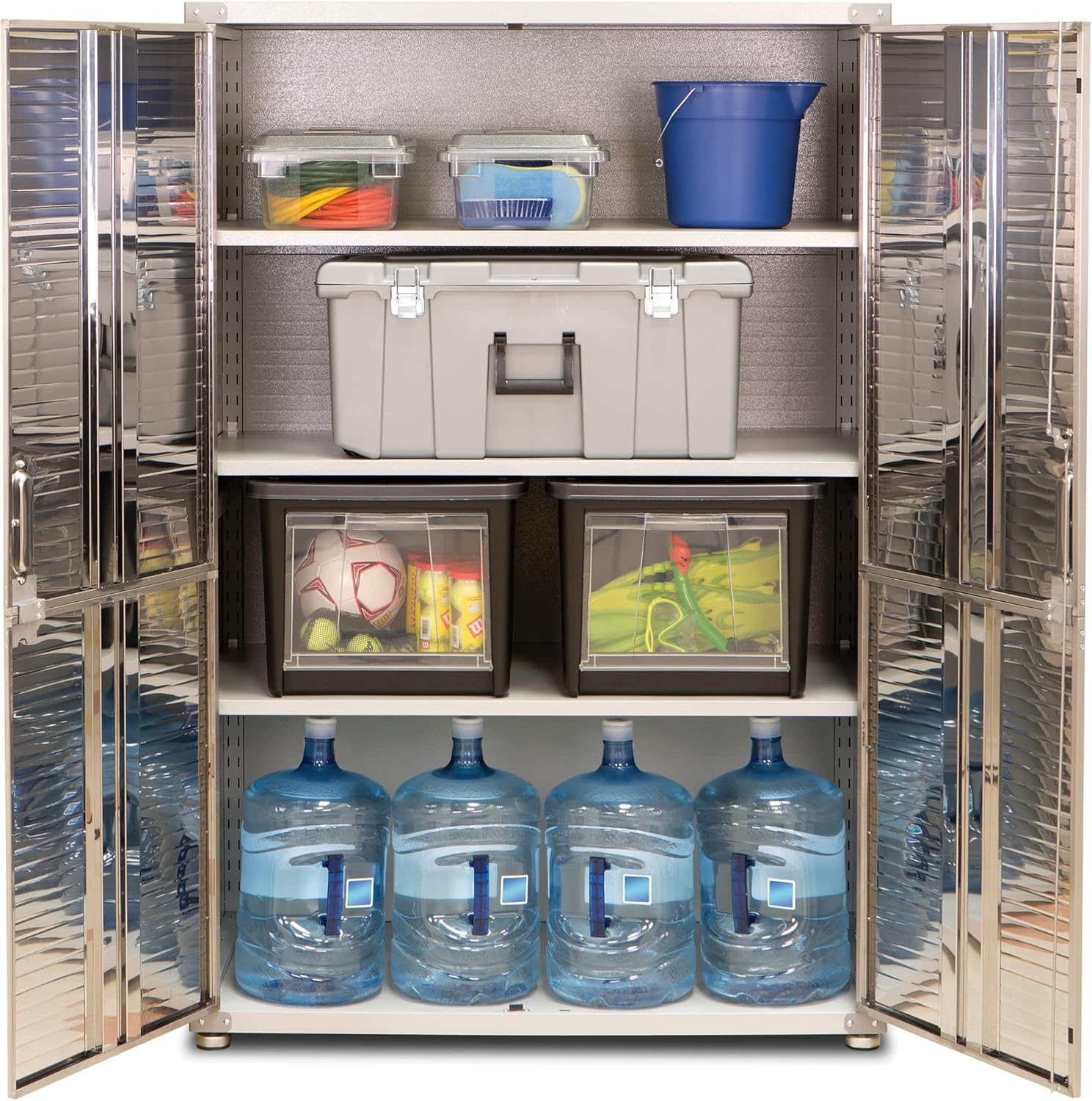

그림 3.2: 내부 view 쇼씨asing adjustable shelves and storage capacity.
Figure 3.3: Cabinet dimensions: 48 inches wide, 24 inches deep, 72 inches high.
4. 사용 설명서
4.1 캐비닛 잠금 및 잠금 해제
The cabinet features lockable stainless steel doors for securing contents. Insert the key into the lock on the right door and turn to lock or unlock. The doors also have magnets at the top and bottom to help keep them closed when unlocked.
Figure 4.1: Detail of the lock and recessed handles.
4.2 선반 조정하기
The three steel shelves are height adjustable in 1-inch increments. To adjust a shelf:
- 선반에서 모든 항목을 제거합니다.
- Carefully lift the shelf and disengage it from its current support slots.
- Re-position the shelf supports to the desired height, ensuring they are level on both sides.
- Place the shelf back onto the supports, ensuring it is securely seated.
그림 4.2: 내부 view highlighting the adjustable shelf tracks.
5. 유지관리
To maintain the appearance and longevity of your storage cabinet:
- 청소: 광고로 표면 닦기amp cloth. Avoid abrasive cleaners or harsh chemicals that could damage the finish or the UltraGuard fingerprint-resistant coating on the doors.
- 점검: 모든 나사와 연결부가 단단히 조여져 있는지 정기적으로 점검하세요. 필요하면 다시 조이세요.
- 문 정렬: If doors become misaligned, gently adjust the hinges or re-tighten hinge screws to restore proper closure.
6. 문제 해결
| 문제 | 가능한 원인 | 해결책 |
|---|---|---|
| 캐비닛이 흔들리거나 불안정합니다. | Uneven floor; leveling feet not adjusted; wall straps not installed. | Adjust the leveling feet until the cabinet is stable. Install wall mounting straps to secure the cabinet to a wall. |
| 문이 제대로 닫히지 않거나 정렬이 잘못되었습니다. | 경첩이 헐거워졌거나 어긋나 있습니다. 캐비닛 프레임이 직각이 아닙니다. | Check and tighten hinge screws. Ensure the cabinet frame is assembled squarely. Adjust leveling feet if the floor is uneven. |
| 잠금 장치가 뻣뻣하거나 제대로 작동하지 않습니다. | New lock; debris in mechanism. | Apply a small amount of graphite lubricant to the key and insert into the lock several times. Ensure the doors are fully closed when attempting to lock. |
| Plastic fasteners bend or break during assembly. | Incorrect installation technique. | Use a surgical hemostat or similar tool to grip the shank under the top button while lightly tapping with a hammer to lock them in place. |
7. 사양
| 특징 | 세부 사항 |
|---|---|
| 상표 | 세비야 클래식 |
| 모델 번호 | UHD16238B |
| 치수(폭 x 깊이 x 높이) | 48인치 x 24인치 x 72인치 |
| 색상 | 화강암 |
| 재료 | Alloy Steel (Frame, Back), Stainless Steel (Doors, Handles, Top) |
| 중량 용량 | 600파운드(균등하게 분포됨) |
| 선반 수 | 3(조정 가능) |
| 조립이 필요합니다 | 예 |
| 품목 무게 | 144파운드 |
| 특별 기능 | Lockable doors, UltraGuard fingerprint-resistant coating, adjustable shelves, wall mount capability, leveling feet. |
8. 보증 및 지원
For warranty information, missing parts, or technical assistance, please contact Seville Classics customer support. Refer to your purchase documentation or the official Seville Classics web최신 연락처 정보와 보증 조건은 사이트에서 확인하세요.
온라인 리소스: For additional product information, assembly videos, or FAQs, visit the official Seville Classics web사이트 또는 Amazon 스토어 페이지: Seville Classics Store.
