1. 서론
This user manual provides essential information for the safe and efficient operation of your new BEKO BBIM13300XD multifunction oven. Please read these instructions carefully before using the appliance for the first time and keep them for future reference. Proper installation, use, and maintenance will ensure optimal performance and extend the lifespan of your oven.
2. 안전 지침
신체 부상이나 기기 손상을 방지하기 위해 항상 다음 안전 예방 조치를 준수하세요.
- 전기 안전: Ensure the oven is correctly installed and grounded by a qualified technician. Do not use adapters or extension cords. Disconnect the power supply before cleaning or maintenance.
- 뜨거운 표면: The oven and its accessible parts become hot during use. Exercise caution to avoid touching heating elements. Use oven mitts when handling hot dishes or oven accessories.
- 어린이 및 취약계층: 본 제품은 신체적, 감각적 또는 정신적 능력이 저하되었거나 경험과 지식이 부족한 사람이 사용하도록 제작된 것이 아닙니다. 단, 안전을 책임지는 사람이 제품 사용에 대한 감독이나 지침을 제공한 경우는 예외입니다. 어린이가 본 제품을 가지고 놀지 않도록 보호자의 감독이 필요합니다.
- 인화성 물질: Do not store flammable materials in or near the oven. Do not use the oven for heating the room.
- 청소: 오븐을 청소하기 전에는 반드시 오븐이 완전히 식도록 하십시오. 권장되는 세척제와 방법만 사용하십시오.
- 통풍: 설치 지침에 명시된 대로 기기 주변에 적절한 환기가 이루어지도록 하세요.
3. 제품 오버view

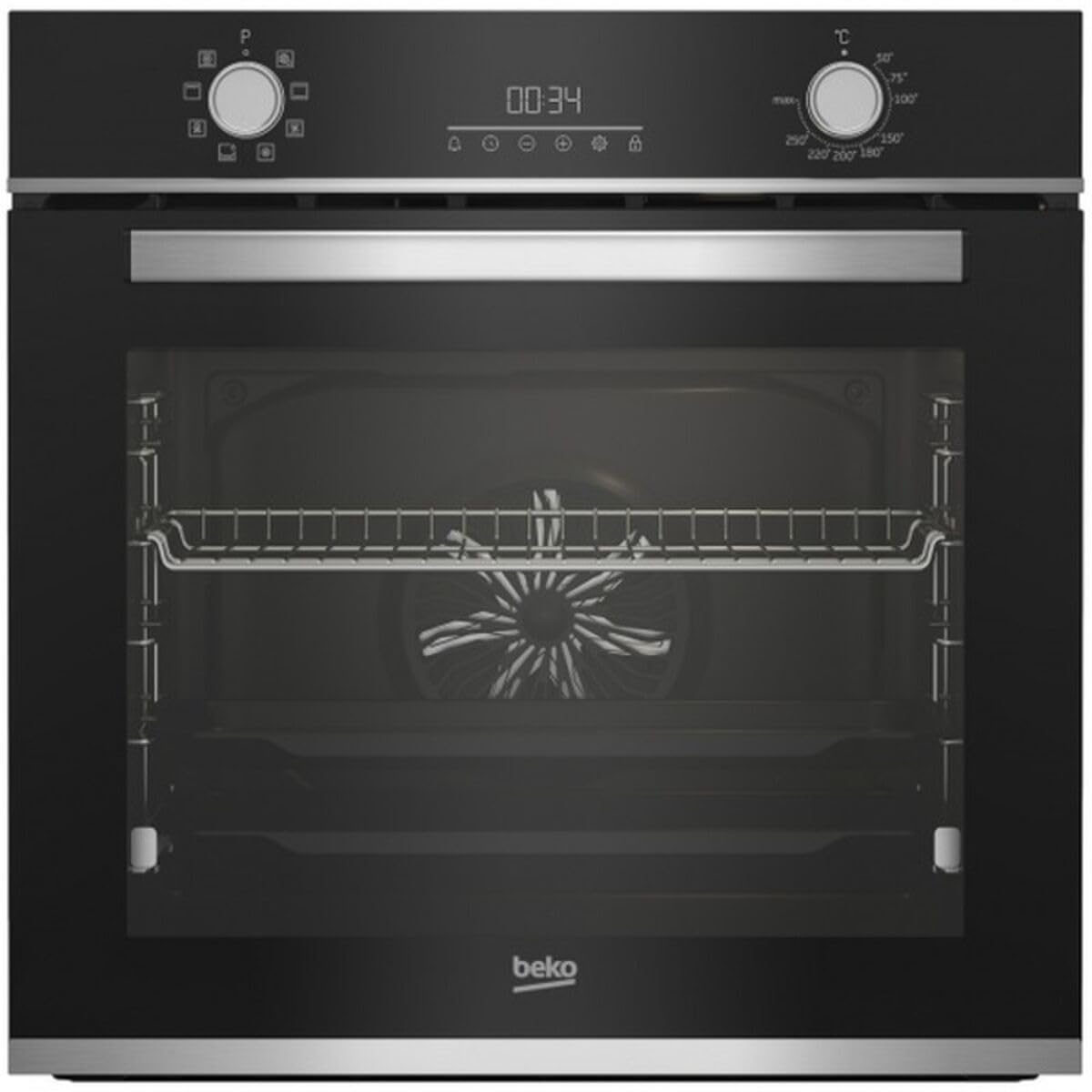

The BEKO BBIM13300XD is a built-in multifunction electric oven designed for versatile cooking. It features a sleek black finish with stainless steel accents and touch controls for ease of use.
이미지 설명: This image displays the energy label for the BEKO BBIM13300XD multifunction oven. The label indicates the brand BEKO and model BBIM13300XD. It shows an energy efficiency class of A, with a usable volume of 72 liters. The energy consumption per cycle is listed as 0.88 kWh for conventional heating and 0.81 kWh for fan-assisted heating. This label conforms to regulation 65/2014.
주요 특징은 다음과 같습니다.
- 다기능 조리: Offers various cooking modes for different culinary needs.
- 터치 컨트롤: Intuitive electronic touch controls for precise temperature and function selection.
- 용량: A generous 72-liter usable capacity (total capacity 80 liters) suitable for family-sized meals.
- 에너지 효율성: Rated A for energy efficiency, contributing to lower energy consumption.
- 재료: Constructed with durable stainless steel for longevity and easy cleaning.
4. 설치
Installation of the BEKO BBIM13300XD oven should only be performed by a qualified electrician or authorized service technician in accordance with local regulations and safety standards.
4.1. 설치 전 점검
- 전원 공급이 볼륨과 일치하는지 확인하십시오.tage and power requirements specified on the oven's rating plate (220V, 2500W).
- Ensure the cabinet opening dimensions are appropriate for the built-in oven (refer to the specific installation guide for precise measurements).
- Confirm adequate ventilation space around the oven to prevent overheating.
4.2. 전기적 연결
The oven must be connected to a properly grounded electrical outlet. Do not use multi-plug adapters or extension cords. The electrical circuit must be protected by a suitable fuse or circuit breaker.
4.3. Securing the Oven
Once positioned in the cabinet, secure the oven using the provided screws through the designated mounting holes to prevent tipping.
5. 초기 설정
5.1. 첫 번째 청소
Before first use, clean the interior of the oven and all accessories (racks, trays) with a damp 천과 순한 세제. 완전히 말리세요.
5.2. 초기 연소
To eliminate any manufacturing odors, operate the empty oven at its maximum temperature (e.g., 250°C) for approximately 30-60 minutes. Ensure the kitchen is well-ventilated during this process.
6. 사용 설명서
Your BEKO BBIM13300XD oven features intuitive touch controls. Refer to the control panel diagram in the full manual for specific button layouts.
6.1. 시간 설정
첫 번째 연결 시 또는 전원이 꺼진 후tage, the clock display will flash. Use the touch controls to set the current time. Confirm the setting to exit the clock adjustment mode.
6.2. Selecting a Cooking Function
Press the function selection button (often represented by an icon showing different heating elements or a fan) to cycle through available cooking modes. Common functions include:
- 전통적인 요리: Heat from top and bottom elements, ideal for baking cakes and pastries.
- 팬 보조 요리: Heat distributed by a fan, suitable for cooking multiple dishes simultaneously at lower temperatures.
- 그릴: Intense heat from the top element, perfect for browning and toasting.
- 바닥 열: For crisping bases of pizzas or pies.
6.3. 온도 설정
After selecting a function, use the temperature control buttons (usually '+' and '-') to set the desired cooking temperature. The oven will begin to preheat.
6.4. Setting the Cooking Time (Timer)
To set a cooking duration, press the timer button and use the '+' and '-' buttons to adjust the time. The oven will automatically switch off when the set time expires.
7. 청소 및 유지 관리
Regular cleaning and maintenance will help keep your oven in optimal condition.
7.1. 일반 청소
- 외부: Clean the exterior surfaces with a soft cloth and warm soapy water. For stainless steel parts, use a non-abrasive stainless steel cleaner.
- 내부: 가벼운 오염의 경우, 내부를 물로 닦아주세요.amp cloth after each use once the oven has cooled. For stubborn stains, use a specialized oven cleaner, following the product instructions carefully. Ensure all cleaner residue is removed before next use.
- 오븐 문 : Clean the glass door with a soft cloth and glass cleaner. Avoid harsh abrasive cleaners or metal scrapers that can scratch the surface.
7.2. Removing Oven Racks and Trays
Oven racks and trays can be removed for easier cleaning. Wash them in warm soapy water or in a dishwasher if suitable.
7.3. Replacing the Oven Lamp
Ensure the oven is disconnected from the power supply. Unscrew the protective glass cover, replace the old lamp with a new heat-resistant oven lamp of the correct wattage를 누르고 덮개를 다시 부착하세요.
8. 문제 해결
Before contacting customer service, consult the following table for common issues and their potential solutions.
| 문제 | 가능한 원인 | 해결책 |
|---|---|---|
| 오븐이 가열되지 않습니다. | 전원 공급이 안 됨; 기능/온도 설정이 잘못됨; 문이 제대로 닫히지 않음. | 전원 연결 상태와 회로 차단기를 확인하십시오. 기능 및 온도 설정을 확인하십시오. 오븐 문이 완전히 닫혔는지 확인하십시오. |
| 음식이 고르게 익지 않습니다. | Incorrect rack position; oven not preheated; overloaded oven. | Use recommended rack positions. Allow oven to fully preheat. Avoid overcrowding the oven. |
| 오븐 조명이 작동하지 않습니다. | Lamp 결함이 있거나 느슨합니다. | 오븐 교체 lamp (섹션 7.3 참조). |
| 처음 사용 시 연기나 냄새가 납니다. | 제조과정에서 발생하는 잔여물. | This is normal. Ensure good ventilation. It will dissipate after initial burn-off (refer to Section 5.2). |
If the problem persists after attempting these solutions, please contact BEKO customer support.
9. 기술 사양
| 상표 | 베코 |
| 모델명 | BBIM13300XD |
| 모델 번호 | S0429117 |
| 유형 | Built-in Multifunction Electric Oven |
| 색상 | 검은색 |
| 재료 | 스테인리스 스틸 |
| 사용 가능 용량 | 72리터 |
| 총 용량 | 80리터 |
| 전력/와트tage | 2500와트 |
| 권tage | 220V(XNUMXV) |
| 에너지 효율 등급 | A |
| 제품 크기(D x W x H) | 63 x 80 x 72.5cm |
| 품목 무게 | 41kg |
| 제어 유형 | 터치 컨트롤 |
10. 보증 및 지원
Your BEKO BBIM13300XD oven comes with a manufacturer's warranty. For detailed information regarding warranty terms and conditions, please refer to the warranty card included with your product or visit the official BEKO web대지.
For technical assistance, spare parts, or service requests, please contact BEKO customer support. Have your model number (S0429117) and serial number ready when contacting support.
You can find contact information for your region on the official BEKO web대지: www.beko.com
