소개
The JETBEAM MINI ONE SE is a compact and versatile keychain flashlight designed for everyday carry. It features a powerful CREE XP-G3 LED for main illumination, along with auxiliary RGB and UV lights for various applications, including fluorescent whitening agent detection. Its durable plastic construction, USB Type-C rechargeable battery, and IPX8 waterproof rating make it a reliable tool for diverse needs.

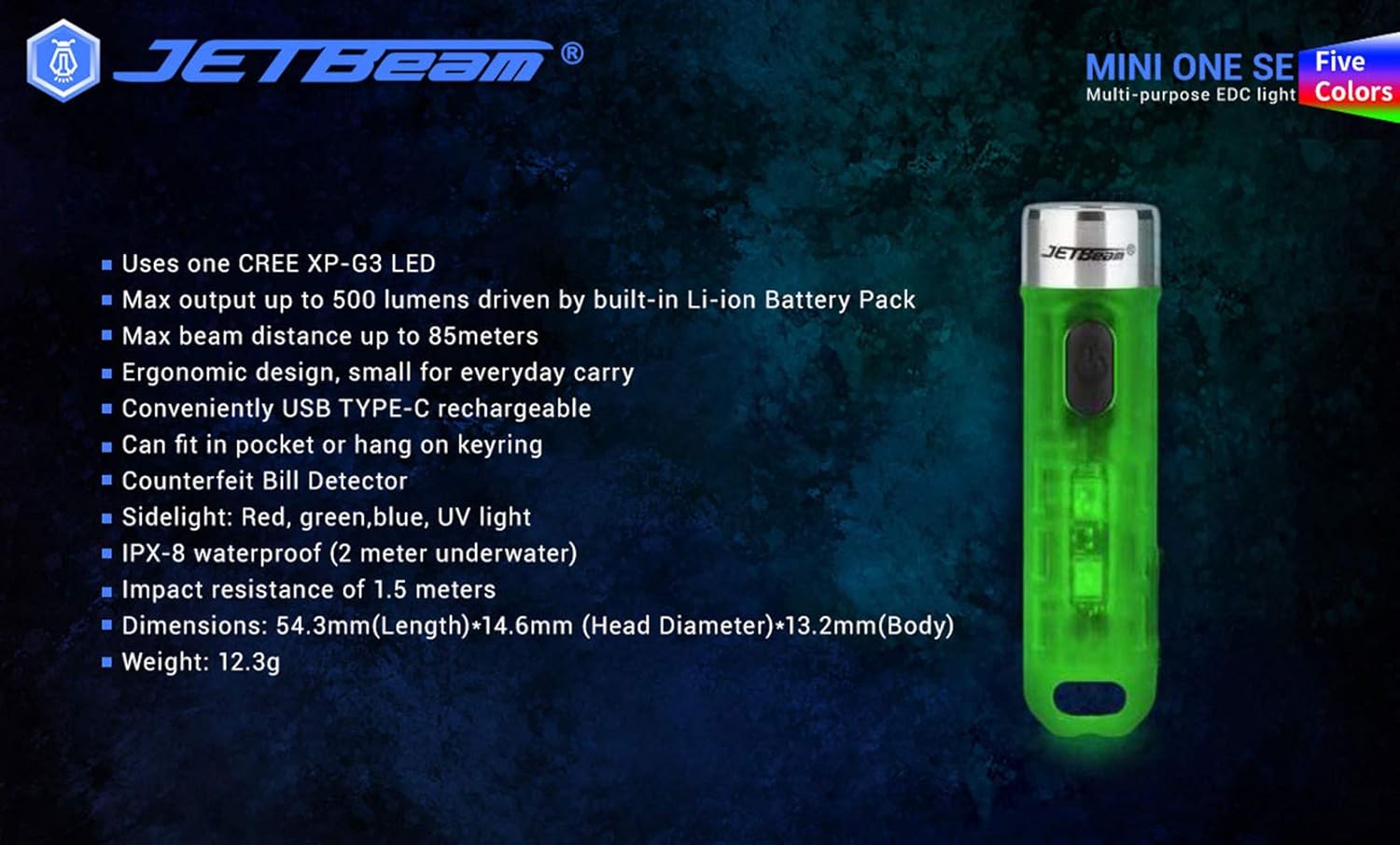

특징
- Utilizes one CREE XP-G3 LED for main light.
- Equipped with auxiliary RGB LED and 365nm UV light for fluorescent whitening agent detection.
- Maximum output of 500 Lumens, powered by a built-in Li-ion battery pack.
- Achieves a maximum beam distance of up to 85 meters.
- Ergonomic design for comfortable everyday carry.
- Conveniently rechargeable via USB Type-C.
- Compact size allows it to fit easily in a pocket or attach to a keyring.
- 내구성 있는 플라스틱 소재로 제작되었습니다.
- Sidelight functions include Red, Green, Blue, and UV light.
- IPX8 waterproof rating (submersible up to 2 meters underwater).
- Impact resistance of 1.5 meters.
- Features various light modes for diverse applications, including identifying counterfeits.
- 가벼운 디자인으로 무게는 약 29g입니다.
- All light modes include a memory function.

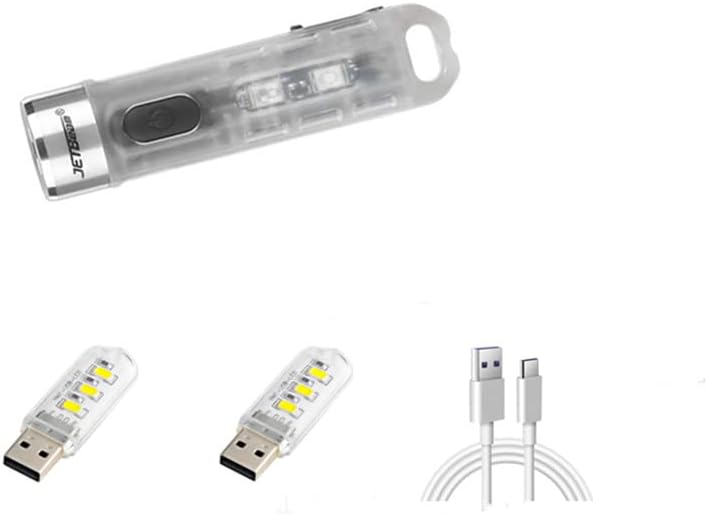

패키지 내용
모든 품목이 들어 있는지 확인하기 위해 상자를 푼 후 패키지 내용물을 확인하세요.
- 1 x JETBEAM MINI ONE SE Flashlight
- 1 x USB 유형 C 충전 케이블
설정
장치 충전하기
The JETBEAM MINI ONE SE features a built-in Li-ion battery and is conveniently USB Type-C rechargeable. Before first use, it is recommended to fully charge the device.
- 손전등 측면에 있는 USB Type-C 충전 포트를 찾으세요.
- 제공된 Type-C 충전 케이블을 손전등의 포트에 연결하십시오.
- Plug the other end of the USB Type-C charging cable into a compatible USB power source (e.g., computer USB port, wall adapter, power bank).
- The charging indicator light will illuminate to show the charging status. (Specific indicator behavior, e.g., red for charging, green for full, may vary slightly but generally indicates progress).
- Once fully charged, disconnect the charging cable and ensure the port cover (if any) is securely closed to maintain water resistance.
작동 지침
The JETBEAM MINI ONE SE features a single side switch for all operations. All modes have a memory function, meaning the flashlight will turn on in the last used mode.
Main Light (White Light) Operation
- 켜기/끄기: 전원 버튼을 짧게 누릅니다.
- 밝기 변경: When the main light is ON, a long press of the power button will cycle through the brightness modes: Eco → Low → Middle → High. Release the button at your desired brightness.
- Access Turbo Mode (from OFF): When the main light is OFF, press and hold the power button to instantly access Turbo mode. Release the button to turn it off. (Note: Turbo mode automatically shuts down after approximately 30 seconds to prevent overheating).
사이드 라이트 작동
- 켜기/끄기: Double press the power button to turn the side lights ON. Press the power button again to turn them OFF.
- 색상/모드 변경: When the side light is ON, a long press of the power button will cycle through the side light colors and modes: Red → Green → Blue → Red Flash → Flowing Light → Beacon. Release the button at your desired mode.
UV 조명 작동
- 켜기/끄기: Triple press the power button to turn the UV light ON. Press the power button again to turn it OFF.
유지
To ensure optimal performance and longevity of your JETBEAM MINI ONE SE, follow these maintenance guidelines:
- 청소: 손전등 본체를 부드러운 천으로 닦으세요.amp cloth. Do not use abrasive cleaners or solvents. Keep the lens clean for maximum light output.
- 저장: Store the flashlight in a cool, dry place away from direct sunlight and extreme temperatures. If storing for extended periods, ensure the battery is partially charged (around 50%) to preserve battery health.
- 배터리 관리 : The built-in Li-ion battery does not require removal. Recharge the device regularly, especially if it has not been used for a long time, to prevent deep discharge.
- 방수 기능: While the device is IPX8 waterproof, ensure the USB port cover is securely closed before exposing it to water.
문제 해결
If you encounter issues with your JETBEAM MINI ONE SE, please refer to the following common problems and solutions:
- 손전등이 켜지지 않습니다:
- Ensure the battery is charged. Connect the flashlight to a USB Type-C charger and check the charging indicator.
- Verify that the power button is being pressed correctly (short press for main light, double press for side lights, triple press for UV light).
- 광 출력이 어둡습니다.
- 배터리가 부족할 수 있습니다. 손전등을 충전하세요.
- The lens might be dirty. Clean the lens gently with a soft cloth.
- Side lights or UV light not working:
- Ensure you are using the correct button press sequence (double press for side lights, triple press for UV light).
- 충전 문제:
- Check if the USB Type-C cable is properly connected to both the flashlight and the power source.
- 다른 USB 포트나 전원 어댑터를 사용해 보세요.
- 충전 포트에 이물질이 없는지 확인하세요.
이러한 단계를 시도한 후에도 문제가 지속되면 고객 지원팀에 문의하세요.
명세서
| 특징 | 사양 |
|---|---|
| 상표 | 제트빔 |
| 모델 | MINI ONE SE |
| 광원 | 1*CREE XP-G3 LED (Main), RGB LED, 365nm UV LED (Auxiliary) |
| 최대 출력 | 500루멘 |
| 최대 빔 거리 | 85 미터 |
| 전원 | Built-in Li-ion battery pack |
| 충전 중 | USB 타입-C |
| 재료 | 플라스틱 |
| 방수성 | IPX8 (2 meters underwater) |
| 충격 저항성 | 1.5 미터 |
| Dimensions (L x Head D x Body D) | 54.3mm x 14.6mm x 13.2mm(2.14 x 0.57 x 0.52인치) |
| 무게 | 29g(1.06온스) |
| 포함된 구성 요소 | 충전 케이블 |
| 한국어: | 644925520009 |
| 첫 번째 이용 가능 날짜 | 3년 2020월 XNUMX일 |
보증 정보
Warranty information for the JETBEAM MINI ONE SE is not provided in this manual. Please refer to the product packaging or the manufacturer's official web보증 범위 및 조건에 대한 자세한 내용은 해당 사이트를 참조하십시오.
지원하다
For further assistance, technical support, or inquiries regarding your JETBEAM MINI ONE SE, please visit the official JETBeam website or contact their customer service department. Contact details may also be found on the product packaging or purchase receipt.
