1. 서론
This manual provides essential information for the safe and efficient installation, operation, and maintenance of your Onforu 100W 14000lm LED Shop Lights. Please read this manual thoroughly before use and retain it for future reference.
2. 안전 정보
화재, 감전 및 부상의 위험을 줄이려면 항상 기본 안전 예방 조치를 따르십시오.
- Ensure the power is disconnected before installation or maintenance.
- Do not look directly into the LED light when it is on, as it may cause eye damage.
- 가연성 물질로부터 제품을 멀리 두십시오.
- 본 제품은 IP66 방수 등급으로 실외 사용에 적합하지만, 물에 완전히 잠기게 하지는 마십시오.
- 설치에 자신이 없다면 자격을 갖춘 전기 기술자에게 맡기십시오.
- 장착 표면이 고정물의 무게를 지탱할 수 있는지 확인하세요.
3. 패키지 내용
패키지를 열 때 모든 구성 요소가 들어 있고 손상되지 않았는지 확인하세요.
- LED Shop Light (2 units)
- Lamp Brackets (2 pairs)
- M6 Hex Screw Key (1 unit)
- M6 Screws (2 units)
- Plastic Expansion Nails (2 units)
- Screws for Mounting (2 units)
- Additional connectors for linking (as shown in assembly video)
4. 설정 및 설치
The Onforu LED Shop Lights are designed for easy installation and can be mounted in various configurations (wall, ground, or ceiling) and can also be linked horizontally or vertically.
4.1 Single Unit Installation
- 브래킷 부착: l을 보안하세요amp brackets to the sides of the LED light fixture using the provided M6 screws and hex key. Do not overtighten initially to allow for angle adjustment.
- 고정장치 장착: Choose your desired mounting location (wall, ground, or ceiling). Use the plastic expansion nails and mounting screws to firmly attach the brackets to the surface.
- 각도 조정: Once mounted, adjust the angle of the light fixture to direct illumination as needed. The fixture allows for 180° adjustment. Tighten the M6 screws on the brackets to secure the angle.
- 전원 연결: Plug the power cord into a standard 120V AC outlet. The light features an in-line switch for convenient power control.
비디오 1: 짧은 사전view demonstrating the installation process and adjustable features of the Onforu LED Flood Light.
4.2 Linking Multiple Units
The lights can be connected horizontally or vertically to create a longer or wider lighting solution. Use the provided connectors and hex key to secure the units together.
- Horizontal Connection: Align two light units side-by-side. Use the small connecting brackets and screws to join them securely. Ensure the power cables are routed appropriately.
- Vertical Connection: Align two light units one above the other. Use the small connecting brackets and screws to join them securely.
Video 2: An official product video from Onforu demonstrating the various installation methods, including linking multiple units horizontally and vertically, and showcasing the included hardware.
5. 사용 설명서
Operating your Onforu LED Shop Light is straightforward:
- Once installed and plugged into a power outlet, locate the in-line switch on the power cord.
- Press the switch to turn the light ON.
- Press the switch again to turn the light OFF.
6. 유지관리
To ensure optimal performance and longevity of your LED Shop Lights:
- 청소: Periodically clean the glass cover with a soft, damp 천으로 닦아주세요. 표면을 손상시킬 수 있는 연마성 세제나 용제는 사용하지 마세요.
- 점검: Regularly check the power cord and plug for any signs of damage. Ensure all mounting screws remain tight.

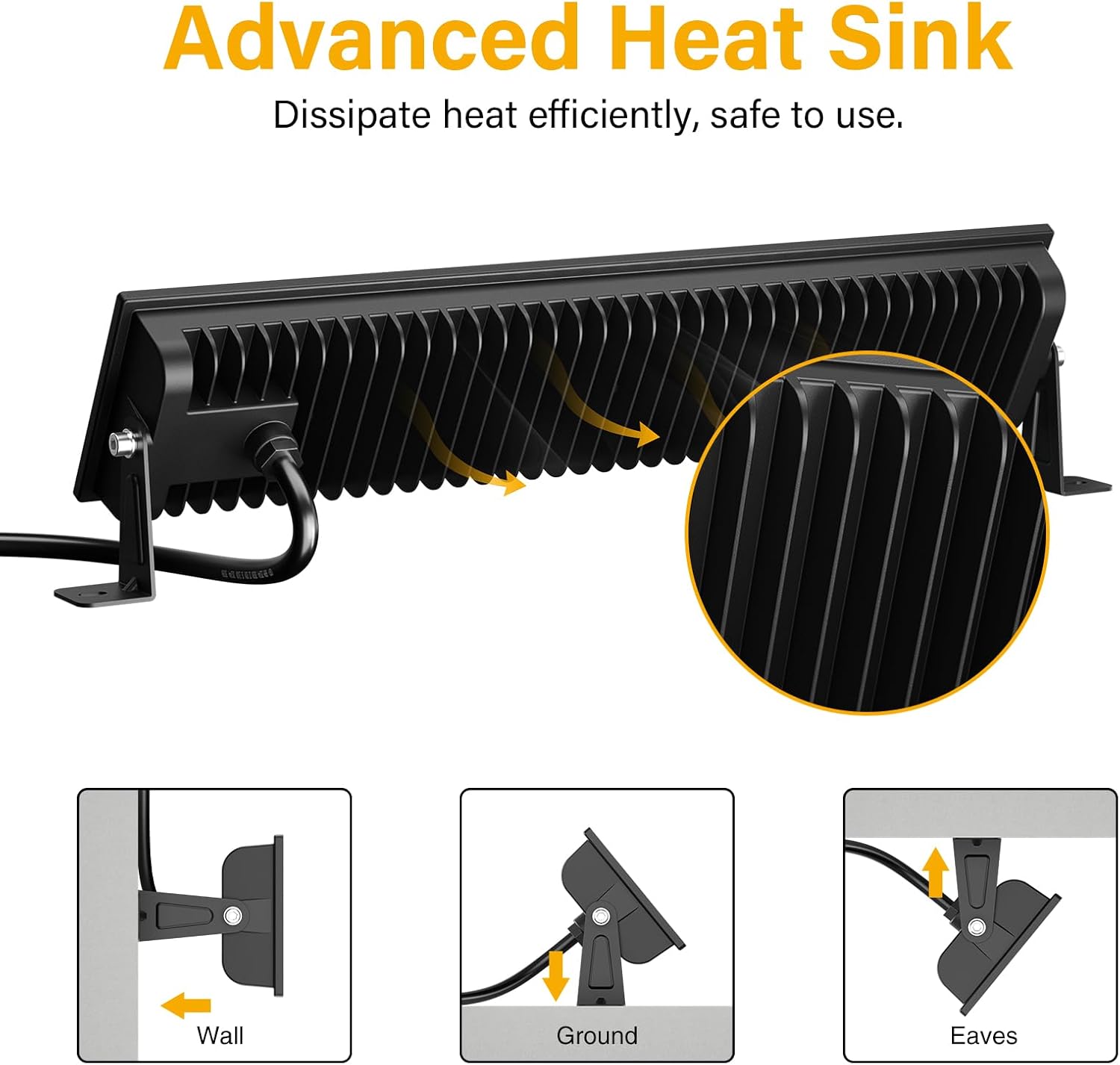

- 열 발산: The fixture is designed with a fin-type heat sink. Ensure it is not obstructed to allow for efficient heat dissipation.
7. 문제 해결
If you encounter issues with your LED Shop Light, refer to the following common solutions:
| 문제 | 가능한 원인 | 해결책 |
|---|---|---|
| 조명이 켜지지 않습니다. | No power supply; faulty switch; loose connection. | Check if the plug is securely inserted and the power outlet is functional. Ensure the in-line switch is ON. Inspect the power cord for damage. |
| 빛이 깜박입니다. | 전원 공급이 불안정하고 연결이 헐거워졌습니다. | Ensure the power supply is stable. Check all connections for tightness. |
| 밝기가 감소했습니다. | Dirt or debris on the glass cover. | Clean the glass cover with a soft, damp 옷감. |
8. 사양
| 특징 | 세부 사항 |
|---|---|
| 상표 | 온 포루 |
| 모델 번호 | CT08 |
| 왓tage | 100 와트 |
| 명도 | 14000루멘 |
| 색온도 | 6500 켈빈(주광 백색) |
| 재료 | 알루미늄, 강화 유리 |
| 방수 레벨 | IP66 방수 |
| 제품 치수 | 15.27인치 길이 x 3.46인치 너비 x 1.37인치 높이 |
| 빔 각도 | 120° |
| 특징 | With Plug, Thick die-cast aluminum, Waterproof, Not Dimmable |
9. 보증 및 지원
Onforu products come with a limited warranty. For specific warranty details or technical support, please refer to the official Onforu web사이트를 방문하거나 고객 서비스에 문의하세요.
선택형 보호 플랜은 별도로 구매 가능합니다.
- 3년 보호 계획
- 4년 보호 계획
- Complete Protect(월간 구독)
추가 지원을 받으려면 다음을 방문하세요. Onforu Store on Amazon.
