1. 서론
Thank you for choosing the WiZ 6-inch Tunable White LED Recessed Downlight. This smart lighting solution allows you to enjoy personalized illumination, enhancing your home environment with ease. This manual provides essential information for the safe and efficient use of your new downlight, covering installation, operation, maintenance, and troubleshooting.
2. 제품 특징
- 스마트 조명 제어: Enjoy intelligent lighting with the WiZ 6-inch (15cm diameter) Tunable White LED Recessed Downlight.
- Tunable White Spectrum: Choose between different shades of warm to cool white light (from 2700K to 6500K) to help you concentrate, relax, energize, or simply illuminate your space clearly.
- Customizable Schedules & Scenes: Set personalized schedules to turn lights on and off according to your daily routines, or select from preset scenes.
- 음성 제어 호환성: Control your lights using your voice with popular smart assistants like Alexa, Siri, or Google Assistant.
- Wi-Fi 연결: WiZ lights connect directly to your existing Wi-Fi network without the need for additional hardware or a hub.
- 긴 수명 및 에너지 효율성: Features a lifespan of 15,000 hours and a luminous flux of 1950 lumens, offering both durability and energy savings.
그림 2.1: 이상view of WiZ Smart Features
3. 패키지 내용
패키지에 모든 구성 요소가 들어 있는지 확인하세요.
- 1 x WiZ 6-inch Tunable White LED Recessed Downlight (RD6 17W)
- 1 x 사용자 매뉴얼(이 문서)
4. 안전 정보
설치 및 사용 전에 모든 안전 지침을 읽고 숙지하십시오. 이 지침을 따르지 않을 경우 감전, 화재 또는 기타 위험이 발생할 수 있습니다.
- 전기 안전: Always turn off power at the circuit breaker before installing or servicing the downlight. Ensure proper grounding.
- 설치: Install in accordance with national and local electrical codes. If you are unsure about the installation, consult a qualified electrician.
- 운영 환경: Do not use in wet locations or where directly exposed to water. Suitable for indoor use only.
- 호환성: Use only with WiZ compatible devices and applications.
- 처분: 제품과 구성품은 현지 규정에 따라 책임감 있게 폐기하십시오.
5. 설정 가이드
Follow these steps to install and connect your WiZ Recessed Downlight:
- 설치 준비: Turn off the power to the circuit at the main fuse box or circuit breaker.
- 측정 개방: Ensure your ceiling opening is suitable for a 6-inch (15cm) recessed downlight. Refer to the product dimensions.
- 배선 연결: Connect the downlight's wiring to your household electrical wiring according to the wiring diagram provided with the product (not shown here, typically in a separate installation guide). Ensure all connections are secure.
- 다운라이트 삽입: Gently push the downlight into the ceiling opening until the spring clips secure it in place.
- 복원력 : 회로 차단기를 다시 켜세요.
- WiZ 앱을 다운로드하세요: 스마트폰 앱스토어에서 WiZ 앱을 다운로드하세요(iOS 및 Android에서 사용 가능).
- Pair the Downlight: Open the WiZ app and follow the on-screen instructions to pair your new downlight. The app will guide you through the process of connecting the light to your Wi-Fi network.
그림 5.1: 제품 치수
Figure 5.2: WiZ App Pairing Process
6. 사용 설명서
Once installed and paired, you can control your WiZ downlight using the WiZ app or voice commands.
6.1. Using the WiZ App
- 켜기/끄기: Tap the light icon in the app to turn the downlight on or off.
- 밝기 조정: Use the slider in the app to adjust the brightness level.
- 색온도: Select from a range of warm to cool white tones (2700K to 6500K) to suit your mood or activity.
- 장면: Choose from a variety of pre-set dynamic light modes or create your own custom scenes for different occasions.
- 일정: Set up daily or weekly schedules for your lights to turn on/off or change scenes automatically.

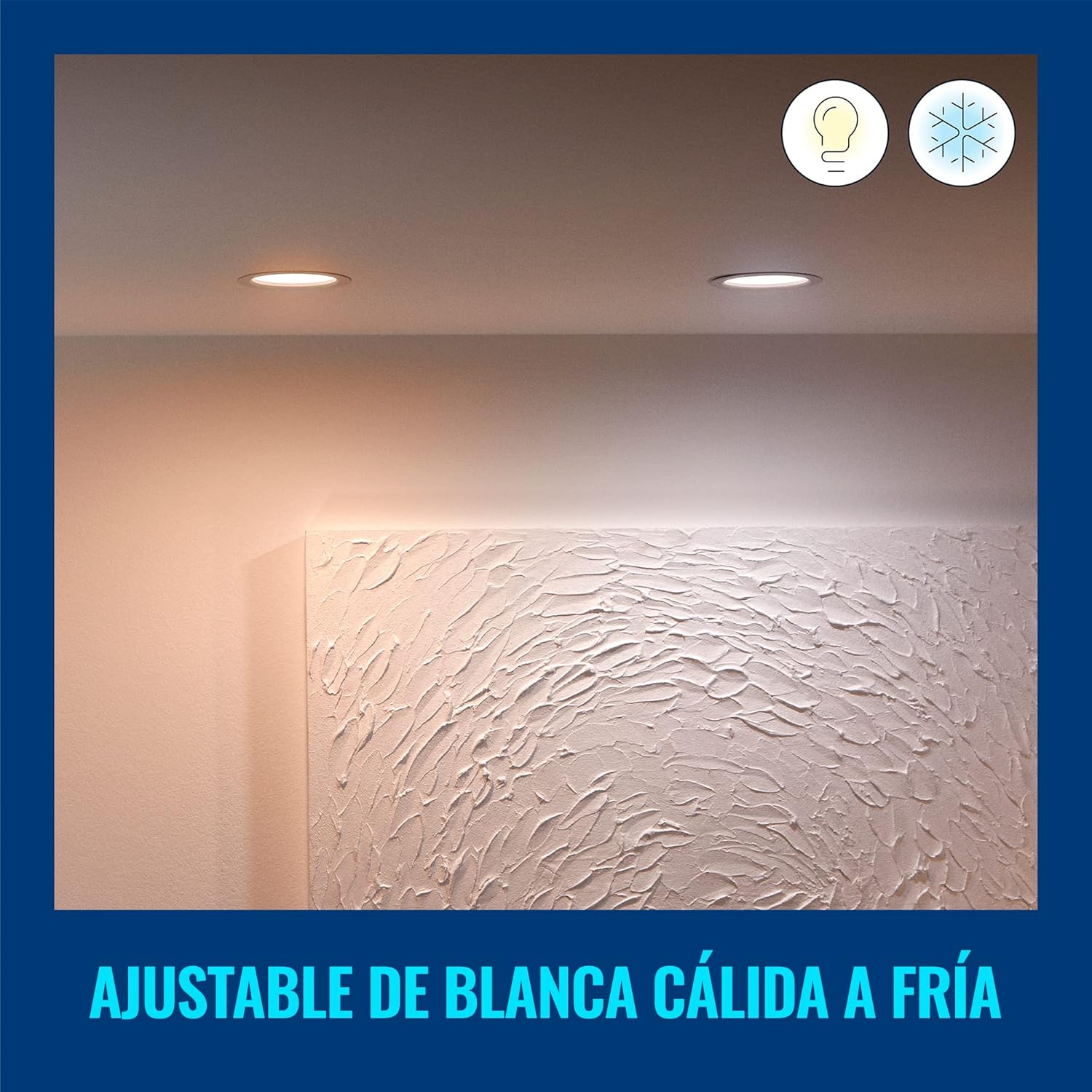

Figure 6.1: Warm White Light Setting
6.2. 음성 제어
Integrate your WiZ downlight with smart home assistants for hands-free control:
- 구글 어시스턴트: Link your WiZ account in the Google Home app. Then use commands like, "Hey Google, turn on the living room light."
- 아마존 알렉사: Enable the WiZ skill in the Alexa app. Use commands such as, "Alexa, set the kitchen light to warm white."
- Apple Siri Shortcuts: Create custom Siri Shortcuts in the WiZ app for quick voice commands.
그림 6.2: 음성 제어 통합
7. 유지관리 및 관리
To ensure the longevity and optimal performance of your WiZ downlight, follow these simple care instructions:
- 청소: Disconnect power before cleaning. Use a soft, dry cloth to wipe the surface of the downlight. Do not use abrasive cleaners or solvents.
- 사용자가 수리할 수 없는 부품: The LED light source is integrated and not replaceable. Do not attempt to disassemble the downlight.
- 환경 조건: Avoid exposing the downlight to extreme temperatures or high humidity, as this may affect its performance and lifespan.
8. 문제 해결
If you encounter issues with your WiZ downlight, refer to the following common problems and solutions:
| 문제 | 가능한 원인 | 해결책 |
|---|---|---|
| 다운라이트가 켜지지 않습니다. | No power, loose wiring, or faulty unit. | Check circuit breaker. Ensure wiring is secure. If problem persists, contact customer support. |
| Wi-Fi에 연결할 수 없습니다. | 와이파이 비밀번호가 잘못되었거나, 신호 범위를 벗어났거나, 라우터에 문제가 있을 수 있습니다. | Verify Wi-Fi password. Move downlight closer to router. Restart router. Ensure you are connecting to a 2.4GHz Wi-Fi network. |
| 예상치 못하게 불빛이 깜빡이거나 어두워집니다. | Unstable power supply or interference. | Check electrical connections. Ensure no other devices are causing electrical interference. |
| 음성 제어가 작동하지 않습니다. | Incorrect setup with smart assistant or internet connectivity issues. | Ensure WiZ account is correctly linked in your smart assistant app. Check internet connection. |
For further assistance, please refer to the customer support section.
9. 사양
| 기인하다 | 값 |
|---|---|
| 상표 | 위즈 |
| 모델 번호 | 929002647712 |
| 제조업체 | Signify Mexico |
| 색상 | 하얀색 |
| 재료 | 플라스틱 |
| 모양 | 둥근 |
| 전원 | 전기 같은 |
| 권tage | 120볼트(AC) |
| 왓tage | 17 와트 |
| 전구 유형 | LED(통합) |
| 광속 | 1950루멘 |
| 특별 기능 | Dimmable, Low Consumption |
| 용법 | Decoration, General Lighting |
| 배터리가 필요하세요? | 아니요 |
| 제품 크기(L x W x H) | 16.5 x 15 x 4.7cm(6.5 x 5.91 x 1.85인치) |
| 제품 무게 | 220g |
| 수명 | 15,000시간 |
10. 보증 정보
WiZ products are designed for reliability and performance. This product comes with a standard manufacturer's warranty against defects in materials and workmanship. Please refer to the official WiZ web보증 기간 및 보장 범위 등 구체적인 보증 조건은 웹사이트 또는 구매 서류를 참조하십시오.
11. 고객 지원
If you have any questions, require technical assistance, or need to report an issue, please contact WiZ customer support through the following channels:
- 온라인 지원: 공식을 방문하세요 위즈 web대지 for FAQs, troubleshooting guides, and contact forms.
- 앱 내 지원: Access support resources directly within the WiZ mobile application.
- 소매업체 지원: For purchase-related inquiries, contact the retailer where you bought the product.
