1. 서론
This manual provides detailed instructions for the assembly, operation, and maintenance of your VASAGLE BBC001G01 under-sink bathroom cabinet. Please read all instructions carefully before beginning assembly and retain this manual for future reference.
The VASAGLE BBC001G01 is a stylish and functional under-sink cabinet designed to maximize storage space in your bathroom. It features high-quality MDF construction with a durable lacquered surface, offering resistance to moisture and ease of cleaning. The cabinet includes two doors with chrome metal handles that open up to 180 degrees, protecting your stored items from dust and water. Inside, an adjustable shelf provides versatile storage options for various items.
Image: The VASAGLE BBC001G01 under-sink cabinet in grey, featuring two doors, positioned under a white rectangular sink in a modern bathroom setting.
2. 안전 정보
조립 및 사용 시 다음 안전 수칙을 준수해 주십시오.
- 질식 위험을 방지하기 위해 모든 작은 부품과 포장재를 어린이와 애완동물이 접근할 수 없는 곳에 보관하세요.
- 긁힘을 방지하려면 부드럽고 깨끗한 표면에 장치를 조립하세요.
- 사용 전에 모든 나사와 패스너가 단단히 조여졌는지 확인하십시오. 너무 세게 조이지 마십시오.
- Do not stand on or overload the cabinet.
- Always use the provided anti-tip device to secure the cabinet to the wall.
2.1 전복 방지 장치 설치
To prevent accidental tipping and ensure stability, it is mandatory to install the anti-tip device. Follow the instructions provided in your assembly hardware kit to securely attach the strap to the top rear of the cabinet and fasten it to a solid wall stud or appropriate wall anchor.
Image: A close-up showing the anti-tip strap securely attached to the top rear of the cabinet and fastened to a wall, illustrating a crucial safety measure.
3. 구성품 및 치수
Before assembly, verify that all components listed in your hardware package are present. The cabinet's overall dimensions and the specific siphon cutout are critical for proper fit under your sink.

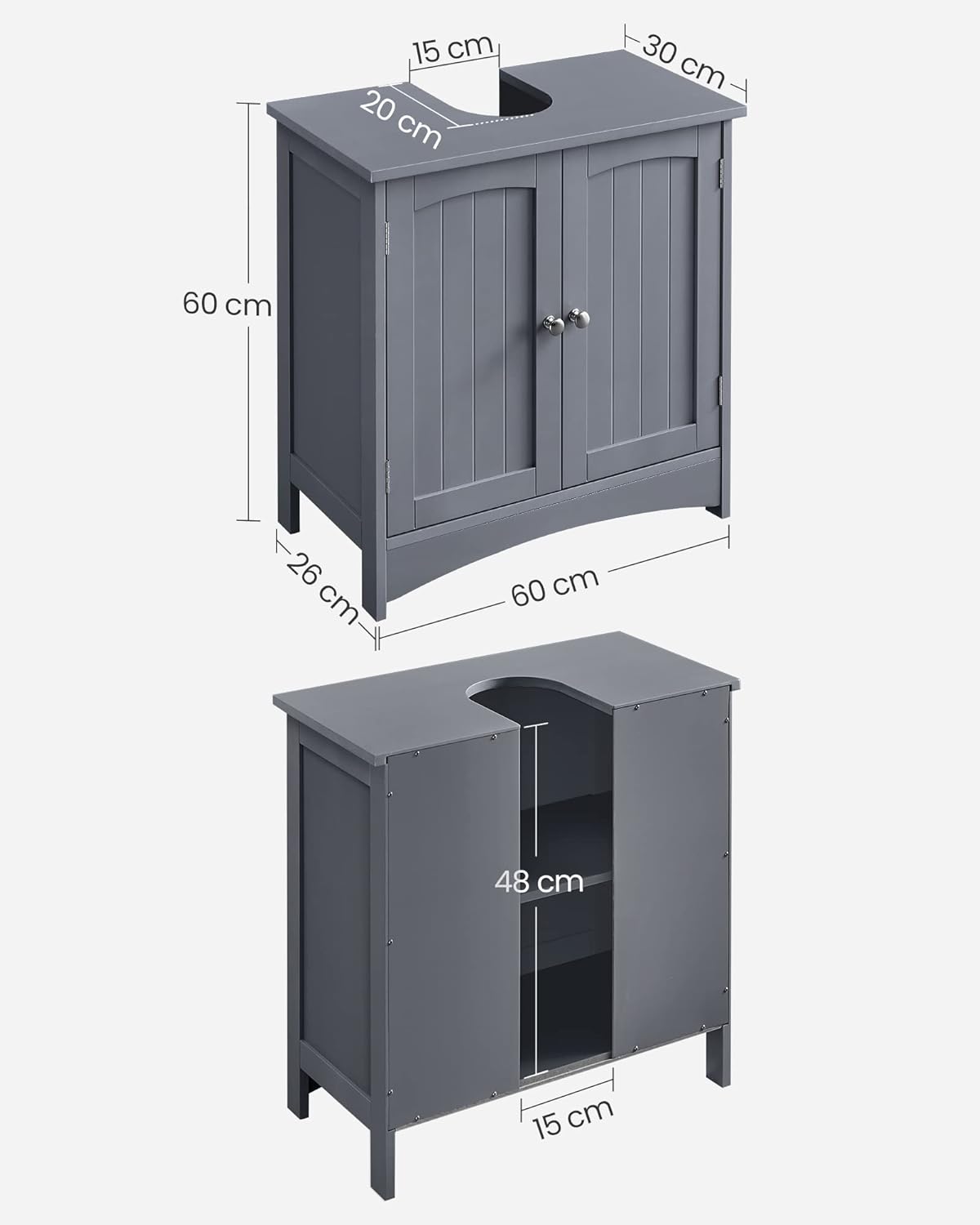

Image: A diagram illustrating the external dimensions of the grey VASAGLE under-sink cabinet (60 cm width, 30 cm depth, 60 cm height) and the siphon cutout dimensions (20 cm width, 15 cm depth). An internal view shows the adjustable shelf.
- Overall Cabinet Dimensions (L x W x H): 60 x 30 x 60cm
- Siphon Opening Dimensions: 20 x 15cm
- 재료: 엔지니어드 우드(MDF)
- 색상: 회색
4. 조립 설명서
4.1 시작하기 전에
- Measure Your Sink: Before assembly, carefully measure the dimensions of your sink and siphon to ensure compatibility with the cabinet's cutout. The cabinet's siphon opening is 20 x 15 cm.
- 지역 지우기: Ensure you have sufficient space for assembly and that the area is clean and free of obstructions.
- 부품 식별: All parts are marked for easy identification. Refer to the included assembly diagram for a complete list of components and hardware.
4.2 단계별 조립
Follow the detailed, step-by-step instructions and diagrams provided in your product packaging. General steps include:
- Attach the side panels to the bottom panel.
- 후면 패널을 설치합니다.
- Assemble the top panel, ensuring the siphon cutout is correctly oriented.
- Attach the door hinges to the cabinet frame and doors.
- Install the door handles and magnetic catches.
- Insert the adjustable shelf at your desired height.
- Install the anti-tip device as described in Section 2.1.

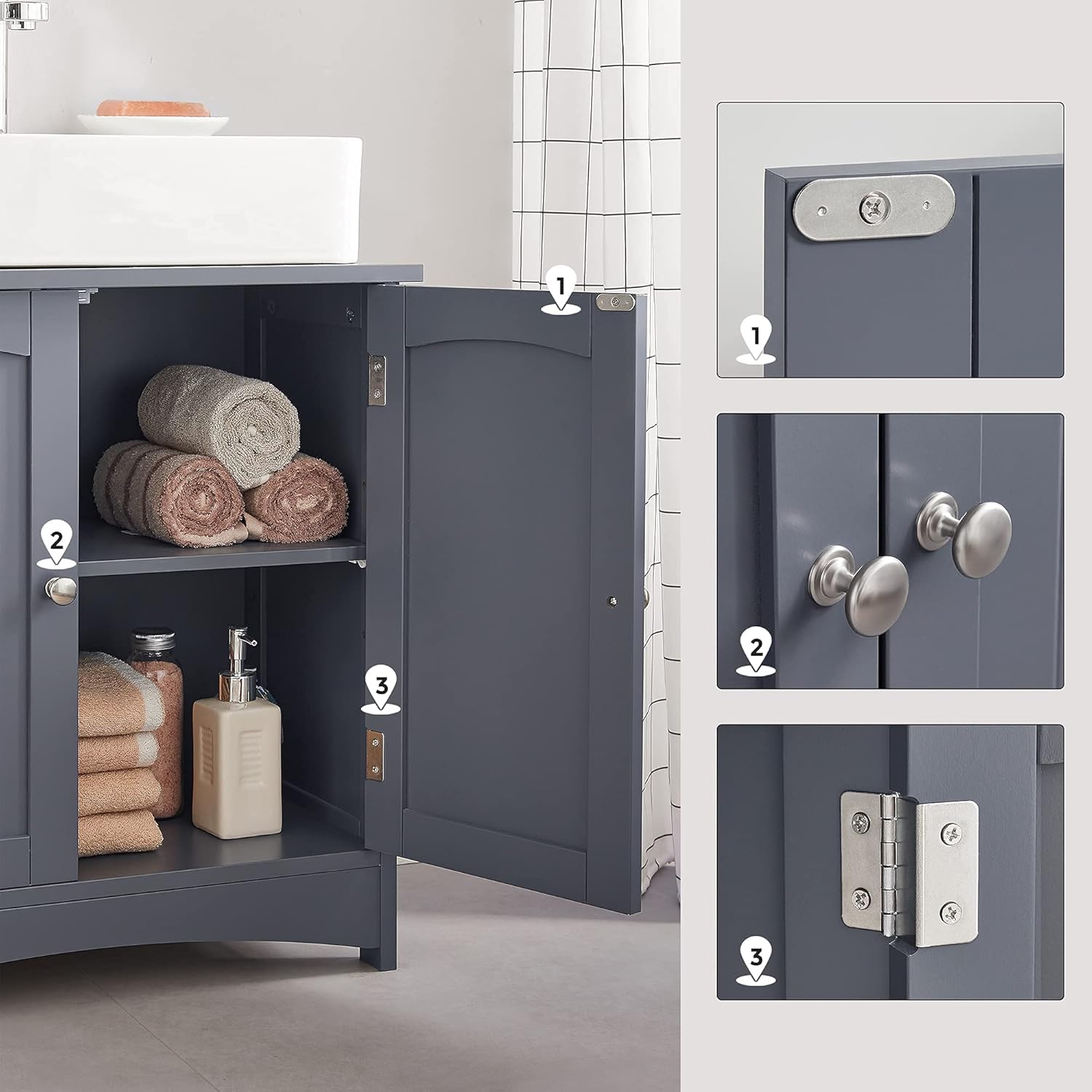

이미지: 상세 view of the cabinet's features, including the magnetic catch for the door, the chrome metal door handles, and the metal hinges.
5. 운영
5.1 문 사용
The cabinet features two doors equipped with chrome metal handles. These doors can be opened up to 180 degrees, providing full access to the interior. Close the doors gently to engage the magnetic catches and keep your items protected.
5.2 조정 가능한 선반
The interior of the cabinet includes one adjustable shelf. This shelf can be positioned at three different heights to accommodate items of varying sizes. To adjust the shelf, remove any items, lift the shelf, and reposition the shelf pins into the desired holes on the side panels. Ensure the shelf is level and securely seated on all four pins before placing items on it.
Image: An illustration demonstrating the adjustable shelf mechanism inside the cabinet, showing how the shelf can be moved up or down to three different height positions.

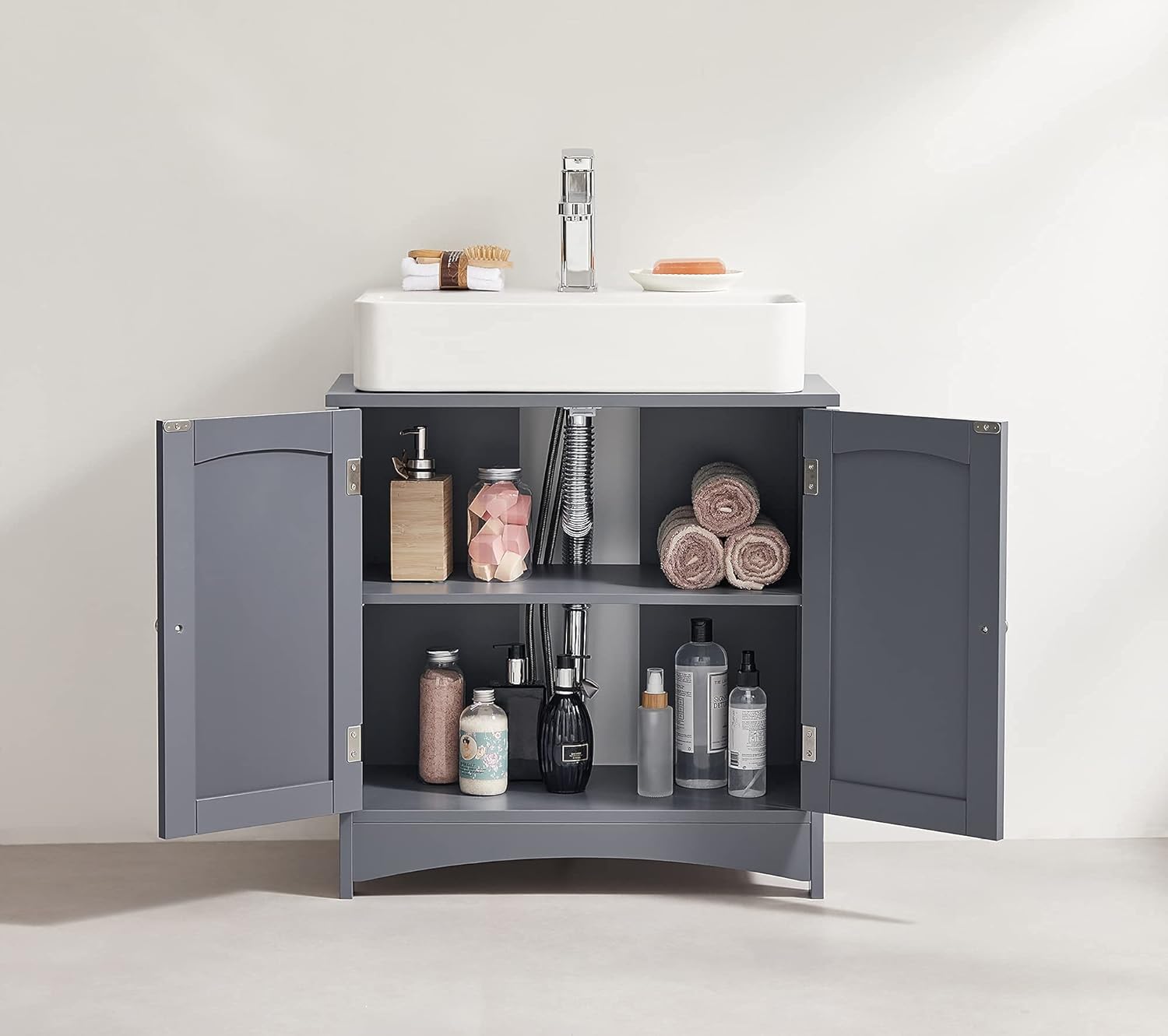

Image: The grey VASAGLE under-sink cabinet with both doors open, revealing an adjustable shelf inside. Various bathroom items like towels, soap dispensers, and bottles are stored within. A white rectangular sink is visible on top.
이미지: 클로즈업 view inside the VASAGLE under-sink cabinet, focusing on the siphon pipe passing through the top panel and the adjustable shelf below. Towels and bath salts are visible on the shelf.
6. 관리 및 유지 보수
- 청소: The lacquered surface is durable and easy to clean. Wipe the cabinet with a soft, damp 천을 사용하십시오. 연마성 세제나 강한 화학 물질은 마감재를 손상시킬 수 있으므로 사용하지 마십시오.
- 수분: While the cabinet is moisture-resistant, avoid prolonged exposure to excessive water. Wipe up spills immediately.
- 점검: 모든 나사와 패스너가 단단히 조여져 있는지 정기적으로 점검하세요. 필요하면 다시 조이세요.
7. 문제 해결
- Cabinet Does Not Fit Under Sink:
a. Verify your sink and siphon dimensions against the cabinet's specifications (60 x 30 x 60 cm, siphon opening 20 x 15 cm).
b. Note that the adjustable shelf inside the cabinet does ~ 아니다 have a pre-cut siphon opening. Depending on your siphon's configuration, you may need to modify the adjustable shelf to accommodate the pipe. - Cabinet Appears Unstable:
a. Ensure all assembly screws are tightened securely.
b. Confirm the cabinet is placed on a level surface.
c. Verify that the anti-tip device is correctly installed and securely fastened to the wall. - 문이 제대로 닫히지 않습니다:
a. Check that the hinges are correctly aligned and tightened.
b. Ensure the magnetic catches are properly installed and aligned with the door magnets.
8. 제품 사양
| 기인하다 | 값 |
|---|---|
| 상표 | 바사글 |
| 모델 번호 | BBC001G01 |
| 색상 | 회색 |
| 제품 크기(L x W x H) | 60 x 30 x 60cm |
| 재료 | 엔지니어드 우드(MDF) |
| 품목 무게 | 9 킬로그램 |
| 특징 | Durable, Adjustable Shelf |
| 장착 유형 | 플로어 마운트 |
| 객실 유형 | 화장실 |
| 문 스타일 | 스윙 도어 |
9. 보증 및 지원
Specific warranty information for the VASAGLE BBC001G01 under-sink bathroom cabinet is not provided in the product details. For any questions regarding warranty, missing parts, or assembly assistance, please contact the retailer or manufacturer directly through their official support channels.
Spare parts availability information is not available. Please contact customer service for inquiries regarding replacement parts.
