1. 서론
Thank you for choosing the ATUMTEK Bluetooth Remote Shutter. This compact and portable device is designed to enhance your mobile photography experience by providing convenient remote control for your smartphone camera. With advanced Bluetooth 5.0 technology, it ensures stable and low-latency connectivity, allowing you to capture perfect photos and videos from a distance. This manual will guide you through the setup, operation, and maintenance of your new remote shutter.
2. 제품 특징
- Superior Bluetooth 5.0 Connectivity: Experience ultra-low latency and stable connection with the latest Bluetooth 5.0 technology. No app is required for pairing, and it’s compatible with iOS 7.0+ and Android 5.0+ smartphones, ensuring seamless remote photography.
- 긴 배터리 수명: Equipped with a 50mAh rechargeable battery, this Bluetooth remote allows you to take more than 15,000 photos on a full charge. The convenient Type-C charging port (5V/0.11A) ensures quick recharges when needed.
- 컴팩트하고 휴대하기 편리한 디자인: Measuring just 53.8 x 16.23 x 7.88mm and weighing only 5g, this mini remote is easy to carry and store. Its sleek, carbon fiber design adds a touch of elegance, making it the perfect accessory for any on-the-go photographer.
- 확장된 원격 제어 범위: Capture perfect shots from a distance! With an effective remote range of over 10 meters, you can comfortably take group photos, selfies, or landscape shots without being restricted by proximity.
- Durable and Long-Lasting Buttons: The ABS construction ensures durability, while the button has a lifespan of over 30,000 clicks, providing reliability for countless photography sessions.
- 보편적 인 호환성 : Designed to work with both iOS and Android systems, this remote shutter is compatible with iPhones and Android smartphones running iOS 7.0+ or Android 5.0+.
3. 패키지 내용
모든 품목이 들어 있는지 확인하려면 패키지를 확인하세요.
- ATUMTEK Bluetooth Remote Shutter (Model: ATYKQ064)
- USB-C 충전 케이블
- 사용자 설명서
그림 3.1: 패키지 내용물
4. 시작하기
4.1 원격 셔터 충전
The remote shutter comes with a built-in rechargeable 50mAh battery. Before first use, or when the indicator light is dim, charge the device using the provided USB-C cable.
- Connect the USB-C end of the cable to the charging port on the remote shutter.
- Connect the USB-A end of the cable to a USB power source (e.g., computer USB port, wall adapter, power bank).
- The indicator light will show charging status (specific color/behavior not detailed, assume it turns off or changes color when fully charged).
- A full charge allows for over 15,000 photos.

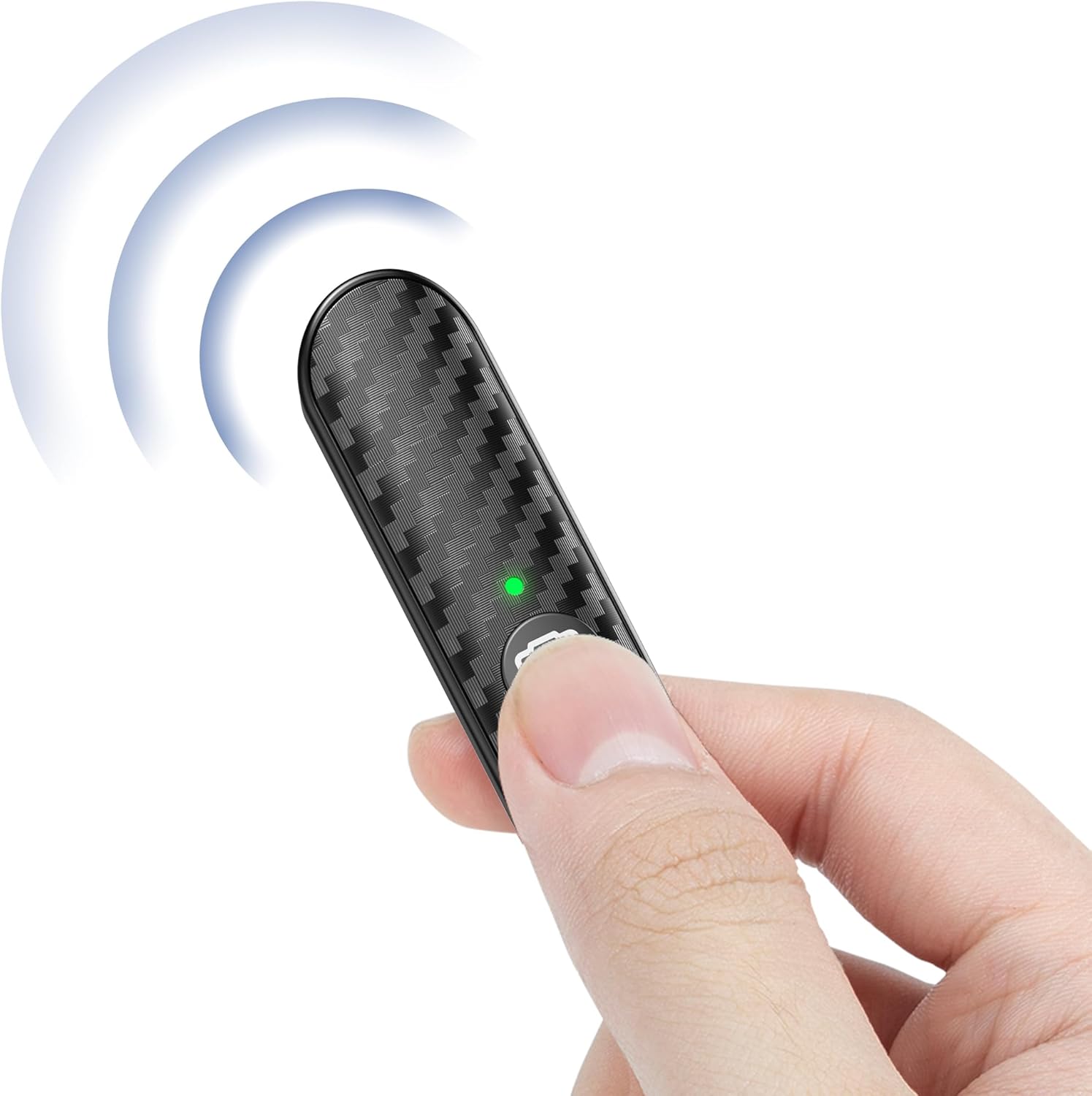

Figure 4.1: Remote Shutter with USB-C Cable
그림 4.2: USB-C 충전 옵션
4.2 스마트폰과 페어링
The remote shutter uses Bluetooth for wireless connection. Follow these steps to pair it with your device:
- 1단계: Press and hold the button on the remote shutter for 3 seconds. The green indicator light will flash, indicating it's in pairing mode.
- 2단계: 스마트폰에서 설정으로 이동하여 블루투스를 켜세요. 검색 available devices and select "ATUMTEK" from the list.
- 3단계: Once paired successfully, the green light on the remote will remain steady.
- 4단계: To turn off the remote, press and hold the button for 3 seconds.
Figure 4.3: Pairing Steps
Figure 4.4: Remote Shutter in Use
5. 사용 설명서
Once paired, the ATUMTEK Bluetooth Remote Shutter is ready for use with your smartphone's camera application.
- Ensure your smartphone's camera app is open.
- Position your smartphone as desired (e.g., on a tripod, selfie stick).
- Press the camera button on the remote shutter to capture a photo or start/stop video recording. The remote supports both photo and video modes.
- The effective remote range is over 10 meters (33 feet), allowing for flexible shooting angles and group photos.
Figure 5.1: Photo and Video Mode Availability
Figure 5.2: Extended Remote Range
Video 5.1: Official product video demonstrating the features and usage of the ATUMTEK Bluetooth Remote Shutter.
6. 호환성
The ATUMTEK Bluetooth Remote Shutter is designed for wide compatibility with various smartphones and operating systems.
- iOS 기기: Compatible with iOS 7.0 and above, including various iPhone models (e.g., iPhone 15, 14, 13, 12, 11, X, SE, 8, 7, 6s) and iPads.
- 안드로이드 기기: Compatible with Android 5.0 and above, including various Samsung Galaxy (S, Note, Z Flip series), Google Pixel, Huawei, Sony Xperia, Motorola, and OnePlus models.
- Perfect Fit with ATUMTEK Selfie Stick Tripods: Designed to pair seamlessly with ATUMTEK ATSS002 & ATSS052 Series Selfie Stick Tripods (e.g., ATSS029, ATSS055, ATSS099, ATSS128, ATSS002, ATSS031, ATSS087, ATSS052, ATSS056, ATSS067, ATSS127).
Figure 6.1: Wide Smartphone Compatibility
Figure 6.2: Compatibility with ATUMTEK Selfie Stick Tripods
7. 사양
| 특징 | 세부 사항 |
|---|---|
| 모델 번호 | ATYKQ064 |
| 연결성 | 블루투스 5.0 |
| 배터리 용량 | 50mAh 리튬 폴리머 (충전식) |
| 충전 포트 | USB 타입 C (5V/0.11A) |
| 배터리 수명 | Over 15,000 photos per full charge |
| 원격 범위 | 10미터(33피트) 이상 |
| 버튼 수명 | 30,000만 회 이상 클릭 |
| 치수 | 53.8 x 16.23 x 7.88mm (2.12 x 0.64 x 0.31 inches) |
| 무게 | 5g(0.176온스) |
| 재료 | ABS (with Carbon Fiber Design) |
| 색상 | 검은색 |
| 호환 OS | iOS 7.0 이상 및 Android 5.0 이상 |
그림 7.1: 제품 치수 및 무게
8. 관리 및 유지 보수
- Keep the remote shutter dry. Do not expose it to moisture or liquids.
- 부드럽고 마른 천으로 장치를 청소하십시오. 가혹한 화학 물질이나 연마재를 사용하지 마십시오.
- 사용하지 않을 때에는 리모컨을 서늘하고 건조한 곳에 보관하십시오.
- 극한 온도는 배터리 수명과 기기 성능에 영향을 미칠 수 있으므로 피하십시오.
- 기기를 직접 분해하거나 수리하지 마십시오. 보증이 무효화됩니다.
9. 문제 해결
| 문제 | 가능한 해결책 |
|---|---|
| 리모컨이 페어링되지 않습니다. |
|
| 리모컨으로 사진/동영상 촬영이 안 됩니다. |
|
| 배터리 수명이 짧습니다. |
|
10. 보증 및 지원
ATUMTEK offers warranty coverage for all its branded products when purchased through authorized channels. If you encounter any issues or have questions regarding your ATUMTEK Bluetooth Remote Shutter, please do not hesitate to reach out to our dedicated support team for assistance.
이메일 지원: support@atumtek.com
For more information and product updates, please visit the official ATUMTEK store: ATUMTEK Store on Amazon
