Powerplus POWEG9013 Electric Leaf Blower User Manual

1. 서론

This manual provides essential information for the safe and effective operation, assembly, and maintenance of your Powerplus POWEG9013 Electric Leaf Blower. Please read these instructions carefully before using the appliance and keep them for future reference.

The Powerplus POWEG9013 is a versatile 3-in-1 garden tool designed for blowing, vacuuming, and shredding leaves and light garden debris. It features a powerful 3300 W motor, an air speed of up to 270 km/h, and an integrated shredder that reduces waste volume by a ratio of 10:1. The collected debris is stored in a 45-liter collection bag. Its lightweight design (2.8 kg), adjustable auxiliary handle, and shoulder strap ensure comfortable and ergonomic operation during use.

2. 안전 지침

WARNING: Always follow basic safety precautions to reduce the risk of fire, electric shock, and personal injury when using electric garden appliances.

• 개인 보호 장비: 항상 적절한 보안경, 청력 보호구 및 튼튼한 신발을 착용하십시오. 긴 바지를 착용하는 것이 좋습니다.
• 구경꾼들: Keep children, pets, and other bystanders at a safe distance (at least 10 meters) from the operating area.
• 전기 안전: Ensure the power cord is in good condition and suitable for outdoor use. Do not operate in wet conditions or rain. Always connect to a properly grounded outlet.
• 점검: Before each use, inspect the appliance for any damaged parts, loose connections, or blockages. Do not use if damaged.
• 작업 영역 정리: Remove any objects that could be thrown or entangled in the fan blades, such as rocks, glass, or metal pieces.
• 사용하지 않을 때는 플러그를 뽑아두세요: Disconnect the appliance from the power supply before cleaning, performing maintenance, or when leaving it unattended.
• 적절한 취급: Do not carry the appliance by the power cord. Do not use the appliance for purposes other than those described in this manual.

3. 제품 구성품

The Powerplus POWEG9013 Electric Leaf Blower includes the following components:

• 1x Leaf Blower/Vacuum Unit
• 1x 어깨끈
• 1x Collection Bag (45 Liters capacity)
• 1x Wheel Assembly with two wheels
• 1x Assembly Material Set
• 보조 손잡이 1개
• 3x Blower Tubes (for assembly)
• 1x 사용 설명서(이 문서)

4. 설치 및 조립

Follow these steps to assemble your Powerplus POWEG9013 Electric Leaf Blower:

1. 송풍관을 연결하세요: Securely connect the blower tubes to the main unit. Ensure they click into place or are fastened according to the provided assembly material.
2. Install Collection Bag: Attach the 45-liter collection bag to the vacuum inlet. Make sure it is firmly secured to prevent accidental detachment during operation.
3. Mount Wheel Assembly: Fasten the wheel assembly to the bottom of the blower tube. The wheels help support the weight of the unit during use, improving maneuverability.
4. 보조 손잡이를 부착하세요: Secure the auxiliary handle to the main unit. Adjust its position for comfortable grip and control.
5. 어깨 스트랩 연결: Attach the shoulder strap to the designated points on the unit. Adjust the strap length to distribute the weight evenly and reduce strain during prolonged use.

Image: Adjusting the auxiliary handle and shoulder strap for ergonomic use.

5. 사용 설명서

The Powerplus POWEG9013 offers three functions: blowing, vacuuming, and shredding.

5.1. 송풍 기능

To use the blowing function:

1. Ensure the unit is correctly assembled for blowing (if applicable, ensure vacuum bag is not obstructing airflow).
2. 전원 코드를 적절한 실외 콘센트에 연결하십시오.
3. 제품의 전원을 켜세요.
4. Direct the nozzle towards the leaves or debris you wish to clear. Use a sweeping motion to gather debris into piles.
5. After use, switch the appliance OFF and unplug it from the power supply.

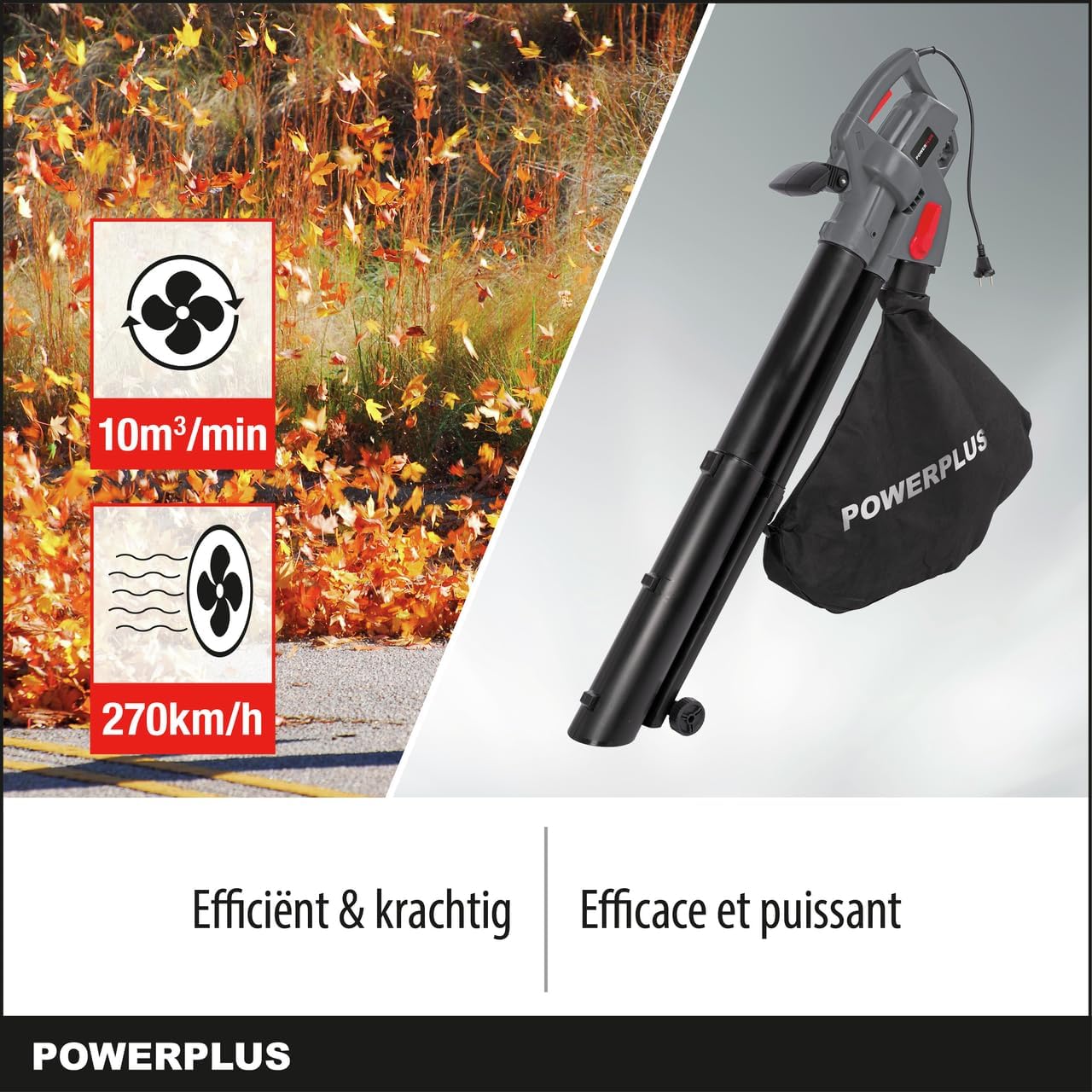

Image: The leaf blower in action, demonstrating its effective air speed (270 km/h) and volume (10 m³/min) for clearing leaves.

5.2. Vacuuming and Shredding Function

To use the vacuuming and shredding function:

1. 수집용 봉투가 단단히 부착되어 있고 비어 있는지 확인하십시오.
2. 전원 코드를 적절한 실외 콘센트에 연결하십시오.
3. 제품의 전원을 켜세요.
4. Position the vacuum nozzle over the leaves and debris. The unit will vacuum the material, and the integrated shredder will reduce its volume by 10:1 before it enters the collection bag.
5. Move the unit slowly over the debris for optimal collection.
6. 수집용 봉투를 주기적으로 확인하고 가득 차면 비워주세요.
7. After use, switch the appliance OFF and unplug it from the power supply.

Image: Visual representation of the 3-in-1 functionality: shredding, blowing, and vacuuming.

Image: Illustration of the 10:1 shredding ratio and the 45-liter collection bag capacity.

6. 유지관리

정기적인 유지 관리는 낙엽 송풍기의 수명과 최적의 성능을 보장합니다.

• 청소: After each use, ensure the appliance is unplugged. Clean the exterior with a damp cloth. Remove any debris from the air inlets, outlets, and the shredder area. Do not use harsh chemicals or abrasive cleaners.
• 컬렉션 가방: Empty and clean the collection bag regularly. Ensure it is free of tears or damage.
• Impeller/Fan: 임펠러에 이물질이 끼었거나 손상된 부분이 있는지 주기적으로 점검하십시오. Always unplug the unit before inspecting the impeller.
• 저장: Store the appliance in a dry, well-ventilated area, away from direct sunlight and extreme temperatures. Ensure the power cord is neatly coiled and not kinked.

7. 문제 해결

If you encounter issues with your Powerplus POWEG9013, refer to the following troubleshooting guide:

If the problem persists after attempting these solutions, please contact Powerplus customer support.

8. 기술 사양

• 모델: POWEG9013
• 힘: 3300와트
• 권tage: 240볼트(AC)
• 최대 대기 속도: 270km/h
• 공기량: 10m³/분
• 수집 가방 용량: 45리터
• Shredding Ratio: 10시 1분
• 무게: 2.8kg
• 치수(길이 x 너비 x 높이): 25 x 20 x 25cm
• 재료: PP 플라스틱
• 소음 수준: 69데시벨
• 특징: 조절 가능한 보조 손잡이
• 전원: 코드식 전기

Image: The Powerplus POWEG9013 Electric Leaf Blower in operation, highlighting its compact design and the attached collection bag.

9. 보증 및 지원

For warranty information, spare parts availability, or technical support, please refer to the documentation provided with your purchase or contact your retailer. You can also visit the official Powerplus web추가 지원은 사이트를 참조하세요.

Please have your model number (POWEG9013) and purchase date ready when contacting support.
