소개
The Shark EVOPOWER SYSTEM CS401J is a versatile cordless stick vacuum cleaner designed for comprehensive home cleaning. It combines powerful suction with flexible operation, allowing for easy cleaning of various surfaces and hard-to-reach areas. This manual provides essential information for the safe and effective use of your vacuum cleaner.
Image: The Shark EVOPOWER SYSTEM CS401J demonstrating its dual functionality as a stick vacuum and a handheld unit.
안전 정보
이 제품을 사용하기 전에 모든 지침을 주의 깊게 읽으십시오. 지침을 따르지 않으면 감전, 화재 또는 심각한 부상이 발생할 수 있습니다.
- 옥외나 젖은 표면에서는 사용하지 마십시오.
- 장난감으로 사용하지 마십시오. 어린이가 사용하거나 근처에서 사용할 때는 세심한 주의가 필요합니다.
- 이 설명서에 설명된 대로만 사용하십시오. 제조업체에서 권장하는 부착물만 사용하십시오.
- 젖은 손으로 플러그나 기기를 만지지 마세요.
- 개구부에 어떤 물건도 넣지 마십시오. 개구부가 막힌 상태에서 사용하지 마십시오. 먼지, 보푸라기, 머리카락 및 공기 흐름을 감소시킬 수 있는 모든 것이 없도록 하십시오.
- 머리카락, 느슨한 옷, 손가락 및 신체의 모든 부분을 구멍이나 움직이는 부품에서 멀리 두십시오.
- 담배, 성냥, 뜨거운 재 등 타고 있거나 연기가 나는 물건은 집어 올리지 마세요.
- 휘발유와 같은 가연성 또는 가연성 액체를 집어 올리거나 그러한 액체가 있을 수 있는 장소에서 사용하지 마십시오.
- 계단을 청소할 때는 특별히 주의하세요.
- 기기를 실내에 보관하세요. 사고를 예방하려면 사용 후 제자리에 보관하세요.
패키지 내용
아래 나열된 모든 구성품이 패키지에 포함되어 있는지 확인하세요.
- Main Unit (Handheld Vacuum with Extension Wand and Floor Nozzle)
- 충전 도크
- Batteries (2 pieces)
- Mini-Motorized Head
- 액세서리 도크
- 틈새 도구
- 멀티툴
- Futon Tool
Image: An illustration showing the main unit, charging dock, two batteries, mini-motorized head, accessory dock, crevice tool, multi-tool, and futon tool.
조립 및 설정
진공 청소기를 조립하고 설정하려면 다음 단계를 따르세요.
- 구성 요소 풀기: 포장에서 모든 부품을 조심스럽게 꺼냅니다.
- 본체 조립: Connect the extension wand to the floor nozzle, then attach the handheld vacuum unit to the top of the extension wand until it clicks into place.
- Position Docks: Place the charging dock and accessory dock in a convenient location near a power outlet.
- 배터리 충전: Insert the batteries into the charging dock or directly into the handheld unit. Ensure the vacuum is fully charged before its first use. Charging starts automatically when the vacuum is returned to the dock.
Image: The vacuum cleaner docked for charging, with all its accessories neatly organized on the accessory dock for easy access and storage.
작동 지침
Your Shark EVOPOWER SYSTEM CS401J offers flexible cleaning options:
1. Stick Mode (Floor Cleaning)
- 전원 켜기/끄기: Press the power button located on the handheld unit.
- 모드 선택: Use the mode button to switch between standard and boost suction levels as needed for different cleaning tasks.
- 기동성: The lightweight design and swivel head allow for smooth and easy navigation around furniture and obstacles.
- 가구 밑 청소: The flexible design enables the vacuum head to reach deep under low furniture for thorough cleaning.

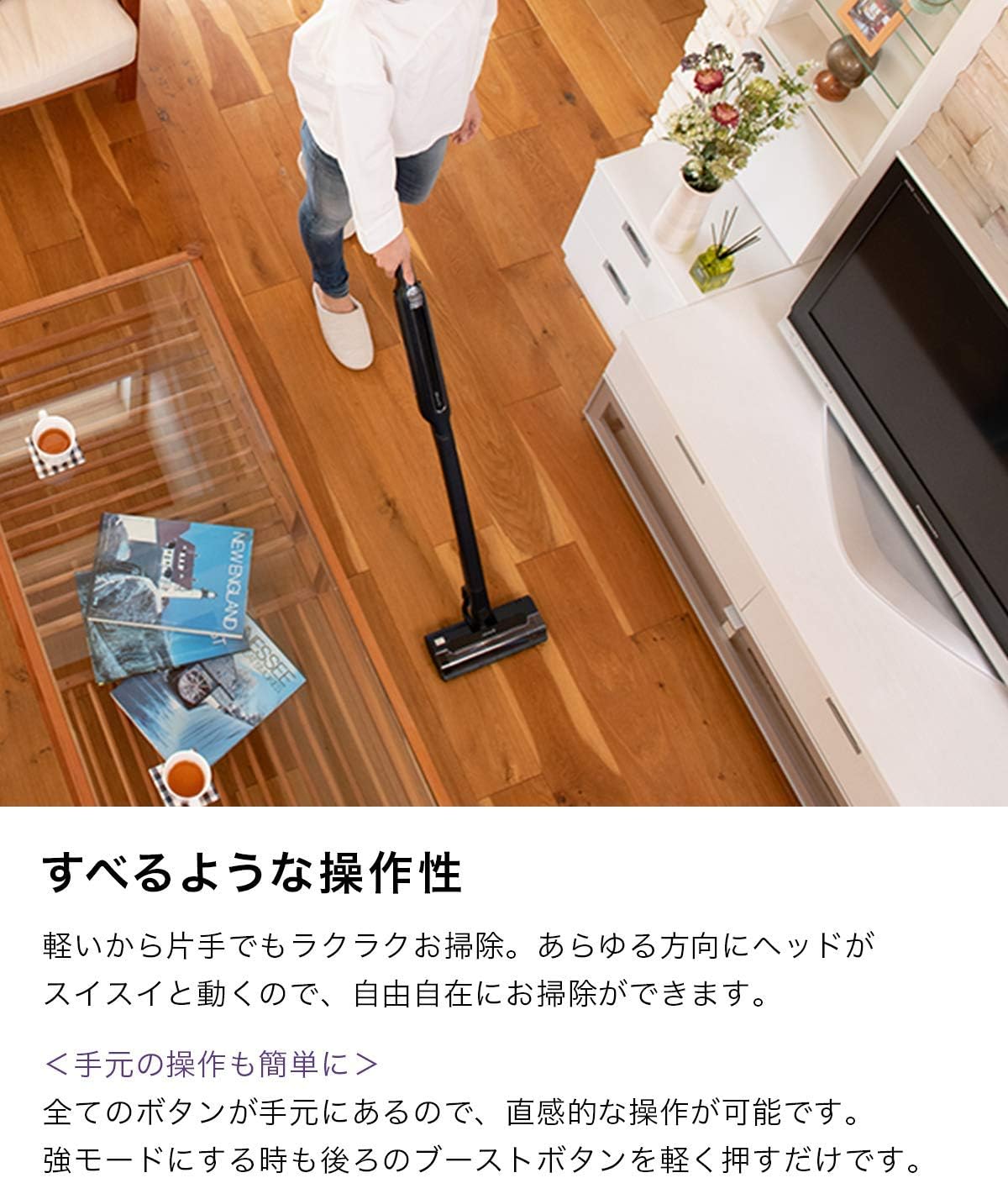

Image: A user operating the Shark EVOPOWER SYSTEM CS401J in stick mode, cleaning a wooden floor with ease.
Image: The vacuum cleaner head reaching deep under furniture, such as a bed, for thorough cleaning of hidden areas.
2. Handheld Mode (Spot Cleaning & Attachments)
- 변환: Press the release button on the main unit to detach the handheld vacuum. This allows for quick and convenient cleaning of elevated or tight spaces.
- 첨부 파일 사용: Attach the desired tool directly to the handheld unit for specialized cleaning tasks.
Image: A hand pressing the release button to detach the handheld vacuum from the main stick, demonstrating the one-touch conversion for quick use.
첨부 파일 안내:
- 틈새 도구: 좁은 공간, 모서리, 가장자리에 적합합니다.
- 멀티 툴: 가구, 자동차 내부 및 섬세한 표면에 적합합니다.
- Mini-Motorized Head: Designed for deep cleaning of futons, mattresses, and pet hair from fabric surfaces. This head features the same structure as the main head for effective debris removal with high-speed rotation.
Image: A collage showing the vacuum cleaning tight spaces, curtains, and sofa cushions using specialized attachments, highlighting its versatility.
3. Brush Roll Technology
The vacuum features a newly developed Brushless PowerFins brush roll. This design ensures constant contact with the floor, removing more debris in a single pass and preventing hair and pet fur from tangling.
이미지: 자세한 view of the vacuum head's PowerFins brush roll, highlighting its innovative design for effective debris pickup and resistance to hair tangles.
유지
Regular maintenance ensures optimal performance of your vacuum cleaner:
- 먼지통 비우기: Press the dust cup release button to detach it from the handheld unit. Position the dust cup over a trash bin and press the empty button to release debris.
- 먼지통과 필터 청소하기: The dust cup and filter are washable. Rinse them under running water. Ensure they are completely dry before reassembling and reattaching to the vacuum.
- 브러시 롤 청소: While the PowerFins brush roll is designed to prevent tangles, periodically check for any accumulated debris or hair. If necessary, carefully remove any obstructions.
Image: A user cleaning the removable dust cup and filter under running water, illustrating the easy and hygienic maintenance process.
문제 해결
문제가 발생하면 다음의 일반적인 문제와 해결 방법을 참조하세요.
- 청소기가 작동하지 않습니다. Ensure the battery is fully charged and properly inserted into the handheld unit.
- 흡입력 감소: Check if the dust cup is full and needs emptying. Clean the filters. Inspect the nozzle and extension wand for any blockages.
- 브러시 롤이 회전하지 않음: Turn off the vacuum and check the brush roll for any obstructions (e.g., tangled hair, debris). Ensure the floor nozzle is correctly attached to the extension wand.
- 배터리가 충전되지 않음: Verify that the vacuum is correctly seated on the charging dock and that the power adapter is securely plugged into a working outlet.
명세서
| 특징 | 세부 사항 |
|---|---|
| 제조업체 | 상어 |
| 모델 번호 | CS401J |
| 패키지 크기 | 62 x 31.7 x 18.2cm |
| 무게(패키지) | 5.45kg |
| 배터리 유형 | 리튬 이온(충전식) |
| 전원 | 배터리 구동 |
| 필터 유형 | 탄약통 |
| 특별 기능 | 가벼움 |
| 권장 사용 | Futon, Multi-surface |
보증 및 지원
The manufacturer's warranty is valid for products purchased from SharkNinja or authorized retailers. Product registration is required to activate the warranty. Please register your product after purchase. The warranty period may vary by product; refer to the included instruction manual for specific details.
For further assistance, please contact Shark customer support through their official web사이트 또는 제품 포장에 제공된 연락처 정보를 참조하세요.
