1. 서론
This manual provides instructions for the installation, operation, and maintenance of the DAEWOO WOS501 Wireless Outdoor Siren. This siren is designed to integrate with DAEWOO SA501 alarm systems and other compatible DAEWOO SAxxx alarm packs, providing an audible and visual alert in case of an alarm event. It features battery backup for continued operation during power outages and requires a mains power supply.
Figure 1.1: The DAEWOO WOS501 Wireless Outdoor Siren.
2. 안전 정보
설치 및 작동 전에 모든 안전 지침을 주의 깊게 읽어 주십시오. 이 지침을 따르지 않을 경우 제품, 재산 또는 인명 피해가 발생할 수 있습니다.
- 설치 또는 유지보수 작업을 수행하기 전에 반드시 전원 공급 장치를 차단하십시오.
- Installation should be performed by a qualified individual if you are unsure about electrical wiring.
- Do not expose the siren to extreme temperatures or direct water immersion. While designed for outdoor use, excessive exposure can cause damage.
- 어린이의 손이 닿지 않는 곳에 보관하세요.
3. 패키지 내용
패키지에 모든 품목이 들어 있는지 확인하세요.
- 1 x DAEWOO WOS501 Wireless Outdoor Siren
- 1 x Power Supply (Plug Included)
- 설치용 하드웨어(나사, 벽 플러그)
- 사용 설명서 (본 문서)

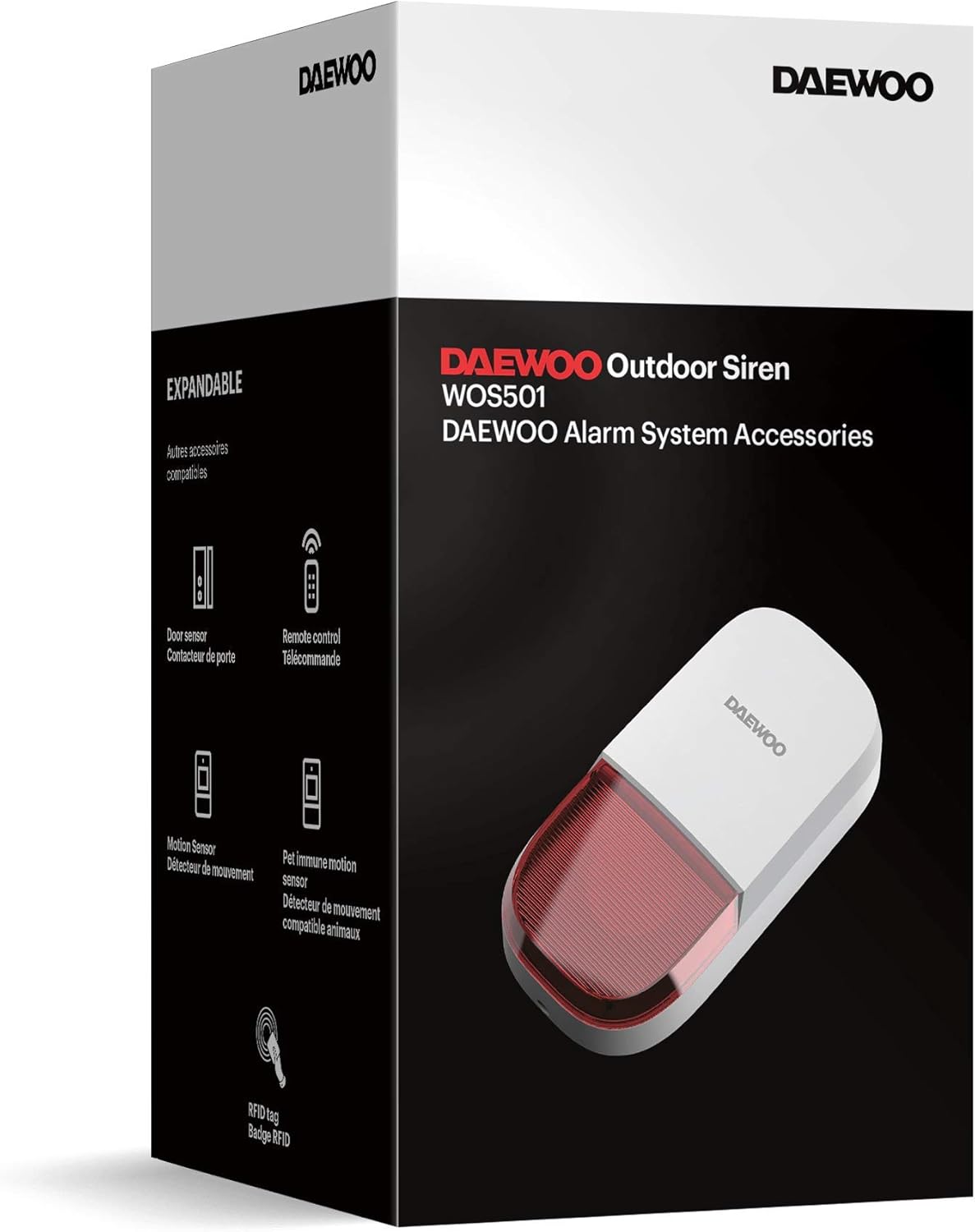

Figure 3.1: Product packaging for the DAEWOO WOS501 Wireless Outdoor Siren, illustrating the siren and compatible alarm system accessories.
4. 설정 및 설치
4.1 설치 위치 선택
Select a suitable outdoor location for the siren. Consider the following:
- 시계: Position the siren where its flashing light and sound can be easily seen and heard.
- 접근성: Mount it high enough to deter tampering but accessible for maintenance.
- 힘: Ensure proximity to a 230V AC power socket for the included power supply.
- 무선 범위: The siren operates wirelessly up to 80 meters from the main alarm control panel. Test signal strength before final mounting.
그림 4.1: 예ample of the DAEWOO WOS501 siren mounted on an exterior wall of a building.
4.2 사이렌 장착
- Mark the desired mounting points on the wall using the siren's base as a template.
- Drill pilot holes at the marked points. Insert wall plugs if mounting into masonry.
- Secure the siren's base to the wall using the provided screws.
- Connect the power supply to the siren and plug it into a 230V AC outdoor-rated power socket.
- Ensure the battery backup is correctly installed (refer to section 6.1 for battery installation).
- Attach the siren's cover securely to the base.
4.3 Pairing with the Alarm System
The DAEWOO WOS501 siren must be paired with your DAEWOO SA501 or compatible SAxxx alarm control panel. Refer to your main alarm system's manual for specific pairing instructions. Generally, the process involves:
- Put your alarm control panel into pairing mode.
- Activate the siren's pairing function (often a button press or power cycle).
- Confirm successful pairing on your alarm control panel.
5. 운영
Once paired with your DAEWOO alarm system, the WOS501 siren operates automatically in conjunction with the alarm panel.
- 무장/해제: The siren will arm and disarm simultaneously with your main alarm system.
- 알람 활성화: Upon detection of an intrusion or other alarm event by the main system, the siren will emit a loud 105 dB sound and flash its integrated light.
- 배터리 백업 : 정전이 발생한 경우tage, the siren will continue to function using its internal Lithium Polymer battery backup.
6. 유지관리
6.1 배터리 설치 및 교체
The siren requires 1 Lithium Polymer battery for backup power. While the product description states "Batteries Included? No", it also states "1 Lithium Polymer batteries required." and "Battery backup for power outage." This implies a battery is either pre-installed or needs to be purchased separately and installed. Assuming it needs to be installed or replaced:
- 전원 분리: Unplug the siren from the mains power supply.
- 오픈 Casing: Carefully open the siren's casing. There may be anti-tamper screws or clips.
- 배터리 설치/교체: Locate the battery compartment. Insert or replace the Lithium Polymer battery, ensuring correct polarity.
- C 닫기asing: Securely close the siren's casing.
- 전원 다시 연결: Plug the siren back into the mains power supply. The battery will begin charging.
메모: The siren's battery is primarily for backup. Ensure the siren is always connected to mains power for optimal performance and battery longevity.
6.2 청소
Wipe the siren's exterior with a soft, damp 필요에 따라 천으로 닦아주세요. 연마성 세제나 용제를 사용하지 마세요.
6.3 정기점검
Periodically test the siren's functionality by triggering your alarm system to ensure it activates correctly.
7. 문제 해결
| 문제 | 가능한 원인 | 해결책 |
|---|---|---|
| 경보가 울리는 동안 사이렌이 작동하지 않습니다. | Not paired with alarm system. 무선 범위를 벗어났습니다. No power or dead battery backup. | Re-pair the siren with the alarm panel. Relocate the siren closer to the alarm panel. Check mains power connection. Replace battery if necessary. |
| Siren is not flashing. | LED에 결함이 있습니다. 전원 문제. | 고객 지원팀에 문의하세요. Check power supply and battery. |
| Siren emits a low sound. | 방해. 스피커에 문제가 있습니다. | 사이렌 출력부를 막는 물체가 없는지 확인하십시오. 고객 지원팀에 문의하세요. |
| Siren constantly triggers. | 경보 시스템 오작동. Siren fault. | Check your main alarm system for false triggers. Disconnect siren power and contact customer support. |
8. 사양
| 특징 | 세부 사항 |
|---|---|
| 모델 번호 | WOS501 (Internal: DAWOS501) |
| 상표 | 대우 |
| 유형 | 무선 야외 사이렌 |
| 호환성 | DAEWOO SA501 Alarm and compatible DAEWOO SAxxx alarm systems |
| 소음 수준 | 105데시벨 |
| 무선 범위 | Up to 80 meters (from control panel) |
| 전원 | 230V AC (Mains Powered with Plug) |
| 배터리 백업 | 1 x Lithium Polymer (Lithium Ion) battery required |
| 치수(길이 x 너비 x 높이) | 15 x 7.8 x 4.2cm |
| 무게 | 280g |
| 색상 | 흰색, 빨간색 |
| 장착 유형 | Surface Mounting (Wall) |
Figure 8.1: Dimensions of the DAEWOO WOS501 Wireless Outdoor Siren.
9. 보증 및 지원
For warranty information and technical support, please refer to the documentation provided with your DAEWOO SA501 alarm system or visit the official Daewoo Electronics web사이트. 보증 청구를 위해 구매 증빙 자료로 구매 영수증을 보관하세요.
