NORDRIVE N21229 Fixing Kit Instruction Manual

소개

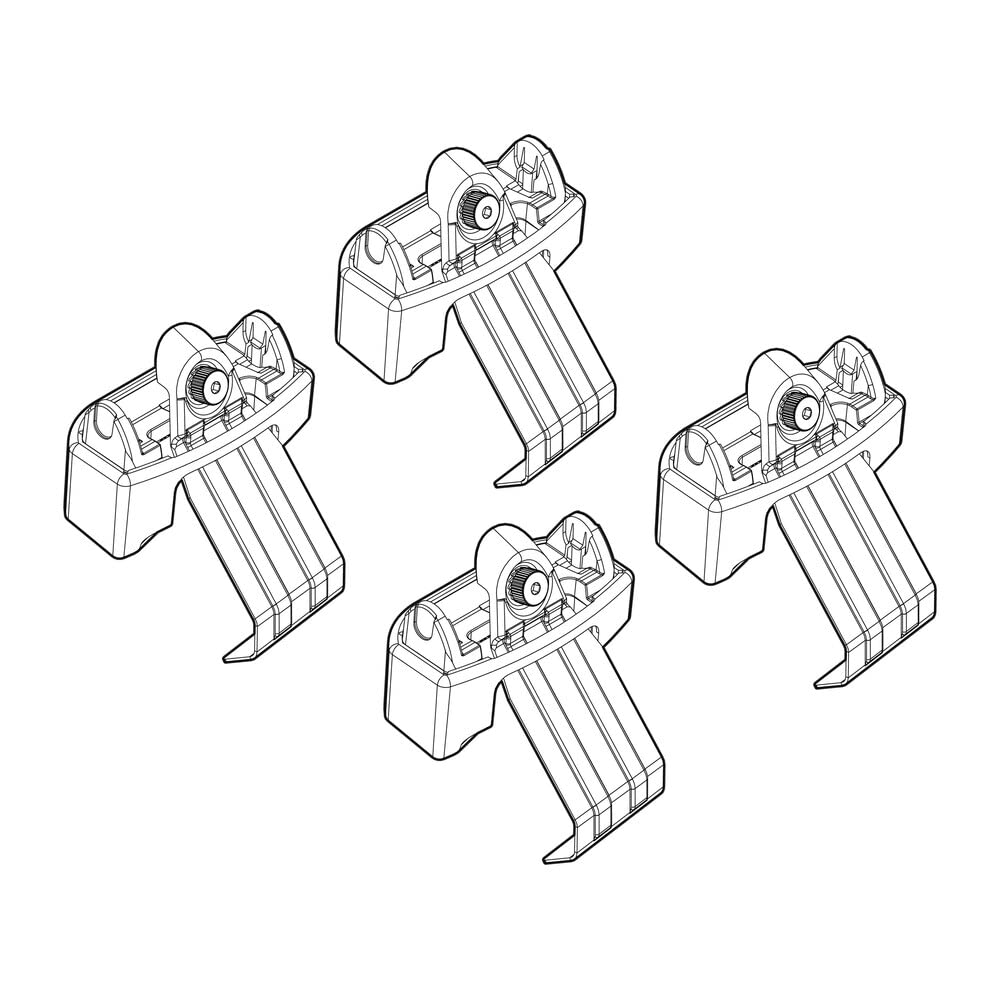

The NORDRIVE N21229 Fixing Kit is a custom-fit solution designed for the secure mounting of two roof bars (Quadra or Alumia models) onto your vehicle's roof. This kit is intended for use in conjunction with the NORDRIVE Evos Set, providing a robust and reliable foundation for your roof rack system. This manual provides essential information for the correct installation, use, and maintenance of your fixing kit.

설정 및 설치

Proper installation of the NORDRIVE N21229 Fixing Kit is crucial for safety and performance. Always refer to the specific instructions provided with your NORDRIVE Quadra or Alumia roof bars and the Evos Set for detailed, vehicle-specific guidance.

1. 구성 요소 풀기: 포장에서 모든 부품을 조심스럽게 꺼내십시오. 포장 목록에 기재된 모든 구성품이 있는지, 손상되지 않았는지 확인하십시오.
2. Identify Vehicle Mounting Points: Locate the designated mounting points on your vehicle's roof. These are typically found in the door frames or under removable covers on the roof rails.
3. Assemble Fixing Kit to Evos Set: Attach the N21229 fixing kit components to the NORDRIVE Evos Set feet according to the instructions provided with the Evos Set. Ensure all bolts and fasteners are hand-tightened initially.
4. 루프 바에 부착하세요: Connect the assembled Evos Set with the N21229 fixing kit to your NORDRIVE Quadra or Alumia roof bars. Ensure the bars are correctly oriented and spaced according to your vehicle's specifications.
5. 차량에 장착: Carefully place the entire roof bar assembly onto your vehicle's roof, aligning the fixing kit components with the identified mounting points.
6. 보안 및 조임: Systematically tighten all fasteners using the appropriate tools, following the torque specifications provided in the Evos Set and roof bar manuals. Ensure even tightening across all four fixing points. Double-check all connections for security before use.

작동 지침

Once the NORDRIVE N21229 Fixing Kit and associated roof bars are correctly installed, they provide a stable platform for transporting various items. Adhere to the following guidelines:

• 하중 용량: Always respect the maximum load capacity specified for your roof bars and vehicle. Distribute weight evenly.
• 안전한 화물: Ensure all items transported on the roof bars are securely fastened to prevent movement during transit.
• 주행 속도: Adjust your driving speed according to road conditions and the load being carried. High speeds with roof loads can affect vehicle stability and fuel consumption.
• 정기 점검: Before each journey, especially long ones, check that the fixing kit and roof bars are still securely attached and that all fasteners are tight.

유지

To ensure the longevity and continued safe operation of your NORDRIVE N21229 Fixing Kit, follow these maintenance recommendations:

• 정기 검사: Regularly inspect all components of the fixing kit for signs of wear, corrosion, cracks, or damage. Pay close attention to rubber pads and plastic parts.
• 청소: Clean the fixing kit components periodically with mild soap and water. Avoid using harsh chemicals or abrasive cleaners that could damage the materials. Rinse thoroughly and dry.
• 패스너 점검: Re-tighten all fasteners to the specified torque values at least once a year, or more frequently if the roof bars are used often or under heavy loads.
• 저장: If the roof bars and fixing kit are removed for storage, clean them thoroughly and store them in a dry, protected environment away from direct sunlight and extreme temperatures.

문제 해결

Should you encounter any issues with your NORDRIVE N21229 Fixing Kit, consider the following troubleshooting steps:

• 과도한 소음 또는 진동:
  • Ensure all fasteners are tightened to the correct torque specifications.
  • Verify that the roof bars are correctly positioned and evenly spaced.
  • Check for any loose or improperly seated components.
• 설치상의 어려움:
  • Re-read the installation instructions for the N21229 kit, Evos Set, and roof bars carefully.
  • Confirm that the kit is compatible with your specific vehicle model and roof bar type (Quadra or Alumia).
  • Ensure you are using the correct tools and applying the recommended torque.
• Damage to Vehicle Roof:
  • Ensure the rubber pads or protective surfaces of the fixing kit are correctly positioned and free from debris before installation.
  • Avoid over-tightening fasteners, which can cause deformation or damage.

If problems persist, contact NORDRIVE customer support or your retailer for assistance.

명세서

보증 및 지원

For information regarding the product warranty, please refer to the documentation included with your purchase or contact the retailer or NORDRIVE directly. For technical support or further assistance, please reach out to the manufacturer's customer service department.
