1. 서론
This manual provides detailed instructions for the installation, operation, and maintenance of your EMTEK Sectional Lafayette Grip Tubular Entry Set, model 461212. Please read all instructions carefully before beginning installation to ensure proper function and longevity of your door hardware.
The EMTEK Sectional Lafayette Grip Tubular Entry Set is a single cylinder handleset designed for exterior doors, featuring a Lafayette grip and a Normandy lever. It is constructed from alloy steel with a matte finish, offering both durability and aesthetic appeal.
Image 1: EMTEK Sectional Lafayette Grip Tubular Entry Set, showing the full exterior handleset with Lafayette grip and interior Normandy lever.
2. 설정 및 설치
Proper installation is crucial for the security and functionality of your entry set. Ensure you have all components and necessary tools before starting.
2.1 문 준비
- The entry set requires a standard 2 1/8 inch (54mm) door bore preparation.
- Standard door thickness compatibility is 1 3/4 inches to 2 1/8 inches (44mm - 54mm).
2.2 백셋 측정
The standard latch included is for a 2 3/8 inch (60mm) backset. If your door requires a 2 3/4 inch (70mm) backset, ensure you have the correct latch specified.
2.3 Handing Determination
Correct door handing is essential for the proper function of the lever. Handing is always determined from the 밖의 문의.
- For an exterior door, the outside is the street or entrance side.
- For an in-swing door, if the hinges are on the left, it is a Left Hand (LH) door. If hinges are on the right, it is a Right Hand (RH) door.
- For an out-swing door, if the hinges are on the left, it is a Right Hand (RH) door. If hinges are on the right, it is a Left Hand (LH) door.
Image 2: Diagram illustrating how to determine door handing (Left Hand or Right Hand) for both in-swing and out-swing doors, always view외부에서 본 것.
2.4 포함된 구성 요소
패키지에 다음 구성 요소가 모두 포함되어 있는지 확인하십시오.
- Exterior Lafayette Grip Assembly
- Interior Normandy Lever Assembly
- 데드 볼트
- Latch (2 3/8" backset standard)
- Strike Plates (Full-Lip and Deadbolt)
- Mounting Screws (1 1/2" Rosette Screws, 2 1/4" Deadbolt Mounting Screws)
- Spindles (Outside Entry Spindle, Inside Passage Half Spindle)
- C Keyway Cylinder and Keys
3. 사용 설명서
The EMTEK Sectional Lafayette Grip Tubular Entry Set operates as a single cylinder key lock system.
3.1 Locking and Unlocking from Exterior
- To lock the deadbolt: Insert the key into the exterior cylinder and turn to engage the deadbolt. Remove the key.
- To unlock the deadbolt: Insert the key into the exterior cylinder and turn to retract the deadbolt.
- To open the latch: Depress the exterior Lafayette grip thumb-press.
3.2 Locking and Unlocking from Interior
- To lock the deadbolt: Rotate the interior thumb-turn to engage the deadbolt.
- To unlock the deadbolt: Rotate the interior thumb-turn to retract the deadbolt.
- To open the latch: Depress the interior Normandy lever.
4. 관리 및 유지 보수
To maintain the appearance and functionality of your EMTEK entry set, follow these guidelines:
- 청소: 하드웨어를 부드러운 천으로 닦으세요.amp cloth. Avoid abrasive cleaners, solvents, or polishing agents, as these can damage the matte finish.
- 매끄럽게 하기: Periodically apply a small amount of graphite-based lubricant to the keyway and internal mechanisms of the deadbolt and latch to ensure smooth operation. Do not use oil-based lubricants, which can attract dust and debris.
- 점검: Regularly check all screws and fasteners to ensure they are tight. Loose components can affect performance and security.
- 마무리 보호: The matte finish is durable, but prolonged exposure to harsh weather conditions may affect its appearance over time.
5. 문제 해결
If you encounter issues with your entry set, refer to the following common problems and solutions:
| 문제 | 가능한 원인 | 해결책 |
|---|---|---|
| Key turns but deadbolt does not engage/retract. | Misalignment of deadbolt or internal mechanism issue. | Check deadbolt alignment with strike plate. Ensure all mounting screws are tight. If issue persists, contact support. |
| Lever/grip is stiff or difficult to operate. | 윤활 부족 또는 기계 장치 내 이물질. | Apply graphite lubricant to the latch mechanism. Clean any visible debris. |
| 문이 제대로 걸리지 않습니다. | Latch bolt or strike plate misalignment. | Adjust the strike plate position on the door frame. Ensure the latch bolt extends fully. |
| Keys are difficult to insert or turn. | Keyway is dirty or needs lubrication. | Apply graphite lubricant into the keyway. Ensure the key is not bent or damaged. |
If these solutions do not resolve the issue, please contact EMTEK customer support for further assistance.
6. 사양
Detailed specifications for the EMTEK Sectional Lafayette Grip Tubular Entry Set, model 461212:
- 모델 번호: 461212
- 재료: 합금강
- 외부 마감 : Flat Black Steel (FBS) / Matte
- 잠금 유형: Single Cylinder Key Lock
- 손의 방향: Right Handed (RH) (as per product variant)
- 표준 도어 준비: 2 1/8 inches (54mm) bore
- Standard Backset: 2 3/8 inches (60mm) (2 3/4 inches optional)
- Standard Door Thickness: 1 3/4 inches - 2 1/8 inches (44mm - 54mm)
- Exterior Projection: 3인치(76mm)
- Overall Grip Thickness: 3/4 인치 (19mm)
- Clearance between door & grip: 1 5/8인치(41mm)
- Plates Thickness: 1/2 인치 (13mm)
- Lever Dimensions: 4 1/2 inches (114mm) length x 2 3/4 inches (70mm) projection x 2 inches (51mm) clearance
- 품목 무게: 약 2.5kg(1.13파운드)
- 포함된 구성 요소: Deadbolt, Latch, Lock, Screws

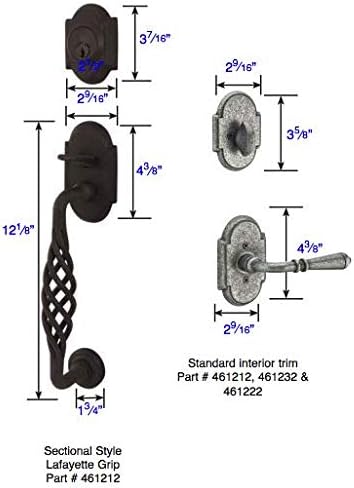

Image 3: Detailed dimensional drawing of the EMTEK Sectional Lafayette Grip and standard interior trim, including key measurements for installation.
7. 보증 및 지원
For information regarding product warranty, returns, or technical support, please contact EMTEK Products Inc. directly or refer to their official web사이트. 구매 증빙 자료로 구매 영수증을 보관하세요.
제조업체: EMTEK Products Inc.
