Milly Mally Grande 2-in-1 Tricycle Instruction Manual

1. 서론

The Milly Mally Grande 2-in-1 Tricycle is designed to adapt to your child's developmental stages, functioning as both a balance bike and a tricycle with pedals. Its robust construction and thoughtful design ensure stability, safety, and comfort for children learning to ride.

2. 안전 정보

• 연령대: 12개월 이상 어린이에게 적합합니다.
• 최대 하중: 최대 중량은 25kg을 초과하지 마십시오.
• 성인 감독: Always ensure children are supervised by an adult while using the tricycle.
• 보호 장비: Encourage your child to wear appropriate protective gear, such as a helmet, knee pads, and elbow pads.
• Handlebar Limiter: The handlebar features a turning limiter to prevent excessive steering, enhancing stability and preventing falls.
• 표면 사용: Use on flat, even surfaces. Avoid steep inclines, uneven terrain, or public roads.
• 유럽 ​​안전 표준: This product complies with European safety standards.

3. 제품 특징

• 2-in-1 기능: Easily converts from a three-wheeled balance bike to a tricycle with pedals.
• 탈착식 페달: Pedals on the front wheel can be easily attached and detached. A pedal holder is integrated into the steering column for storage.
• Foldable Steel Frame: The robust steel frame is foldable, allowing for quick and convenient transport and storage.
• 미끄럼 방지 손잡이: Soft, non-slip rubber grips with covers protect children's hands.
• Foam Wheels: Bearing-equipped foam wheels provide a smooth and comfortable ride, suitable for both indoor and outdoor use. Wide wheel spacing ensures exceptional stability and safety.

4. Assembly and Conversion

The Milly Mally Grande tricycle requires some assembly. Follow these steps for initial setup and conversion between modes.

4.1. 초기 조립

1. 상자에서 모든 구성품을 꺼냅니다.
2. Attach the handlebars to the main frame. Ensure they are securely fastened.
3. Attach the seat to the frame. Adjust the seat height if necessary (though this model may have a fixed seat height).
4. 사용하기 전에 모든 연결이 단단하고 안전한지 확인하십시오.

4.2. Converting to Tricycle Mode (with pedals)

1. Locate the pedals.
2. Insert the pedals into the designated slots on the front wheel. Ensure they click into place or are securely tightened.
3. Verify that the pedals rotate freely.

4.3. Converting to Balance Bike Mode (without pedals)

1. To remove the pedals, press the release buttons (if present) or unscrew them from the front wheel.
2. Store the removed pedals in the pedal holder located in the steering column to prevent loss.

4.4. Folding for Transport/Storage

The tricycle features a foldable frame and legs with wheels for quick folding.

1. Identify the folding mechanisms on the frame and wheel legs.
2. Follow the instructions to release the locking mechanisms and fold the tricycle into a compact form.

그림 1: 폭발 view 조립용 부품.

Figure 2: Conversion steps between balance bike, tricycle, and folded modes.

5. 사용 설명서

5.1. Balance Bike Mode

• Ensure pedals are removed and stored.
• Instruct the child to sit on the seat with both feet flat on the ground.
• The child propels the bike by pushing off the ground with their feet, learning balance and coordination.

Figure 3: Tricycle in Balance Bike Mode.

5.2. Tricycle Mode

• Ensure pedals are securely attached.
• Instruct the child to sit on the seat and place their feet on the pedals.
• The child propels the tricycle by pedaling, developing leg strength and motor skills.
• The handlebar limiter helps maintain control and prevents sharp turns.

Figure 4: Tricycle in Tricycle Mode.

6. 유지관리

• 청소: 세발자전거를 광고로 닦으세요amp 천과 순한 비누. 연마성 세제를 사용하지 마십시오.
• 점검: 모든 나사, 볼트 및 연결부가 단단히 조여져 있고 안전한지 정기적으로 점검하십시오.
• 휠 상태: Inspect the foam wheels for any damage or excessive wear.
• 저장: Store the tricycle in a dry place, away from direct sunlight and extreme temperatures, to prolong its lifespan.

7. 사양

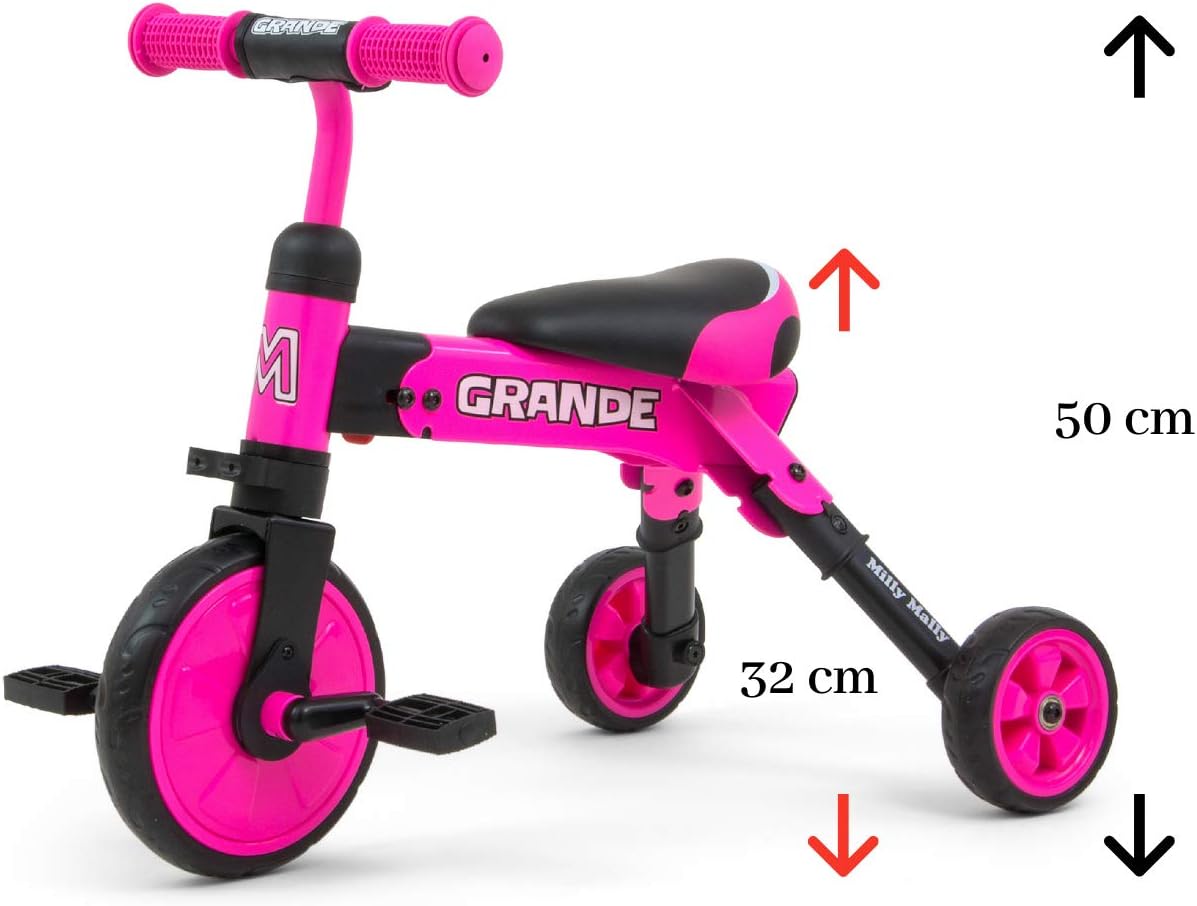

Figure 5: Product dimensions (Height and Seat Height).

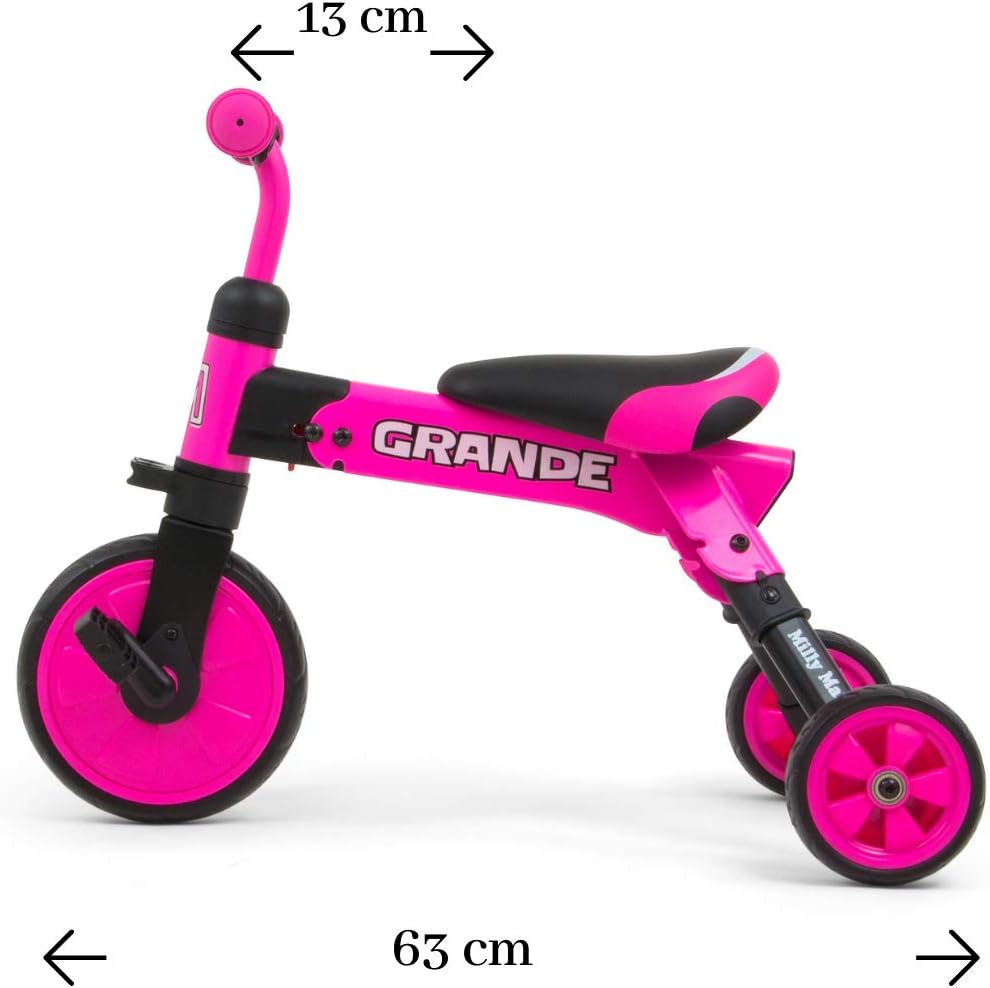

Figure 6: Product dimensions (Length and Handlebar Width).
