1. 제품 오버view
The Lumie Bodyclock Luxe 750Dab is an advanced light therapy alarm clock that simulates natural sunrise and sunset. It is equipped with a DAB radio, a high-quality Bluetooth speaker, and a wide selection of sleep and wake-up sounds. This device is certified as a Class 1 medical product, proven effective against Seasonal Affective Disorder (SAD) and winter blues.

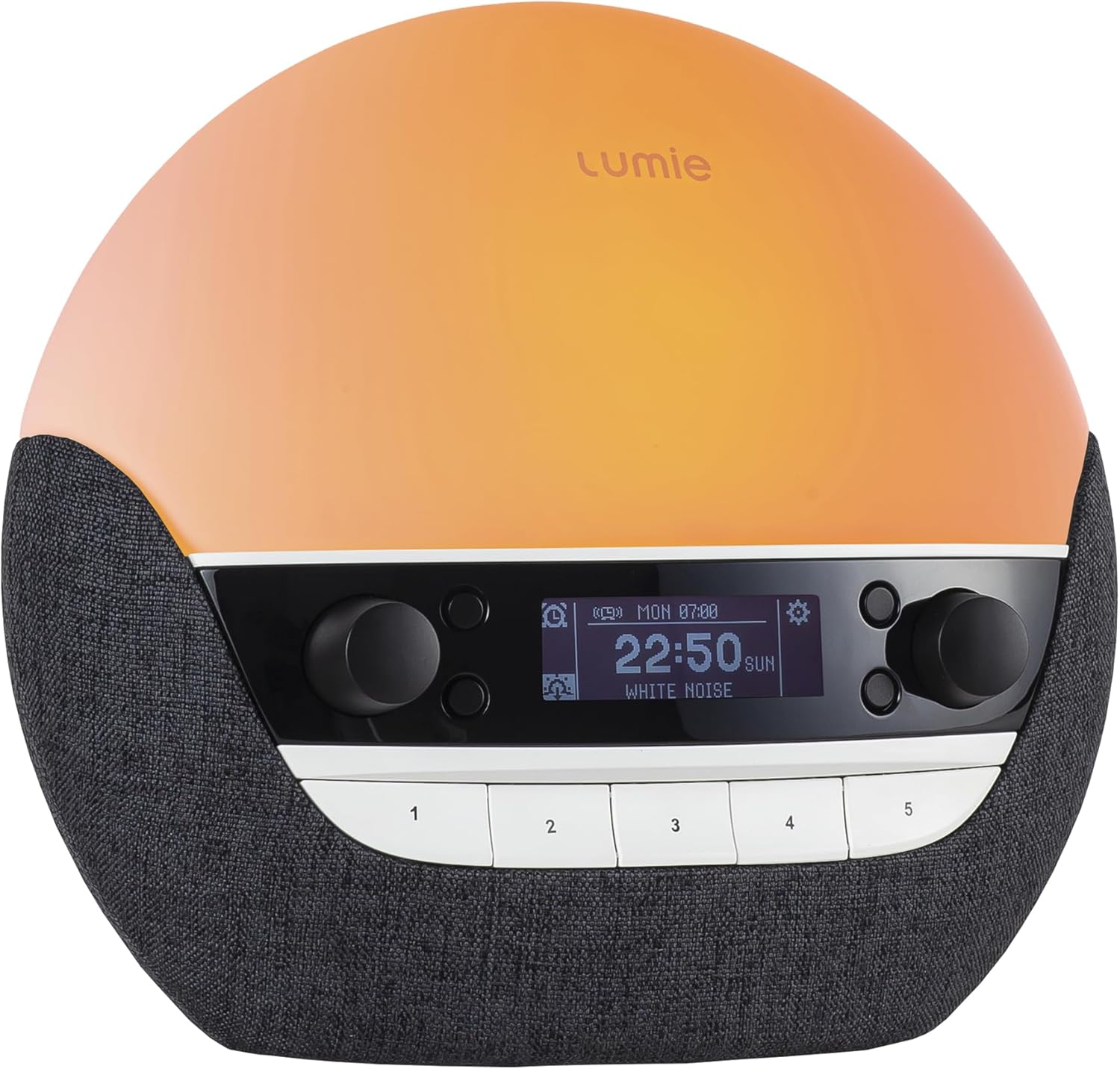

그림 1: 전면 view of the Lumie Bodyclock Luxe 750Dab, showing the light dome, display, control knobs, and preset buttons.
2. 설정 및 설치
2.1 풀기
Carefully remove the Bodyclock Luxe 750Dab from its packaging. Ensure all components are present, including the main unit and the power cable. Inspect the device for any signs of damage before proceeding.
2.2 배치
Place the Bodyclock on a stable, flat surface such as a bedside table. For optimal light effect, position it where the light can reach you effectively as you wake up. Ensure it is not obstructed by curtains or other objects.
2.3 전원 연결
Connect the provided power cable to the back of the unit and then plug it into a standard electrical outlet. The device will power on and the display will illuminate.
2.4 초기 설정(시간 및 날짜)
Upon first power-on, you may need to set the current time and date. Refer to the on-screen prompts and use the control knobs to navigate and confirm settings. The device may automatically synchronize time via DAB radio if available in your region.
Figure 2: The Bodyclock Luxe 750Dab positioned on a bedside table, highlighting its use as a bedside lamp and its customizable light features.
3. 사용 설명서
3.1 Sunrise Simulation (Wake-up)
The Bodyclock simulates a natural sunrise, gradually brightening over a period of 15 to 90 minutes before your set alarm time. This gentle increase in light signals your body to reduce melatonin production and increase cortisol, promoting a natural and energetic wake-up.
- Setting Duration: Adjust the sunrise duration from 15 to 90 minutes via the settings menu.
- 빛의 강도: Customize the final light intensity to your preference.
- 기상음: Choose from over 30 natural sounds or use the DAB radio as your final alarm sound.
Figure 3: Visual representation of the sunrise simulation, demonstrating the gradual change in light color and intensity from red to bright white.
3.2 Sunset Simulation (Sleep)
The sunset feature helps you relax and prepare for sleep by gradually dimming the light over a period of 15 to 90 minutes. This process minimizes blue light exposure, which can interfere with melatonin production.
- Setting Duration: Adjust the sunset duration from 15 to 90 minutes.
- 수면 소리: Select from a variety of calming sleep sounds to accompany the dimming light.
- Optional Nightlight: The display can be dimmed for night-time use.
Figure 4: The Bodyclock Luxe 750Dab during sunset simulation, showing the light dimming to a warm, orange hue, aiding relaxation before sleep.
3.3 알람 설정
The Bodyclock allows for flexible alarm programming, including a 7-day alarm option where you can set different wake-up times for weekdays and weekends.
- 알람 설정: Use the control interface to set up to two independent alarms.
- 알람 소리: Choose your preferred wake-up sound or DAB radio station.
- 스누즈 기능 : Tap the top of the device to activate the snooze function.
Figure 5: A user interacting with the Bodyclock, illustrating the ease of setting alarms and selecting from over 30 built-in sounds for a personalized wake-up experience.
3.4 블루투스 연결
The integrated high-quality Bluetooth speaker allows you to stream audio from your smartphone or other Bluetooth-enabled devices.
- 편성: Enable Bluetooth on your device and select "Lumie Bodyclock Luxe" from the available devices.
- 오디오 재생: Once paired, you can play music, podcasts, or audiobooks through the Bodyclock's speaker.
Figure 6: The Bodyclock Luxe 750Dab shown alongside a smartphone, demonstrating its Bluetooth connectivity for streaming audio.
3.5 DAB 라디오
Enjoy clear digital radio reception with the built-in DAB radio. The device also supports FM radio.
- 튜닝 : Scan for available DAB/FM stations using the radio function.
- 사전 설정 : 즐겨 듣는 방송국을 사전 설정 버튼에 저장해 두면 빠르게 이용할 수 있습니다.
Figure 7: The Bodyclock display showing radio information, indicating its capability for DAB radio reception.
3.6 침대 옆 Lamp 및 디스플레이
The Bodyclock functions as a dimmable bedside lamp, offering various light colors and intensities. The display brightness can also be adjusted to suit your preference, including a low-light setting for night-time.
Figure 8: The Bodyclock serving as a bedside lamp, providing ambient light for reading and helping maintain a regular sleep-wake cycle by encouraging smartphone-free bedrooms.
4. 유지관리
4.1 청소
To clean your Bodyclock, gently wipe the surface with a soft, dry, lint-free cloth. Do not use abrasive cleaners, solvents, or spray directly onto the unit. Ensure the device is unplugged before cleaning.
4.2 일반 관리
Avoid exposing the device to extreme temperatures, direct sunlight for prolonged periods, or high humidity. Do not disassemble the unit; refer all servicing to qualified personnel.
5. 문제 해결
If you encounter issues with your Lumie Bodyclock Luxe 750Dab, please refer to the following common solutions. For more complex problems, contact customer support.
- 장치 전원이 켜지지 않음: Ensure the power cable is securely connected to both the unit and the electrical outlet. Try a different outlet.
- 빛 출력 없음: Check if the light intensity is set to zero or if the lamp 기능이 비활성화됩니다.
- 소리가 나지 않음/볼륨이 낮음: Verify the volume settings. For radio, check station tuning and signal strength. For Bluetooth, ensure the device is properly paired and its volume is up.
- Alarm Not Sounding or Incorrect Time: Double-check your alarm settings, including the day and time. Some users have reported intermittent issues with alarms not sounding or sounding at incorrect times; ensure your software is up to date if updates become available.
- Poor DAB Radio Reception: Ensure the antenna is fully extended and positioned for best reception. DAB coverage varies by region.
- 디스플레이 문제: If the display is not clear or responsive, try power cycling the device.
6. 사양
| 특징 | 세부 사항 |
|---|---|
| 상표 | 루미에 |
| 모델 번호 | NBCLE-D750 |
| 치수(길이 x 너비 x 높이) | 27 x 17 x 31cm(10.6 x 6.7 x 12.2인치) |
| 무게 | 1.1킬로그램(2.4파운드) |
| 재료 | 플라스틱 |
| 색상 | Black (with blue shade) |
| 전원 | Corded Electric (2.3E+2 Volts AC) |
| 라이트 타입 | 주도의 |
| 특별 기능 | Dimmable, Sleep Aid, DAB Radio, Bluetooth Speaker, USB port for music/charging |
| 의료기기 클래스 | 1학년 |
7. 보증 및 지원
7.1 보증 정보
The Lumie Bodyclock Luxe 750Dab is a certified Class 1 medical device, reflecting its quality and efficacy. For specific warranty terms and conditions, please refer to the official Lumie website or the documentation included with your purchase. Warranty details may vary by region.
7.2 고객 지원
Should you require further assistance, technical support, or have questions not covered in this manual, please contact Lumie customer support. Visit the official Lumie web연락처 정보와 추가 자료는 해당 사이트를 참조하세요.
Note: Software updates may be released to improve functionality. Check the manufacturer's website for the latest information regarding software updates.
