소개
This manual provides detailed instructions for the safe and efficient use of your NANAMI Upgraded Fast Wireless Charger. Please read this manual thoroughly before using the product and retain it for future reference.
상자 안에 무엇이 들어있나요?
- 무선 충전기 스탠드
- 3.3피트 충전 케이블
- 사용자 설명서
제품 사양
| 특징 | 세부 사항 |
|---|---|
| 제품 치수 | 5.7 x 2.7 x 4.3 인치 |
| 품목 무게 | 7.4 온스 |
| 모델 번호 | A800-화이트 |
| 상표 | 나나미 |
| 커넥터 유형 | USB 타입 C |
| 호환 장치 | iPhone 16/16 Plus/16 Pro/16 Pro Max/iPhone 15/15 Plus/15 Pro/15 Pro Max/iPhone 14/14 Pro/14 Pro Max/iPhone 13/13 Mini/13 Pro/13 Pro Max/iPhone 12/12 Mini/12 Pro/12 Pro Max/iPhone X/ iPhone XS/ iPhone XS Max /iPhone XR /iPhone 8 Plus/ iPhone 8/Samsung Galaxy S24/S24+/S23/S23+/S22/S22+/S21/S21+/S20/S20+/S20 Ultra/Note10/10 Plus/S10/S10 Plus/S10E/S9/S9 Plus/Note9/Samsung Galaxy S8/S8 Plus/Note8/Galaxy S7 Edge/Galaxy S7/Galaxy S6 Edge plus/Galaxy Note 5/Google Pixel 3/3 XL/Nexus7/6/5/4/Microsoft Lumia 950/Lumia 950 Dual Slim/Lumia 950 XL/Lumia 950 XL Dual Slim/KDDI TORQUE G03/TORQUE G02/HUAWEI PORSCHE Mate RS/MI/MIX 2S/Nokia 8 Sirocco/ SONY Xperia XZ2/ ZTE T85/ Moto Droid Maxx/Droid Mini/MOTO Droid turbo/Lucid 2 / Lucid 3 / Optimus F5 / Optimus G Pro / Optimus it L-05E / Spectrum 2 / Vu 2 / Vu 3 / V30 / V30 Plus and more. |
| 특징 | Charging Stand, Fast Charging, Short Circuit Protection, Wireless Charging |
| 색상 | 하얀색 |
| 입력 Voltage | 9 볼트 |
| Amp에라 지 | 1.11 Amps |
| 총 USB 포트 | 1 |
설치 지침
- Connect the provided 3.3ft USB Type-C charging cable to the USB-C port on the back of the wireless charger stand.
- Plug the other end of the USB cable into a compatible power adapter (QC 2.0 or above, higher than 10W, NOT INCLUDED).
- Place the wireless charger stand on a stable, flat surface.
Image: The NANAMI wireless charger stand, ready for use.
작동 지침
기기 충전하기
To charge your Qi-enabled smartphone, simply place it on the charging stand. The charger is designed to support both vertical and horizontal charging orientations.
The LED indicator light on the base of the charger will illuminate to confirm that charging has begun. For sleep-friendly operation, the LED indicator will automatically shut off after approximately 10 seconds.

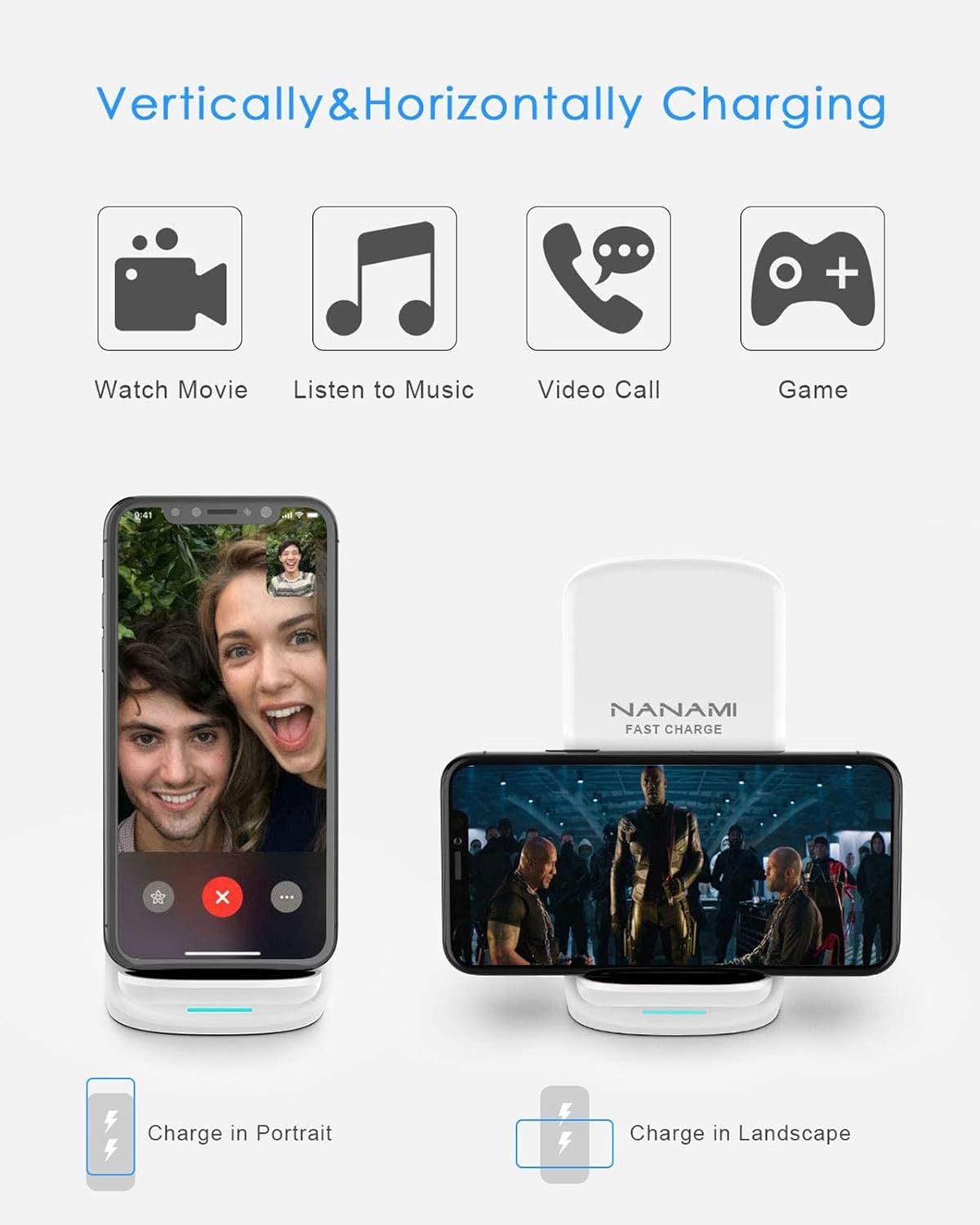

Image: Demonstrates vertical and horizontal charging capabilities.
Video: Official product video demonstrating the NANAMI Upgraded Fast Wireless Charger (Model A800-White) in use.
영상: 공식 제품 영상 쇼asing the NANAMI Upgraded Fast Wireless Charger and its Qi-Certified functionality.
케이스 호환성
The charger is designed to work with most phone cases up to 0.2 inches (5mm) thick.
Important: Metal phone cases or cases thicker than 0.2 inches (5mm) may interfere with wireless charging. Please remove such cases for optimal charging performance.
Image: Illustration of case thickness compatibility.
안전 정보
Your NANAMI wireless charger features internal safeguards to protect against:
- Overcharge Protection (OCP)
- 오버볼tag전자 보호(OVP)
- 과열 보호 (OTP)
- 단락 보호 (SCP)
These features ensure ultimate safety for your smartphone and the charging device. The anti-slip bottom silicone rim and raised support provide extra stability on any desk surface.
Image: Visual representation of the charger's superior safety protections.
유지
- 부드럽고 마른 천으로 닦아 충전기를 깨끗하게 유지하세요.
- 충전기를 극한의 온도, 습도 또는 액체에 노출시키지 마세요.
- 충전기를 직접 분해하거나 수리하려고 하지 마세요.
문제 해결
기기가 충전되지 않음
- Ensure the charging cable is securely connected to both the charger stand and the power adapter.
- 전원 어댑터가 작동하는 콘센트에 제대로 꽂혀 있는지 확인하십시오.
- Check if your phone case is too thick or contains metal. Remove the case and try again.
- Reposition your phone on the charging stand to ensure proper alignment with the charging coils.
- 기기가 Qi 지원인지 확인하세요.
느린 충전
- Use a QC 2.0 or above (higher than 10W) power adapter for fast charging. Standard 5W adapters will result in slower charging speeds.
- Ensure your phone is properly aligned on the charging stand.
- Remove any thick or metal cases.
LED 표시기 동작
- The LED indicator will light up when charging begins and automatically turn off after approximately 10 seconds to avoid disturbing sleep. This is normal operation.
보증 및 지원
NANAMI is committed to maintaining the highest quality standards. For any questions or problems during use, please feel free to send us an email via Amazon. We will provide prompt assistance.
For more information, visit the official NANAMI Store: 나나미 스토어.
