1. 서론
This manual provides essential instructions for the safe and effective use of your HZPOWEN AC/DC Adapter Charger. Please read this manual thoroughly before using the product and retain it for future reference.
The HZPOWEN AC/DC Adapter Charger is designed to provide reliable power for various compatible jump starters and portable power stations. It features a universal input voltage range and specific output for charging your devices.
2. 중요 안전 지침
- Do not expose the adapter to rain or moisture.
- Do not disassemble the adapter. Refer all servicing to qualified personnel.
- 어댑터의 볼륨을 확인하세요tage and current ratings match your device's requirements before connecting. Incorrect voltag전자 장치가 손상될 수 있습니다.
- Avoid using the adapter if the cord or plug is damaged.
- 어댑터를 열원 및 직사광선으로부터 멀리하십시오.
- 사용하지 않을 때에는 어댑터를 전원 콘센트에서 뽑아두세요.
Image 1: HZPOWEN AC/DC Adapter Charger. This image displays the main unit of the adapter with its attached power cord and barrel connector. The label on the adapter shows input and output specifications.
3. 제품 사양
| 특징 | 사양 |
|---|---|
| 모델 | HP-13510 |
| 입력 Voltag및 범위 | 교류 100-240V, 50/60Hz |
| 출력 볼륨tage | 직류 13.5V |
| 출력 전류 | 1A |
| 커넥터 크기 | 5.5mm x 2.5mm (Barrel Connector) |
| 인증 | CE / FCC / RoHS |
| 치수 | Approx. 3.1 x 1.96 x 1.18 inches (main body) |
| 무게 | 대략. 3.84온스 |
Image 2: Adapter Dimensions. This image illustrates the physical dimensions of the adapter, including its length, width, and height in inches.

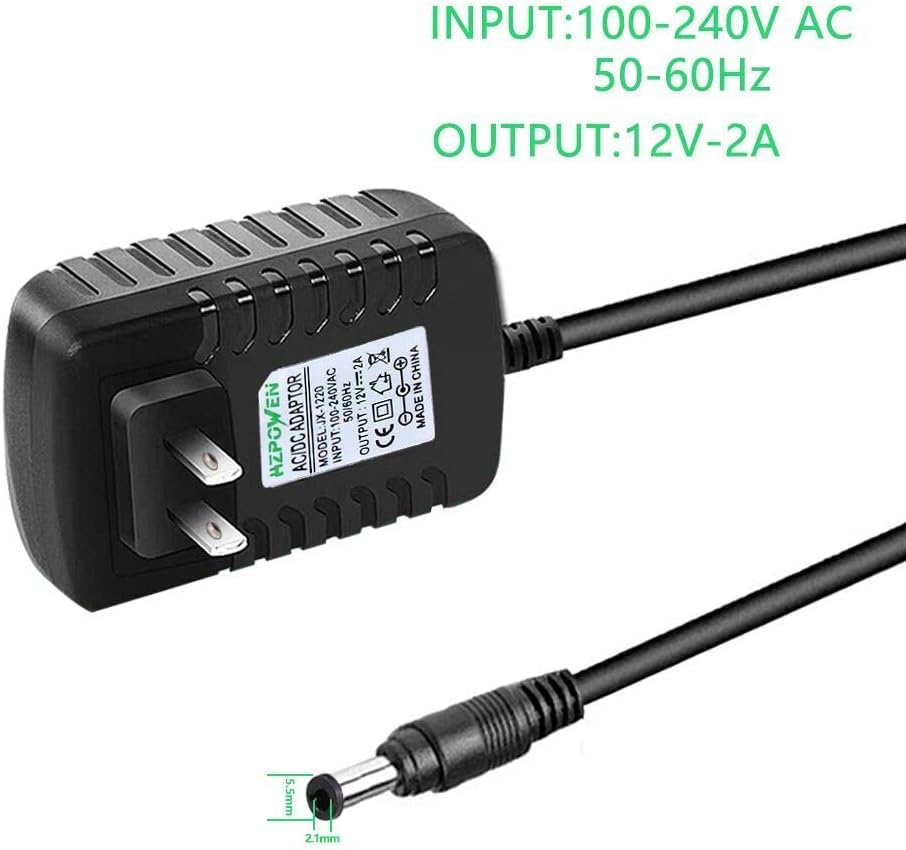

Image 3: Connector Size. This image highlights the barrel connector, showing its outer diameter of 5.5mm and inner diameter of 2.1mm. 메모: The product description states a 5.5mm x 2.5mm connector. Please verify your device's required inner diameter for compatibility.
4. 호환성
This adapter is designed to be compatible with a range of jump starters and portable power stations, including but not limited to:
- Peak Stanley FATMAX 700 Peak 350 AMP J7CSR, J7CS Jump Starter
- Peak 300, 450, 600, 700 Amp 점프 스타터
- Duralast Gold BP-DLG, BP-DL900 (700 AMP, 900 Amp) Jump Starter
- Duracell Powerpack 450 Amp, 300 Amp
- Stanley J309, J3B09 (600 Peak 300 Amp)
중요 참고 사항:
Always verify the input voltage and connector size requirements of your specific device before connecting this adapter. While this adapter is rated for 13.5V 1A with a 5.5mm x 2.5mm connector (as per product description), some compatible devices may have slightly different requirements (e.g., 12V output or 5.5mm x 2.1mm connector as seen in some product images). Using an adapter with incorrect specifications can damage your device.
5. 설정 지침
- 어댑터를 검사합니다. 처음 사용하기 전에 어댑터와 케이블에 손상 흔적이 있는지 육안으로 검사하십시오. 손상된 경우 사용하지 마십시오.
- 장치 호환성 확인: Confirm that your jump starter or portable power station requires a 13.5V DC input and has a compatible 5.5mm x 2.5mm barrel connector.
- 장치에 연결: Insert the barrel connector of the HZPOWEN adapter firmly into the charging port of your jump starter or portable power station.
- 전원 콘센트에 연결: Plug the AC prongs of the adapter into a standard AC 100-240V wall outlet.
- 충전 시작: Once connected, your device should begin charging. Refer to your device's manual for specific charging indicators (e.g., LED lights).
6. 사용 설명서
The HZPOWEN AC/DC Adapter Charger operates automatically once connected to a power source and a compatible device. It is designed for continuous charging until the connected device reaches full capacity, or until disconnected.
- 충전 시간: Charging duration will vary depending on the capacity and current charge level of your jump starter or portable power station. Consult your device's manual for estimated charging times.
- 과충전 보호 : The adapter is equipped with built-in safety protections, including overcharge protection, to prevent damage to your device from excessive charging.
- 온도 모니터링: The adapter includes temperature protection to ensure safe operation.
Image 4: Built-in Safety Protections. This diagram illustrates the various safety features integrated into the adapter, including protection against temperature fluctuations, overloads, overcharging, and short circuits.
7. 관리 및 유지 보수
- 청소: 청소하기 전에 어댑터를 모든 전원에서 분리하십시오. 부드럽고 마른 천으로 외부를 닦으십시오. 액체 세척제나 용제를 사용하지 마십시오.
- 저장: Store the adapter in a cool, dry place away from direct sunlight and extreme temperatures. Coil the cable loosely to prevent kinks or damage.
- 점검: Periodically inspect the adapter and cable for any signs of wear, cuts, or damage. Replace the adapter if any damage is observed.
8. 문제 해결
| 문제 | 가능한 원인 | 해결책 |
|---|---|---|
| 기기가 충전되지 않음 |
|
|
| 어댑터는 사용 중에 뜨거워집니다. |
|
|
9. 보증 및 지원
HZPOWEN products are typically covered by a manufacturer's warranty. For specific warranty details, including duration and terms, please refer to the product packaging or contact HZPOWEN customer support directly.
For technical assistance, troubleshooting, or warranty claims, please contact your retailer or the manufacturer. Keep your purchase receipt as proof of purchase.
제조업체: HZPOWEN
