1. 서론
This user manual provides essential information for the safe and effective use of your HZPOWEN 12V Car DC Power Cord. This replacement power adapter is specifically designed for compatibility with various Igloo thermoelectric coolers, including Igloo Cool Chill, Igloo Kool Mate, and Igloo Iceless TE models. It features an extra-long 8ft cord for convenience and includes a power indicator light.
주요 특징:
- 광범위한 호환성: Designed to fit Igloo Cool Chill, Igloo Kool Mate, and Igloo Iceless TE Thermoelectric Coolers.
- 확장된 길이: Features an extra-long 8ft power cord for flexible placement.
- 전원 표시기: Equipped with a light to indicate when power is being supplied.
- 안전 인증: HZPOWEN products are CE / FCC / RoHS certified, ensuring high quality and safety standards.
- Spare Fuse Included: Comes with an extra fuse for convenient replacement.
2. 제품 오버view
A black 12V car DC power cord, coiled and secured with a cable tie, featuring a car cigarette lighter plug on one end and a two-pin connector on the other.
The 12V car DC power cord shown alongside an Igloo thermoelectric cooler, demonstrating how the cord connects to the cooler for power.

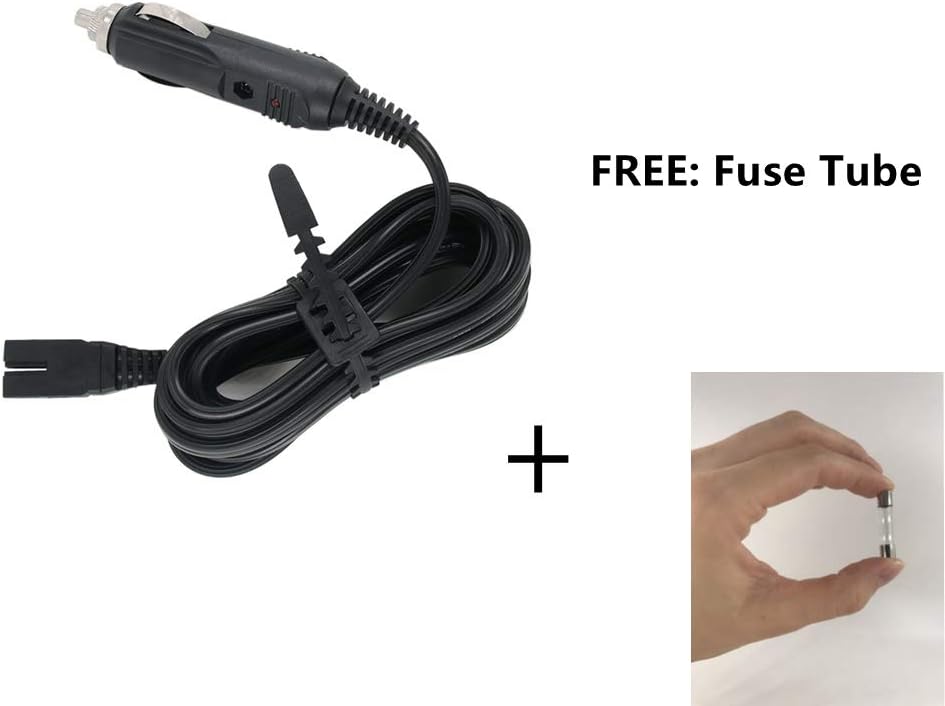

The power cord displayed with a small, clear glass fuse, indicating that a spare fuse is provided for replacement.
자세한 view of the black power cord, neatly coiled and held together by a reusable cable tie, highlighting the cable's texture and flexibility.
A close-up shot of the two-pin connector end of the power cord, showing the gold-colored electrical contacts designed for specific cooler models.

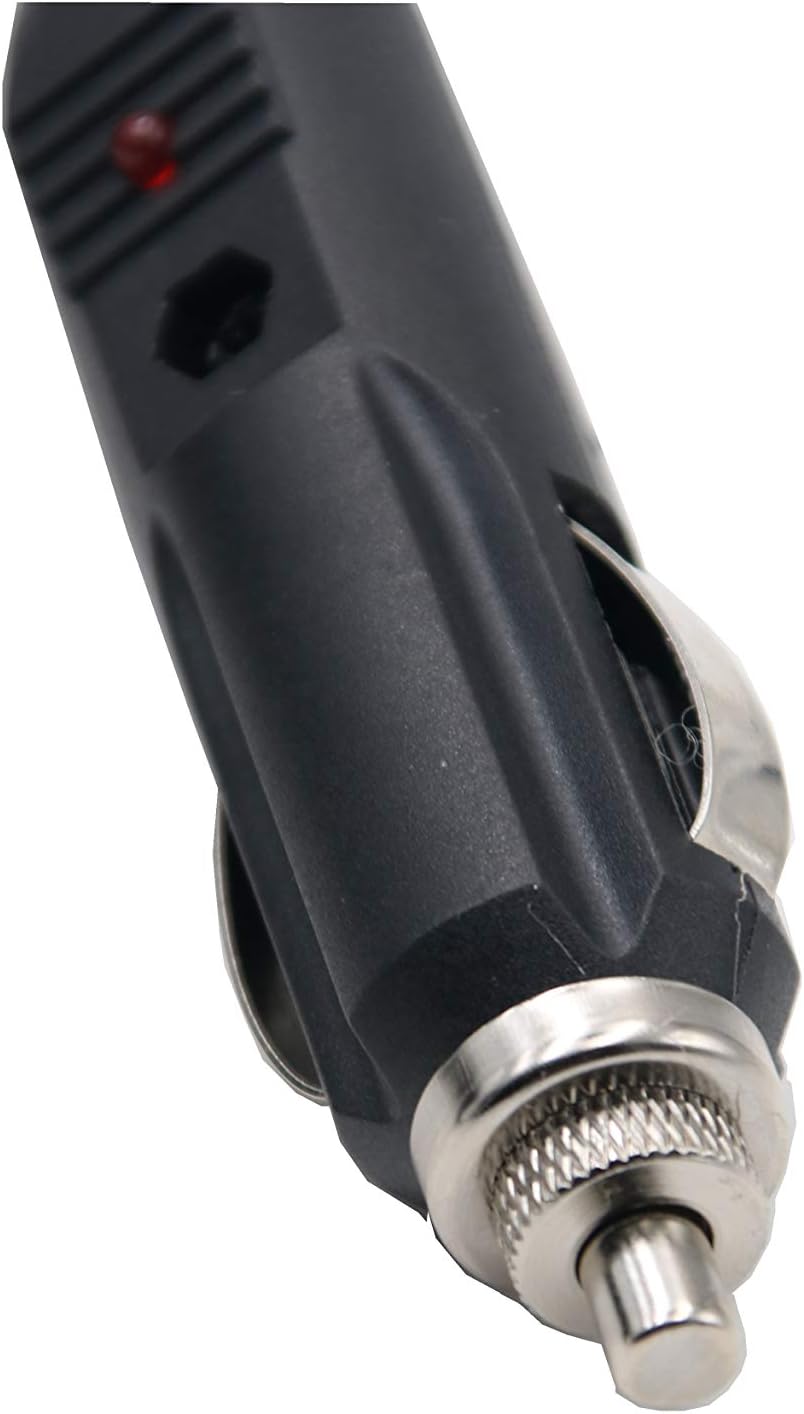

A detailed image of the car cigarette lighter plug, featuring its metallic tip and side contacts, with a small red indicator light visible.
3. 설정
전원 코드 연결:
- Ensure your Igloo thermoelectric cooler is turned off before connecting the power cord.
- Locate the 12V DC input port on your Igloo cooler. This is typically a two-pin receptacle.
- Align the two-pin connector of the HZPOWEN power cord with the cooler's input port. Gently push the connector firmly into the port until it is fully seated.
- 차량 내 12V DC 액세서리 소켓(시가 라이터 소켓)을 찾으십시오.
- Insert the car cigarette lighter plug end of the power cord into the vehicle's 12V DC accessory outlet. Push it in firmly until it clicks into place.
- Once connected, the power indicator light on the car plug should illuminate, indicating that power is being supplied to the cooler.
메모: Always ensure a secure connection to prevent intermittent power supply or damage to the cord or cooler.
4. 사용 설명서
The HZPOWEN 12V Car DC Power Cord is designed for simple plug-and-play operation. Once properly connected to your vehicle's 12V DC accessory outlet and your compatible Igloo thermoelectric cooler, it will provide the necessary power for the cooler to function.
전원 표시등:
The car cigarette lighter plug features a small red LED indicator light. This light will illuminate when the plug is correctly inserted into a live 12V DC accessory outlet and receiving power. If the light does not illuminate, check the connection, the vehicle's accessory outlet, or the fuse within the plug (refer to the Troubleshooting section).
5. 유지관리
관리 및 보관:
- Keep the power cord clean and free from dust and debris.
- Avoid kinking, twisting, or sharply bending the cord, especially near the connectors, to prevent internal wire damage.
- Store the cord in a cool, dry place when not in use. The included cable tie can be used to keep the cord neatly coiled.
- Do not expose the cord to extreme temperatures or direct sunlight for prolonged periods.
퓨즈 교체:
The car cigarette lighter plug contains a replaceable fuse to protect the cord and connected device from power surges. If the power indicator light does not illuminate and the cooler is not receiving power, the fuse may need replacement.
- Unplug the power cord from both the vehicle's accessory outlet and the cooler.
- Unscrew the tip of the car cigarette lighter plug.
- 오래된 퓨즈를 조심스럽게 제거하세요.
- Insert the new fuse (a spare is included with your purchase). Ensure it is the correct type and rating (typically 10A or 15A, check the original fuse for exact specifications).
- Screw the tip back onto the plug securely.
- Reconnect the power cord and check if the power indicator light illuminates.
6. 문제 해결
If you encounter issues with your HZPOWEN 12V Car DC Power Cord, refer to the table below for common problems and solutions.
| 문제 | 가능한 원인 | 해결책 |
|---|---|---|
| No power indicator light / Cooler not working | 연결이 느슨함 플러그의 퓨즈가 끊어짐 Vehicle's accessory outlet is not active Cooler issue | Ensure both ends of the cord are firmly plugged in. Replace the fuse in the car plug (see Maintenance section). Check if the vehicle's ignition is on or if the outlet requires a separate switch. Test with another 12V device. Test the cooler with a different known-working 12V power source if available. |
| Cord gets warm during use | 정상 작동 과부하 또는 단락 | Slight warmth is normal. If it becomes excessively hot, unplug immediately. Ensure the cooler's power draw does not exceed the cord's rating. Check for any visible damage to the cord or cooler. |
| Intermittent power to cooler | 연결이 느슨함 손상된 코드 또는 커넥터 | Ensure connections are secure and stable. Inspect the cord for cuts, frayed wires, or bent pins on the connectors. Replace if damaged. |
7. 사양
| 기인하다 | 값 |
|---|---|
| 상표 | HZPOWEN |
| 모델 번호 | magnifier-58 |
| 입력 Voltage | 12볼트 직류 |
| 입력 전류 | 3.33 Amps |
| 코드 길이 | 8피트(약 2.4미터) |
| 커넥터 유형 | Male-to-Male (Car Cigarette Lighter Plug to 2-pin Cooler Connector) |
| 색상 | 검은색 |
| 품목 무게 | 2.82 온스(약 80그램) |
| 인증 | CE / FCC / RoHS |
8. 보증 및 지원
HZPOWEN products are manufactured to high-quality standards. For specific warranty information or technical support, please refer to the product packaging or contact HZPOWEN customer service directly through their official channels. Keep your purchase receipt as proof of purchase for any warranty claims.
