1. 서론
This manual provides instructions for the assembly, operation, and maintenance of your MaxxHaul 50149 Folding Aluminum Cargo Carrier. This carrier is designed to provide additional cargo space for vehicles equipped with a 2-inch hitch receiver. It features a lightweight yet durable aluminum construction and a folding design for convenient storage.
안전하고 올바른 작동을 위해 조립 및 사용 전에 본 설명서를 꼼꼼히 읽어 주십시오.
2. 안전 정보
경고: 이 제품은 캘리포니아 주에서 암과 선천적 결함 또는 기타 생식적 피해를 유발하는 것으로 알려진 납을 포함한 화학 물질에 노출될 수 있습니다. 자세한 내용은 다음을 참조하세요. www.P65Warnings.ca.gov.
- Always ensure the cargo carrier is securely attached to the vehicle's hitch receiver using the provided hitch pins.
- Do not exceed the maximum load capacity of 500 pounds distributed weight.
- Distribute cargo evenly across the carrier to maintain vehicle stability.
- Secure all cargo with appropriate tie-downs to prevent shifting or falling during transit.
- Regularly inspect the carrier for any signs of damage, wear, or loose fasteners before each use.
- Be aware of the increased length and width of your vehicle when the carrier is installed, especially when backing up or maneuvering.
- Ensure that the vehicle's exhaust system does not direct hot gases directly onto the cargo or carrier, which could cause damage or fire.
- Check local and state regulations regarding cargo carrier usage, including visibility of license plates and taillights. Additional lighting or license plate relocation may be required.
3. 부품 목록
The MaxxHaul 50149 Folding Aluminum Cargo Carrier comes with the following components:
- Pre-assembled Aluminum Basket (50" x 22" x 5")
- Heavy-Duty Steel Frame Under Support with 2" x 2" Hitch Shaft
- 히치 핀 (2)
- Reflector Lenses (2)
- Mounting Hardware (bolts, nuts, washers for reflectors and frame attachment)
그림 3.1: Included Accessories. This image displays the various components provided for assembly, including the red reflector lenses, mounting hardware, and hitch pins.
4. 설치 및 조립
The cargo basket comes pre-assembled. Only the heavy-duty steel frame under support needs to be attached, along with the reflector lenses.
필요한 도구:
- 십자 드라이버
- 10mm 소켓 또는 렌치
- 4mm 육각 렌치(육각 키)
- 1 inch socket or adjustable wrench (for folding mechanism bolt)
조립 단계:
- Attach Steel Frame to Basket: Position the heavy-duty steel frame under the pre-assembled aluminum basket. Align the bolt holes. Secure the frame to the basket using the provided bolts, nuts, and washers. A 10mm socket/wrench and 4mm Allen wrench are typically used for these fasteners. Ensure all connections are tight.
- Install Folding Mechanism Bolt: Connect the folding part of the carrier to the hitch shaft using the large bolt and nut. Tighten securely with a 1-inch socket or adjustable wrenches.
- Install Reflector Lenses: Attach the two red reflector lenses to the designated points on the rear of the cargo carrier using a Phillips head screwdriver. Ensure they are facing outwards for maximum visibility.
- Insert Hitch Pins: Once assembled, insert the two hitch pins into the appropriate holes on the hitch shaft. These pins secure the carrier to your vehicle's hitch receiver.

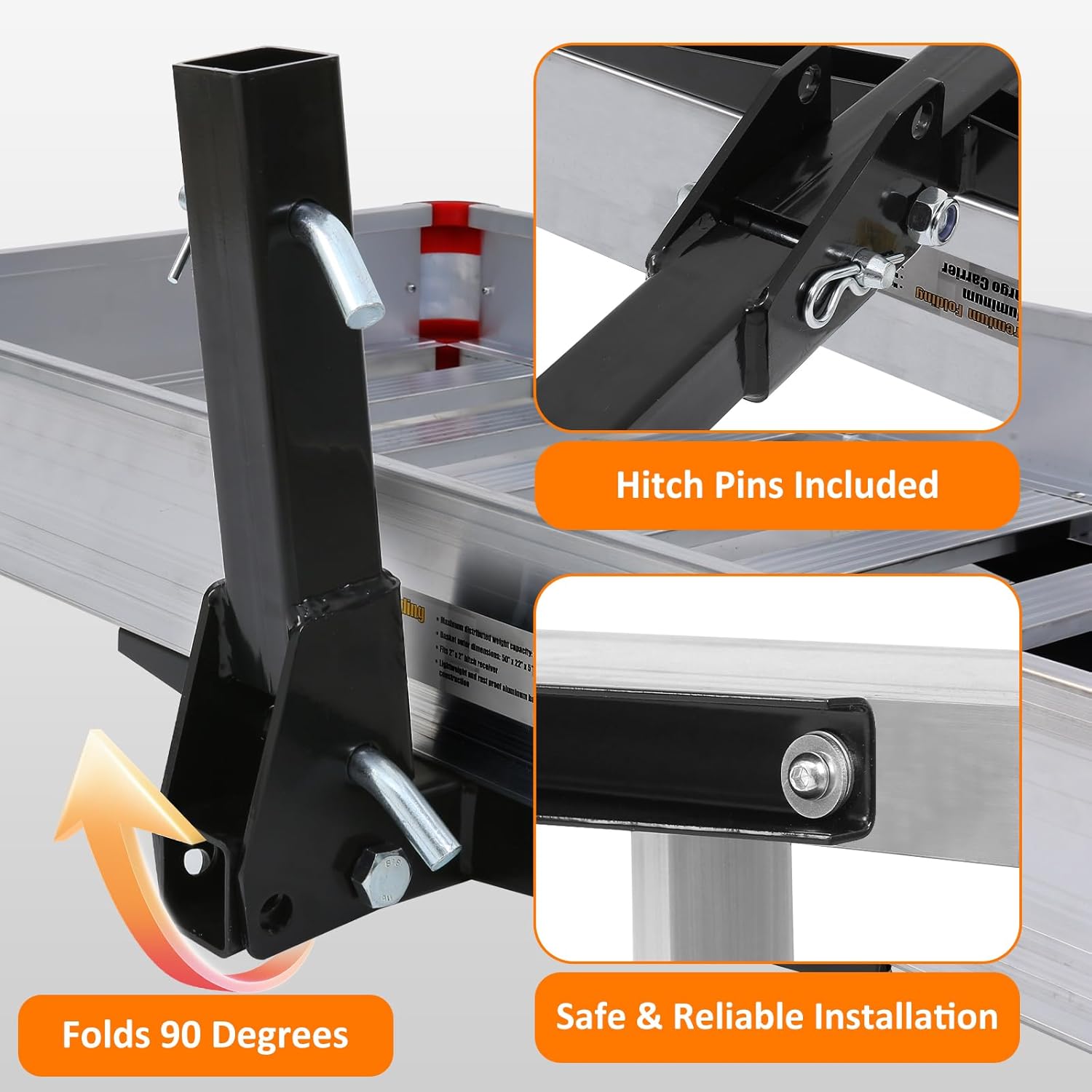

그림 4.1: Hitch Pins and Folding Mechanism. This image illustrates the secure attachment points and the pivot for folding.
그림 4.2: Quality Build and Hitch Compatibility. This image emphasizes the durable materials and fit for Class III and IV 2-inch hitch receivers.
5. 운영
Attaching to Vehicle:
- Slide the 2" x 2" hitch shaft of the cargo carrier into your vehicle's Class III or IV hitch receiver.
- Align the pin holes and insert the provided hitch pins to secure the carrier. Ensure the pins are fully engaged and secured with their clips.
- For added stability and to reduce wobble, consider using a hitch stabilizer (sold separately).
화물 적재:
- Ensure the total weight of your cargo does not exceed the 500-pound distributed weight capacity.
- Distribute the weight evenly across the carrier surface. Avoid placing heavy items solely on one side.
- Utilize the high side rails and multiple tie-down points to secure your cargo using straps, bungee cords, or netting. Ensure cargo cannot shift or fall out during travel.
- Verify that the cargo does not obstruct the vehicle's taillights, turn signals, or license plate. Adjust cargo or consider auxiliary lighting if necessary.
그림 5.1: Cargo Carrier Ready for Use. This image shows the carrier mounted on a vehicle's hitch receiver.
그림 5.2: Safety Features. This image highlights the design elements that enhance safety and cargo security.
Folding the Carrier:
When not in use, the cargo carrier can be folded upwards for compact storage and to reduce vehicle length.
- 모든 화물이 운송업체에서 제거되었는지 확인하세요.
- Locate the folding mechanism near the hitch receiver. Depending on the design, this may involve pulling a pin or releasin가 래치.
- Carefully pivot the carrier upwards until it locks into the vertical position. Ensure it is securely latched or pinned in the folded position.
그림 5.3: Carrier in Folded Position. This image demonstrates the carrier folded vertically against the vehicle for storage.
6. 유지관리
- 정기 검사: Before each use, inspect all components for signs of wear, damage, cracks, or corrosion. Pay close attention to welds, bolts, and the hitch connection point.
- 패스너 점검: Periodically check and tighten all bolts, nuts, and fasteners to ensure they remain secure. Loose fasteners can lead to instability and potential failure.
- 청소: Clean the cargo carrier regularly with mild soap and water. Rinse thoroughly and allow to dry. Avoid harsh chemicals that could damage the aluminum finish or steel coating.
- 매끄럽게 하기: Apply a light lubricant to the folding mechanism pivot points annually or as needed to ensure smooth operation.
- 저장: When not in use, store the cargo carrier in a dry place to prolong its lifespan.
7. 문제 해결
| 문제 | 가능한 원인 | 해결책 |
|---|---|---|
| Carrier wobbles or rattles excessively. | Loose hitch connection; unevenly distributed load; worn components. | Ensure hitch pins are fully engaged. Tighten all assembly bolts. Redistribute cargo evenly. Consider purchasing a hitch stabilizer. Inspect for worn parts and replace if necessary. |
| 접거나 펼치는 데 어려움이 있습니다. | Rust or debris in pivot points; bent components. | Clean and lubricate pivot points. Check for any obstructions or bent parts preventing smooth movement. Do not force the mechanism. |
| Cargo not secure. | Insufficient tie-downs; improper tie-down technique. | Use appropriate straps or netting. Ensure cargo is tightly secured to multiple tie-down points. Verify straps are not loose after initial movement. |
| Reflectors are loose or missing. | Loose screws; impact damage. | Tighten screws. Replace damaged or missing reflectors immediately for safety. |
8. 사양
- 모델: MaxxHaul 50149
- 재료: Extruded Aluminum (basket), Powder-Coated Steel (frame/hitch shaft)
- Outer Basket Dimensions (L x W x H): 50 인치 x 22 인치 x 5 인치
- 하중 용량: 500 pounds (distributed weight)
- 장착 유형: Receiver Mount
- Hitch Receiver Compatibility: Standard Class III and IV (2-inch x 2-inch)
- 접이식: 예
- 품목 무게: 약 32.7파운드
- 색상: Silver (aluminum), Black (steel frame)
그림 8.1: Product Dimensions. This diagram illustrates the key measurements of the cargo carrier.
9. 보증 및 지원
For warranty information or technical support regarding your MaxxHaul 50149 Folding Aluminum Cargo Carrier, please contact MaxxHaul customer service directly. Refer to the product packaging or the official MaxxHaul web최신 연락처 정보는 사이트에서 확인하세요.
구매 영수증을 보관하여 보증 청구에 대비하세요.
