Donner DST-100 Electric Guitar Kit

소개

Thank you for choosing the Donner DST-100 Electric Guitar Kit. This comprehensive kit is designed for both beginners and intermediate players, providing all the essential components to start your musical journey. This manual will guide you through the setup, operation, maintenance, and specifications of your new electric guitar kit.

상자 안에 무엇이 들어있나요?

Your Donner DST-100 Electric Guitar Kit includes the following items:

• Donner DST-100 Electric Guitar (Sapphire Blue)
• 3W MINI Amp리퍼
• 기그백
• 카포
• 디지털 튜너
• 추가 현
• 견장
• Amp 케이블
• 선택

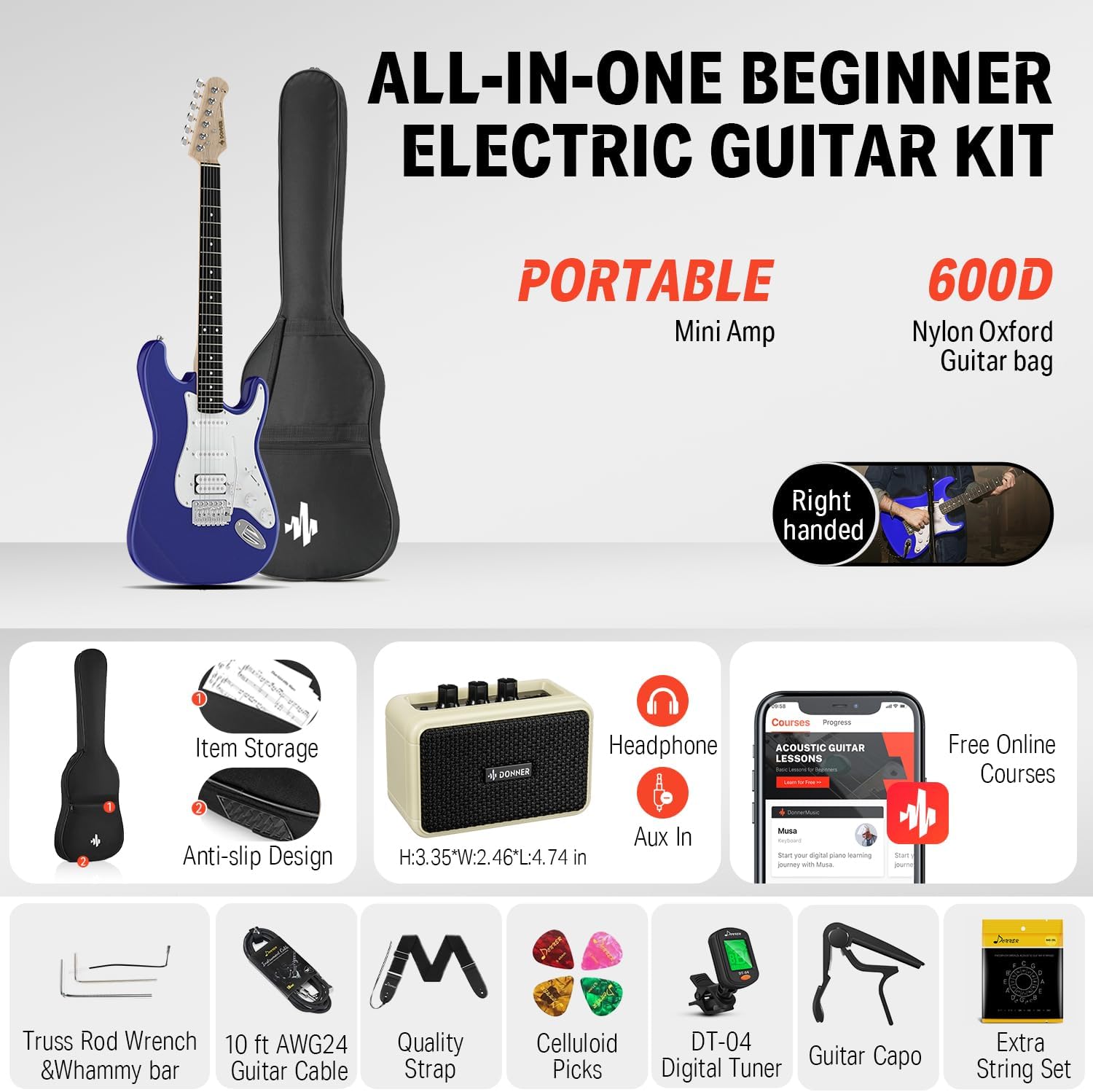

이미지: 이상view of the Donner DST-100 Electric Guitar Kit, showing the Sapphire Blue guitar, mini amplifier, gig bag, and various accessories.

제품 특징

H-S-S Pickups

The Donner electric guitar features two classic Single-coil pickups and one powerful 203S Humbucker pickup. A 5-way pickup switch and 2-tone & Volume controls allow for versatile sound selection. This H-S-S configuration is ideal for a range of musical styles, including Texas blues/rock.

Image: Close-up of the Donner DST-100 electric guitar body, highlighting the H-S-S pickup configuration, 5-way switch, and tone/volume knobs.

Canadian Maple Neck with 'C' Shaped Profile

The Donner DST-100 beginner electric guitar bundle utilizes a purpleheart wood fingerboard and a poplar solid body. The Canadian maple neck features a comfortable 'C' shaped profile, offering a classic design and comfortable fit for players.

22 Copper-Nickel Frets

This 39-inch electric guitar is equipped with 22 copper-nickel frets, complete with fret position marks on the neck and top of the fingerboard. The frets are smooth and designed for comfortable playability.

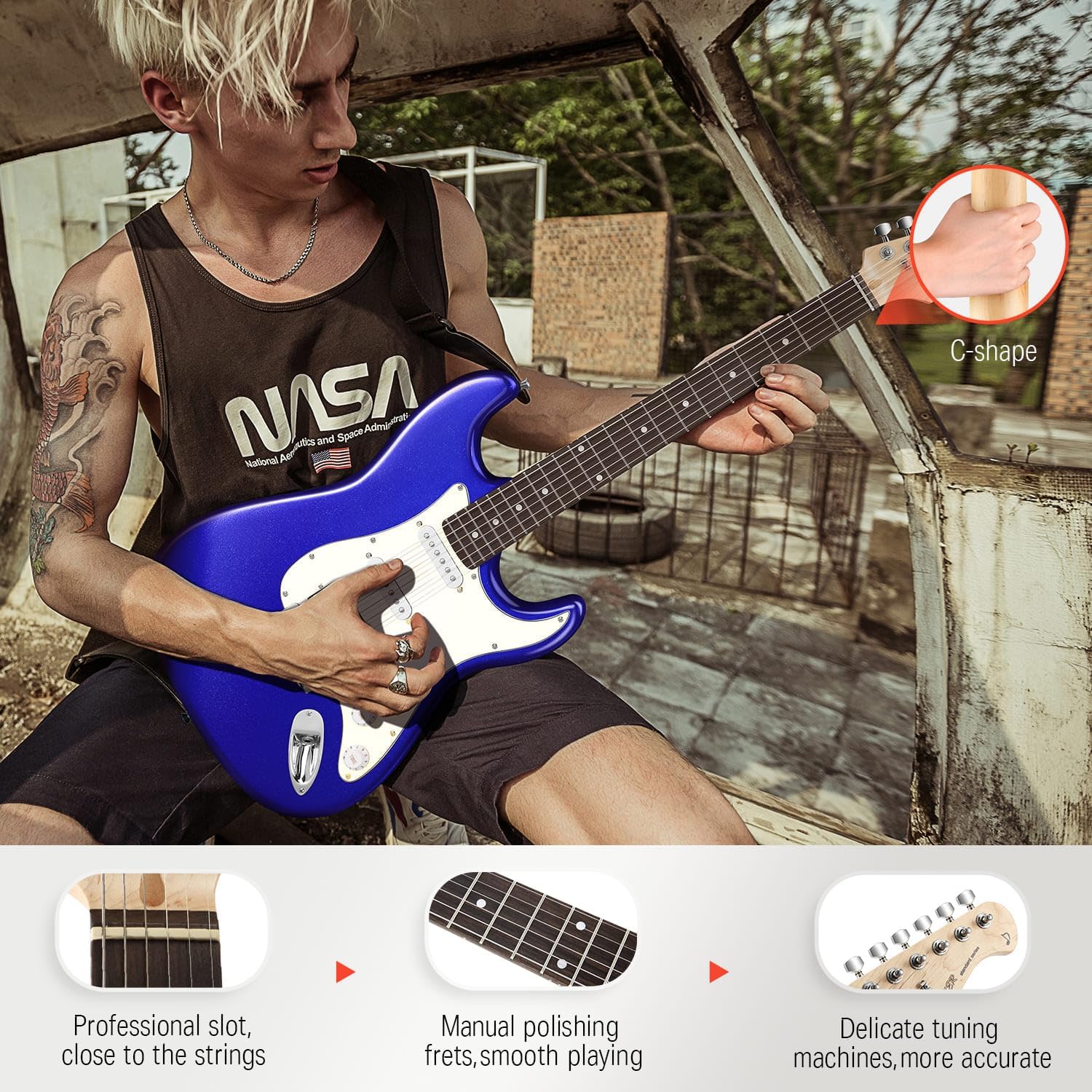

이미지: 상세 view of the Donner DST-100 guitar neck, showcasing the C-shape profile, professional fret slotting, manual polishing of frets, and delicate tuning machines.

휴대용 미니 Amp리퍼

The included 3W MINI amplifier comes with an amp cord and features two tone channels. It offers easy control, a compact size, and tube-like sound. It includes a 1/8" auxiliary input jack for playing along with media players or CDs, and a 1/8" headphone output jack for silent practice.

Image: Comparison of the old and new editions of the Donner portable mini amplifier, highlighting its compact dimensions and controls.

공식 제품 영상

Video: A detailed demo and review of the Donner DST-102L Guitar Kit, showcasing its features and sound. This video is provided by Donner.

설치 가이드

1. 스트랩 부착

Locate the strap pins on your guitar body. Attach one end of the strap to the pin near the neck and the other end to the pin at the bottom of the guitar body. Ensure the strap is securely fastened before playing.

2. Tuning Your Guitar

Use the included digital tuner. Clip the tuner onto the headstock of your guitar. Pluck each string individually and adjust the corresponding tuning peg until the tuner indicates the correct pitch (E, A, D, G, B, E from thickest to thinnest string). Refer to the tuner's manual for specific instructions.

3. 연결 Amp리퍼

동봉된 제품의 한쪽 끝을 연결하세요. amp cable to the input jack on your guitar (located on the side of the guitar body). Connect the other end of the cable to the 'INPUT' jack on the mini amp리파이어. 켜다 amplifier using the 'POWER' switch.

작동 지침

기타 컨트롤

• 볼륨 노브: 기타의 전체 출력 볼륨을 조절합니다.
• 톤 노브: Two tone knobs are available to control the tone of different pickups. Experiment to find your desired sound.
• 5단 픽업 선택 스위치: This switch allows you to select different pickup combinations for varied tonal characteristics.

Amp리퍼 컨트롤

• 얻다: 왜곡 또는 오버드라이브 정도를 조절합니다.
• 용량: 제어 amp앰프의 출력 볼륨.
• 고음부: 고주파수를 조정합니다.
• 베이스: 낮은 주파수를 조정합니다.
• Aux In (1/8"): Connect external audio devices (e.g., MP3 player, phone) to play along with music.
• Headphones (1/8"): Plug in headphones for silent practice.

유지

• 청소: Regularly wipe down your guitar with a soft, dry cloth to remove dust and fingerprints. For a deeper clean, use guitar-specific cleaning products.
• 문자열 변경 사항: Replace strings regularly (e.g., every 1-3 months depending on usage) to maintain optimal tone and playability. Use the included extra strings or nickel-plated electric guitar strings.
• 저장: Store your guitar in the included gig bag when not in use to protect it from dust, humidity, and accidental damage. Avoid extreme temperatures and humidity.

문제 해결

• 소리가 나지 않음 Amp정수기:
  • 확인하십시오 amplifier의 전원이 켜지고 볼륨이 켜집니다.
  • Check that the guitar cable is securely connected to both the guitar and the amp리퍼.
  • 기타의 볼륨 노브가 올라가 있는지 확인하세요.
  • Check if headphones are plugged into the amplifier, which might mute the main speaker.
• 음질 불량/잡음 발생:
  • 기타가 제대로 조율되었는지 확인하세요.
  • 느슨한 케이블 연결을 확인하십시오.
  • Adjust the tone controls on both the guitar and amp리퍼.
  • If using high gain settings, some buzzing is normal; try reducing the gain.
• 튜닝 불안정성:
  • New strings often stretch and require frequent tuning initially.
  • 줄이 조율못에 제대로 감겨 있는지 확인하십시오.

명세서

보증 및 지원

Your Donner DST-100 Electric Guitar Kit is covered by a 30-day return policy. For any product inquiries, technical support, or warranty claims, please contact Donner Music directly through their official channels or the retailer where the product was purchased.
