소개
Thank you for choosing the Makerfire 7.4V 600mAh 2S Lipo Battery. This high-performance lithium polymer battery is designed for micro FPV racing drones and quadcopters, offering a reliable power source with an XT30 connector. Please read this manual thoroughly before using the battery to ensure safe operation and optimal performance.
중요 안전 지침
리튬 폴리머(LiPo) 배터리는 강력한 성능을 지니고 있어 취급에 각별한 주의가 필요합니다. 안전 지침을 준수하지 않을 경우 화재, 인명 피해 및 재산 피해가 발생할 수 있습니다.
- 충전 중: Always use a LiPo-compatible balance charger. Never charge unattended. Charge on a non-flammable surface away from combustible materials. Ensure charging current and voltage settings match the battery specifications (7.4V, 2S, 600mAh).
- 방전: Do not over-discharge the battery. Stop use immediately if the voltage drops below 3.0V per cell (6.0V for a 2S battery). Over-discharging can permanently damage the battery.
- 저장: Store LiPo batteries at room temperature in a fireproof container, away from direct sunlight, heat sources, and flammable materials. For long-term storage, charge or discharge the battery to a storage voltage of 3.8V per cell (7.6V for a 2S battery).
- 물리적 손상: Inspect the battery for any signs of damage (swelling, punctures, leaks, bent connectors) before each use. Do not use a damaged battery.
- 온도: 배터리를 극한의 온도에 노출시키지 마십시오. 0°C(32°F) 미만 또는 45°C(113°F) 이상의 온도에서 충전 또는 방전을 피하십시오.
- 처분: Dispose of LiPo batteries responsibly according to local regulations. Never dispose of them in regular trash or by incineration.
- 어린이들: 배터리를 어린이의 손이 닿지 않는 곳에 보관하세요.
제품 특징
- 대용량: 600mAh for extended flight times.
- 권tage: 7.4V (2S) for consistent power delivery.
- 방전 속도 : 50C continuous / 100C burst for demanding applications.
- 커넥터: XT30 plug for secure and efficient power connection.
- Balancer Connector: JST-XHR for precise cell balancing during charging.
- 가벼운 디자인: Optimized for micro FPV racing drones.
명세서
Image: Makerfire 7.4V 600mAh 2S Lipo Battery with XT30 Plug, showing its overall design and connectors.
| 특징 | 세부 사항 |
|---|---|
| 배터리 용량 | 600mAh |
| 배터리 용량tage | 7.4V(2초) |
| 배출율 | 50°C(연속 작동) / 100°C(순간 최대 작동) |
| 커넥터 유형 | XT30 플러그 |
| 셀 구성 | 2S1P |
| 밸런서 커넥터 | JST-XHR |
| 무게 | 약 33.28g (1.17온스) |
| 치수(길이 x 너비 x 높이) | 62mm x 16mm x 14mm(2.44 x 0.63 x 0.55인치) |
| 철사 게이지 | 18AWG Silicone Wire |
Image: Detailed dimensions of the Makerfire 7.4V 600mAh 2S Lipo Battery, showing length, width, and height measurements.
Image: The Makerfire 7.4V 600mAh 2S Lipo Battery being weighed on a digital scale, displaying approximately 33.28 grams.
설정
1. 초기 충전
Before first use, fully charge the battery using a compatible LiPo balance charger. Ensure the charger is set to the correct voltage (7.4V or 2S) and capacity (600mAh) for this battery. Always monitor the charging process.

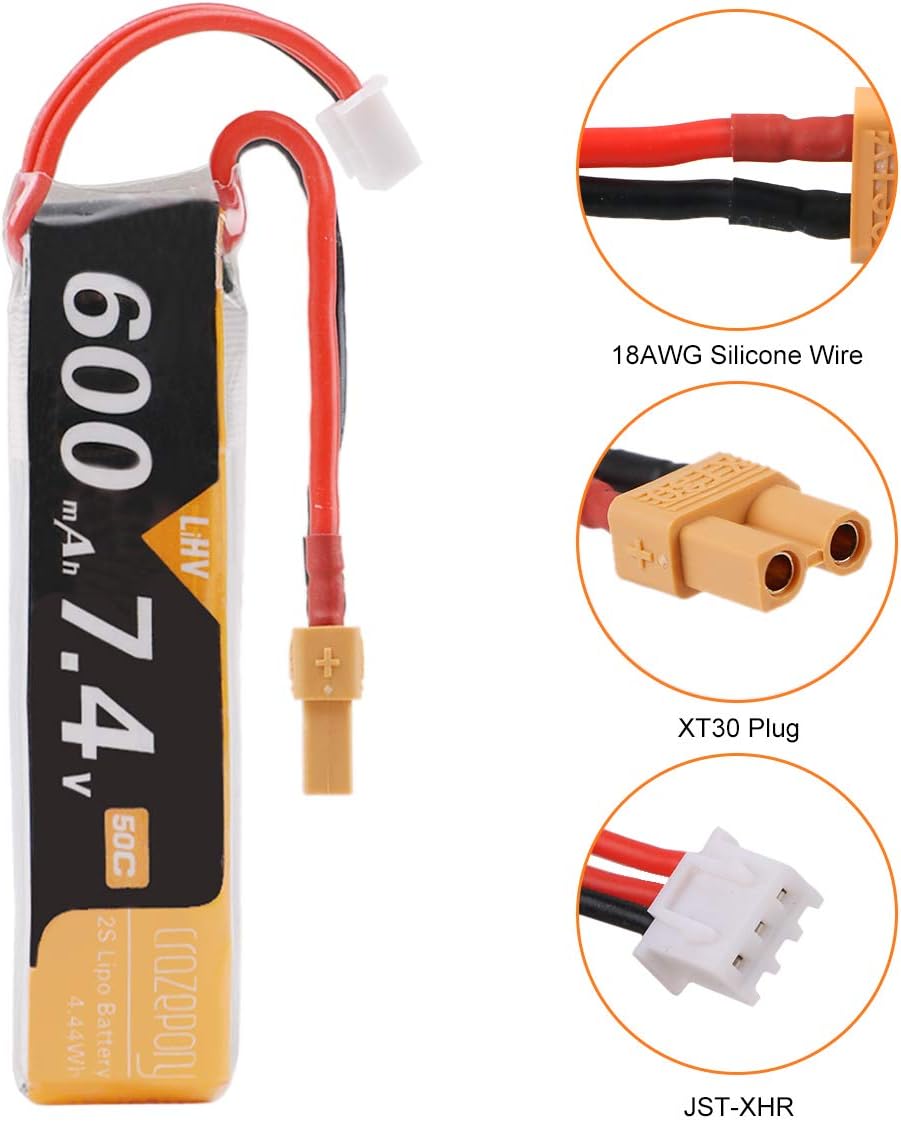

이미지: 클로즈업 view of the battery's components, highlighting the 18AWG Silicone Wire, XT30 Plug, and JST-XHR balancer connector.
2. Installation in Device
Carefully connect the XT30 plug of the battery to the corresponding connector on your micro FPV racing drone or quadcopter. Ensure the JST-XHR balance lead is not pinched or damaged during installation. Secure the battery within the device to prevent movement during operation.
Image: Diagram illustrating the compatibility of the 600mAh 2S Lipo Battery with several micro FPV drones and quadcopters.
작동 지침
- 비행 전 점검: 항상 배터리 용량을 확인하세요tage before each flight to ensure it is fully charged and healthy.
- 연결: Connect the battery to your device's power input. Ensure a firm connection.
- 모니터링: During operation, monitor the battery voltage, especially if your device has telemetry. Stop flying when the battery reaches its minimum safe voltage (6.0V for 2S) to prevent over-discharge.
- 단절: After use, disconnect the battery from the device.
유지 관리 및 보관
- 정기 검사: Periodically inspect the battery for any signs of swelling, damage to the casing, or connector issues.
- 청소: Keep the battery and connectors clean and free from dirt or debris.
- 장기 보관: If storing the battery for more than a few days, charge or discharge it to a storage voltage of 3.8V per cell (7.6V for a 2S battery). This helps prolong battery life.
- 보관 환경: Store batteries in a cool, dry place, ideally in a fireproof LiPo bag or container, away from direct sunlight and extreme temperatures.
문제 해결
| 문제 | 가능한 원인 | 해결책 |
|---|---|---|
| 배터리가 충전되지 않음 | Incorrect charger settings; damaged charger or battery; poor connection. | Verify charger settings (LiPo, 2S, 7.4V, 600mAh); check all connections; inspect battery for damage. If damaged, discontinue use. |
| 짧은 비행 시간 | Battery degradation; over-discharge; high power consumption by device. | Ensure battery is fully charged; avoid over-discharging; consider device power draw. Replace battery if degradation is significant. |
| 배터리 팽창 | Overcharging; over-discharging; physical damage; internal short circuit. | 즉시 사용을 중단하십시오. Swelling indicates a dangerous condition. Safely dispose of the battery. |
보증 및 지원
For warranty information or technical support regarding your Makerfire 7.4V 600mAh 2S Lipo Battery, please contact Makerfire customer service through their official website or the retailer from whom you purchased the product. Please have your purchase details and product model information ready.
