소개
The Masterbuilt 30-inch Analog Electric Smoker is designed to provide a convenient and efficient way to smoke various foods. This manual provides essential information for the safe and effective operation, maintenance, and troubleshooting of your electric smoker. With its analog controls and spacious design, you can achieve competition-ready results without the complexities of charcoal or propane.
그림 1: 전면 view of the Masterbuilt 30-inch Electric Vertical BBQ Smoker.
설정 및 조립
Before first use, ensure all packaging materials are removed. The smoker requires minimal assembly, primarily attaching the legs and side handles. Always place the smoker on a stable, level surface outdoors, away from flammable materials.
- 짐 풀기: 모든 구성품을 포장에서 조심스럽게 꺼내세요. 손상 여부를 확인하세요.
- 다리 조립: Attach the sturdy legs to the base of the smoker using the provided hardware. Ensure they are securely fastened for stability.
- 핸들 부착: Secure the side handles to the smoker body.
- 초기 청소: Wipe down all interior surfaces and racks with a damp 처음 사용하기 전에 천.
- 놓기: Position the smoker outdoors on a non-combustible surface. Ensure adequate clearance from walls, fences, and other structures.
그림 2: 적절한 배치를 위한 제품 치수.
작동 지침
The Masterbuilt Electric Smoker is designed for ease of use. Follow these steps for optimal smoking results:
- 전원 연결: 흡연기를 접지된 전기 콘센트에 꽂으세요.
- 설정 온도: Use the analog dial to set your desired smoking temperature. The smoker can reach temperatures up to 275°F.
- 온도 모니터링: The built-in temperature gauge on the door allows for easy monitoring of the internal smoking temperature.
- Adding Wood Chips: The removable wood chip tray allows you to add your preferred wood chips for rich smoky flavor. Experiment with different wood types to enhance your food.
- 물그릇: Utilize the removable water bowl to add moisture during the smoking process, ensuring juicy and tender meats.
- Loading Racks: The smoker features three chrome-coated smoking racks, providing 535 square inches of cooking space. Arrange your food on these racks, ensuring proper air circulation. The spacious vertical design can accommodate up to 3 chickens, 2 turkeys, or 3 racks of ribs.
Figure 3: Analog temperature dial for precise control.

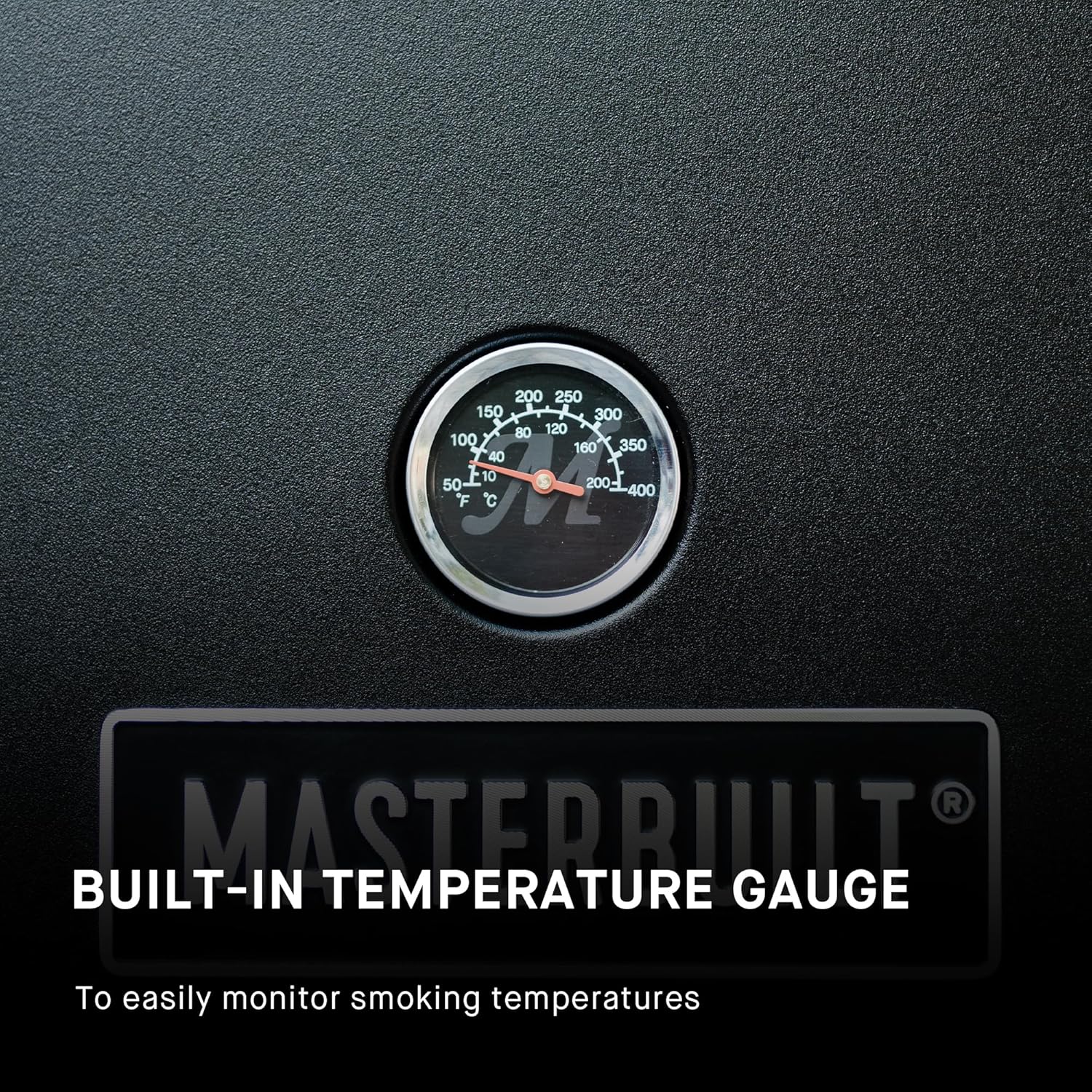

Figure 4: Built-in temperature gauge for monitoring.
Figure 5: Wood chip tray for adding smoke flavor.
그림 6: 내부 view showing the three chrome-coated smoking racks.
그림 7: 예ample of food placed on the smoking racks.
유지관리 및 청소
Regular cleaning and maintenance will extend the life of your Masterbuilt Electric Smoker and ensure consistent performance.
- 그리스 트레이: The removable rear grease tray simplifies the cleanup process. Empty and clean this tray after each use to prevent grease buildup.
- Racks and Water Bowl: Clean the chrome-coated racks and water bowl with warm, soapy water after each use.
- 내부: Wipe down the interior of the smoker with a damp cloth. For stubborn residue, a mild degreaser can be used, followed by a thorough rinse and dry.
- 외부: 외부는 순한 세제와 부드러운 천으로 닦으십시오. 연마성 세제는 사용하지 마십시오.
- 저장: 사용하지 않을 때는 훈제기를 건조하고 덮개가 있는 곳에 보관하여 비바람으로부터 보호하십시오.
Figure 8: Removable grease tray for easy cleaning.
문제 해결
If you encounter issues with your Masterbuilt Electric Smoker, refer to the following common troubleshooting tips:
- 흡연기, 난방 안 됨:
- 전원 코드가 접지된 콘센트에 단단히 꽂혀 있는지 확인하세요.
- Check the analog dial setting; ensure it is set to a desired temperature.
- Verify the heating element is clean and free of debris.
- 연기 발생량 부족:
- Ensure the wood chip tray contains enough wood chips.
- Verify the wood chips are dry and not overly packed.
- Check that the wood chip tray is positioned correctly over the heating element.
- 온도 변화:
- Avoid frequently opening the smoker door, as this releases heat and smoke.
- Ensure the door latch is securely closed.
- Consider external factors like wind or ambient temperature, which can affect internal temperature.
For more detailed troubleshooting or persistent issues, please contact Masterbuilt customer support or refer to the full user manual.
명세서
| 특징 | 세부 사항 |
|---|---|
| 상표 | 마스터 빌드 |
| 모델명 | 아날로그 전기 흡연자 |
| 모델 번호 | MB20070210 |
| 전원 | 전기 같은 |
| 색상 | 검은색 |
| 겉감 소재 | 합금강 |
| 내부 소재 | 스테인리스 스틸 |
| 품목 무게 | 49.9 파운드 |
| 제품 치수 | 20인치 깊이 x 22인치 너비 x 40인치 높이 |
| 조리 공간 | 535제곱인치 |
| 랙 | 3 Chrome-Coated Racks |
| 최대 온도 | 275°F (Analog Control) |
| 한국어: | 843706100328, 803982949363 |
보증 및 지원
For detailed warranty information, product registration, or to contact customer support, please refer to the official Masterbuilt web제품과 함께 제공된 사이트 또는 전체 사용 설명서를 참조하세요.
