1. 제품 오버view
The hansgrohe Focus soap dispenser combines aesthetic design with practical functionality for your kitchen or bath. This model features a durable metal construction and a Steel Optic finish, designed to complement modern kitchen aesthetics. It is engineered for reliable performance and ease of use.
- 매력적인 디자인: The Focus design line offers a clear, flat design language.
- Above Counter Height: Approximately 2-3/4 inches.
- 지름: 2인치.
- 용량: The included reservoir bottle has a storage capacity of 16 oz.
- 구성 요소: Includes the soap dispenser head and the reservoir bottle.
Image 1: hansgrohe Focus Soap Dispenser installed in a kitchen setting.
2. 설치 지침
Proper installation ensures optimal performance and longevity of your soap dispenser. Follow these steps carefully.
2.1. 포장해체 및 구성품 확인
- 포장에서 모든 구성 요소를 조심스럽게 제거합니다.
- Verify that all parts are present: dispenser head, pump mechanism, rubber washer, mounting nut, and 16 oz reservoir bottle.
2.2. Mounting the Dispenser Head
- Ensure the mounting hole in your sink or countertop is clean and free of debris.
- Insert the dispenser head and pump mechanism through the mounting hole from above. The integrated rubber washer should sit flush against the countertop surface to create a seal.
- From underneath the sink, secure the dispenser by threading the mounting nut onto the pump mechanism and tightening it firmly by hand. Avoid overtightening.
2.3. Attaching the Reservoir Bottle
- Screw the provided 16 oz reservoir bottle onto the threaded bottom of the pump mechanism from underneath the sink. Ensure it is securely attached to prevent leaks.
- Alternatively, an extension tube kit (sold separately) can be used to connect the pump to a larger soap bottle placed under the sink, eliminating the need for frequent refills.

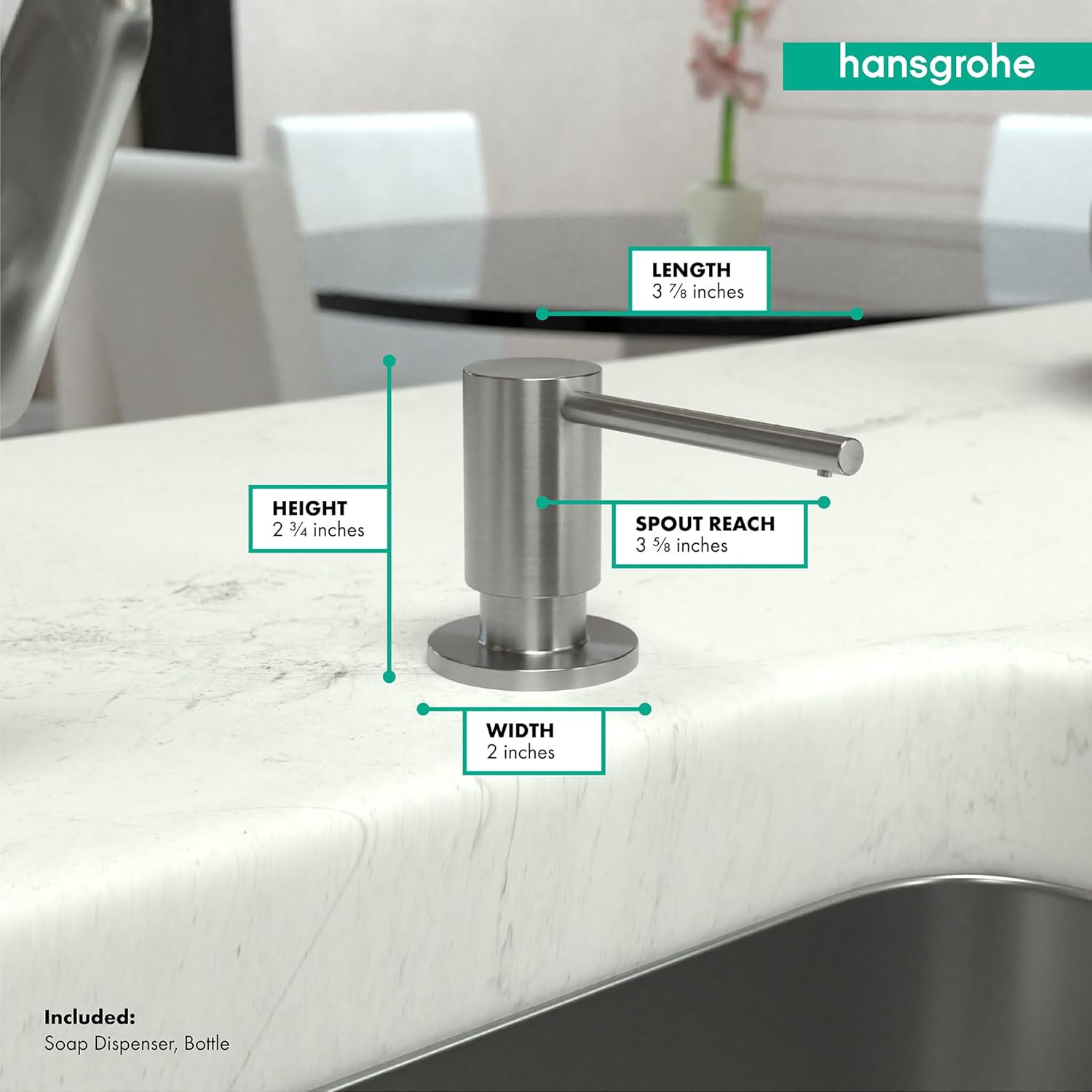

Image 2: Dimensions and included components of the hansgrohe Focus Soap Dispenser.
3. 사용 설명서
3.1. 디스펜서 채우기
- To fill the dispenser, simply pull the dispenser head straight up from the base. It will detach from the pump mechanism.
- Pour liquid soap directly into the opening of the pump mechanism. A funnel may be used for easier filling.
- Once filled, reinsert the dispenser head firmly back into the pump mechanism.
3.2. Dispensing Soap
To dispense soap, press down firmly on the top of the dispenser head. The soap will be dispensed from the spout. Release to allow the pump to reset.
4. 유지관리 및 관리
Regular cleaning and maintenance will keep your hansgrohe soap dispenser functioning correctly and looking its best.
- 외부 청소: Clean the Steel Optic finish with a soft, damp cloth and mild soap. Avoid abrasive cleaners, scouring pads, or harsh chemicals, as these can damage the finish.
- Cleaning the Spout: The spout features a small rubber hole where soap is dispensed. This design allows for easy cleaning to prevent clogs. Periodically clean this opening with a small brush or toothpick to remove any dried soap residue.
- Preventing Water Ingress: The dispenser is designed to direct water away from the pump mechanism. Ensure the dispenser head is properly seated to maintain this protection.
5. 문제 해결
If you encounter issues with your soap dispenser, refer to the following common solutions.
| 문제 | 가능한 원인 | 해결책 |
|---|---|---|
| Dispenser not pumping soap |
|
|
| Soap drips from spout |
|
|
| Dispenser head feels loose or wobbly |
|
|
6. 사양
| 특징 | 세부 사항 |
|---|---|
| 모델 번호 | 40438801 |
| 색상 | 스테인레스 스틸 광학 |
| 재료 | 내구성 있는 금속 구조 |
| Above Counter Height | 2-3/4 인치 |
| 지름 | 2인치 |
| 액체 부피 용량 | 16플루이드 온스 |
| 품목 무게 | 12.5 온스 |
| 제품 치수 | 4.84 x 1.97 x 2.8 인치 |
| 설치 방법 | 갑판 장착 |
7. 보증 정보
Hansgrohe, Inc. warrants to the original consumer purchaser that hansgrohe products will be free from defects in material and workmanship for as long as the original consumer purchaser owns both the product and the home in which the product was originally installed. This warranty is non-transferable.
For commercial purchasers, the warranty period is one (1) year for hansgrohe products from the date of purchase. The warranty period for products in rubbed bronze, matte black, and matte white finishes is three (3) years from the date of purchase.
본 보증은 법으로 금지되지 않는 한, 허가받지 않은 판매처에서 구매한 hansgrohe 제품에는 적용되지 않습니다. hansgrohe 브랜드의 공인 판매처는 hansgrohe에서 확인하실 수 있습니다. web사이트. 추가 보증 제한 사항이 적용됩니다. 제조업체의 web전체 보증 세부 정보는 사이트에서 확인할 수 있습니다.
For warranty claims or further information, please visit the official hansgrohe web사이트를 방문하거나 고객 지원팀에 문의하세요.
8. 고객 지원
For technical assistance, replacement parts, or any other inquiries regarding your hansgrohe product, please contact customer support:
- 온라인 지원: 공식을 방문하세요 한스그로헤 web대지 FAQ 및 연락처 옵션은 여기에서 확인하세요.
- 전화 지원: Refer to your product packaging or the hansgrohe web지역 연락처 사이트.
