1. 제품 오버view
The XUNATALED LED Strip Lights Kit provides flexible, color-changing illumination for various indoor and outdoor applications. This kit includes 33 feet of SMD 5050 LED strips with 600 units, offering both RGB and warm white lighting options. Control is managed via a 40-key IR remote, powered by a 12V supply.

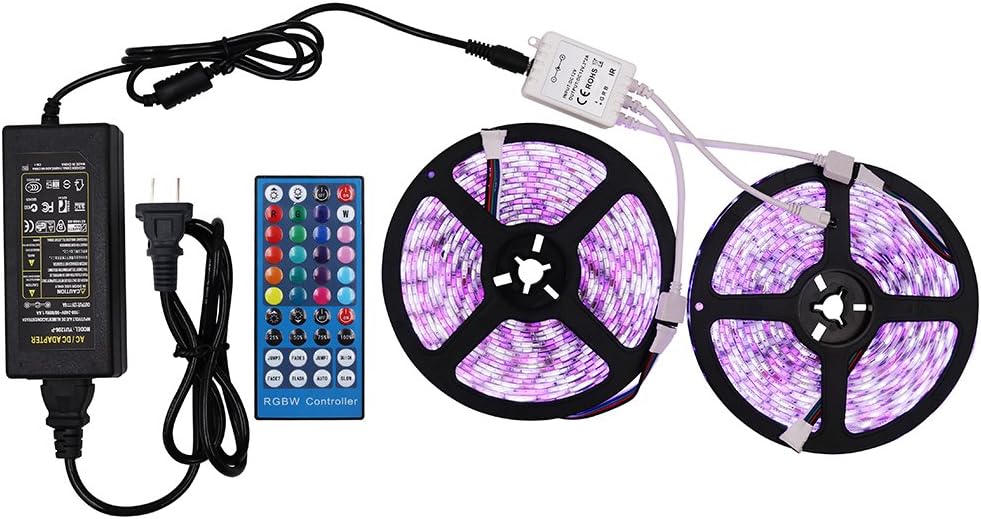

Image 1.1: Complete XUNATALED LED Strip Lights Kit, including two rolls of LED strips, a 40-key IR remote control, an IR receiver, and a 12V power adapter.
The strips are designed for versatility, featuring a waterproof construction (IP65) and a self-adhesive backing for easy installation. They are suitable for decorative lighting in areas such as kitchens, bedrooms, and outdoor spaces.
Image 1.2: Various application examples showing the XUNATALED LED strip lights installed in a kitchen under cabinets and behind a bed headboard, demonstrating their decorative potential.
2. 상자 안에 무엇이 들어있나요?
Your XUNATALED LED Strip Lights Kit includes the following components:
- LED Strip Lights (33ft, 600 units SMD 5050, RGB+Warm White)
- 40키 적외선 리모컨
- IR Receiver/Controller
- 12V Power Supply/Adapter
이미지 2.1: 상세 view of the kit components, including the LED strip reels, IR remote, IR receiver, and power adapter.

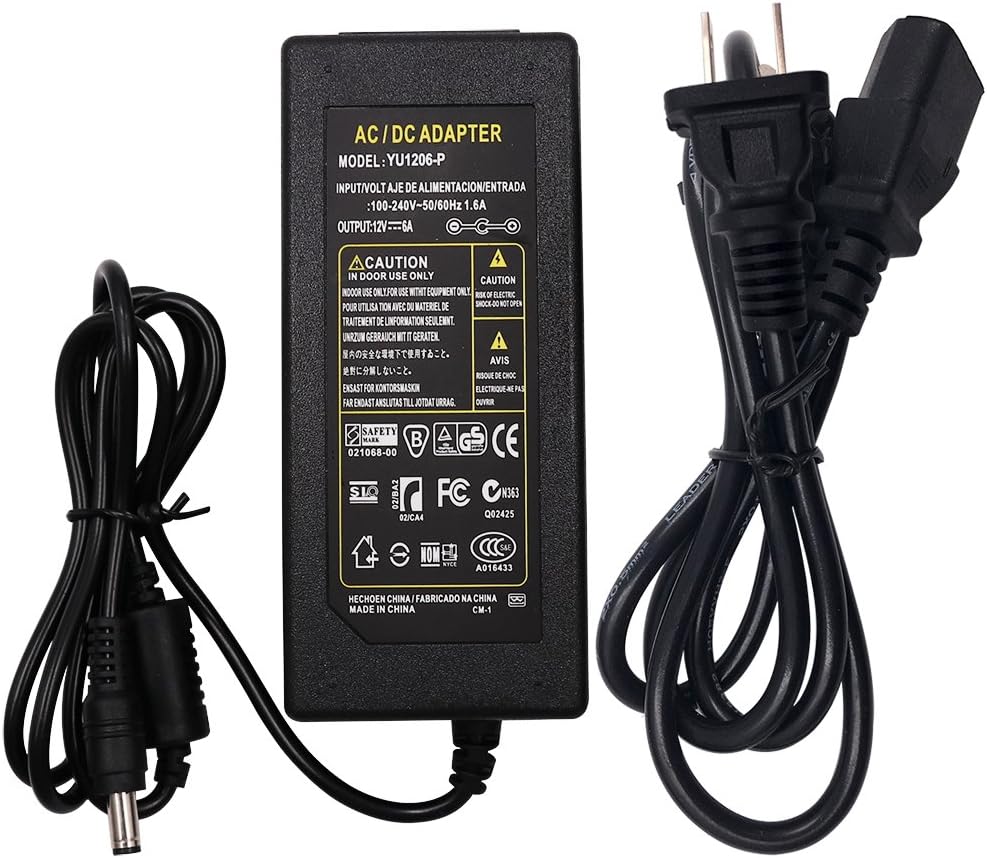

Image 2.2: Close-up of the 12V AC/DC power adapter included in the kit, showing input/output specifications.
3. 사양
| 특징 | 사양 |
|---|---|
| 상표 | XUNATA |
| 모델 번호 | 12V10MRGBWW5AUS65-1 |
| 광원 유형 | LED (SMD 5050) |
| 광원의 수 | 600개 단위 |
| 길이 | 33피트(약 10미터) |
| 색상 | RGB + 웜 화이트 |
| 권tage | 12볼트(DC) |
| 전원 | DC 어댑터 |
| 제어 방법 | 40키 적외선 리모컨 |
| 방수 등급 | IP65 (Indoor/Outdoor Usage) |
| 특별 기능 | Flexible, Self-adhesive backing, Cuttable |
4. 설정 지침
- 표면 준비: 설치할 표면이 깨끗하고 건조하며 매끄러운지 확인하십시오. 먼지, 기름 또는 습기는 접착력에 영향을 줄 수 있습니다.
- 측정 및 절단 (선택 사항): If necessary, measure the desired length for your installation. The LED strips can be cut along the designated marks (usually indicated by a copper pad and a scissor icon). Do not cut in other areas, as this will damage the strip.
- 스트립을 부착하세요: Peel off the protective backing from the 3M adhesive tape on the back of the LED strip. Carefully press the strip onto the desired surface, ensuring firm contact.
- 적외선 수신기를 연결하세요: Connect the 4-pin connector of the LED strip to the IR receiver/controller. Ensure the arrows on both connectors align correctly.
- 전원 공급 장치를 연결합니다: Plug the DC output of the 12V power adapter into the input port of the IR receiver.
- 전원 켜기: 전원 어댑터를 표준 전기 콘센트에 연결하십시오.
- 원격 준비: Before using the 40-key IR remote control, remove the transparent plastic sheet from the battery compartment to activate the battery.
이미지 4.1: 클로즈업 view of the LED strip, highlighting the 5050 RGB and warm white beads, and indicating the safe cutting points along the strip.
Image 4.2: The flexible LED strip demonstrating its bendable nature and the self-adhesive 3M backing for easy installation.
5. 사용 설명서
The XUNATALED LED Strip Lights are controlled using the included 40-key IR remote. Point the remote directly at the IR receiver for optimal response.
원격 제어 기능:
- 켜기/끄기: 를 누르세요 ON or 끄다 buttons to power the lights.
- 밝기 조정: 사용하세요 밝기 업 그리고 밝기 낮추기 buttons to adjust the light intensity.
- 색상 선택: Select from 20 preset colors, including various RGB shades and warm white, by pressing the corresponding color buttons.
- 동적 모드:
- 플래시: Cycles through colors rapidly.
- 스트로브 : 한 가지 색상으로 깜빡입니다.
- 바래다: 색상 전환이 부드럽습니다.
- 매끄러운: Gradual color change.
- 점프3/점프7: 3가지 또는 7가지 색상 사이를 전환합니다.
- 페이드3/페이드7: 3가지 또는 7가지 색상 사이에서 서서히 변합니다.
- DIY 색상: The remote may include DIY buttons to create and save custom color mixes (refer to remote specific instructions if available).
Video 5.1: Demonstration of the XUNATALED LED strip lights changing colors and modes using the 40-key IR remote control. This video illustrates the various lighting effects and color options available.
Image 5.2: The LED strip illuminated in a vibrant blue color, showcasing one of the many available color options.
Image 5.3: The LED strip illuminated in a bright green color, demonstrating another color selection from the remote.
Image 5.4: The LED strip illuminated in a rich red color, illustrating the range of colors achievable with the RGB+Warm White LEDs.
6. 유지관리
- 청소: LED 스트립의 먼지를 제거하려면 부드럽고 마른 천으로 살살 닦아주세요. 잘 지워지지 않는 먼지는 약간 거친 천을 사용하세요.amp cloth, ensuring the power is disconnected. Avoid harsh chemicals or abrasive cleaners.
- 연결 확인: Periodically inspect all connections (strip to receiver, receiver to power supply) to ensure they are secure.
- 원격 배터리: If the remote control becomes unresponsive, replace the CR2025 coin cell battery.
- 방수 무결성: For outdoor installations, regularly check the waterproof seals and connections for any signs of wear or damage to maintain IP65 rating.
7. 문제 해결
| 문제 | 가능한 원인 | 해결책 |
|---|---|---|
| 표시등이 켜지지 않습니다. |
|
|
| 리모컨이 반응하지 않습니다. |
|
|
| 조명이 깜빡거리거나 불규칙적으로 켜집니다. |
|
|
| 잘못된 색상이 표시되었습니다. |
|
|
8. 보증 및 지원
For warranty information or technical support regarding your XUNATALED LED Strip Lights Kit, please contact XUNATA customer service through the retailer where the product was purchased or visit the official XUNATA web연락처 정보 사이트.
보증 청구를 위해 구매 증빙서류로 구매 영수증을 보관하세요.
