1. 서론
Thank you for choosing the EDM 00780 Remote Control. This manual provides essential information for the proper setup, operation, and maintenance of your remote control, specifically designed for use with EDM Model 07214. Please read these instructions carefully before using the product to ensure optimal performance and longevity.
중요한 안전 정보: Always handle batteries with care. Do not mix old and new batteries, or different types of batteries. Remove batteries if the remote will not be used for an extended period.
2. 제품 오버view
2.1개의 구성요소
The EDM 00780 remote control features an ergonomic design for comfortable handling and intuitive push-button operation. Key components include:
- 제어 버튼: Various buttons for specific functions of the EDM Model 07214.
- Infrared Emitter: Located at the front, transmits signals to the device.
- 배터리 칸: 배터리 설치용이며, 뒷면에 위치해 있습니다.

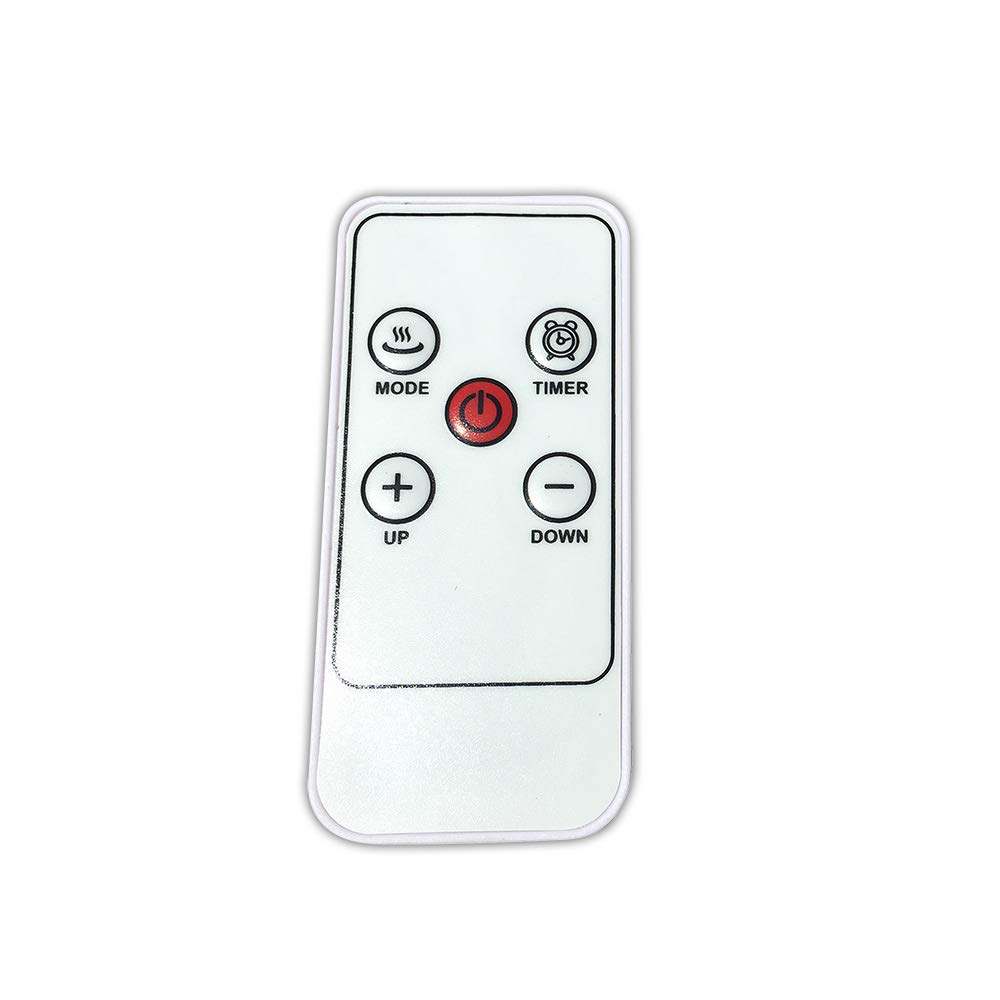

이미지 1: 앞면 view of the EDM 00780 Remote Control, showing its ergonomic shape and button layout.
3. 설정
3.1 배터리 설치
- 리모콘 뒷면에 있는 배터리함 덮개를 찾으세요.
- Slide or gently press and lift the cover to open the compartment.
- Insert the required batteries (typically AAA, refer to the compartment for specific type and polarity) ensuring the positive (+) and negative (-) terminals align correctly with the markings inside the compartment.
- 배터리 칸 덮개를 다시 끼우고, 제자리에 단단히 고정되었는지 확인하세요.
3.2 첫 번째 사용
After installing the batteries, the remote control is ready for use. Point the infrared emitter directly towards the EDM Model 07214 device you wish to control. Ensure there are no obstructions between the remote and the device.
4. 운영
4.1 기본 기능
The EDM 00780 remote control operates via infrared technology, providing a maximum range of 10 meters under optimal conditions. To operate, simply press the desired button while pointing the remote at the EDM Model 07214.
4.2 버튼 기능
Specific button functions will correspond to the features of your EDM Model 07214. Common button types include:
- 전원 버튼: 장치를 켜거나 끄려면
- 기능 버튼: For specific operations (e.g., mode selection, timer, light control).
- 탐색 버튼: If applicable, for menu navigation.
Refer to the user manual of your EDM Model 07214 for detailed descriptions of each button's function.
5. 유지관리
5.1 청소
리모컨을 청소하려면 부드럽고 마른 천을 사용하세요. 잘 지워지지 않는 오염의 경우, 가볍게 두드리세요.ampen the cloth with water or a mild cleaning solution. Do not use abrasive cleaners, alcohol, or solvents, as these can damage the surface or internal components.
5.2 배터리 교체
Replace batteries when the remote control's response becomes sluggish or stops working. Follow the battery installation steps outlined in Section 3.1. Always replace all batteries at the same time with new ones of the same type.
5.3 보관
Store the remote control in a cool, dry place away from direct sunlight and extreme temperatures. If storing for an extended period, remove the batteries to prevent leakage and potential damage.
6. 문제 해결
6.1 일반적인 문제
| 문제 | 가능한 원인 | 해결책 |
|---|---|---|
| 리모콘이 응답하지 않음 | 배터리가 방전되었거나 잘못 설치되었습니다. | 배터리를 올바른 극성으로 교체하세요. |
| 제한된 범위 또는 간헐적 반응 | Weak batteries, obstruction, or remote not pointed correctly. | Replace batteries. Ensure a clear line of sight to the device. Point directly at the device. |
| 특정 버튼이 작동하지 않습니다 | Button malfunction or device not recognizing command. | Clean the remote. Test other buttons. If only one button fails, contact support. |
7. 사양
| 특징 | 사양 |
|---|---|
| 모델 번호 | 00780 |
| 상표 | 일렉트릭 디엠 |
| 연결 기술 | 적외선 |
| 컨트롤러 유형 | Push-button Control |
| 최대 범위 | 10 미터 |
| 특징 | 인체공학적 디자인 |
| 치수(길이 x 너비 x 높이) | 10 x 10 x 10cm |
| 무게 | 20g |
| 색상 | 다색 |
| 원산지 | 스페인 |
8. 보증 및 지원
This product is covered by a standard manufacturer's warranty. For specific warranty terms and conditions, please refer to the documentation provided with your EDM Model 07214 device or contact EDM customer support directly. For technical assistance or further inquiries, please visit the official EDM web사이트 또는 고객 서비스 부서에 문의하십시오.
