제품 끝view
The Craftmade X66 Series LED Flush Mount Ceiling Light (Model X6611-SB-LED) is designed for indoor use, providing efficient and dimmable illumination. This 11-inch wide fixture features a satin brass finish and an acrylic shade, offering a transitional style suitable for various rooms.

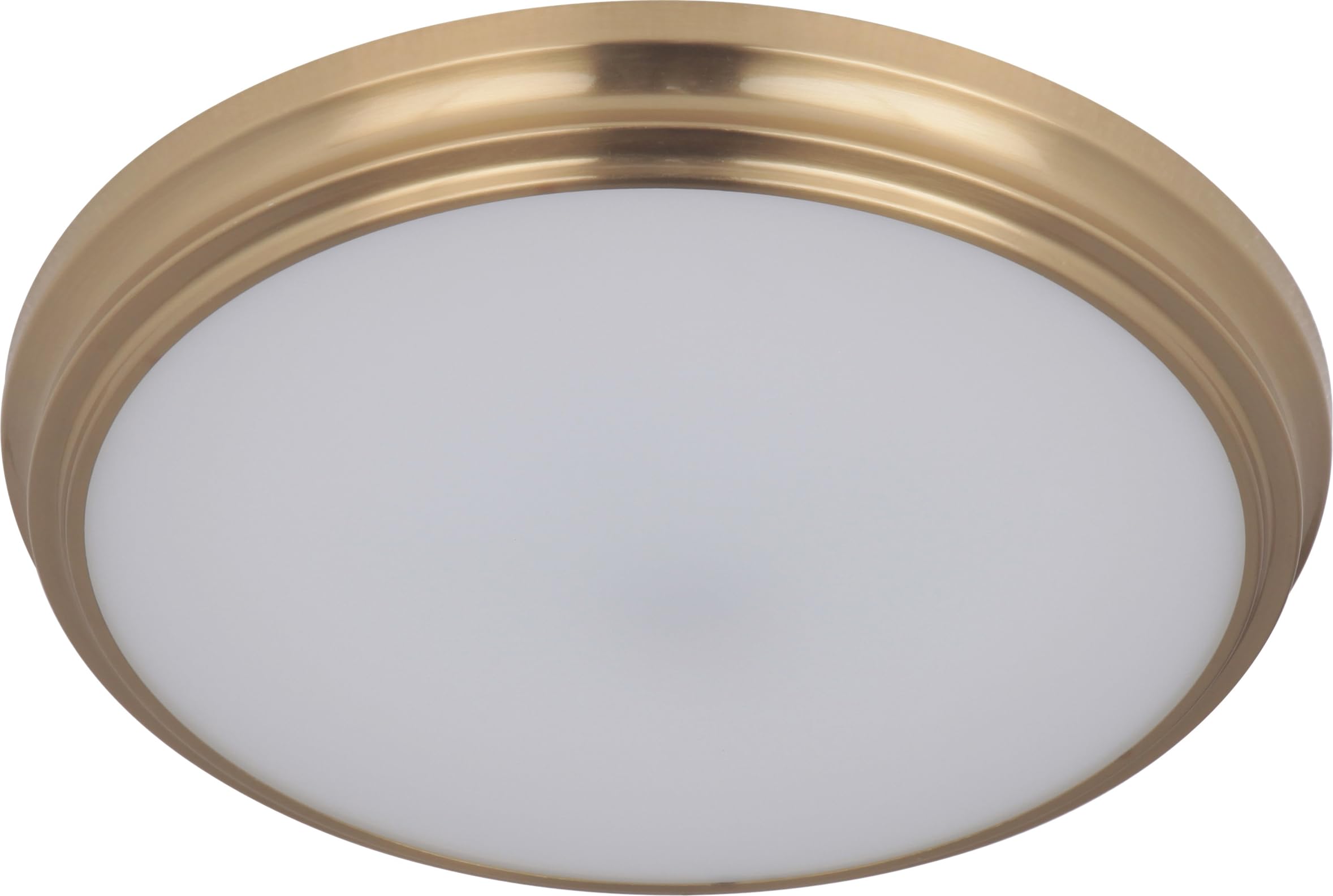

Image: Craftmade X66 Series LED Flush Mount Ceiling Light, 11" Width, Satin Brass finish.
설정 및 설치
This fixture requires assembly and installation to an existing junction box (junction box not included). Professional installation is recommended for electrical work.
포함된 구성 요소:
- Flushmount fixture
- 그늘(들)
- 통합 LED
- 하드웨어 팩
- Installation Guide (refer to the physical guide for detailed steps)
설치 단계(일반):
- 안전이 최우선입니다. 설치를 시작하기 전에 회로 차단기에서 전원을 차단하십시오.
- 구성 요소 풀기: Carefully remove all parts from the packaging and inspect for damage.
- 장착 브래킷 : Secure the mounting bracket to your existing ceiling junction box using the provided hardware.
- 전기 연결: Connect the fixture's electrical wires to the household wiring according to local electrical codes. Ensure proper grounding.
- 보안 고정 장치: Attach the fixture body to the mounting bracket.
- 그늘을 설치하십시오: Secure the acrylic shade to the fixture body.
- 복원력 : Turn power back on at the circuit breaker and test the light.
메모: This fixture is designed for indoor, ceiling mount, flush installation and operates on 120 Volts. It is ETL Approved for INDOOR Locations.
작동 지침
The Craftmade X66 Series LED Flush Mount Ceiling Light features an integrated 18 Watt LED light source with a color temperature of 3000 Kelvin, providing 900 lumens of illumination with a 90 CRI.
조광 기능:
This fixture is dimmable. To utilize the dimming feature, ensure you have a compatible LED dimmer switch installed. Refer to your dimmer switch's instructions for proper operation.
제어 방법:
The light can be controlled via an app. Please refer to the specific app instructions or the full installation guide for details on connecting and controlling your fixture through the app.
유지
Regular maintenance will help preserve the appearance and functionality of your Craftmade X66 Series LED Flush Mount Ceiling Light.
- 청소: 청소하기 전에 전원이 꺼져 있는지 확인하십시오. 부드럽고 마른 천이나 약간 젖은 천으로 조명 기구를 닦으십시오.amp 천을 사용하십시오. 연마성 세척제, 용제 또는 광택제는 마감재나 아크릴 색상을 손상시킬 수 있으므로 사용하지 마십시오.
- LED 관리: The integrated LED is designed for long-lasting performance and does not require bulb replacement.
문제 해결
If your Craftmade X66 Series LED Flush Mount Ceiling Light is not functioning as expected, please consult the following common issues:
- 표시등이 켜지지 않음:
- Check that the power supply is on at the circuit breaker.
- 모든 전기 연결이 안전하고 올바른지 확인하세요.
- 벽 스위치가 "켜짐" 위치에 있는지 확인하십시오.
- 예상치 못하게 불빛이 깜빡이거나 어두워짐:
- Confirm that a compatible LED dimmer switch is being used. Incompatible dimmers can cause flickering.
- 느슨한 전선 연결을 확인하세요.
- 광 출력이 너무 낮거나 너무 높습니다.
- Adjust the dimmer switch if one is installed.
- Ensure the fixture is receiving the correct voltage(120볼트).
이러한 단계를 거쳐도 문제가 해결되지 않으면 고객 지원팀에 문의하세요.
명세서
| 상표 | 수공예품 |
| 모델 번호 | X6611-SB-LED |
| 모델명 | X66 flushmounts |
| 치수(길이 x 너비 x 높이) | 11인치 길이 x 11인치 너비 x 1.5인치 높이 |
| 무게 | 2.73 파운드 |
| 마치다 | 새틴 황동 |
| 그늘 소재 | 아크릴 |
| 광원 유형 | 통합 LED |
| 왓tage | 18 와트 |
| 색온도 | 3000 켈빈 |
| 루멘 출력 | 900루멘 |
| 크리 | 90 |
| 권tage | 120 볼트 |
| 밝기 조절 가능 | 예 |
| 설치 유형 | 매립형, 천장형 |
| 실내/실외 사용 | 실내 |
| 인증 | ETL Approved (Damp, cSGSus) |
| 제어 방법 | App (details in full guide) |
| 한국어: | 647881187279 |
보증 및 지원
보증 정보:
This Craftmade fixture comes with a 1년 보증 on the fixture components and a 3년 보증 on the integrated LED light source. Please retain your proof of purchase for warranty claims.
고객 지원:
For technical assistance, troubleshooting, or warranty inquiries, please contact Craftmade Customer Support at:
핸드폰: (800) 486-4892
Please have your model number (X6611-SB-LED) and date of purchase ready when contacting support.
