1. 서론
The JETBeam HR30 is a high-performance rechargeable headlamp designed for various outdoor activities. It delivers up to 960 lumens of bright illumination and features a versatile 160-degree rotatable mechanism for precise light direction. Equipped with a Type-C fast charging port and compatible with 18650, 20700, or 2CR123A batteries, the HR30 ensures reliable power. Its durable anodized aluminum construction, removable bracket design, and tail magnet function enhance its utility and adaptability in diverse environments. This manual provides essential information for the safe and effective use of your headlamp.

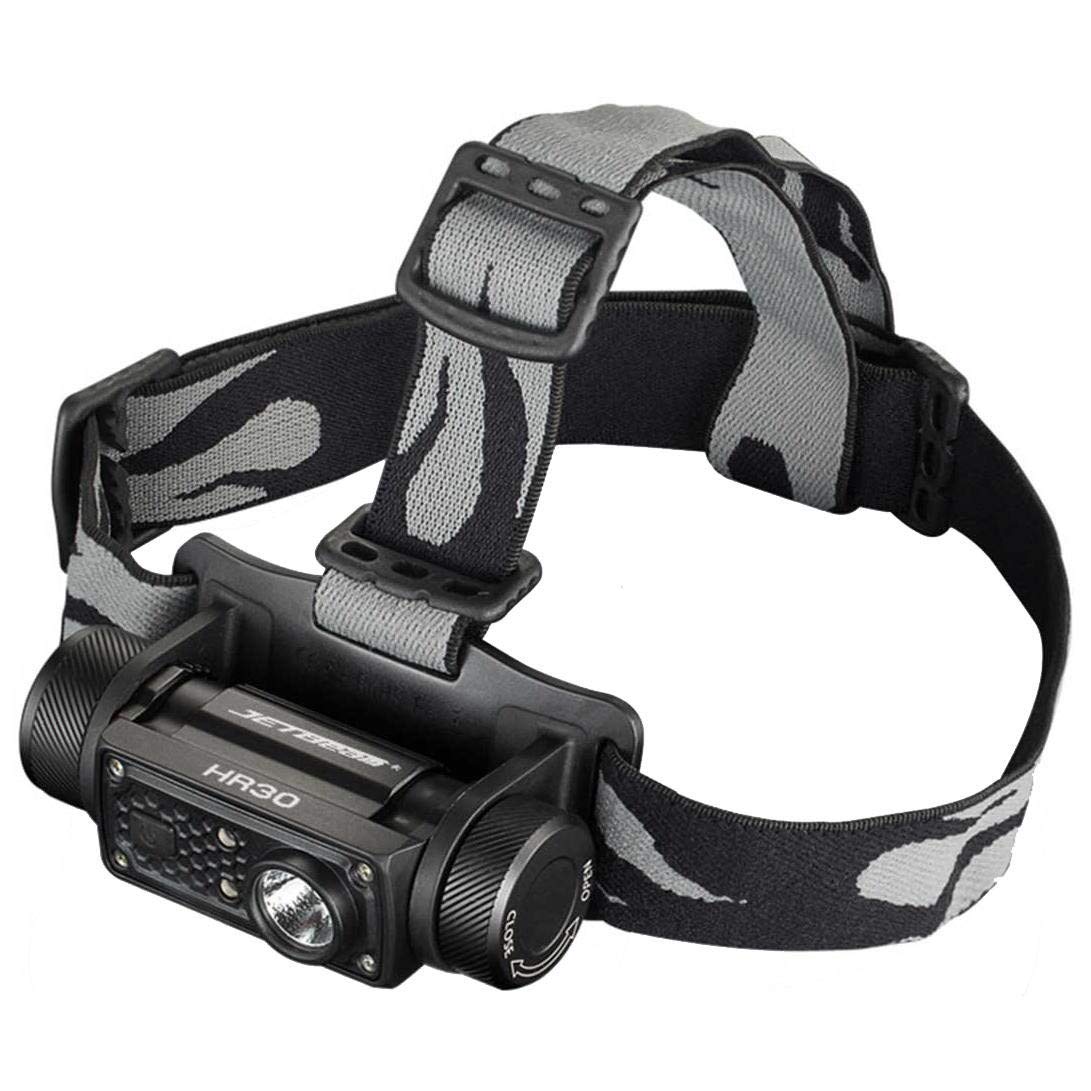

Figure 1: JETBeam HR30 Rechargeable Headlamp, 보여 주다asin컴팩트한 디자인과 조절 가능한 스트랩이 특징입니다.
2. 상자 안에 무엇이 들어있나요?
- JETBeam HR30 Rechargeable Headlamp (960루멘)
- 제품별 배터리 1개(포함)
3. 특징
- 고휘도 : Up to 960 lumens white light output.
- 다양한 기능: Compatible with 18650, 20700, or 2CR123A batteries.
- USB Type-C 충전: 빠르고 편리한 충전.
- 빨간불 모드: Available on both front and rear for preserving night vision or enhanced visibility.
- 조정 가능한 빔 각도: 160-degree rotatable mechanism for directing light precisely.
- 내구성 있는 구조: Made from anodized aluminum.
- 편안한 착용감: Lightweight design for extended wear.
- 방수 기능: IPX4 rated, suitable for rainy conditions.
- Removable Bracket: 다양한 설치 옵션을 제공합니다.
- Tail Magnet Function: Provides hands-free attachment to metal surfaces.
4. 설정
4.1. 배터리 설치
- Open the battery compartment located at the rear of the headlamp.
- Insert the provided 18650 battery (or a compatible 20700/2CR123A battery) according to the polarity indicators.
- 배터리 칸을 단단히 닫으세요.
4.2. 헤드밴드 조정
머리amp features an adjustable headband for a secure and comfortable fit. Use the two loops on either side of the headlamp to tighten or loosen the strap until it fits snugly around your head without being too tight. The design ensures a balanced feel, minimizing bounce during activity.
5. 사용 설명서
5.1. 전원 켜기/끄기
- 헤드를 켜려면amp, press and hold the power button located on the top of the unit.
- 헤드를 끄려면amp, press and hold the power button again.
5.2. 조명 모드 전환
Once powered on, short press the power button to cycle through the available white light modes (e.g., high, medium, low, ultra-low). The HR30 also offers a dedicated red light mode for both front and rear lights.
- 백색광 모드: 950 lumens, 400 lumens, 150 lumens, 50 lumens, 5 lumens, 1 lumen.
- 빨간불 모드: To activate the red light, typically a double-press or long-press from off or a specific sequence is required (refer to quick start guide for exact sequence if not specified).
- 깜박이는 빨간불: The rear red light can be set to a flashing mode for increased visibility, especially when running or cycling in traffic.
5.3. Adjusting Beam Angle
The front light module can be tilted up or down to adjust the beam angle. There are approximately four to five distinct angle levels, allowing you to direct the light straight ahead for distant viewing or downwards to illuminate your immediate path, which is particularly useful for trail running or detailed tasks.
5.4. 배터리 표시기
머리amp features a battery indicator (usually small LED lights) to show the remaining power level. Monitor this indicator to ensure you have sufficient charge for your activities.
6. 충전
The JETBeam HR30 is equipped with a USB Type-C charging port for convenient and fast recharging. Locate the Type-C port, typically protected by a rubber cover, and connect it to a compatible USB power source using a Type-C cable (not always included). The battery indicator lights will typically show charging progress and full charge status.
7. 유지관리
- 청소: 헤드를 닦아주세요amp 부드러운 damp 천. 연마성 세척제나 용매를 사용하지 마십시오.
- 배터리 관리 : If storing for extended periods, remove the battery or ensure it is charged periodically to maintain battery health.
- 방수 기능: Ensure the USB port cover is securely closed to maintain the IPX4 water resistance rating.
8. 문제 해결
- 헤드amp 켜지지 않음: 배터리가 올바르게 설치되었고 완전히 충전되었는지 확인하세요.
- 희미한 조명 출력: 배터리가 부족할 수 있습니다. 헤드를 다시 충전하세요.amp.
- 충전 문제: Ensure the USB Type-C cable and power adapter are functioning correctly. Check for any debris in the charging port.
9. 사양
| 전체 길이 | 3.43인치 |
| Lumens (White Light) | 950/400/150/50/5/1 |
| 실행 시간 | 2.8 hours (950lm) / 3.8 hours (400lm) / 10.5 hours (150lm) / 30 hours (50lm) / 100 hours (5lm) / 100 hours (1lm) |
| 재료 | 양극산화 알루미늄 |
| 빔 거리 | 120 미터 |
| 전원 | 배터리 구동 |
| 광원 유형 | 주도의 |
| 배터리 셀 구성 | 리튬 이온 |
| 품목 무게 | 0.25 파운드 |
| 배터리 수 | 1(포함) |
| 방수 레벨 | IPX4 Rated (Water Resistant) |
| 품목 치수(LxWxH) | 3.43 x 1.81 x 1.75 인치 |
10. 안전 정보
경고: 이 제품에는 캘리포니아 주에서 암, 선천적 기형 또는 기타 생식 기능 장애를 유발하는 것으로 알려진 화학 물질이 포함되어 있습니다. 항상 주의해서 취급하고 모든 안전 지침을 준수하십시오.
11. 보증 및 지원
For warranty information and customer support, please refer to the documentation provided with your purchase or visit the official JETBeam web사이트. 보증 청구를 위해 구매 증빙 자료를 보관하세요.
