소개
This manual provides essential information for the safe and efficient use of your SunPower 50 Watt Flexible Monocrystalline High Efficiency Solar Panel. Designed for portability and high performance, this panel utilizes SunPower's advanced Maxeon solar cells, offering superior power output and charging capabilities. Its lightweight polymer construction allows for easy transport and installation, with flexibility up to 30 degrees.
Please read this manual thoroughly before installation and operation to ensure optimal performance and longevity of your solar panel.
제품 끝view
그림 1: 앞쪽 view of the SunPower 50 Watt Flexible Solar Panel, showing the monocrystalline cells and integrated junction box with MC4 connectors.
그림 2: The flexible solar panel resting on grass, illustrating its ability to bend and conform to surfaces, making it ideal for various applications.
그림 3: An illustrative diagram highlighting the panel's mounting holes with grommets and its impressive flexibility of up to 30 degrees, allowing for diverse installation methods.
그림 4: A diagram emphasizing the waterproof locking MC4 connectors and the use of the latest Maxeon Series Solar Cells, ensuring high efficiency and reliable connections.
설정 및 설치
The SunPower flexible solar panel is designed for easy installation. It can be mounted using adhesives or by utilizing the stainless steel grommets located in the panel's corners.
장착 옵션:
- 접착 장착: For a flush and secure installation on flat or slightly curved surfaces, high-strength marine-grade or outdoor-rated adhesives can be used. Ensure the surface is clean and dry before application.
- 그로밋 장착: The panel features four reinforced grommets, one in each corner. These can be used with screws, bolts, or tie-downs for a removable or semi-permanent installation.
그림 5: 클로즈업 view of one of the panel's reinforced grommets, shown with a quarter for size reference, indicating its robust construction for mounting.
그림 6: The back of the solar panel, displaying the product identification label with model number and electrical specifications.
전기 연결:
The panel comes equipped with standard MC4 male and female connectors for easy and secure connection to solar-compatible devices such as charge controllers, batteries, or inverters. Connection cables are device-specific and sold separately.
그림 7: 자세한 view of the integrated SUNLOK Micro Junction Box and PV4-S connectors, which are part of the panel's wiring system.
그림 8: The standard MC4 male and female connectors, designed for secure and weather-resistant connections in solar power systems.
중요한 안전 정보: Solar modules can produce full voltage even in very low light. Installation should only be done by a qualified technician to avoid severe electrical hazards. Refer to the warning label on the back of the panel for detailed safety information.

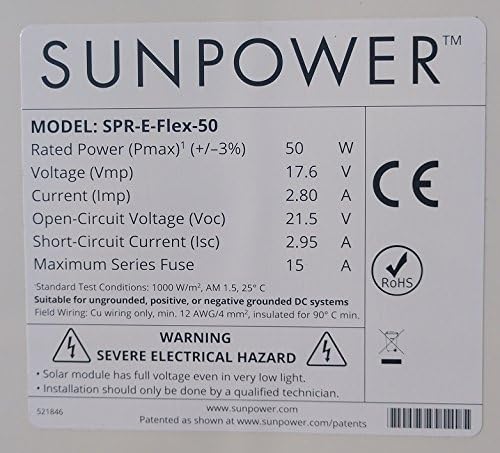

그림 9: A close-up of the warning label on the back of the panel, detailing electrical hazards and installation recommendations.
작동 지침
Once properly installed and connected to a compatible charge controller and battery system, your SunPower solar panel will begin generating electricity when exposed to sunlight. The panel converts sunlight directly into DC (Direct Current) electricity.
최적의 성능:
- 햇빛 노출: For maximum power output, ensure the panel is positioned to receive direct, unobstructed sunlight throughout the day. Shading, even partial, can significantly reduce efficiency.
- 각도: Orient the panel towards the sun. In most applications, a slight tilt towards the sun's path will yield better results than a completely flat orientation.
- 온도: While solar panels operate in various temperatures, extreme heat can slightly reduce efficiency. Ensure adequate ventilation around the panel if possible.
The panel is designed to be highly efficient, even in less than ideal conditions, thanks to its Maxeon cells. However, consistent direct sunlight is key to achieving its rated 50 Watt output.
유지
Regular maintenance will help ensure the long-term performance and efficiency of your solar panel.
청소:
- Clean the surface of the panel periodically to remove dust, dirt, leaves, or other debris that may accumulate and obstruct sunlight.
- Use a soft cloth or sponge with mild soap and water. Avoid abrasive cleaners or harsh chemicals that could damage the panel surface.
- 깨끗한 물로 깨끗이 헹구고 공기 건조시키세요.
- Clean during cooler parts of the day (early morning or late afternoon) to prevent water spots and thermal shock.
점검:
- Periodically inspect the panel for any signs of physical damage, such as cracks, delamination, or discoloration.
- Check the electrical connections (MC4 connectors and wiring) for corrosion, loose connections, or damage. Ensure they are securely fastened.
- Verify that mounting points are secure and free from wear.
If any significant damage is observed, consult a qualified technician for repair or replacement.
문제 해결
태양광 패널이 예상대로 작동하지 않는 경우, 다음과 같은 일반적인 문제와 해결 방법을 고려해 보세요.
| 문제 | 가능한 원인 | 해결책 |
|---|---|---|
| 전력 출력이 낮거나 없음 |
|
|
| Panel Not Charging Battery |
|
|
For issues not resolved by the above steps, or for any concerns regarding electrical safety, it is recommended to consult a qualified solar technician.
명세서
| 기인하다 | 값 |
|---|---|
| 상표 | 썬파워 |
| 모델 번호 | SPR-E-Flex-50 |
| 정격 전력(Pmax) | 50 와트 |
| 권tag전자(Vmp) | 17.6 볼트 |
| 현재 (Imp) | 2.80 Amps |
| 개방 회로 Voltag전자 (Voc) | 21.5 볼트 |
| 단락 전류 (Isc) | 2.95 Amps |
| 최대 시리즈 퓨즈 | 15 Amps |
| 재료 | 단결정 실리콘 |
| 제품 크기(L x W x H) | 25.5인치 길이 x 21.9인치 너비 x 0.8인치 높이 |
| 품목 무게 | 3.79 파운드 |
| 능률 | 고효율성 |
| 커넥터 유형 | MC4 |
| 특징 | 무연 |
| 용법 | Bimini or Deck Mounted Flexible Solar Panel |
참고 : 사양은 예고없이 변경 될 수 있습니다.
보증 및 지원
Your SunPower 50 Watt Flexible Monocrystalline High Efficiency Solar Panel comes with a 5 Year SunPower Warranty이 보증은 정상적인 사용 및 서비스 조건 하에서의 재료 및 제조상의 결함에 적용됩니다.
For warranty claims, technical support, or further inquiries, please refer to the contact information provided with your product packaging or visit the official SunPower website. Ensure you have your product's serial number (located on the back of the panel) and proof of purchase available when contacting support.
