1. 서론
This manual provides essential instructions for the safe and efficient operation, maintenance, and troubleshooting of your Bosch Robinair SPX AC400-650 vacuum pump. Please read this manual thoroughly before operating the unit to ensure proper use and to prevent damage or injury. Keep this manual for future reference.
2. 안전 정보
부상이나 장비 손상의 위험을 줄이려면 항상 다음 안전 수칙을 준수하십시오.
- 전기 안전: Ensure the power supply matches the pump's requirements. Do not operate with damaged cords or plugs. Always disconnect power before servicing.
- 개인 보호 장비(PPE): Wear safety glasses and gloves when handling vacuum pump oil or working with refrigerants.
- 통풍: Operate the pump in a well-ventilated area to dissipate heat and prevent the accumulation of fumes.
- 뜨거운 표면: 펌프 모터와 하우징은 작동 중에 뜨거워질 수 있습니다. 직접 접촉을 피하십시오.
- 오일 취급: Use only recommended vacuum pump oil. Avoid skin contact and dispose of used oil responsibly according to local regulations.
- 안정적인 배치: Always place the pump on a stable, level surface to prevent tipping.
- 용도: Use the pump only for its intended purpose of creating a vacuum in sealed systems. Do not use for pumping flammable or corrosive gases.
3. 제품 오버view
The Bosch Robinair SPX AC400-650 is a robust vacuum pump designed for efficient evacuation of HVAC/R systems. Its reliable performance ensures deep vacuum levels for optimal system operation.

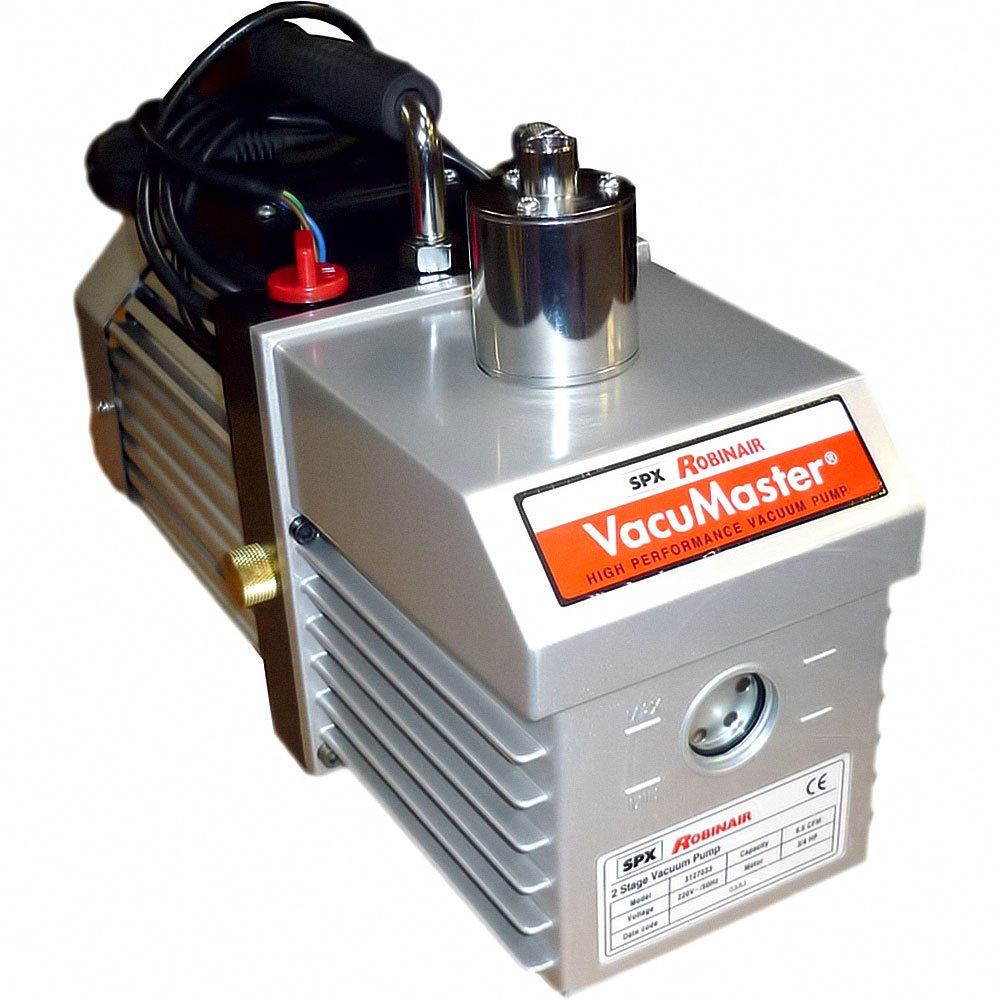

Image showing the Bosch Robinair SPX AC400-650 vacuum pump from a front-side angle, highlighting its compact design and main housing.
4. 설정
- 짐 풀기: 진공 펌프와 모든 부속품을 포장에서 조심스럽게 꺼내십시오. 배송 중 파손 여부를 확인하십시오.
- 놓기: Position the pump on a firm, level surface in a well-ventilated area. Ensure there is adequate space around the unit for air circulation.
- 오일 주입:
- 엔진 오일 주입구 캡을 찾아서 제거하세요.
- Pour the recommended vacuum pump oil into the reservoir until the oil level is between the MIN and MAX marks on the sight glass. Do not overfill.
- 엔진 오일 주입구 캡을 단단히 닫으십시오.
- 전기 연결: 전원 코드를 볼륨에 맞는 접지형 콘센트에 연결하십시오.tage 및 펌프의 주파수 사양.
5. 사용 설명서
- 시스템 연결 : 적절한 진공 호스와 연결 부품을 사용하여 진공 펌프를 진공을 제거할 시스템에 연결하십시오. 누출을 방지하기 위해 모든 연결부가 단단히 조여졌는지 확인하십시오.
- 전원 켜기: Turn the power switch to the 'ON' position. The pump should start running.
- 소개: Allow the pump to run until the desired vacuum level is achieved. Monitor the vacuum gauge on your manifold or system.
- Monitoring Oil: Periodically check the oil level and clarity through the sight glass during operation. If the oil appears cloudy or discolored, it may need changing.
- 전원 끄기 : Once evacuation is complete, close the valve to the system, then turn the power switch to the 'OFF' position.
- 연결 해제: 진공 호스를 펌프와 시스템에서 조심스럽게 분리하십시오.
6. 유지관리
정기적인 유지보수는 진공 펌프의 수명 연장과 최적의 성능을 보장합니다.
- 오일 교환: Change the vacuum pump oil regularly, typically after every 10-20 hours of operation or if it appears discolored or contaminated. Refer to the pump's specific instructions for the oil change procedure.
- 청소: Keep the exterior of the pump clean and free of dust and debris. Ensure cooling fins are not obstructed.
- 저장: When not in use, store the pump in a clean, dry environment. Ensure the oil is at the correct level and the inlet/outlet ports are capped to prevent contamination.
7. 문제 해결
진공 펌프에 문제가 발생하면 다음의 일반적인 문제 및 해결 방법을 참조하십시오.
| 문제 | 가능한 원인 | 해결책 |
|---|---|---|
| 펌프가 시작되지 않습니다 | 전원 없음, 스위치 고장, 모터 문제 | Check power connection, test outlet, inspect power cord. If problem persists, contact service. |
| 진공 성능이 좋지 않음 | Low oil level, contaminated oil, system leak, worn pump components | Check/change oil. Check all system connections for leaks. If necessary, contact service for inspection. |
| 과도한 소음 또는 진동 | Low oil, contaminated oil, loose components, motor issue | Check/change oil. Ensure pump is on a stable surface. Inspect for loose parts. If noise persists, contact service. |
| 배기가스에서 나오는 기름 분무 | Overfilled oil, contaminated oil, missing/clogged exhaust filter | Check oil level and adjust. Change oil if contaminated. Inspect and clean/replace exhaust filter if applicable. |
For issues not listed here or if solutions do not resolve the problem, please contact authorized service personnel.
8. 사양
- 상표: 보쉬
- 모델: Robinair SPX AC400-650
- ASIN: B07BL55HXP
- 첫 번째 가능한 날짜: 15년 2020월 XNUMX일
- 소프트웨어 업데이트 보장 기간: (제품 정보에 따르면) 알 수 없음
For detailed technical specifications such as flow rate, ultimate vacuum, motor power, and oil capacity, please refer to the product label or official Bosch Robinair documentation.
9. 보증 및 지원
For detailed warranty information, terms, and conditions, please refer to the official Bosch product documentation included with your purchase or visit the official Bosch website. For technical support, service, or spare parts, please contact your authorized Bosch Robinair dealer or customer service center.
