소개
This manual provides detailed instructions for the installation, operation, and maintenance of your ORICO 3.5-inch USB 3.1 External Hard Drive Enclosure. This enclosure is designed to convert a 3.5-inch SATA HDD or SSD into an external storage device, offering high-speed data transfer and broad compatibility.
Image: The ORICO 3.5-inch USB 3.1 External Hard Drive Enclosure shown with its detachable vertical stand.
패키지 내용
패키지에 모든 품목이 들어 있는지 확인하세요.
- 1 x 3.5인치 하드 드라이브 인클로저
- USB 케이블 1개 (USB-C-USB-A)
- 1 x 12V/2A 전원 어댑터
- 1 x 분리형 베이스
- 1 x 드라이버
Image: All components included in the ORICO 3.5-inch external hard drive enclosure package.
설정 및 설치
Follow these steps to install your 3.5-inch SATA hard drive or SSD into the enclosure:
- 인클로저를 엽니다: 제공된 드라이버를 사용하여 케이스 덮개를 여십시오.
- 하드 드라이브 삽입: Carefully slide your 3.5-inch SATA HDD or SSD into the enclosure, ensuring it connects securely to the internal SATA connector.
- 인클로저를 닫습니다. Replace the cover and tighten the screws using the screwdriver.
- 전원에 연결: Connect the 12V/2A power adapter to the enclosure's power port and plug it into an electrical outlet.
- 컴퓨터에 연결: Connect the USB cable from the enclosure's USB 3.1 Type-C port to an available USB port on your computer. The device is plug-and-play.
Image: Step-by-step visual instructions for hard drive installation and connection.
The enclosure includes a detachable base for vertical placement, which can help save desk space. For portability, the main enclosure can be used without the base.
Image: The enclosure can be used vertically with its stand to save space or horizontally for portability.
작동 지침
Once connected, the enclosure will be recognized by your operating system. A blue LED indicator on the front of the enclosure will illuminate to show power and activity status.
Image: The blue LED indicator signifies power and data activity.
데이터 전송 속도
The enclosure supports USB 3.1 Gen1 to SATA 3.0 with a maximum data transfer rate of 5 Gbps. It also supports the UASP (USB Attached SCSI Protocol) for enhanced performance, especially with SSDs.

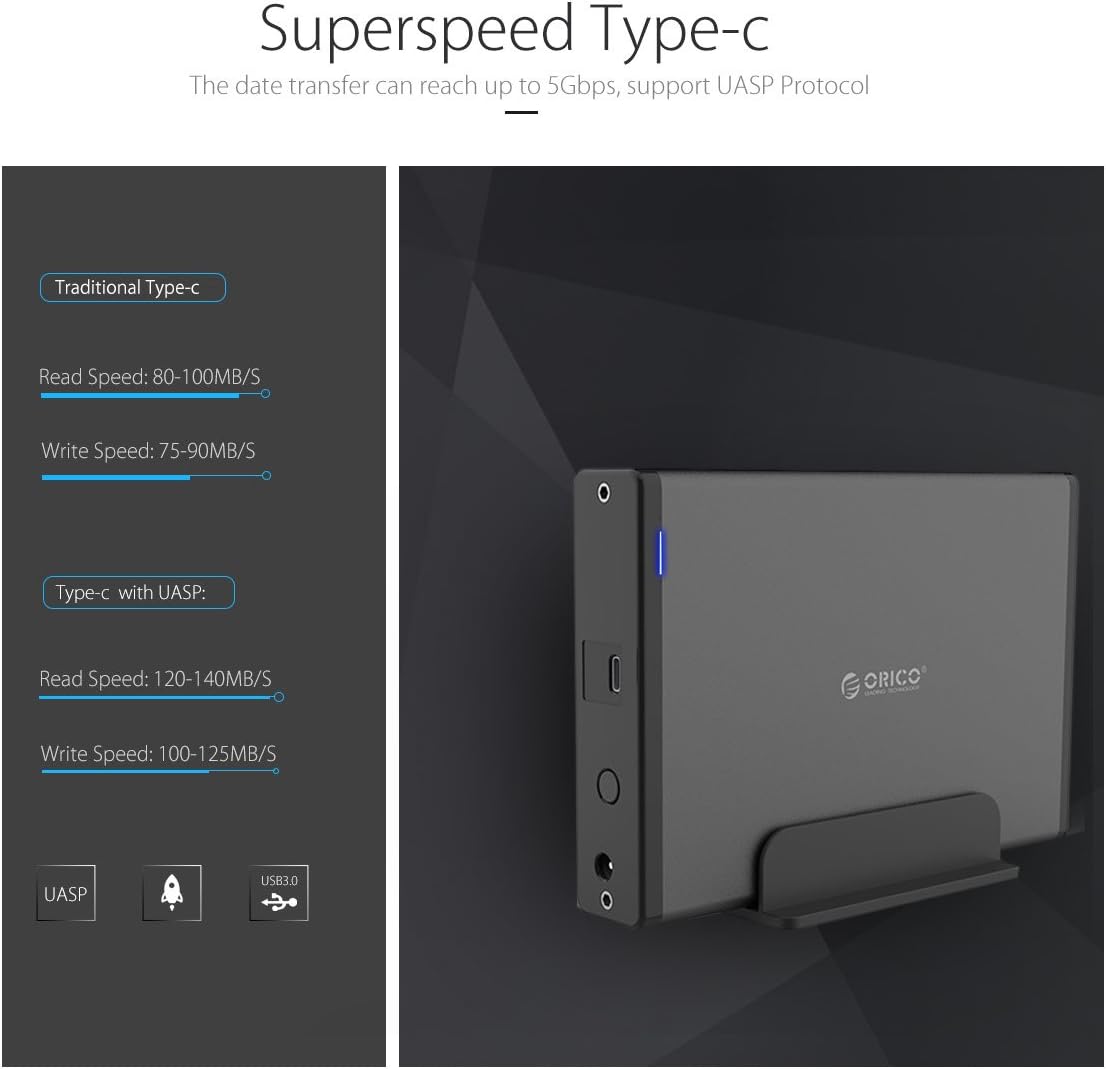

Image: Comparison of data transfer speeds with and without UASP support.
Smart Auto Sleep Function
The enclosure features a smart auto-sleep function that activates after 10 minutes of inactivity to conserve power and extend the lifespan of your hard drive.
Image: The enclosure enters sleep mode after 10 minutes of idle time.
호환성
This enclosure is designed for broad compatibility:
- 하드 드라이브 유형: Supports 3.5-inch SATA I/II/III HDDs and SSDs.
- 최대 용량: 최대 18TB 하드 드라이브를 지원합니다.
- 운영 체제: Compatible with Windows 10/8/7, Mac OS 8.0 and above, and Linux systems.
- 인터페이스: Connects via USB 3.1 Gen1 Type-C port.
중요한: Ensure your hard drive uses a Serial ATA (SATA) port. This enclosure is not compatible with Parallel ATA (IDE) ports.
Image: Visual guide to distinguish between compatible SATA and incompatible IDE ports.
명세서
| 모델 | 7688 USB C (7688C3) |
| 연결 기술 | SATA, USB |
| 인터페이스 | USB 3.1 Gen1 (Type-C), SATA 3.0 |
| 데이터 전송 속도 | 최대 5Gbps |
| 지원되는 드라이브 유형 | 3.5인치 SATA HDD/SSD |
| 최대 저장 용량 | 18 TB (up to 20 TB mentioned in some specifications) |
| 재료 | High-quality Magnesium Alloy, Aluminum, ABS |
| 치수(길이 x 너비 x 높이) | 17.4 x 12.5 x 2.8cm |
| 무게 | 560g |
| 전원 어댑터 | 12V/2A |
| 특징 | UASP Support, Hot Swap, Plug and Play, Smart Auto Sleep (10 mins) |
문제 해결
- 인식되지 않는 장치:
- 전원 어댑터가 제대로 연결되어 있고 케이스의 전원이 켜져 있는지 확인하십시오.
- Check the USB cable connection to both the enclosure and your computer. Try a different USB port or cable.
- Verify that the hard drive is properly seated within the enclosure and connected to the SATA interface.
- For Windows users, check Disk Management to see if the drive appears but needs initialization or formatting. For Mac users, check Disk Utility.
- If using Windows 11 and experiencing recognition issues, ensure your system drivers are up to date. Some users have reported compatibility challenges with specific Windows 11 configurations.
- 느린 데이터 전송:
- Ensure you are connected to a USB 3.0 or USB 3.1 port on your computer. Connecting to a USB 2.0 port will result in slower speeds.
- Verify that your operating system and drivers support UASP for optimal performance.
- 하드 드라이브 자체의 속도가 제한 요소가 될 수 있습니다.
- Hard Drive Not Fitting:
- Ensure you are using a 3.5-inch SATA HDD/SSD. The enclosure is not designed for 2.5-inch drives or IDE drives.
- Check for any internal obstructions or misalignments. Some hard drives might have slight variations in dimensions; ensure proper alignment with the SATA connector.
- 외부 전원 케이블이 무작위로 분리됩니다:
- Check power connections and USB cable integrity.
- Disable USB selective suspend settings in your computer's power options (Windows) or energy saver settings (Mac) to prevent the system from powering down the USB port.
유지
To ensure the longevity and optimal performance of your ORICO enclosure:
- 케이스를 깨끗하고 먼지가 없는 상태로 유지하세요. 청소 시에는 부드럽고 마른 천을 사용하세요.
- 극한의 온도, 습도 또는 직사광선에 장치를 노출하지 마십시오.
- 제품을 떨어뜨리거나 강한 충격을 가하지 마십시오.
- Always safely eject the hard drive from your operating system before disconnecting the USB cable or power.
- 사용하지 않을 때는 케이스를 서늘하고 건조한 곳에 보관하십시오.
보증 및 지원
ORICO 제품에는 표준 제조업체 보증이 제공됩니다. 구체적인 보증 조건은 제품에 동봉된 보증 카드를 참조하거나 ORICO 공식 웹사이트를 방문하십시오. website. For technical support or customer service, please contact ORICO customer support through their official channels.
제조업체: 오리코 테크놀로지스 주식회사
