1. 서론
Welcome to your new VASAGLE HSR40B Coat Rack Hall Tree. This manual provides detailed instructions for assembly, operation, and maintenance to ensure safe and efficient use of your product. Please read through these instructions carefully before beginning assembly and retain this manual for future reference.
Image 1.1: The VASAGLE HSR40B Coat Rack Hall Tree in a home entryway, showcasin디자인과 기능성이 뛰어납니다.
2. 제품 구성품
조립하기 전에 아래 나열된 모든 구성품이 포함되어 있고 손상되지 않았는지 확인하세요. 부품이 누락되었거나 손상된 경우 고객 지원 센터에 문의하세요.
Video 2.1: Assembly video for the VASAGLE HSR40B Coat Rack Hall Tree. This video demonstrates the step-by-step process of putting the unit together, including identifying all parts and hardware.
부품 목록:
- A x 2 (Side Frames)
- B x 2 (Wire Shelves)
- C x 2 (Top Horizontal Bars)
- D x 1 (Bench Board)
- E x 2 (Lower Horizontal Bars)
- F x 2 (Upper Side Bars)
- G x 1 (Top Hanging Rail)
- H x 2 (Hook Boards)
하드웨어 목록:
- I x 9 (Removable Hooks)
- J x 4 (Adjustable Feet)
- K x 12 (Long Screws for Frame)
- L x 8 (Screws for Hook Boards)
- M x 8 (Small Screws for Bench Board)
- N x 8 (Screws for Upper Side Bars)
- O x 2 (Anti-tipping Kit)
- P x 1 (Hex Key)
3. 설치 및 조립
Follow these steps to assemble your VASAGLE HSR40B Coat Rack Hall Tree. Refer to Video 2.1 for visual guidance.
1단계: 베이스 프레임 조립
- Attach the adjustable feet (J) to the bottom of the side frames (A). (Refer to Video 2.1, 0:09)
- Connect the two wire shelves (B) to the side frames (A) using screws (K) and the hex key (P). Ensure the shelves are securely fastened. (Refer to Video 2.1, 0:25)
Step 2: Attach the Bench Board
- Secure the bench board (D) to the top of the assembled base frame using screws (M) and the hex key (P). (Refer to Video 2.1, 0:55)
3단계: 상단 프레임 조립
- Connect the lower horizontal bars (E) to the upper side bars (F) using screws (M) and the hex key (P). (Refer to Video 2.1, 1:41)
- Attach the assembled upper side bars (F) to the main base frame using screws (N) and the hex key (P). (Refer to Video 2.1, 2:11)
- Secure the top hanging rail (G) to the top of the upper side bars (F) using screws (L) and the hex key (P). (Refer to Video 2.1, 2:23)
Step 4: Install Hook Boards and Anti-tipping Kit
- Attach the hook boards (H) to the upper frame using screws (L) and the hex key (P). (Refer to Video 2.1, 2:35)
- Insert the removable hooks (I) into the designated slots on the hook boards.
- Install the anti-tipping kit (O) to secure the unit to the wall, preventing accidental tipping. Drill pilot holes, insert wall anchors, and secure the straps to the unit and the wall. (Refer to Video 2.1, 2:49)
4. 사용 설명서
Your VASAGLE HSR40B Coat Rack Hall Tree is designed for versatile storage in your entryway or other living spaces.
Video 4.1: Product features video for the VASAGLE HSR40B Coat Rack Hall Tree, demonstrating its various functionalities in a home setting.
4.1 Coat Rack Functionality
The top rail is designed for hanging coats, jackets, and shirts on hangers. The 9 removable hooks can be adjusted along the wooden panels to suit your needs, each supporting up to 3 kg for bags, scarves, and hats.

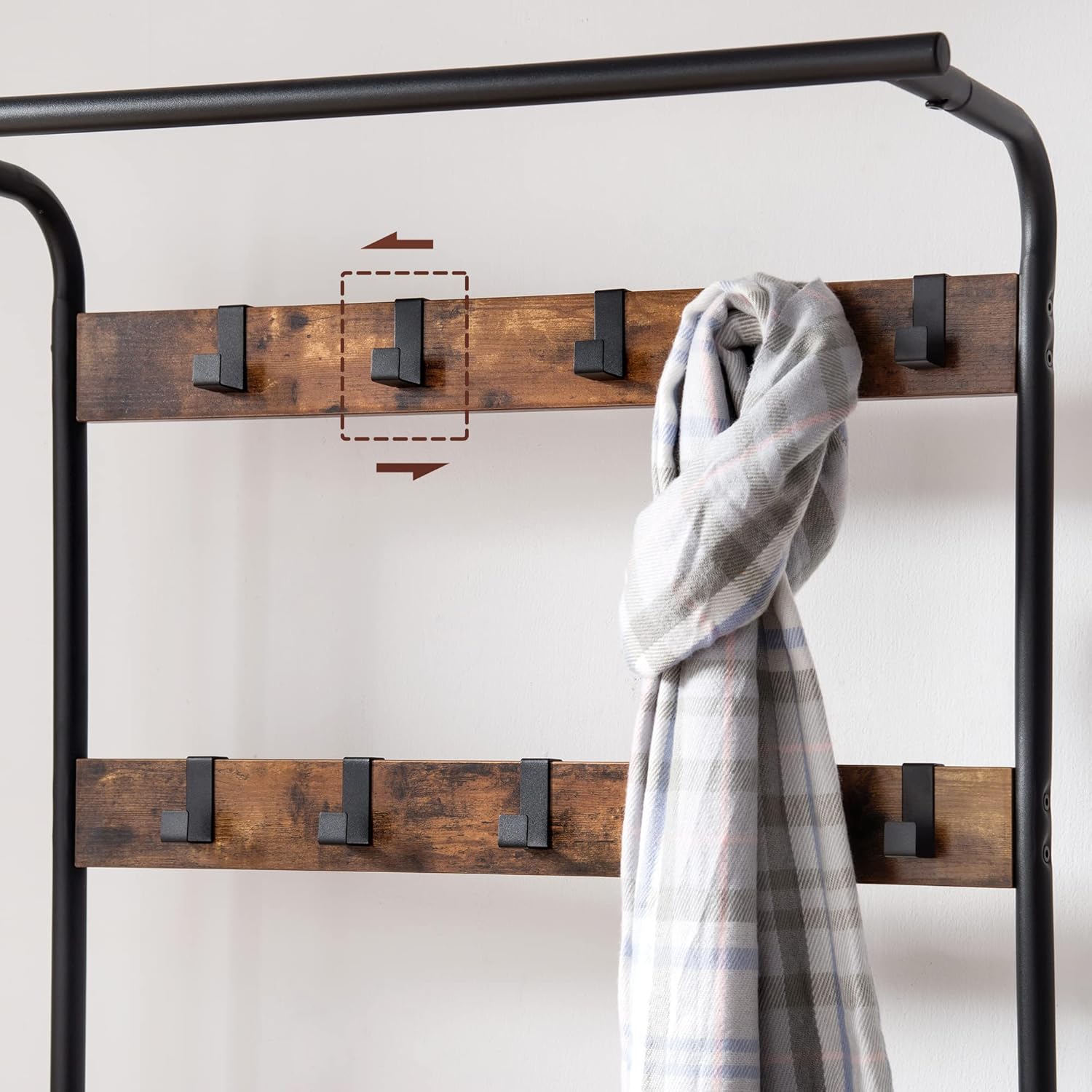

Image 4.1.1: Detail of the adjustable hooks, showing how they can be moved along the wooden panel.
4.2 Entryway Bench
The sturdy bench provides a comfortable seating area for changing shoes. It has a maximum load capacity of 80 kg. The side handles offer additional support when sitting down or standing up.
Image 4.2.1: A person comfortably using the bench to put on shoes.
4.3 Shoe Rack
The two lower mesh shelves offer convenient storage for multiple pairs of shoes, helping to keep your entryway tidy and organized.
Image 4.3.1: Detail of the two-tier shoe rack, showing its capacity for footwear.
4.4 조절 식 다리
The adjustable feet at the base of the unit allow you to stabilize the hall tree on uneven floors, preventing wobbling and ensuring safety. They also protect your flooring from scratches.
Image 4.4.1: Detail of an adjustable foot, illustrating its leveling capability.
5. 유지관리
To ensure the longevity and appearance of your VASAGLE HSR40B Coat Rack Hall Tree, follow these maintenance guidelines:
- 청소: 부드러운 d로 표면을 닦으십시오.amp cloth. For stubborn dirt, a mild detergent can be used, followed by wiping with a dry cloth. Avoid abrasive cleaners.
- 패스너: 모든 나사와 연결부가 단단히 조여져 있는지 정기적으로 점검하세요. 안정성을 유지하기 위해 필요한 경우 다시 조여주세요.
- 환경: Avoid exposing the product to direct sunlight for extended periods or to excessive moisture, as this can cause damage to the materials.
6. 문제 해결
If you encounter any issues with your product, refer to the following common troubleshooting tips:
- 불안정성/흔들림: Ensure all assembly screws are fully tightened. Check if the unit is on an even surface; adjust the leveling feet (J) as needed to compensate for unevenness.
- 잃어버린 부분들: If you find any parts missing upon unboxing, please refer to the 'Product Components' section and contact VASAGLE customer support with your model number and the specific part(s) required.
- 조립의 어려움: Review the assembly video (Video 2.1) and ensure all steps are followed correctly. Verify that you are using the correct screws for each connection point.
7. 사양
| 기인하다 | 사양 |
|---|---|
| 모델 번호 | HSR40B |
| 치수(길이 x 너비 x 높이) | 72 x 33.7 x 183cm |
| 무게 | 9.9kg |
| 재료 | Powder-coated Steel Tube, Particleboard |
| 벤치 하중 용량 | 80kg |
| Hook Load Capacity | 3 kg per hook |
| 조립이 필요합니다 | 예 |
8. 보증 및 지원
For detailed warranty information, product registration, or to contact customer support for any inquiries or assistance, please refer to the documentation included with your product packaging or visit the official VASAGLE website. Please have your model number (HSR40B) and purchase information ready when contacting support.
