1. 제품 오버view
The Seville Classics AIRLIFT Pro S3 Electric Adjustable Standing Desk is designed for professional-grade use in various workspaces, including business, school, or home environments. This desk promotes active work habits by allowing seamless transitions between sitting and standing positions, contributing to improved well-being and productivity.
주요 특징은 다음과 같습니다.
- 조용한 듀얼 모터: Enables smooth and rapid height adjustments from 25.6 inches to 51.4 inches at 1.5 inches per second.
- Solid Single-Piece Top: A 54" x 28" solid wood top provides a smooth, spacious work surface. It is CARB Phase 2 compliant for safety.
- LED Display Height Controller: Features a digital controller with an LED display and four memory settings for convenient, consistent height adjustments.
- 전문가 수준의 디자인: Tested and certified to ANSI/BIFMA X5.5 safety standards, ETL certified, and CARB Phase 2 compliant for durability and performance in commercial settings.
- 인체공학적 특징: Sloped desk top edges offer extra legroom when the desk is in a lowered position.
- 내구성 있는 구조: Industrial-strength steel frame ensures stability and longevity.
Figure 1: The AIRLIFT Pro S3 desk in a standing configuration, demonstrating ergonomic use.
2. 설치 및 조립
The AIRLIFT Pro S3 desk is designed for simple assembly. It typically ships in two separate boxes: one for the desktop and one for the adjustable base. Pre-installed anchors on the desktop facilitate an easier installation process.
2.1 언박싱 및 준비
- 모든 구성품을 조심스럽게 꺼내어 동봉된 부품 목록과 대조하여 확인하십시오.
- Ensure you have adequate space for assembly. It is recommended to assemble the desk upside down on a soft surface (e.g., a blanket or towel) to protect the desktop finish.
- The base is heavy (approximately 76 lbs); assistance may be required for lifting and positioning.
2.2 조립 단계
- Attach the support beam to the legs.
- Secure the feet to the bottom of the legs.
- Mount the assembled frame to the underside of the desktop using the pre-installed anchors.
- Connect the control panel and power cables.
- Carefully flip the desk upright and place it in its desired location.
- Install the screw-in leveling feet to ensure stable operation on uneven surfaces.
Figure 2: Desk components indicating pre-assembly and easy setup.
3. 사용 설명서
The AIRLIFT Pro S3 desk features an intuitive digital controller for height adjustment and memory settings.
3.1 책상 높이 조절
- 사용하세요 Up 그리고 아래에 arrow buttons on the controller to raise or lower the desk. The LED display will show the current height.
- The desk adjusts smoothly and quietly at 1.5 inches per second.
3.2 Using Memory Settings
The controller allows you to store up to four preferred height settings for quick recall.
- 원하는 높이로 책상을 조정하세요.
- 를 누르세요 M 버튼을 누르세요. LED 표시등이 깜빡입니다.
- Within 3 seconds, press one of the numbered memory buttons (1, 2, 3, 또는 4현재 높이를 해당 위치에 저장합니다.
- 저장된 높이를 불러오려면 해당 번호의 메모리 버튼을 누르기만 하면 됩니다. 책상이 자동으로 저장된 위치로 이동합니다.
Figure 3: Digital control panel for height adjustment and memory settings.
Figure 4: Desk height range from 25.6" to 51.4".
4. 유지관리 및 관리
Proper maintenance ensures the longevity and optimal performance of your AIRLIFT Pro S3 desk.
- 청소: The MDF wood top with laminate finish is spill-proof and easy to clean. Use a soft, damp cloth with mild soap for general cleaning. Avoid harsh chemicals or abrasive cleaners.
- 유출 방지: Always use coasters when placing hot or cold drinks on the desktop to prevent potential damage or marks.
- 중량 용량: Do not exceed the maximum weight capacity of 264 lbs. Overloading can damage the motors and frame.
- 케이블 관리 : Regularly check and organize cables to prevent tangles and ensure smooth operation during height adjustments.
- 점검: 모든 나사와 연결부를 정기적으로 점검하여 단단히 조여져 있는지 확인하세요. 필요하면 다시 조이세요.
5. 문제 해결
책상에 문제가 발생하면 다음의 일반적인 문제 해결 단계를 참조하세요.
- 책상이 움직이지 않음: Check if the power cord is securely plugged into both the desk and a working electrical outlet. Ensure no objects are obstructing the desk's movement.
- 디스플레이에 표시된 오류 코드: If an error code appears, try unplugging the desk from the power source for 10-15 seconds, then plug it back in. This often resets the system. If the error persists, consult the warranty information for support.
- 고르지 않은 움직임: Verify that the leveling feet are properly adjusted and the desk is on a flat surface. Ensure the weight on the desk is evenly distributed and within the specified capacity.
- Memory Settings Not Working: Re-program the memory settings by following the steps in Section 3.2.
6. 사양
| 특징 | 사양 |
|---|---|
| 상표 | 세비야 클래식 |
| 모델 번호 | OFFK65826 |
| 제품 치수 | 54" W x 28" D x (25.6" to 51.4" H) |
| 높이 조절 범위 | 25.6인치에서 51.4인치까지 |
| 높이 조절 속도 | 초당 1.5인치 |
| 중량 용량 | 264파운드 |
| 상단 소재 | MDF Wood with Laminate Finish |
| 기본 소재 | Industrial-strength Alloy Steel |
| 모터 | Dual Electric Motors |
| 메모리 설정 | 4 programmable settings |
| 인증 | ANSI/BIFMA X5.5, ETL Certified, CARB Phase 2 Compliant |
| 품목 무게 | 120파운드 |
| 한국어: | 017641658262 |

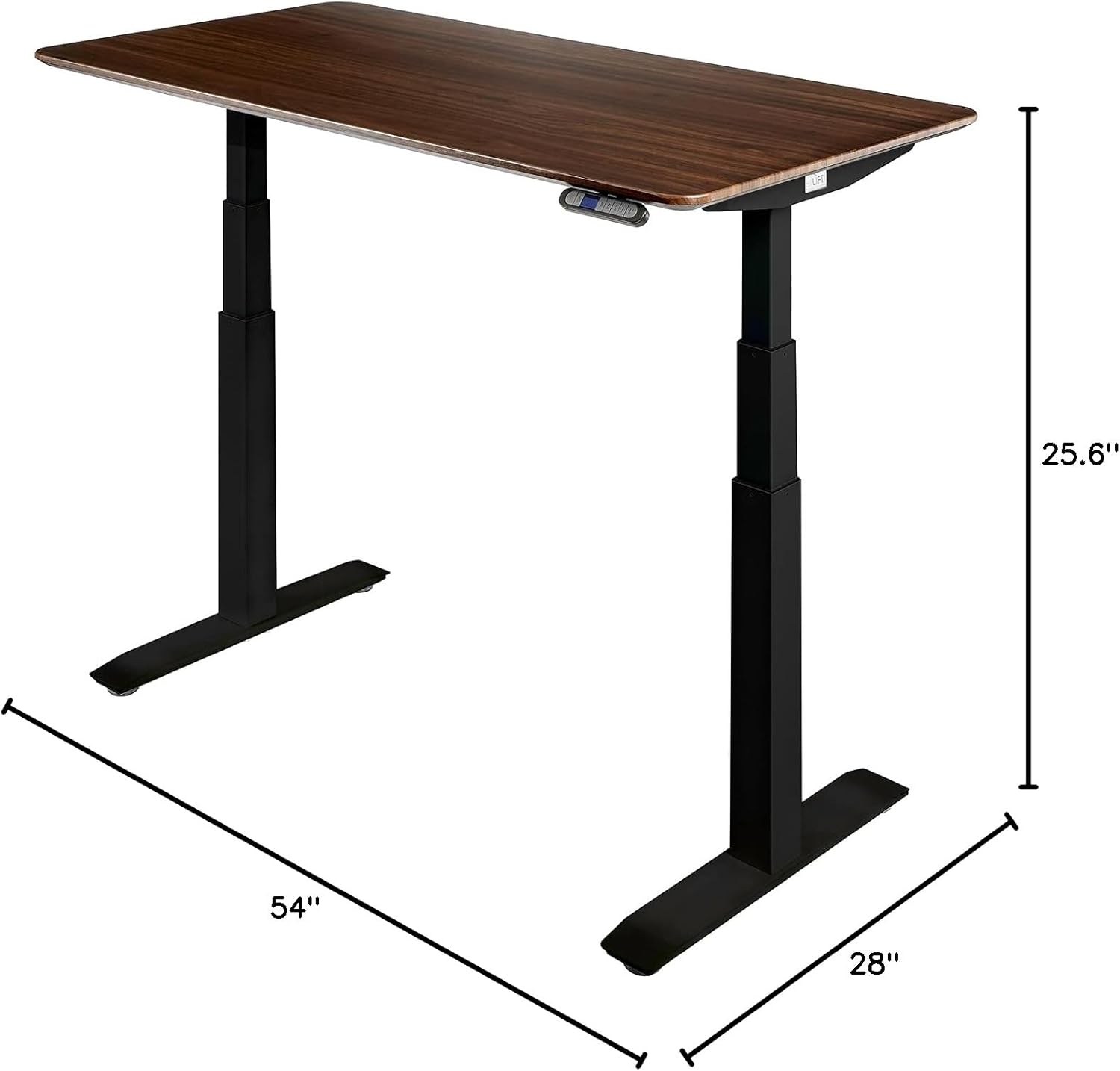

Figure 5: Desk dimensions.
7. 보증 및 지원
Seville Classics provides comprehensive coverage for your AIRLIFT Pro S3 Electric Adjustable Standing Desk.
- 7-Year Non-Electronic Component Warranty: Seville Classics, Inc. warrants to the original retail purchaser that if this product proves to be defective in material or workmanship, non-electronic parts will be replaced for a period of seven years from the date of original purchase.
- 2-Year Electronic Component Warranty: Seville Classics, Inc. warrants to the original retail purchaser that if this product proves to be defective in material or workmanship, affected electronic part(s) will be replaced for a period of two years from the date of original purchase.
For customer support or warranty claims, please refer to the contact information provided at the point of purchase or visit the official Seville Classics web대지.
그림 6: 고객 지원 정보.
