Hoffen 4-Step Pontoon Boat Ladder LD8051S Instruction Manual

1. 서론

This manual provides instructions for the safe and proper installation, operation, and maintenance of your Hoffen 4-Step Pontoon Boat Ladder, Model LD8051S. This heavy-duty, all-welded 316 stainless steel ladder features a unique universal self-supporting design, telescoping steps, and comfortable handrails for easy boarding. Please read this manual thoroughly before use and retain it for future reference.

2. 안전 정보

• Always ensure the ladder is securely mounted and fully extended before use.
• 최대 하중 용량 600파운드(272kg)을 초과하지 마십시오.
• Exercise caution when boarding or disembarking, especially in choppy water conditions.
• Keep hands and feet clear of telescoping sections when extending or retracting the ladder to prevent pinching.
• Regularly inspect the ladder for any signs of wear, damage, or loose fasteners. Do not use if damaged.
• Ensure steps are clean and free of slippery substances before use. The grooved PVC pads are designed to enhance grip.

3. 패키지 내용

설치를 시작하기 전에 모든 구성 요소가 있는지 확인하세요.

• 1 x 4-Step Boat Ladder
• 1 x 장착 브래킷
• 2 x Handrails
• 고정 스트랩 1개
• Installation tools (wrench, screws, bolts)

4. 사양

5. 설정 및 설치

The Hoffen 4-Step Pontoon Boat Ladder is designed for straightforward installation on various boat types, including pontoons and speed boats, as well as docks or pools with suitable decking. Installation tools (wrench, screws, bolts) are included.

설치 단계:

1. Positioning the Mounting Bracket: Identify a suitable, sturdy location on your boat's transom, swim platform, or deck for the mounting bracket. Ensure the location allows for full extension of the ladder into the water and safe clearance from propellers or other obstructions.
2. Securing the Mounting Bracket: Use the provided screws and bolts to securely fasten the mounting bracket to the chosen surface. The bracket typically requires three screws on the lip and two additional screws for stability. Ensure all fasteners are tightened to prevent movement.
3. Attaching the Handrails: Insert the two handrails into the designated slots on the mounting bracket. Secure them using the provided hardware.
4. Connecting the Ladder: Attach the main ladder assembly to the handrail supports. The design allows the ladder to pivot for deployment and storage.
5. 최종 확인: Before initial use, verify that all connections are secure and the ladder operates smoothly.

설치 비디오 :

For a visual guide on installation and operation, please refer to the video below:

6. 운영

Deploying the Ladder:

1. Release the fixing strap that holds the folded ladder in place.
2. Gently lower the folded ladder assembly into the water.
3. Extend the telescoping steps downwards until they are fully deployed. Ensure each step locks into place.

Retracting and Storing the Ladder:

1. From the water, push the telescoping steps upwards until they are fully retracted.
2. Lift the entire ladder assembly out of the water and fold it upwards onto the boat's platform.
3. Secure the folded ladder with the provided fixing strap to prevent accidental deployment or movement during transit.

Key Features for Ease of Use:

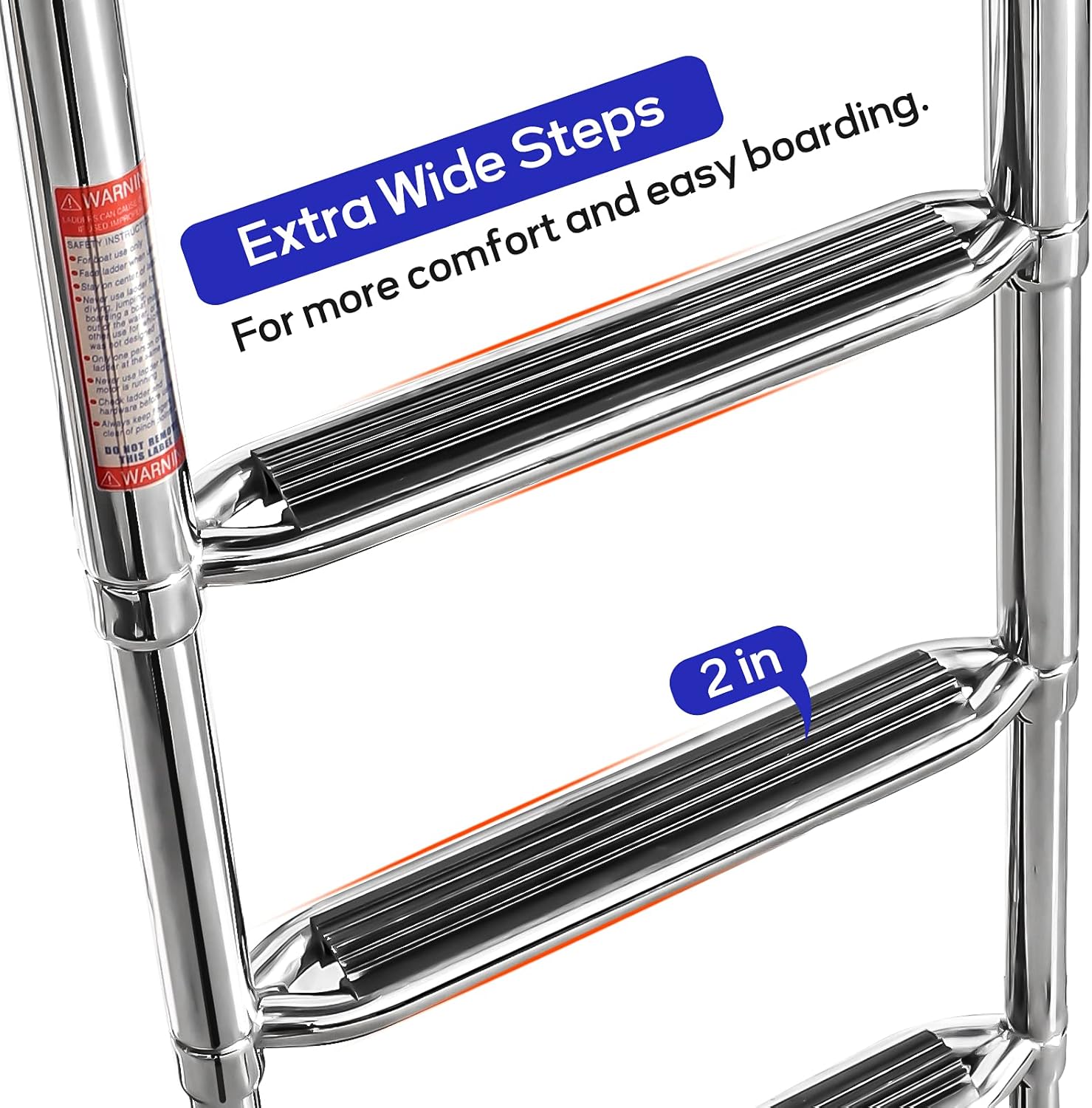

• Extra Wide Steps: The steps are 2 inches wide and covered with grooved PVC pads to ensure solid footing, even when wet, providing comfort during boarding.
• Extra Tall Handrails: Comfortable handrails (19 inches high) provide secure grip and leverage for easier boarding.
• 각진 디자인: The ladder is designed with a slight angle to facilitate easier boarding compared to a straight vertical ladder.
• 원활한 작동: Nylon bushings between ladder sections ensure smooth sliding and prevent galling or inadvertent deployment.

7. 유지관리

Proper maintenance will ensure the longevity and safe operation of your Hoffen boat ladder.

• 청소: Regularly rinse the ladder with fresh water, especially after use in saltwater, to remove salt, dirt, and other debris. Use a mild soap and soft brush if necessary, then rinse thoroughly.
• 점검: Periodically inspect all welds, fasteners, and moving parts for any signs of corrosion, wear, or damage. Ensure the nylon bushings are intact for smooth telescoping action.
• 저장: When not in use, especially during off-season or extended periods, retract and fold the ladder, securing it with the fixing strap. This protects the ladder from environmental exposure and extends its life.
• 매끄럽게 하기: Lightly lubricate telescoping sections with a marine-grade lubricant if movement becomes stiff.

8. 문제 해결

If you encounter issues with your Hoffen 4-Step Pontoon Boat Ladder, consider the following:

• 사다리가 불안정하게 느껴져요. Check all mounting screws and bolts to ensure they are securely tightened. Verify that the mounting surface is robust and free from damage.
• Difficulty extending/retracting steps: Ensure no debris is lodged in the telescoping sections. Clean the ladder thoroughly and apply a marine-grade lubricant if needed. Check for any bent or damaged sections that might impede movement.
• Steps are slippery: Clean the PVC pads on the steps to remove any algae, dirt, or residue.
• Ladder does not stay folded: Ensure the fixing strap is properly engaged and tightened around the folded ladder sections.

9. 보증 및 지원

Specific warranty information for the Hoffen 4-Step Pontoon Boat Ladder (Model LD8051S) is not provided in this manual. For warranty details, product support, or to inquire about replacement parts, please contact Hoffen customer service directly through their official channels or the retailer from whom the product was purchased.
