1. 서론
This manual provides essential information for the safe and efficient installation, operation, and maintenance of your Balboa Water VIC1070021 0.25HP 230V Circulation Pump. Please read these instructions thoroughly before attempting to install or operate the pump. Retain this manual for future reference.
The Balboa Water VIC1070021 is a high-quality circulation pump designed for continuous operation in various water systems, including spas and hot tubs. It features a 0.25 horsepower motor and operates on a 230V electrical supply, ensuring reliable water circulation.
2. 안전 정보
경고: Electrical shock hazard. All electrical wiring must be performed by a qualified electrician and comply with all applicable local and national electrical codes. Failure to do so can result in serious injury or death.
- Always disconnect power to the pump at the circuit breaker before performing any installation, maintenance, or service.
- Do not operate the pump if it has been damaged or submerged in water.
- 감전을 방지하기 위해 펌프의 접지를 제대로 하십시오.
- 모든 전기 연결부는 건조하게 유지하고 습기로부터 보호하십시오.
- Do not run the pump dry. Operating without water can cause severe damage to the pump and void the warranty.
- This pump is designed for specific applications. Do not use it for purposes other than those specified.
3. 패키지 내용
포장을 풀 때 모든 구성품이 들어 있고 손상되지 않았는지 확인하세요.
- 1 x Balboa Water VIC1070021 0.25HP 230V Circulation Pump
- 1 x 10 Frame Amp Cord (pre-attached)
- 사용 설명서(본 문서)
4. 설정 및 설치
펌프의 성능과 수명을 위해서는 올바른 설치가 매우 중요합니다. 설치 과정 중 어느 단계라도 확신이 서지 않는다면 자격을 갖춘 전문가에게 문의하십시오.
4.1 설치 전 확인 사항
- 설치 장소가 평평하고 건조하며 통풍이 잘 되는지 확인하십시오.
- Confirm that the electrical supply matches the pump's requirements (230V).
- Verify that plumbing connections are clean and free of debris.
4.2 펌프 장착
Mount the pump securely to a solid, vibration-free surface. Use appropriate fasteners to prevent movement during operation.

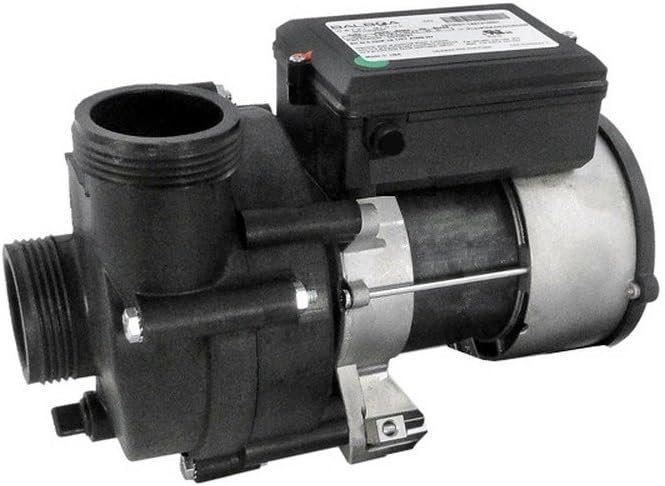

그림 1: 측면 view of the Balboa Water VIC1070021 Circulation Pump, showing the motor and wet end assembly. This view is helpful for identifying mounting points and connection ports during installation.
4.3 배관 연결
- Connect the pump's inlet to the suction line and the outlet to the return line using appropriate plumbing fittings.
- Ensure all connections are watertight to prevent leaks. Use thread sealant or Teflon tape as required.
- Avoid overtightening fittings, which can cause damage.
4.4 전기 배선
중요한: Electrical wiring must be performed by a licensed electrician.
- Connect the pre-attached 10 Frame Amp Cord to a dedicated 230V circuit protected by a Ground Fault Circuit Interrupter (GFCI).
- 현지 전기 규정에 따라 적절한 접지를 확보하십시오.
- 모든 연결 부분이 안전하고 절연되어 있는지 확인하세요.
5. 사용 설명서
5.1 초기 시동 및 준비
- Before starting the pump, ensure the system is filled with water and all valves are open to allow water flow.
- Open the air relief valve (if present) on the filter or pump housing to release trapped air.
- Restore power to the pump. The pump should start and begin to draw water.
- Once a steady stream of water flows from the air relief valve, close it.
- Check for any leaks around the pump and plumbing connections.
5.2 정상 작동
The pump is designed for continuous circulation. Monitor the system regularly for proper water flow and any unusual noises. Refer to your spa or hot tub control system manual for specific programming of circulation cycles.
6. 유지관리
Regular maintenance ensures optimal performance and extends the life of your circulation pump.
- 정기적으로 검사하세요: Periodically check the pump for any signs of wear, leaks, or damage.
- 임펠러 청소: If flow is reduced, the impeller may be clogged. Disconnect power, drain the pump, and carefully remove any debris from the impeller area.
- 모터 환기: 모터의 통풍구가 막히지 않도록 하여 과열을 방지하십시오.
- 겨울철 : In freezing climates, the pump must be properly drained and winterized to prevent damage from ice expansion. Consult your spa or hot tub manual for specific winterization procedures.
그림 2: 전면 view of the Balboa Water VIC1070021 Circulation Pump, highlighting the plumbing connection points. This view is useful for checking for leaks and ensuring proper sealing during maintenance.
7. 문제 해결
Before attempting any repairs, always disconnect power to the pump.
| 문제 | 가능한 원인 | 해결책 |
|---|---|---|
| 펌프가 시작되지 않습니다 | No power, tripped breaker, faulty wiring, seized motor. | Check power supply and breaker. Verify wiring connections. If motor is seized, professional service may be required. |
| 물의 흐름이 적다 | Clogged filter, air in system, clogged impeller, restricted plumbing. | Clean or replace filter. Prime the pump. Clear impeller of debris. Check plumbing for obstructions. |
| 이상한 소음이나 진동 | Air in system, foreign object in impeller, worn bearings, loose mounting. | Prime the pump to remove air. Inspect impeller for debris. Secure mounting bolts. Worn bearings require professional repair. |
| 물 누출 | Loose plumbing connections, damaged seals, cracked housing. | Tighten connections. Inspect and replace seals if damaged. A cracked housing typically requires pump replacement. |
8. 사양
| 특징 | 세부 사항 |
|---|---|
| 모델 번호 | 빅1070021 |
| 상표 | 발보아 워터 그룹 |
| 마력 (HP) | 0.25마력 |
| 권tage | 230V |
| 프레임 크기 | 10 프레임 |
| 코드 길이 | 120 inches (pre-attached) |
| 스타일 | 퍼뜨리는 사람 |
| 전원 | 코드식 전기 |
| 제품 치수 | Approximately 1 x 1 x 1 inches (Note: This dimension seems generic, actual pump dimensions may vary) |
| 한국어: | 682470332371 |
9. 보증 및 지원
For warranty information, technical support, or replacement parts, please contact Balboa Water Group directly or refer to their official web사이트. 보증 청구를 위해 구매 증빙 자료로 구매 영수증을 보관하세요.
제조업체: 발보아 워터 그룹
