1. 제품 오버view
The JETBeam JET-IIIM 3M PRO is a high-performance tactical flashlight designed for reliability and durability. Featuring a powerful Cree XP-L LED, it delivers a maximum output of 1100 lumens, making it suitable for various applications including law enforcement, defense, outdoor sports, and general illumination. Its robust construction from aero-grade aluminum alloy and advanced features ensure optimal performance in demanding environments.

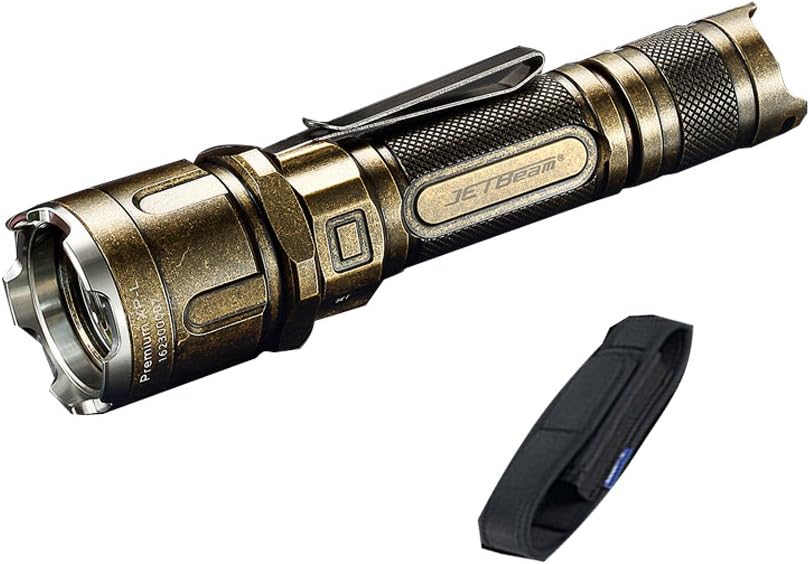

Image: The JETBeam JET-IIIM 3M PRO Tactical Flashlight shown alongside its included holster, highlighting its compact and rugged design.
2. 주요 특징
- 고성능 LED: Utilizes a Cree XP-L LED for a maximum output of 1100 lumens.
- Dual Mode Interface: Convenient two-mode interface by rotating the head, allowing for quick switching between tactical and general modes.
- Reliable Tail Switch: Features a tactical tail switch for reliable ON/OFF operation and momentary activation.
- 고급 전력 관리: Built-in efficient power management circuit provides a maximum runtime of 280 hours.
- 내구성 있는 구조: Made from aero-grade aluminum alloy with a Type III hard-anodized anti-abrasive finish.
- 내 충격성 : Designed to withstand impacts up to 1.5 meters, conforming to US MIL-STD-810F.
- 방수복: IPX-8 rated, submersible up to 2 meters.
- 배터리 다양성: Compatible with RCR123, CR123, and 18650 batteries.
- Crenulated Bezel: Free stainless steel crenulated bezel protects key parts and can be used for emergency glass breaking.
Image: Illustration of the flashlight's two-mode interface, controlled by rotating the head, and the reliable tail switch.
이미지: 자세한 view of the Cree XP-L LED, highlighting its efficiency and brightness capabilities.

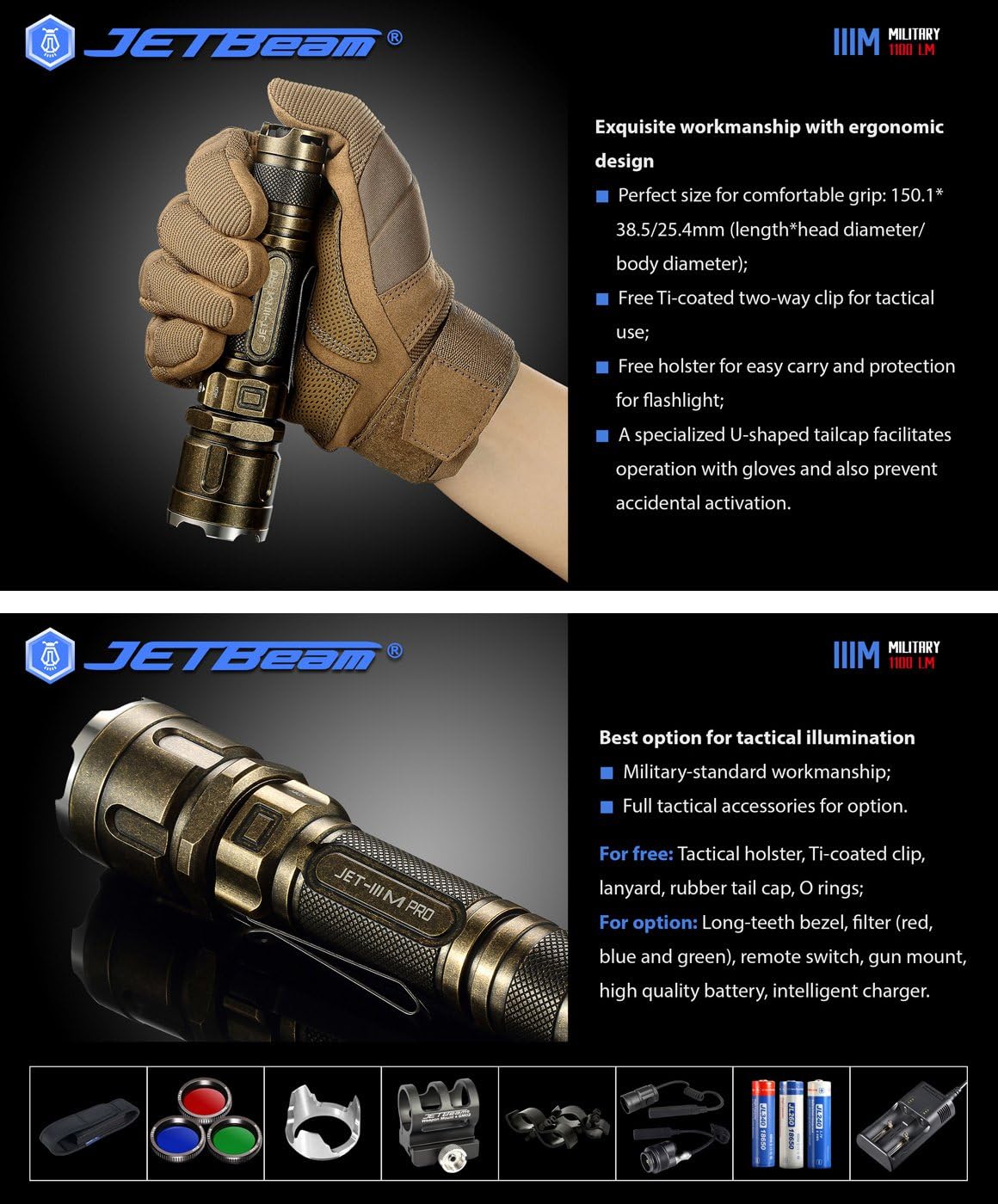

Image: The flashlight held in a gloved hand, illustrating its ergonomic design and the impressive 320-meter beam throw.

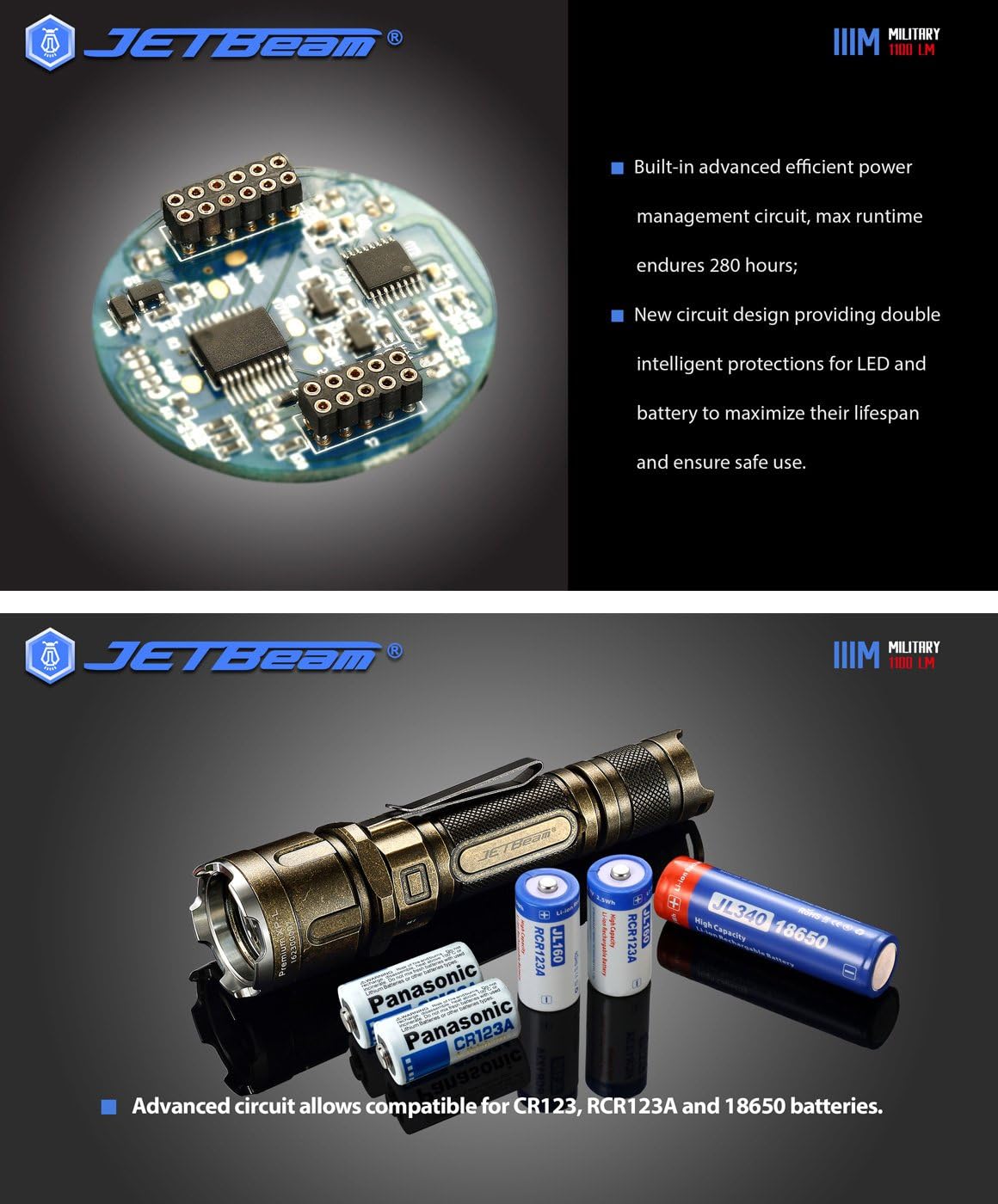

이미지: A view of the advanced circuit board and various compatible battery types (CR123, RCR123, 18650), showcasing the flashlight's versatile power options.
Image: The flashlight submerged in water, illustrating its IPX-8 waterproof capability (submersible up to 2 meters).
Image: The flashlight partially disassembled, showcasing its aircraft-grade aluminum construction and robust design elements.
3. 패키지 내용
Upon opening your JETBeam JET-IIIM 3M PRO package, please verify that all the following items are included:
- 1 x JETBeam JET-IIIM 3M PRO Flashlight
- 손전등 홀스터 1개
- 1 x Hand Rope (Lanyard)
- 예비 O-링
- Spare Tail Cap Button
Image: All included accessories: the flashlight, holster, hand rope, and spare parts.
4. 설정 및 배터리 설치
The JETBeam JET-IIIM 3M PRO requires one 18650 battery or two RCR123/CR123 batteries (not included). Follow these steps for proper battery installation:
- 손전등의 꼬리 캡을 시계 반대 방향으로 돌려서 풉니다.
- Insert the battery(ies) with the positive (+) terminal facing towards the head of the flashlight. Ensure correct polarity to prevent damage.
- Carefully screw the tail cap back on clockwise until it is securely tightened. Overtightening is not necessary but ensure a snug fit for proper electrical contact and waterproofing.
Note: Always use high-quality batteries. For optimal performance and safety, it is recommended to use protected 18650 batteries.
5. 사용 설명서
The JET-IIIM 3M PRO features a tactical tail switch and a head-rotation interface for mode selection.
5.1. 기본 작동 (뒷쪽 스위치)
- To Turn ON/OFF: Fully press the tail switch until a "click" is heard.
- 순간 켜짐: Lightly press and hold the tail switch for momentary illumination. Release to turn off.
5.2. Mode Selection (Head Rotation)
The flashlight offers two main operating modes: Tactical Mode and General Mode.
- Tactical Mode (Head Tightened): When the flashlight head is fully tightened, the flashlight operates in Tactical Mode. In this mode, the tail switch cycles through Turbo (1100 lumens) and Strobe.
- General Mode (Head Loosened): Loosen the flashlight head slightly (approximately a quarter turn) to enter General Mode. In this mode, the tail switch cycles through five different output levels: Ultralow, Low, Mid, High, and Turbo.
5.3. 메모리 기능
The flashlight features a memory function that remembers the last used brightness level in General Mode. When you turn the flashlight back on in General Mode, it will activate at the previously used brightness level (excluding Strobe).
6. 유지관리
Proper maintenance ensures the longevity and optimal performance of your JETBeam JET-IIIM 3M PRO flashlight.
- 청소: 손전등 본체를 부드러운 천으로 닦으세요.amp 옷감. 가혹한 화학 물질이나 연마재를 사용하지 마십시오.
- 나사산과 O-링: Periodically lubricate the threads and O-rings with silicone grease to maintain waterproofing and smooth operation. Replace O-rings if they appear damaged or worn.
- 배터리 관리 : Remove batteries if the flashlight will not be used for an extended period to prevent battery leakage and damage. Store batteries in a cool, dry place.
- 콘택트 렌즈: Keep the battery contacts and spring clean. If necessary, clean them with a cotton swab dipped in rubbing alcohol.
7. 문제 해결
If you encounter issues with your flashlight, please refer to the following common problems and solutions before seeking professional assistance.
| 문제 | 가능한 원인 | 해결책 |
|---|---|---|
| 손전등이 켜지지 않습니다 | 배터리가 소모되었거나 잘못 삽입되었습니다 | Replace or recharge battery; ensure positive (+) end faces the head. |
| Flashlight flickers or turns off intermittently | Loose tail cap; dirty contacts; low battery | Tighten tail cap; clean battery contacts and threads; replace or recharge battery. |
| 조명 출력이 어두움 | Low battery; dirty lens | Replace or recharge battery; clean the lens with a soft cloth. |
| Head rotation for mode change is stiff | Lack of lubrication on threads | Apply a small amount of silicone grease to the threads of the head. |
8. 사양
| 특징 | 사양 |
|---|---|
| 주도의 | Cree XP-L LED |
| 최대 출력 | 1100루멘 |
| 빔 거리 | 320미터(최대) |
| 반사기 | Precise aluminum reflector |
| 렌즈 | 반사방지 코팅이 된 강화된 초투명 미네랄 유리 |
| 재료 | 에어로 그레이드 알루미늄 합금 |
| 마치다 | Type III hard-anodized anti-abrasive finish (Grey) |
| 호환 배터리 | 1 x 18650 or 2 x RCR123 / CR123 |
| 스위치 | Reliable tactical tail switch |
| Dimensions (Length x Head Dia. x Body Dia.) | 150.1mm x 38.5mm x 25.4mm |
| 무게(배터리 제외) | 151g |
| 방수 등급 | IPX-8 (수심 2미터까지 방수) |
| 충격 저항성 | 1.5 meters (US MIL-STD-810F) |
9. 보증 및 지원
JETBeam products are manufactured to high quality standards. Specific warranty terms and conditions are typically provided with your product packaging or can be found on the official JETBeam web사이트. 보증 청구를 위해 구매 증빙 자료를 보관하세요.
For technical support, service, or warranty inquiries, please contact your authorized JETBeam dealer or visit the official JETBeam web연락처 정보 사이트.
