소개
This manual provides essential information for the safe and efficient operation of your Steinel RS 16 LED Glass Interior Lamp. Please read these instructions carefully before installation and use, and retain them for future reference.
The Steinel RS 16 LED is an advanced interior light featuring an integrated 360° high-frequency motion sensor. It is designed for wall or ceiling mounting and provides efficient LED illumination with an opal glass cover for uniform light distribution.
Image: The Steinel RS 16 LED lamp seamlessly integrated into a modern hallway ceiling, providing ambient lighting.
안전 정보
- 설치는 국가 배선 규정 및 지역 전기 규정에 따라 자격을 갖춘 전기 기술자가 수행해야 합니다.
- Ensure the power supply is disconnected before commencing any installation, maintenance, or repair work.
- 제품을 열지 마세요asing. 내부에는 사용자가 수리할 수 있는 부품이 없습니다.
- 이 제품은 실내에서만 사용하도록 설계되었습니다.
- LED 조명이 켜져 있을 때는 LED 광원을 직접 쳐다보지 마십시오.
- 포장재료를 어린이의 손이 닿지 않는 곳에 보관하세요.
패키지 내용
설치하기 전에 모든 구성 요소가 있는지 확인하세요.
- Steinel RS 16 LED Glass Interior Lamp 단위
- Mounting accessories (screws, wall plugs, gaskets)
- 사용자 설명서

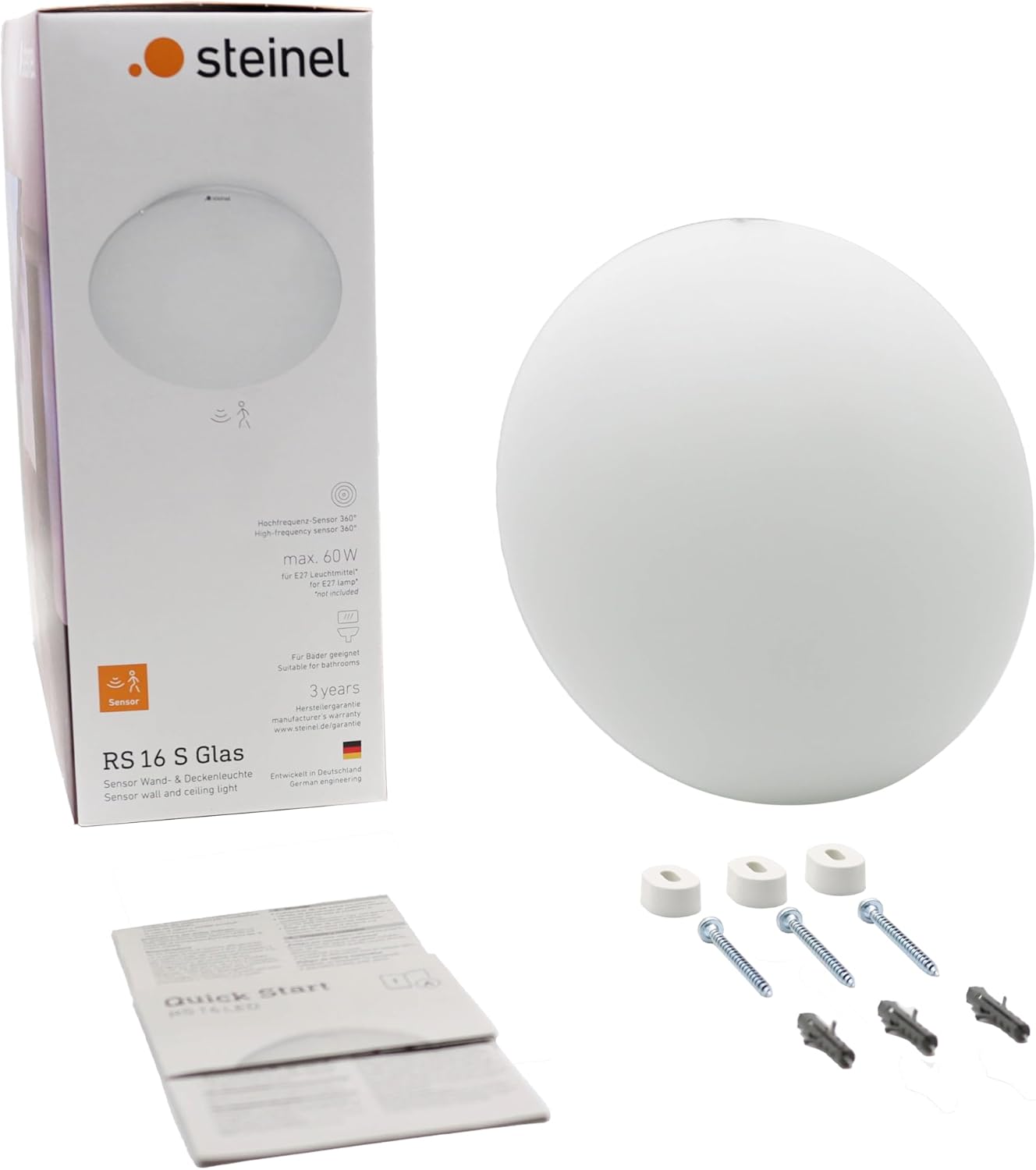

Image: The product packaging displaying the Steinel RS 16 LED lamp, mounting hardware, and user manual.
설정 및 설치
올바른 설치를 위해 다음 단계를 따르세요.
- 준비: Disconnect the main power supply at the fuse box. Ensure the area is clear and safe for installation.
- 장착 위치: Choose a suitable wall or ceiling location. The high-frequency sensor can detect movement through lightweight materials like glass and wood, so consider this when positioning.
- 베이스 플레이트 설치: l을 보안하세요amp's base plate to the chosen surface using the provided mounting accessories. Use appropriate screws and wall plugs for your surface type.
- 배선: Connect the electrical wires (Live, Neutral) to the corresponding terminals on the lamp. Ensure connections are secure and insulated.
- L 부착amp 몸: l을 조심스럽게 부착하세요amp body to the base plate, ensuring it is properly seated and secured.
- 복원력 : Once installation is complete and all connections are secure, restore power at the fuse box.
Image: A round white ceiling lamp with motion detection, showcasing its modern design and suitability for various indoor spaces.
작동 지침
The Steinel RS 16 LED lamp features adjustable settings for optimal performance:
- 감지 범위: The sensor's detection range can be adjusted from 3 to 8 meters. Use the dedicated control knob on the lamp to set the desired range.
- 황혼의 문턱: Adjust the light sensitivity (twilight threshold) to determine at what ambient light level the sensor will activate the lamp. This prevents the light from turning on during daylight hours.
- 조명 지속 시간: Set how long the lamp remains illuminated after motion is detected and no further movement is registered.
- 네트워킹: Multiple RS 16 LED lamps can be networked together. This allows them to activate simultaneously when motion is detected by any networked unit, making it ideal for long corridors or stairwells. Refer to the detailed wiring diagram in the included manual for networking instructions.
Image: Multiple Steinel RS 16 LED lamps installed in a series, demonstrating their suitability for illuminating long corridors or hallways.
유지
To ensure the longevity and optimal performance of your Steinel RS 16 LED lamp:
- 청소: l을 청소하다amp's exterior and opal glass cover regularly with a soft, damp 천으로 닦으세요. 연마성 세제나 용제는 표면을 손상시킬 수 있으므로 사용하지 마세요.
- 점검: 주기적으로 c에 손상 흔적이 있는지 확인하십시오.asing or wiring. If damage is found, disconnect power and contact a qualified electrician for repair.
- LED : The integrated LED system is designed for long-term use and does not require replacement.
문제 해결
| 문제 | 가능한 원인 | 해결책 |
|---|---|---|
| Lamp 켜지지 않습니다. | No power supply; incorrect wiring; sensor settings too low (twilight threshold). | Check power connection; verify wiring by a qualified electrician; adjust twilight threshold setting. |
| Lamp 계속해서 켜져 있습니다. | Continuous motion detected; illumination duration set too long; faulty sensor. | Check for constant movement in the detection area; adjust illumination duration; if problem persists, contact support. |
| Lamp turns on without apparent motion. | Sensor sensitivity too high; environmental factors (e.g., drafts, small animals). | Reduce sensor sensitivity; ensure sensor is not obstructed or exposed to unintended triggers. |
| Sensor detection range is too small/large. | 범위 설정이 잘못되었습니다. | Adjust the detection range control knob. |
| Internal relay makes a clicking noise. | 릴레이의 정상 작동. | This is a normal operational sound and does not indicate a fault. |
명세서
| 특징 | 세부 사항 |
|---|---|
| 상표 | 슈타이넬 |
| 모델명 | RS 16 LED |
| 제품 유형 이름 | 실내 천장 조명 |
| 색상 | 하얀색 |
| 재료 | Plastic, Glass (Shade) |
| 품목 치수(LxWxH) | 27.5L x 27.5W x 9.5Hcm |
| 제품 무게 | 1.27 킬로그램 |
| 권tage | 230 볼트 |
| 왓tage | 9.3 와트 |
| 광속 | 918 lm |
| 밝은 색상 | 따뜻한 흰색 |
| 전구 유형 | LED (일체형) |
| 정착물 특징 | Motion Sensor (360° HF) |
| 감지 범위 | 3-8 미터 |
| 제어 방법 | Touch (manual control knobs for settings) |
| 실내/실외 사용 | 실내 |
| 장착 유형 | 천장 장착, 표면 장착 |
| 조립이 필요합니다 | 예 |
| 원산지 | 루마니아 |
Image: Technical drawing illustrating the dimensions (length, width, height) of the Steinel RS 16 LED lamp in millimeters.
보증 정보
The Steinel RS 16 LED Glass Interior Lamp 와 함께 제공됩니다 3년 제조사 보증. 본 보증은 정상적인 사용 환경에서 발생하는 재료 및 제조상의 결함에 적용됩니다. 보증 청구를 위해 구매 증빙 서류를 보관해 주십시오.
For detailed warranty terms and conditions, refer to the documentation included with your product or visit the official Steinel web대지.
지원하다
For further assistance, technical support, or to inquire about spare parts, please contact Steinel customer service. You can find contact information on the official Steinel web사이트 또는 지역 유통업체를 통해 구매하세요.
온라인 리소스: For additional product information, FAQs, and support, please visit the 슈타이넬 브랜드 스토어.
